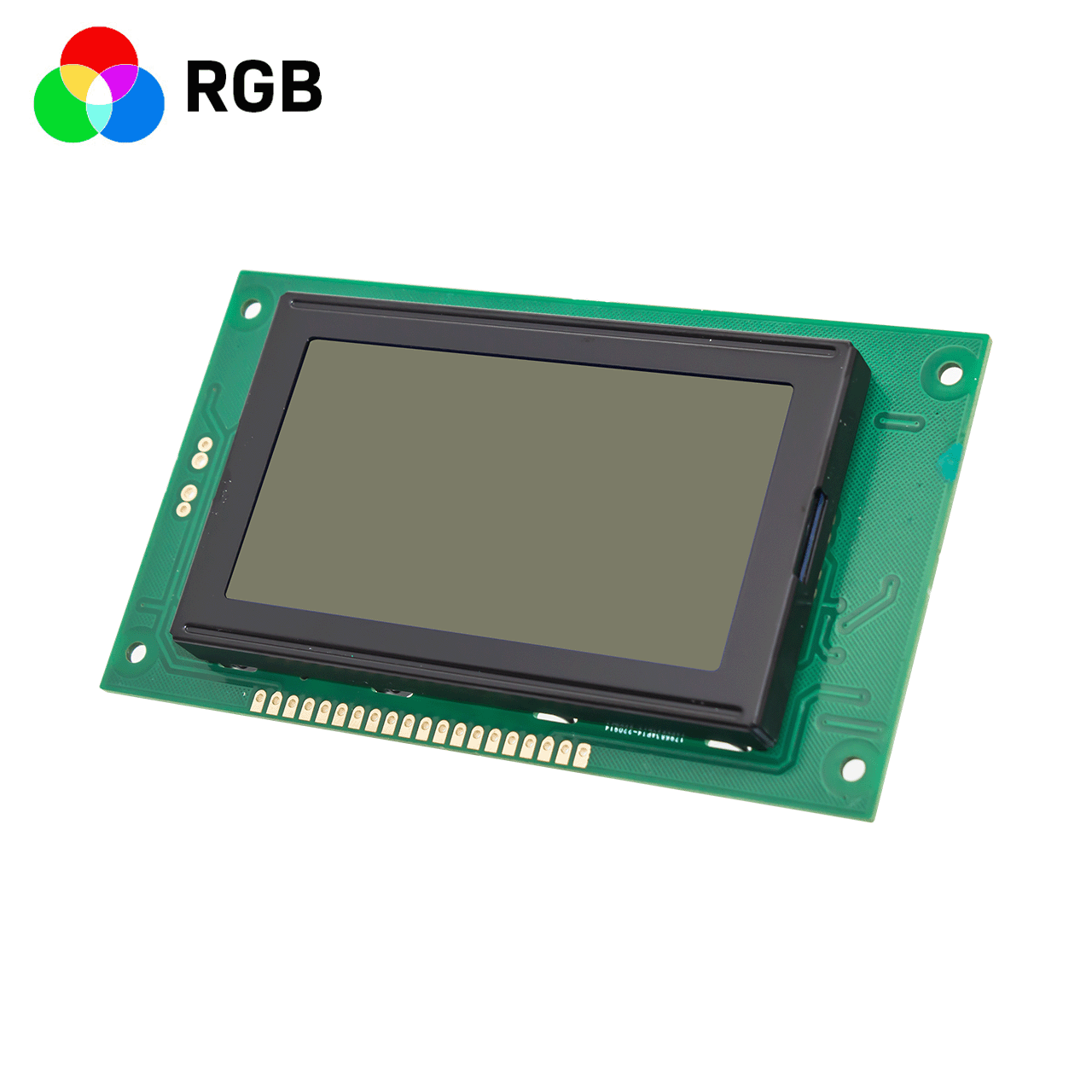

3.2"128X64 monochrome graphic LCD module | with yellow-green backlight | FSTN(+) | MCU interface | Arduino

3.2"128X64 monochrome graphic LCD module | with yellow-green backlight | FSTN(+) | MCU interface | Arduino | KS0107+KS0108 or compatible

▶ Model: HTM12864A-35S-A5P

▶ Type: Standard COB LCD module
▶ Display pixels: 128x64

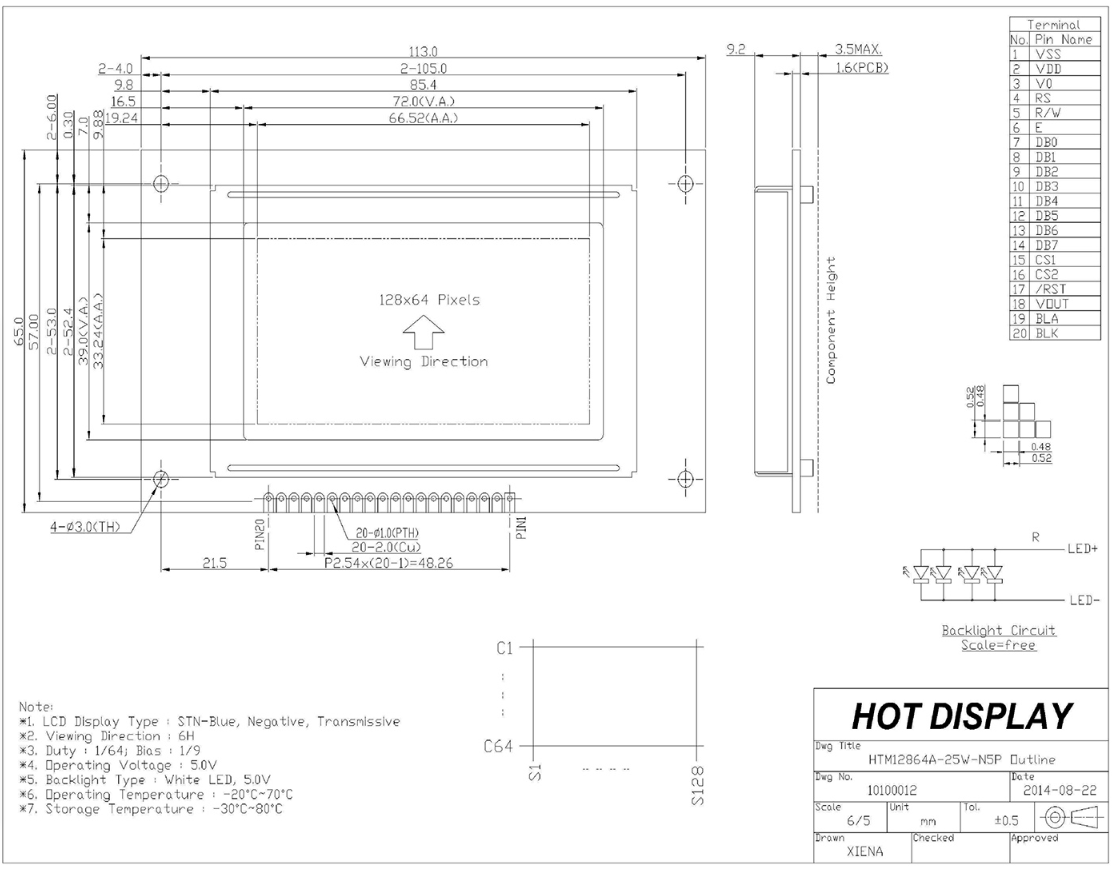

▶ Dimensions (mm): 113.0x65.0x12.7
▶ VA size (mm): 72.0x39.5
▶ AA size (mm): 66.52x33.24
▶ Pixel pitch (mm): 0.52x0.52
▶ Application: Industrial control
▶ Viewing angle: 6H
▶ Backlight/brightness: red/green/blue light
▶ Pin: 20PIN
▶ Interface: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 5.0v
▶ Driver chip: KS0108 +KS0107

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

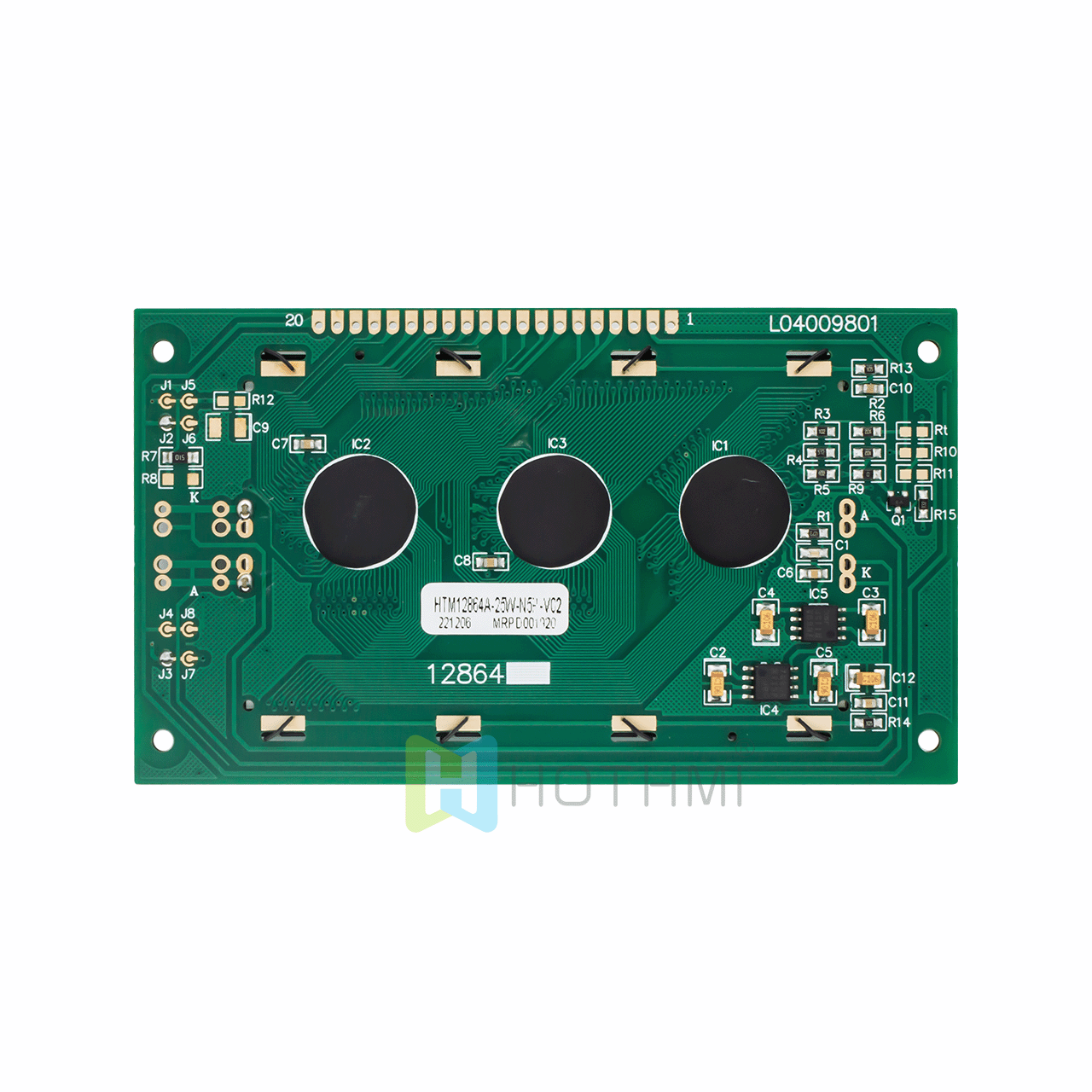

HTM12864A-35S-A5P | 128X64 Graphic LCD Module | With RGB Backlight | FSTN(+) | MCU Interface | Arduino | KS0107+KS0108 or Compatible

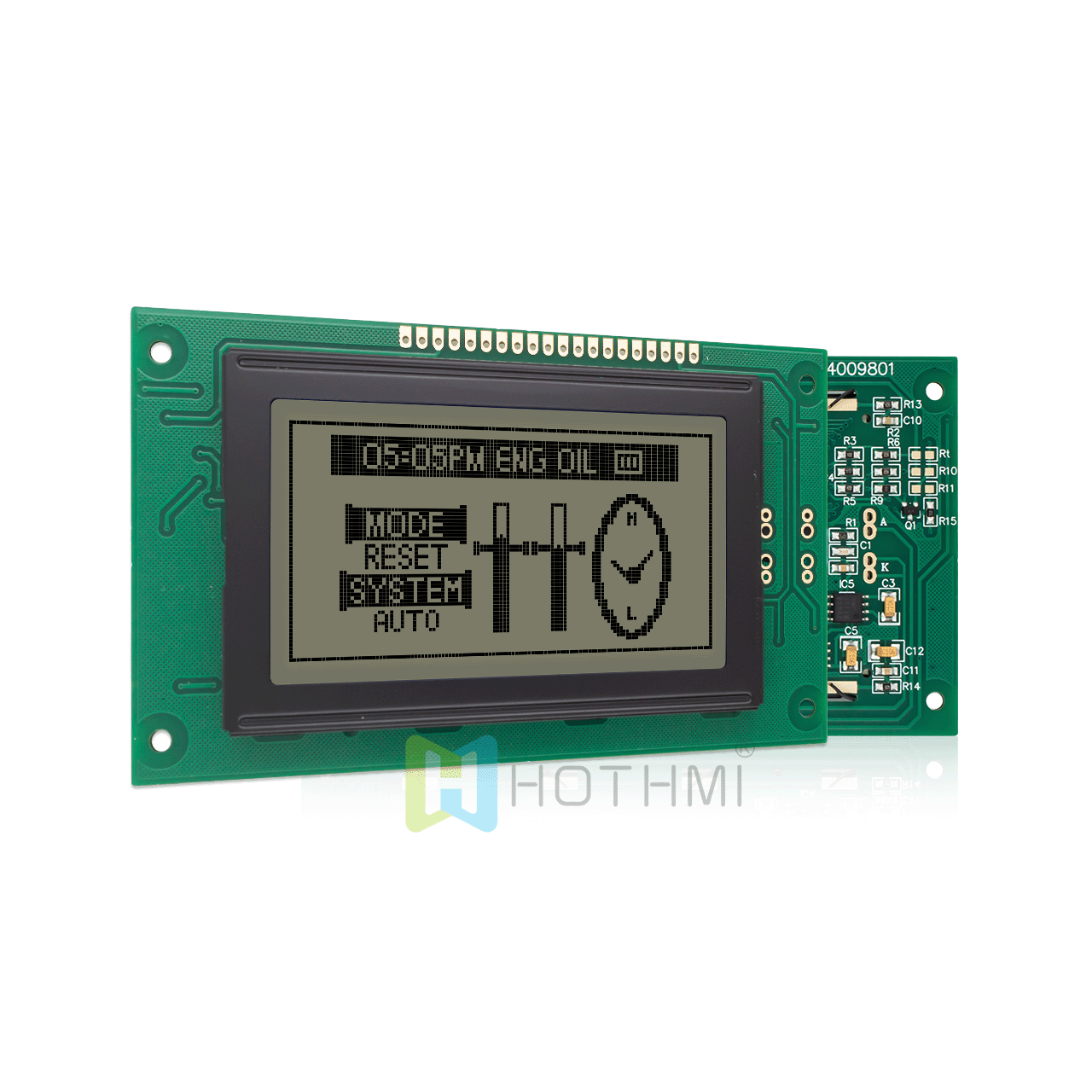

This 128x64 LCD module can display dark gray pixels on a red, green, and blue background. This improved LCD monitor is designed to provide optimal visibility in a variety of lighting conditions in a variety of environments. Under sunlight, the fully transparent polarizer makes the display interface brighter and clearer, making the screen easier to read. In darker environments, the LCD has a powerful built-in backlight, and the backlight color is RGB red, green, and blue. Provides high contrast and displays clear graphics to viewers.
