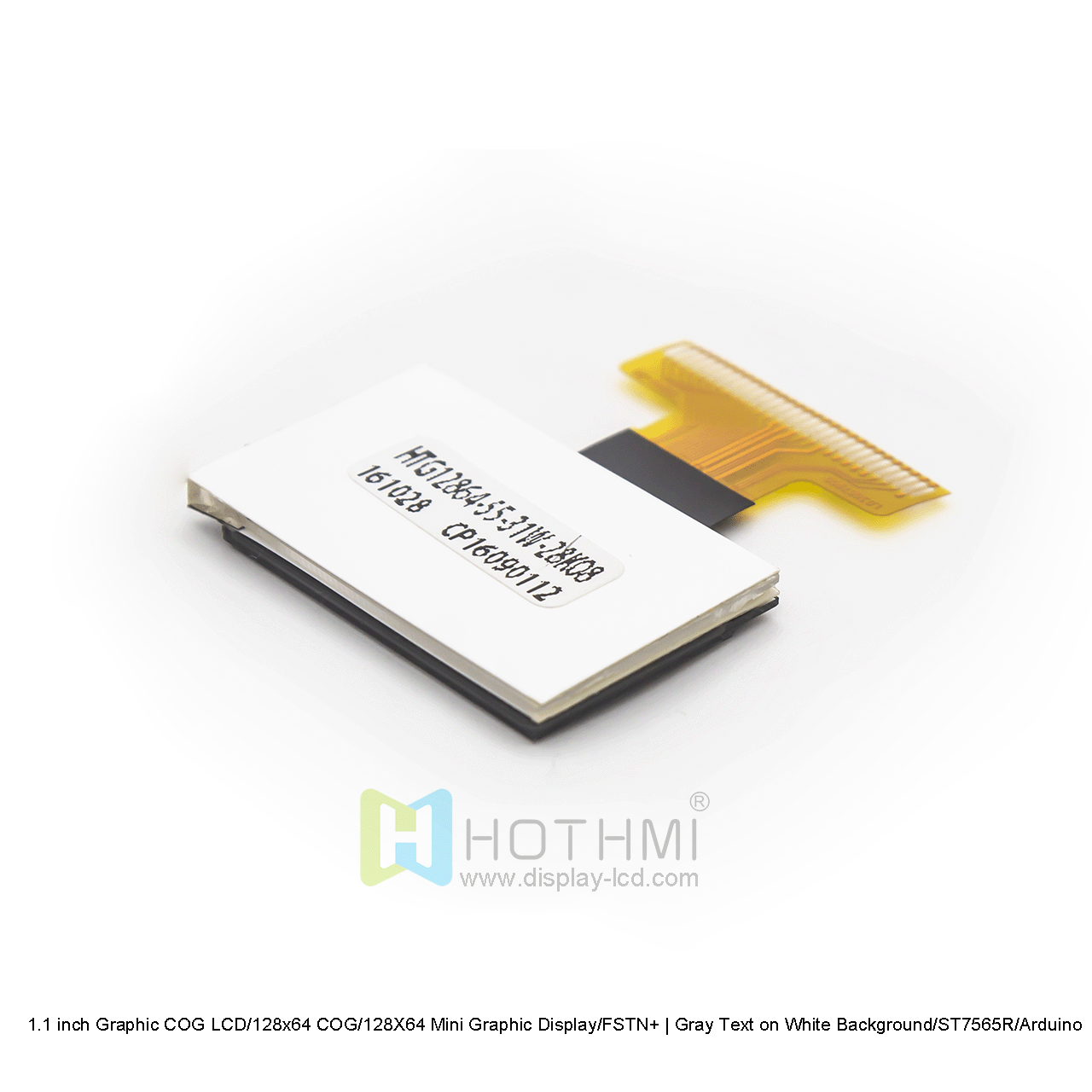

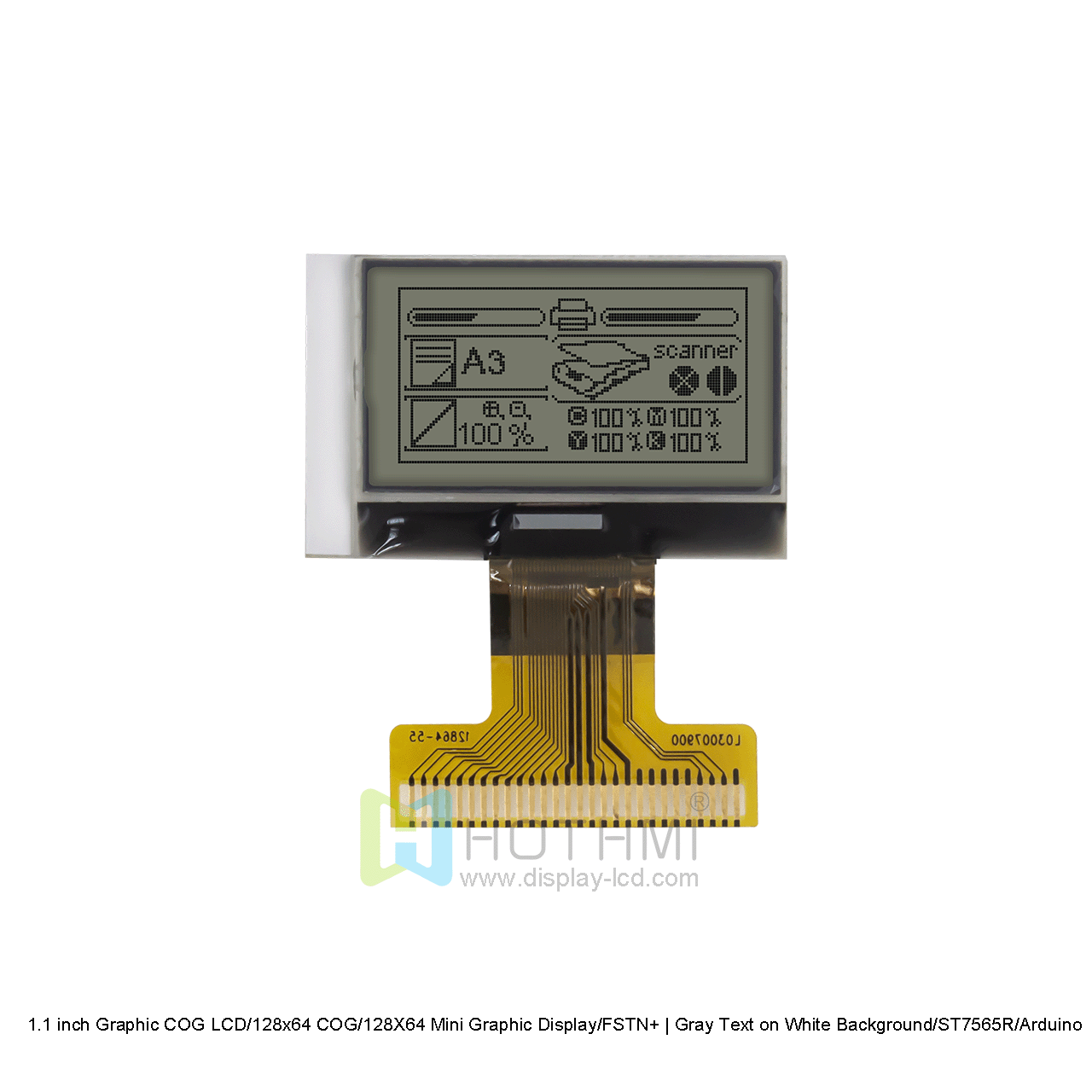

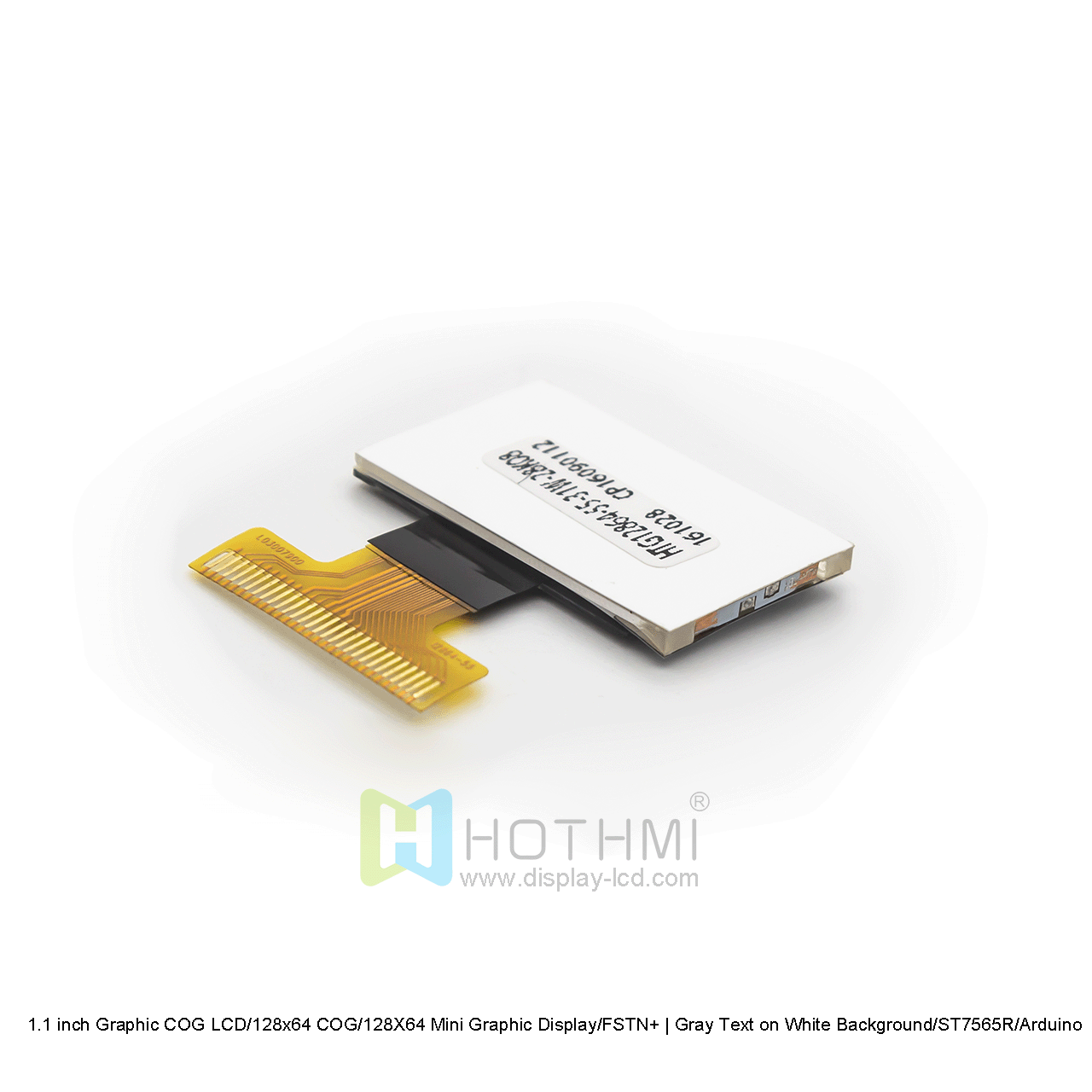

1.1 inch Graphic COG LCD/128x64 COG/128X64 Mini Graphic Display/FSTN+ | Gray Text on White Background/ST7565R/Arduino

1.1 inch Graphic COG LCD/128x64 COG/128X64 Mini Graphic Display/FSTN+ | Gray Text on White Background/ST7565R/Arduino

▶ Model: HTG12864-55-31W-A3P

▶ Type: COG graphic module
▶ Display pixels: 128x64
▶ Dimensions (mm): 28.55x20.1x1.7
▶ VA size (mm): 26.15x13.9
▶ AA size (mm): 23.02x11.5
▶ Pixel pitch (mm): 0.18x0.18
▶ Application: Instrumentation
▶ Viewing angle: 6H
▶ Backlight/brightness: White light
▶ Pin: FPC-12PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 3.3V
▶ Driver chip: ST7565R

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

1.1 inch Graphic COG LCD/128x64 COG/128X64 Mini Graphic Display/FSTN+ | Gray Text on White Background/ST7565R/Arduino
This HOT DISPLAY 1.1 inch Graphic COG LCD/128x64 COG/128X64 Mini Graphic Display/FSTN+ | Gray Text on White Background/ST7565R/Arduino displays dark gray pixels on a white background. This translucent LCD display is designed to provide optimal visibility in a variety of lighting conditions in many different environments. Under the translucency of the polarizer, the image is reflected to the viewer, making the screen easy to read. In darker environments, the LCD has a strong backlight built in to provide high contrast and display clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions.
This graphic LCD display module is fully compatible with Arduino/C8051 and can be seamlessly connected with other electronic systems for a variety of applications. This model is designed to withstand harsh working conditions and will not operate properly when used in a temperature range of -20 to 70 degrees Celsius. Mini size, exquisite and beautiful, clear display, industrial control level support for long-term use. The LCD has an optimal viewing angle of 6:00, an operating voltage of 3.3V, and is RoHS compliant.

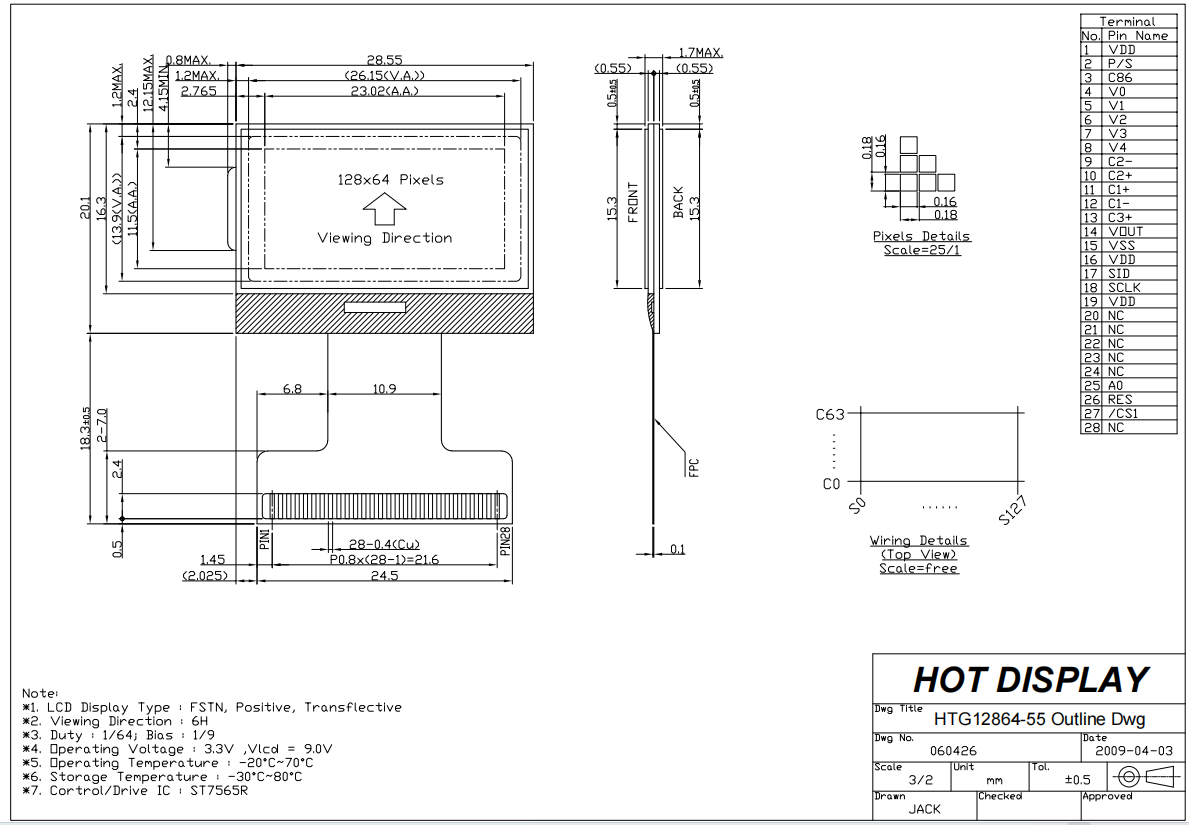

Item	Specification content	Unit
Model	HTG12864-55-31W-A3P
Column × Row	128 × 64	dots
Module Size	28.55 x 20.1 x 1.7 (MAX)	mm
Visual (VA) Area	26.15 x 13.9	mm
Active (AA) Area	23.02 x 11.5	mm
Pixel Pitch	0.18 x 0.18	mm
IC	ST7565R
Power Supply Voltage	3.3	V
Backlight	White
Mode	FSTN(+)
Drive Mode (Duty)	1/64 duty cycle
Type	Graphic COG
Features	Transflective
