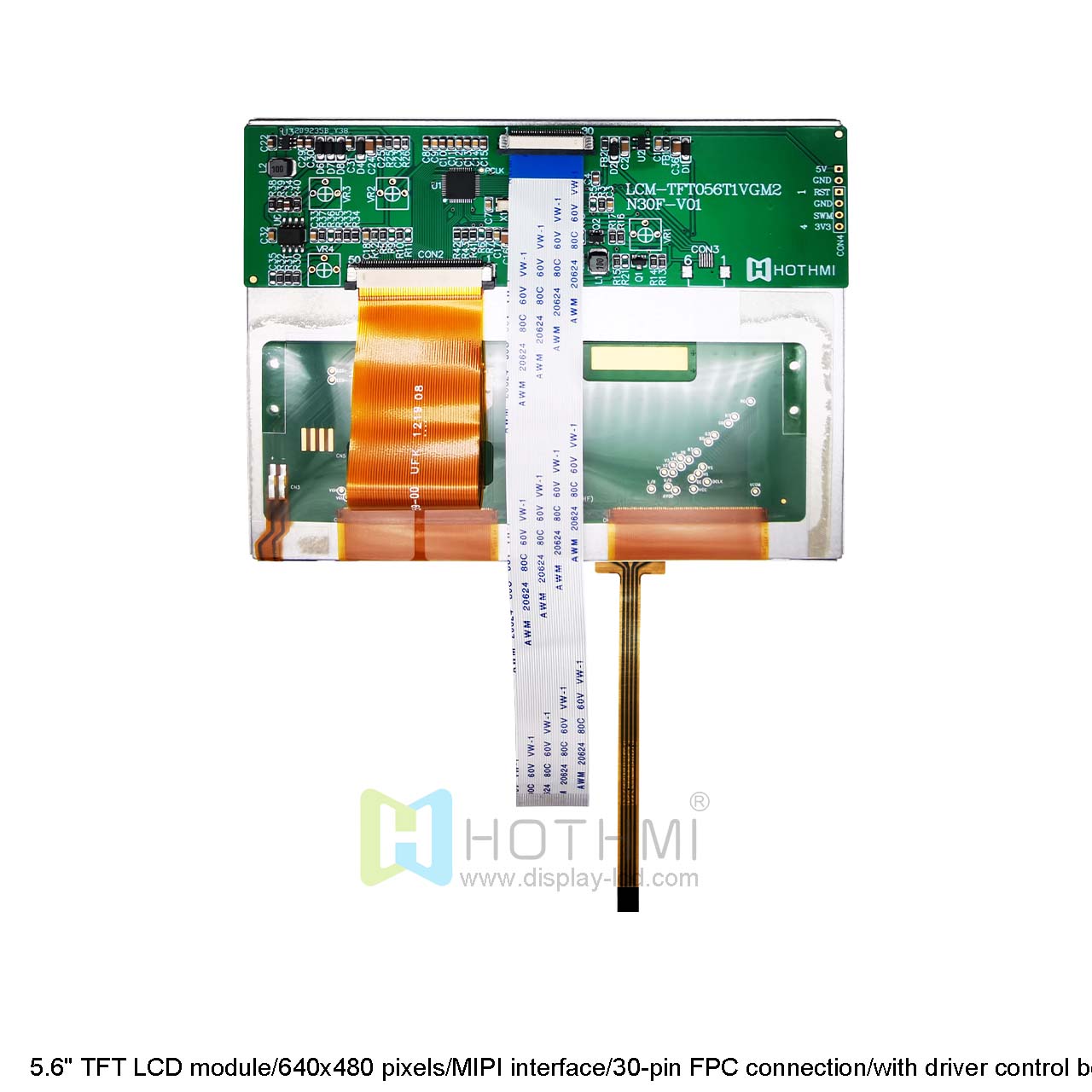

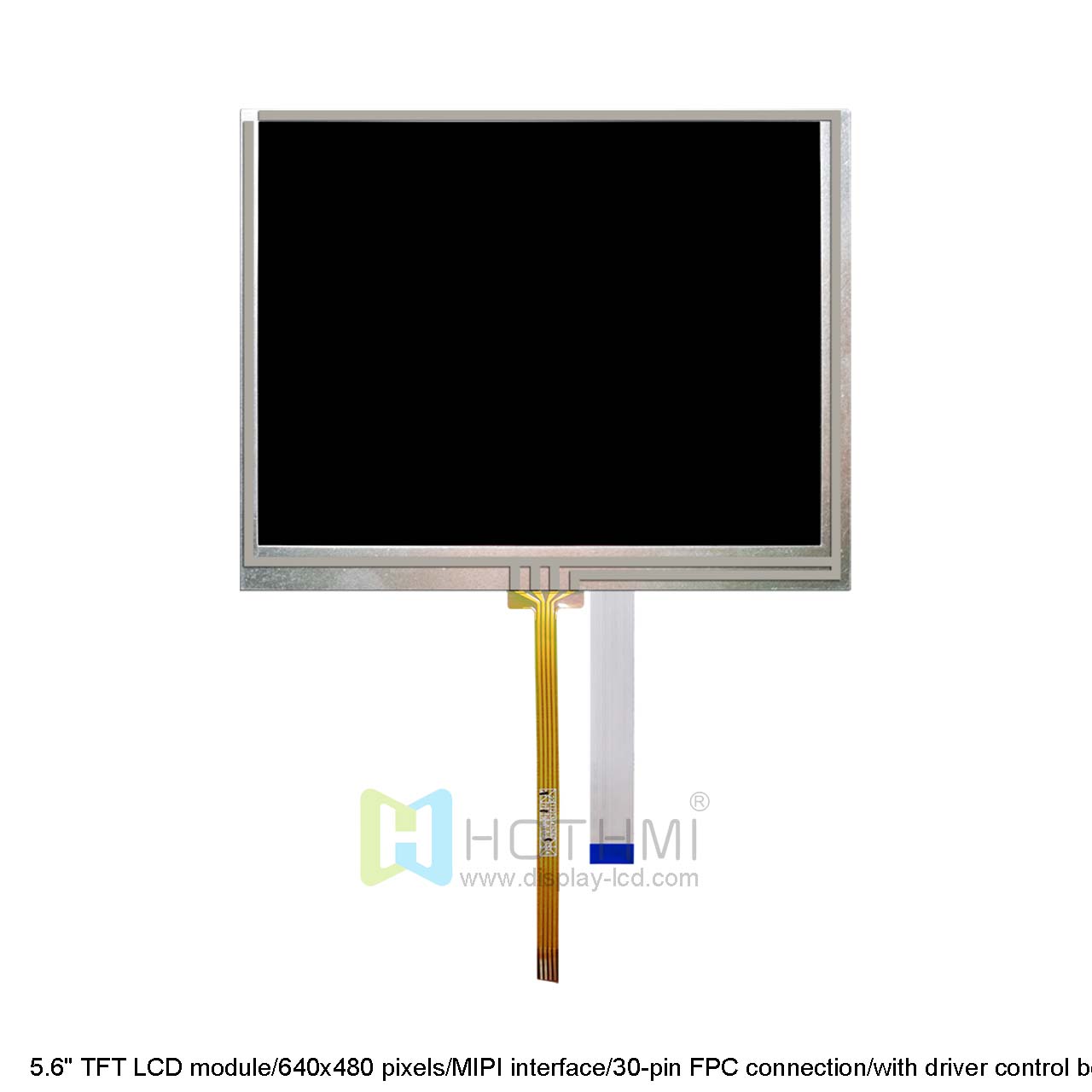

5.6" TFT LCD module/640x480 pixels/MIPI interface/30-pin FPC connection/with driver control board/optional capacitive/resistive touch screen/Android motherboard/RK motherboard series display

5.6" TFT LCD module/640x480 pixels/MIPI interface/30-pin FPC connection/with driver control board/optional capacitive/resistive touch screen/Android motherboard/RK motherboard series display

▶ Model: LCM-TFT056T1VGM2N30F-RTP

▶ Type: TFT display module
▶ Display content: 640x480
▶ Dimensions (mm): 126.5x100x9.5
▶ Display inches: 5.6"
▶ AA size (mm): 112.9x84.67
▶ Application: office equipment, technical equipment, home appliances, etc.
▶ Viewing angle: full viewing angle
▶ Brightness: 250cd/m2
▶ PIN: 30pin
▶ Interface mode: MIPI
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 5.0V

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

No Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes

5.6"TFT LCD module/640x480 pixels/MIPI interface/30-pin FPC connection/with driver control board/optional capacitive/resistive touch screen/Android motherboard/RK motherboard series display
This TFT module uses IPS full-viewing technology to ensure clear and vivid image display at various viewing angles. The anti-static design enables it to have 8KV ESD protection capability, effectively preventing static electricity from damaging the module. The brightness is as high as 250cd/M², which enables it to perform well under various lighting conditions. The 640x480 display pixels provide high-definition images, allowing users to experience delicate and clear visual effects. The display of this display module The display part is transmitted by 30PIN pins. Whether in extreme temperature environments or under normal working conditions, LCM-TFT056T1VGM2N30F-V01 performs well, and its operating temperature range (-20~70℃) ensures reliability in various application scenarios.
Overall, LCM-TFT056T1VGM2N30F-V01 is a high-performance TFT module tailored for embedded systems, providing excellent visual experience and reliability, and is an ideal choice for Android or RK projects. Our displays all meet RoHS standard, and comply with strict environmental and safety standards.

Datasheet for Touch Panel,Controller

Name	Date	Size
LCM-TFT056T1VGM2N30F-V01	January 01, 1970	2.07MB

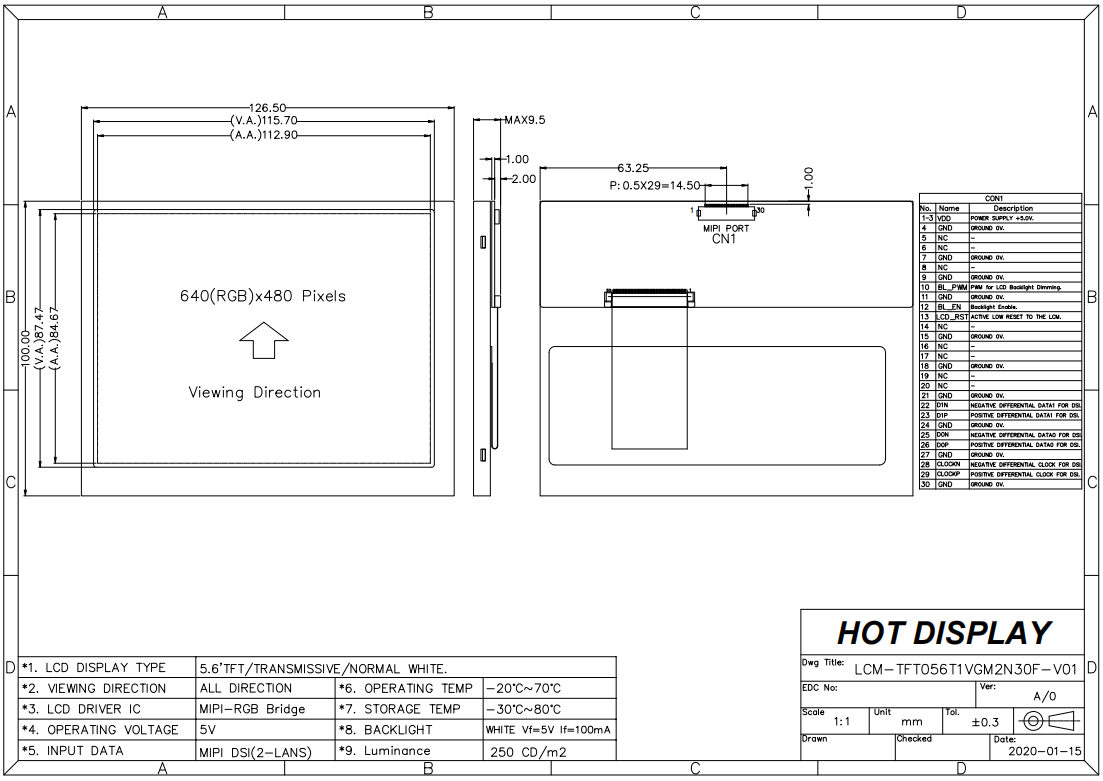

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	LCM-TFT056T1VGM2N30F-V01
Diagonal size	5.6”	Inch
Resolution	640x480	Dot
Dimensions	126.5x100x9.5	mm
Active area (AA)	112.9x84.67	mm
LCD type	TFT LCD Display	mm
Display viewing angle	Full View
Aspect ratio	3:2
Backlight type	LED white
TFT driver IC	-
Brightness	250cd/m2	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
