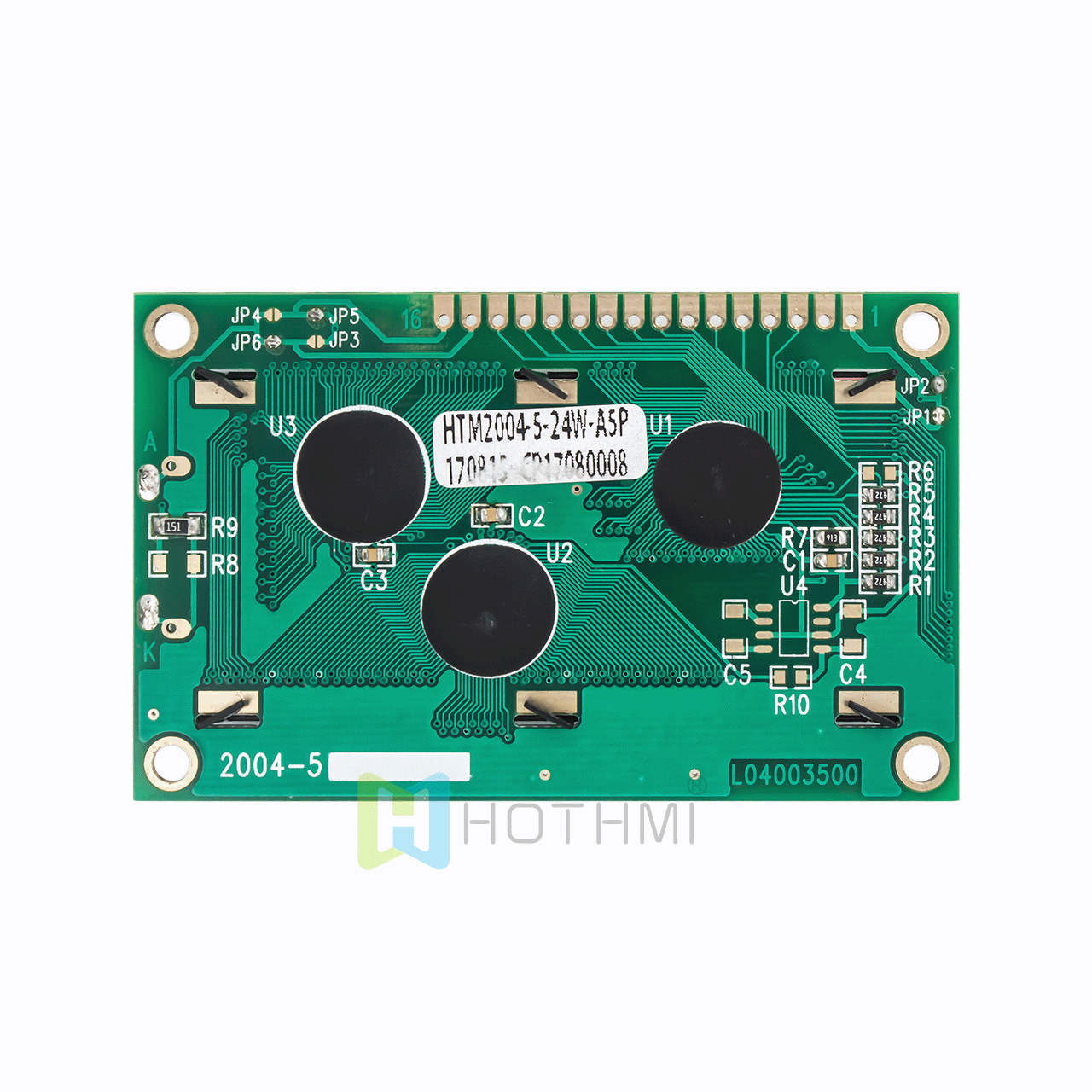

▶ Model: HTM-2004-5-01Y-A5P

▶ Type: 4X20 character LCD module
▶ Display content: 20x4 characters

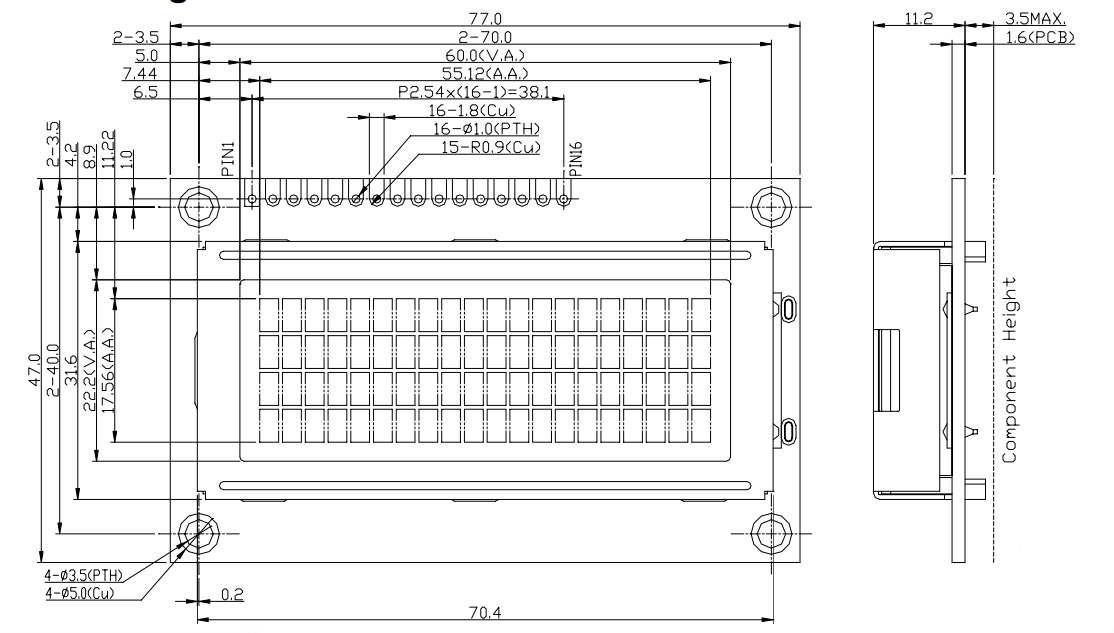

▶ Dimensions (mm): 77.0x47.0x14.7
▶ VA size (mm): 60.0x22.2
▶ AA size (mm): 55.12x17.56
▶ Pixel pitch mm: 0.47 x 0.51
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight type: yellow-green light
▶ Number of PINs: 16PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 5.0V
▶ Driver chip: ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

4X20 character LCD module/STN positive display monochrome/yellow-green backlight/Arduino/transflective LCD display/3.3v/5.0v

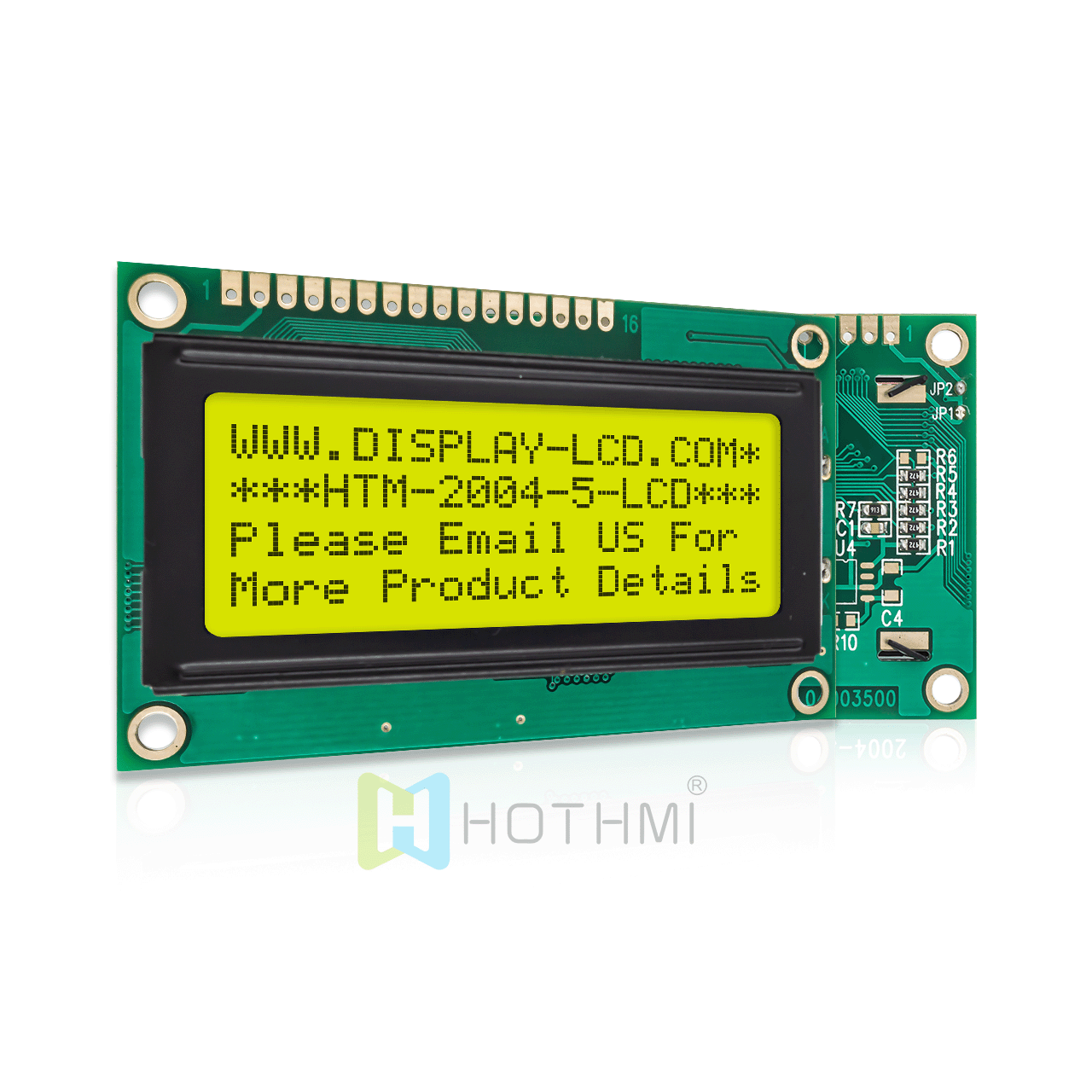

4X20 character LCD module characters as black pixels on a yellow-green background when turned on. This transmissive LCD display requires a backlight to be clearly visible and offers a wide operating temperature range of -20 to 70 degrees Celsius. This HTM2004-5-01Y-A5P serial interface display is fully compatible with Arduino, making it a convenient choice for DIY electronics projects and educational purposes. This display has an ideal viewing angle of 6:00, operates at 5V, and is RoHS compliant.
