2X16 Character LCD Display | STN+ Yellow/Green with Side Yellow/Green Backlight-Arduino

2X16 Character LCD Display | STN+ Yellow/Green with Side Yellow/Green Backlight-Arduino

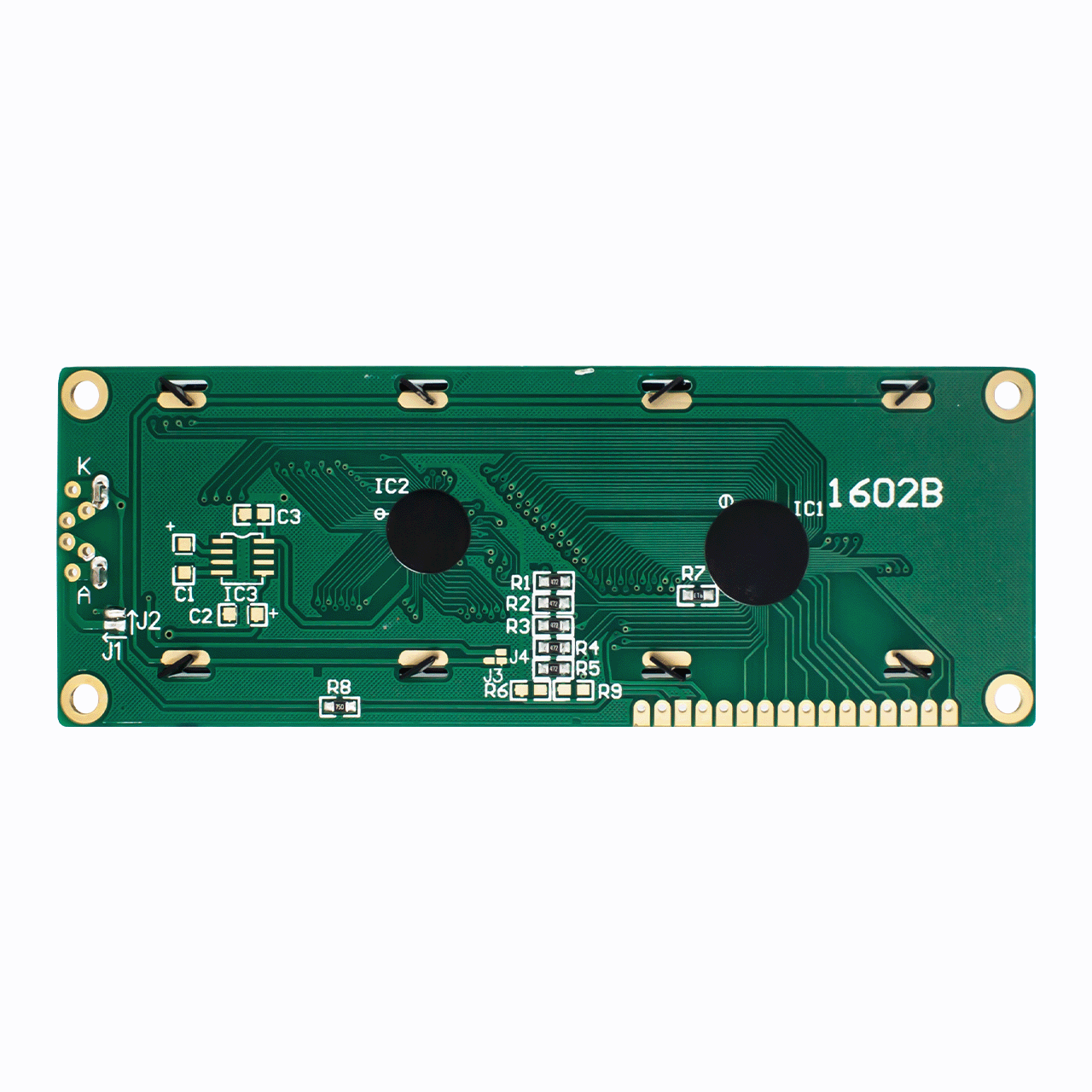

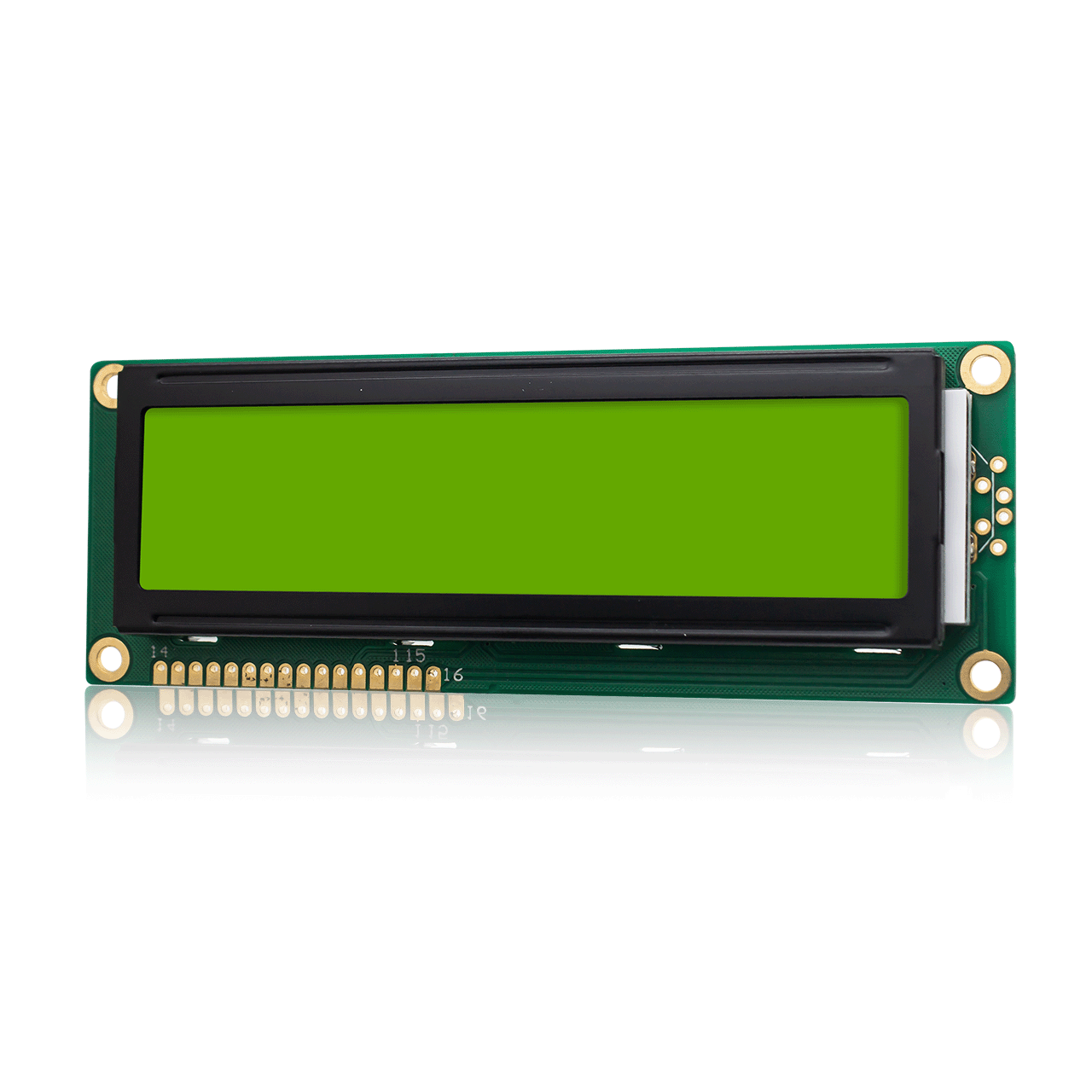

▶ Model: HTM1602B-01Y-A5P

▶ Type: Standard COB character LCD module
▶ Display content: 16x2 characters

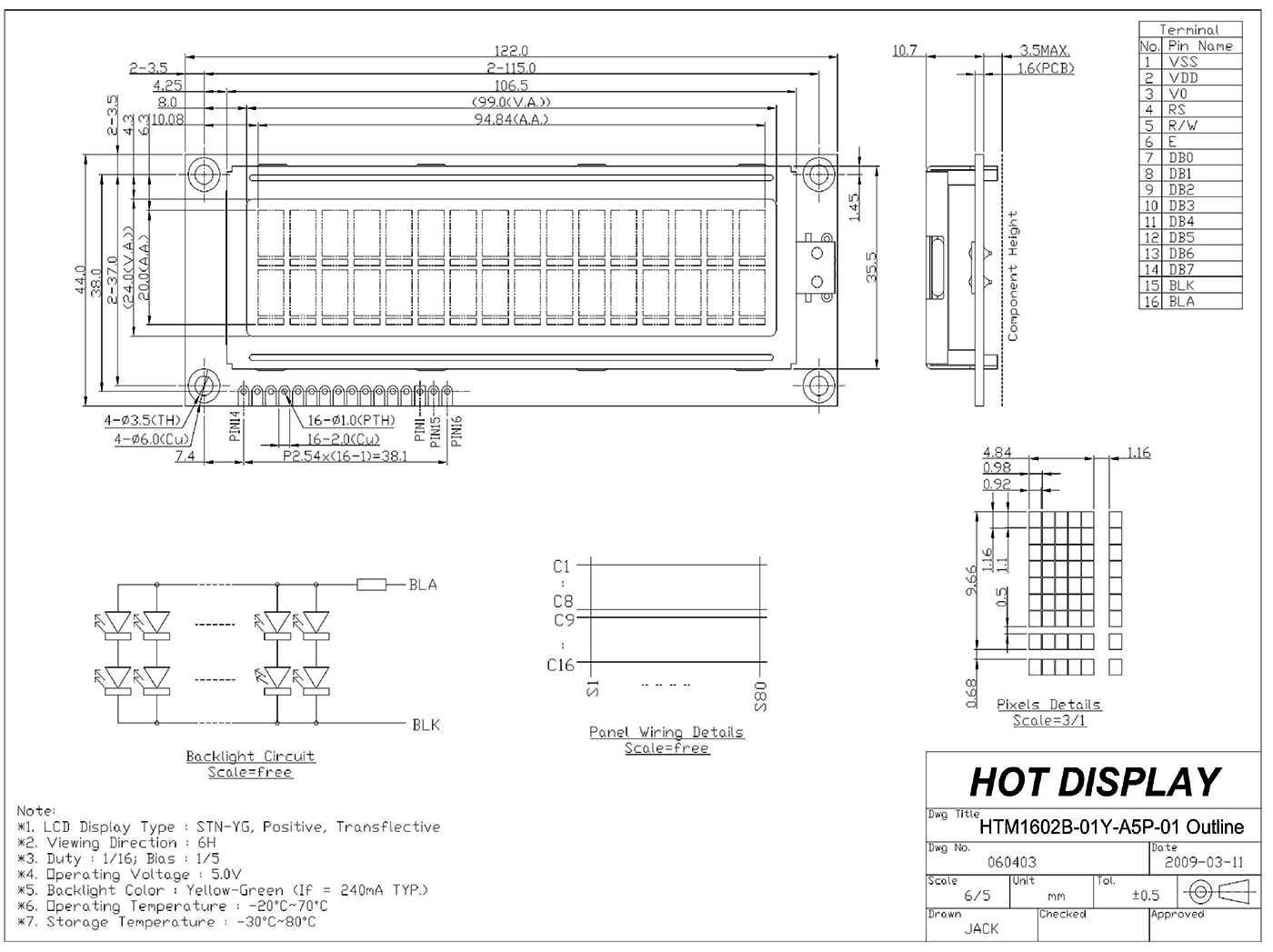

▶ Overall dimensions (mm): 122.0x44.0x14.6
▶ VA size (mm): 99.0x24.0
▶ AA size (mm): 94.8x20.0
▶ Point spacing mm: 0.98x1.16
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight type: yellow-green light
▶ Number of PINs: 16PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Supply voltage: 5.0V
▶ Driver chip: ST7066U
