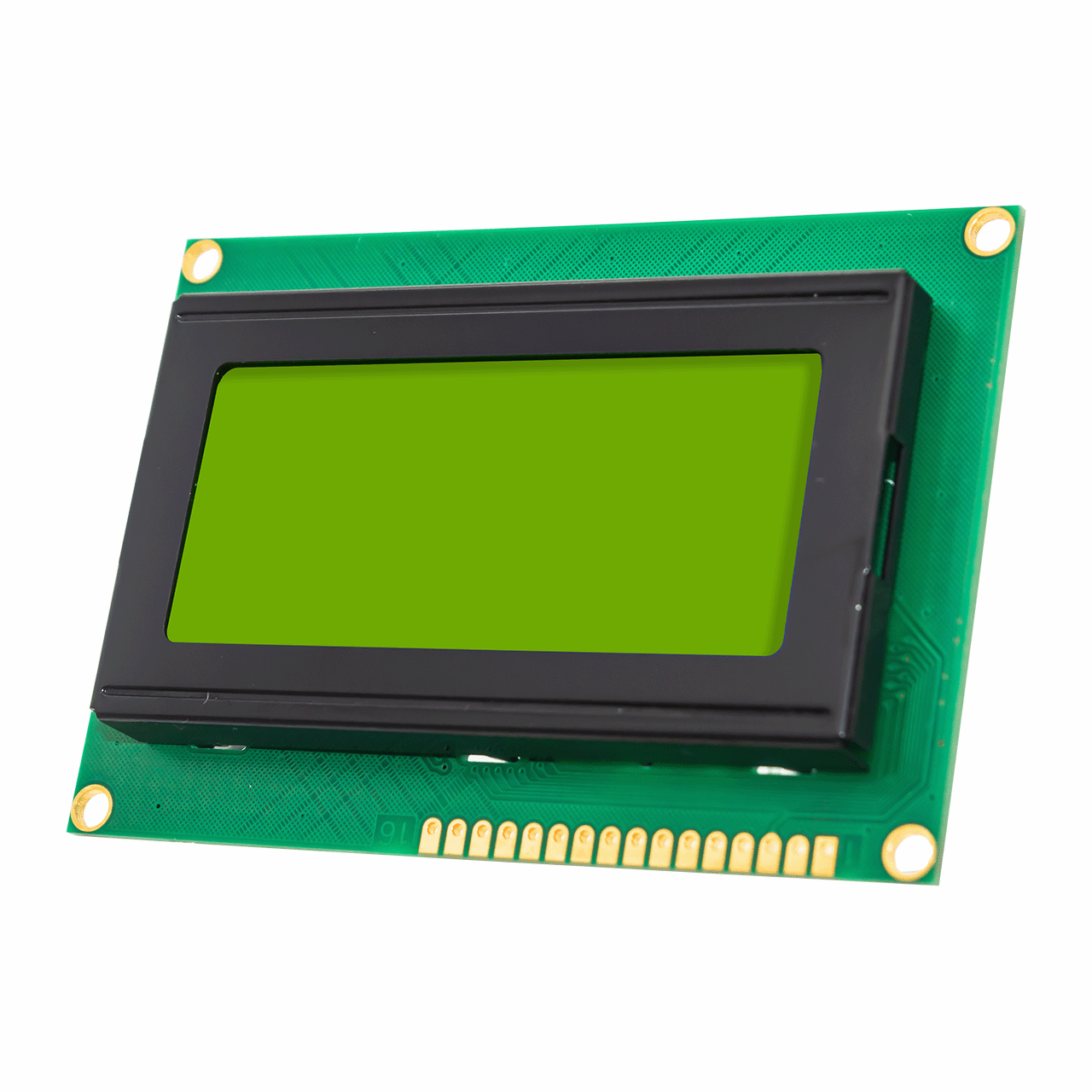

Character LCD Module |4x16 STN(+)Y/G MONO Display with Yellow/green Side Backlight | Arduino | MCU Interface

Character LCD Module |4x16 STN(+)Y/G MONO Display with Yellow/green Side Backlight | Arduino | MCU Interface | ST7066U Controller

▶ Model: HTM1604B-01Y-A5P

▶ Type: Character LCD Module
▶ Display content: 4x16 characters

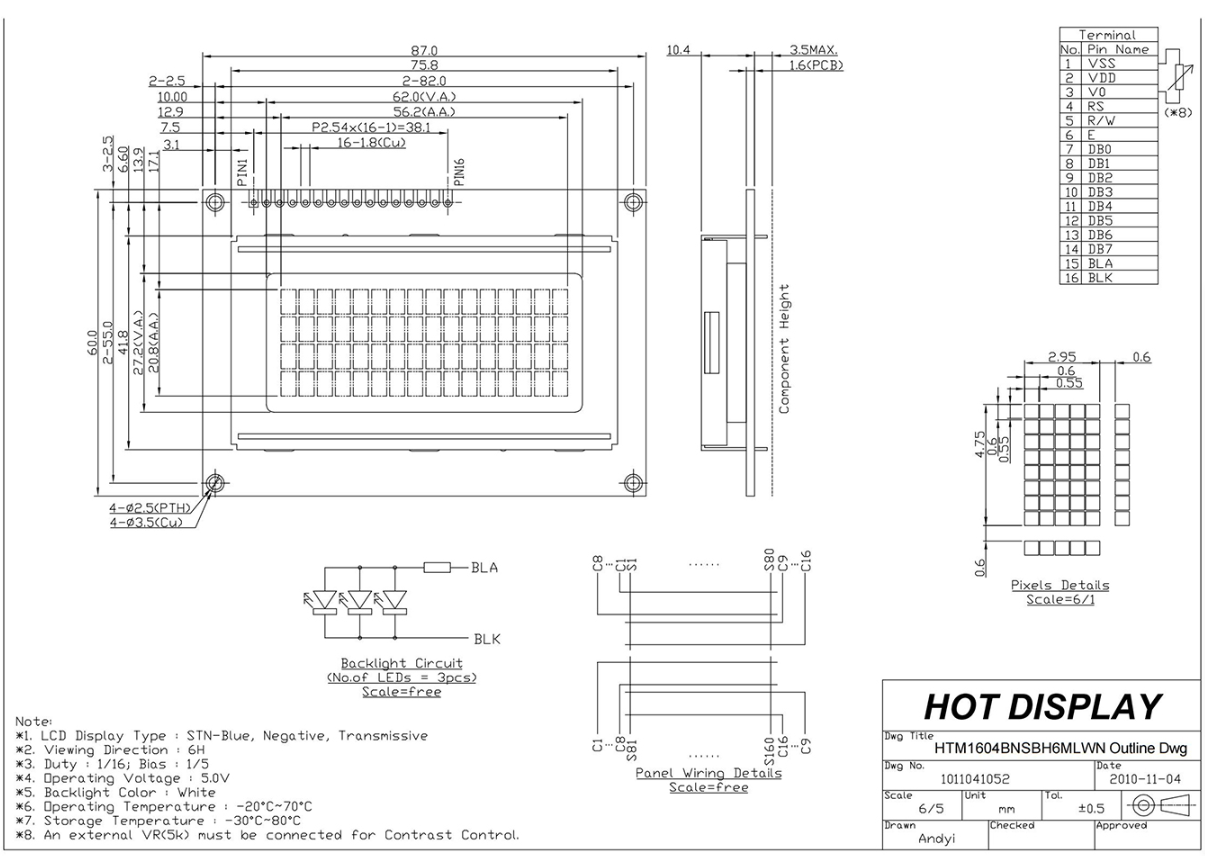

▶ Overall dimensions (mm): 87x60x10.4
▶ VA size (mm): 62x27.2
▶ AA size (mm): 56.2x20.8
▶ Point spacing mm: 0.6x0.6
▶ Product application: Instrumentation
▶ Viewing angle: 6H
▶ Backlight: yellow/green
▶ Connection method PIN number: 16pin
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Supply voltage: 5.0V
▶ Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

Character LCD Module |4x16 STN(+)Y/G MONO Display with Yellow/green Side Backlight | Arduino | MCU Interface | ST7066U Controller

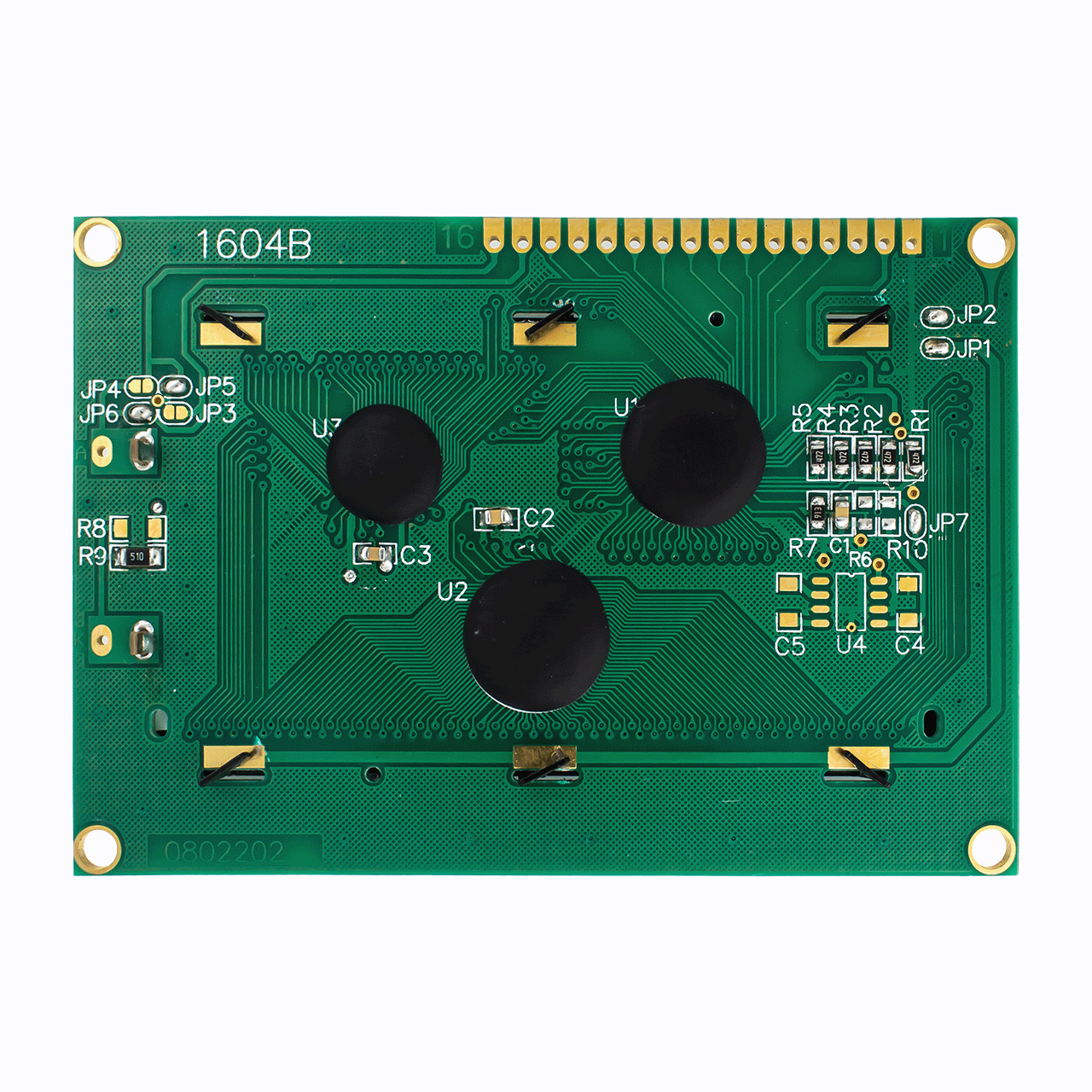

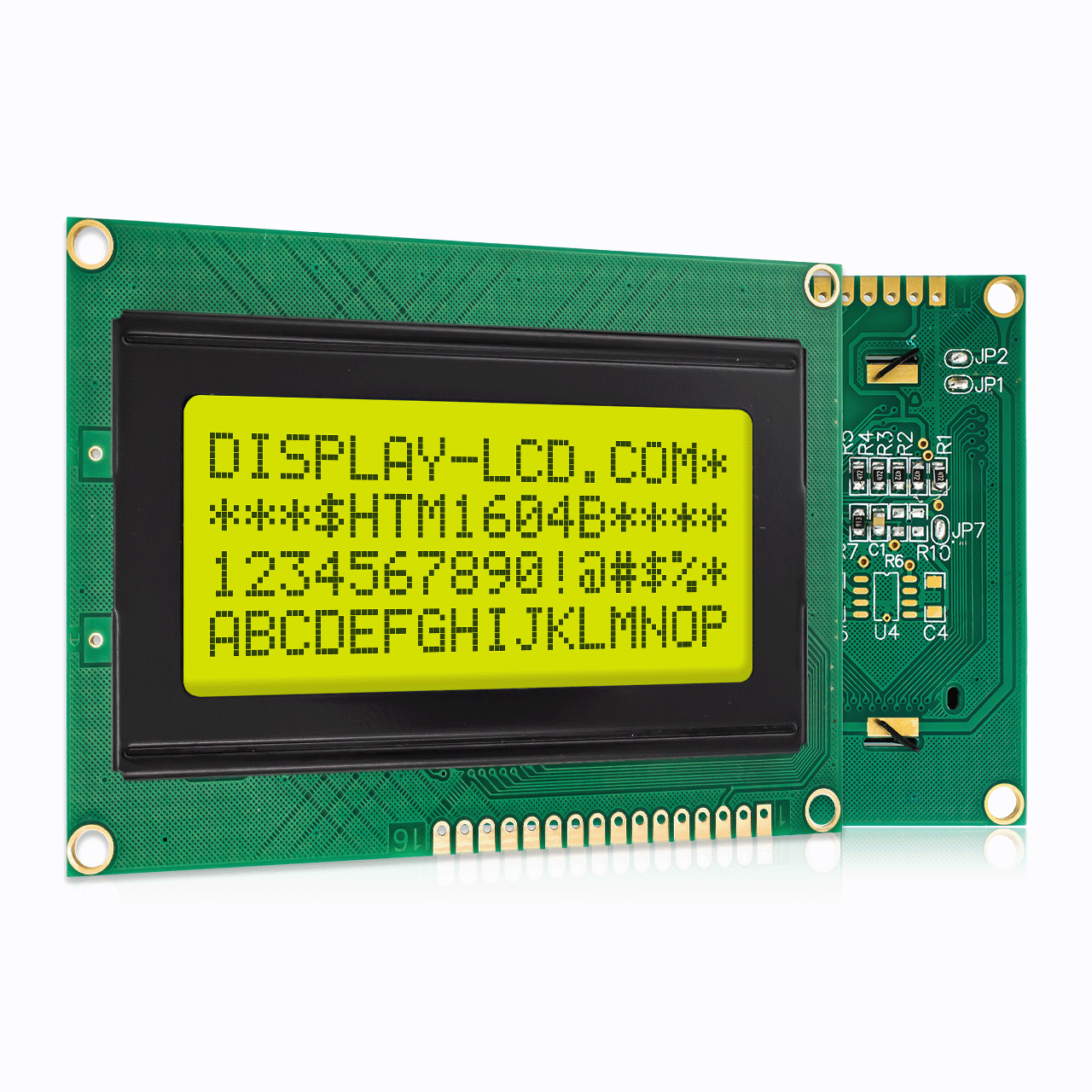

The Character LCD Module 4X16 character LCD display displays characters with dark pixels on a gray background. Due to its bright backlight, the visibility of the monitor is not affected even in strong sunlight. This single line 2-character display screen is designed for robust performance and can operate effectively in a wide temperature range of -20 to 70 degrees Celsius, making it ideal for various environments. The HTM1604B-01Y-A5P model has been carefully designed to provide the best viewing effect at a 6:00 angle, ensuring that users can easily read from different positions. This monitor operates at a voltage of 5V and is compatible with Arduino and other development boards. It comes with an ST7066U controller and supports customization of various sizes, backlighting, PCB boards, English Russian or English European word libraries, and complies with RoHS standards.

project	Specification content	unit
model	HTM1604B-01Y-A5P
words × lines	16words × 4lines	dots
Module size	87x60x10.4 (MAX)	mm
Visual (VA) area	62x27.2	mm
Valid (AA) area	56.2x20.8	mm
Point (pixel) spacing	0.6x0.6	mm
IC	ST7066U
voltage	5V	V
backlight	Yellow/green backlight
model	STN(+)
Drive mode (Duty)	1/16 duty cycle
type	Character LCD module
characteristic	Semi transparent reflective polarizer
