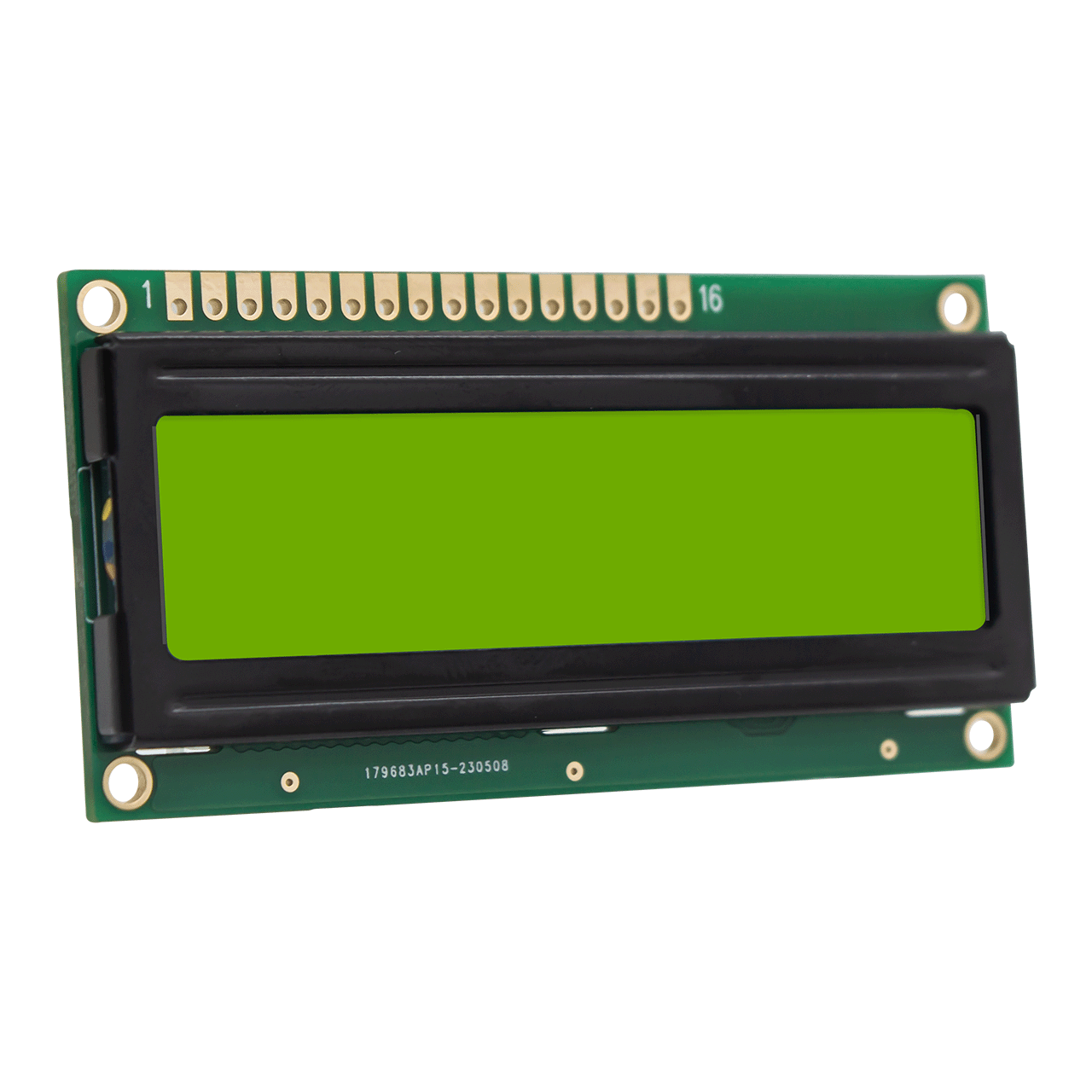

character LCD module |Monochrome-2X16 STN+ yellow-green with yellow/green side backlight-Arduino

character LCD module |Monochrome-2X16 STN+ yellow-green with yellow/green side backlight-Arduino

▶ Model: HTM1602-12-01Y-A5P

▶ Type: character LCD module
▶ Display content: 16x2 characters

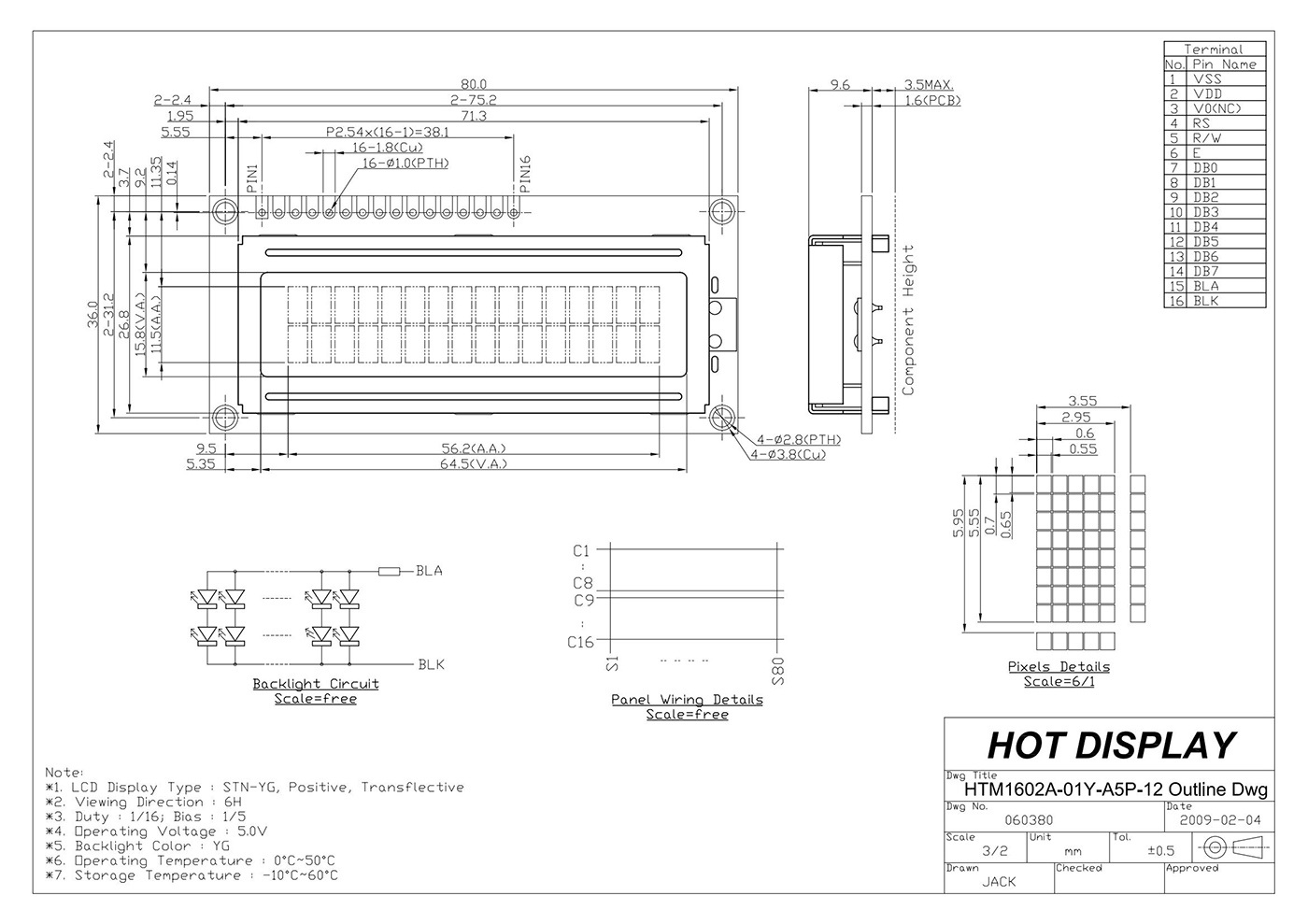

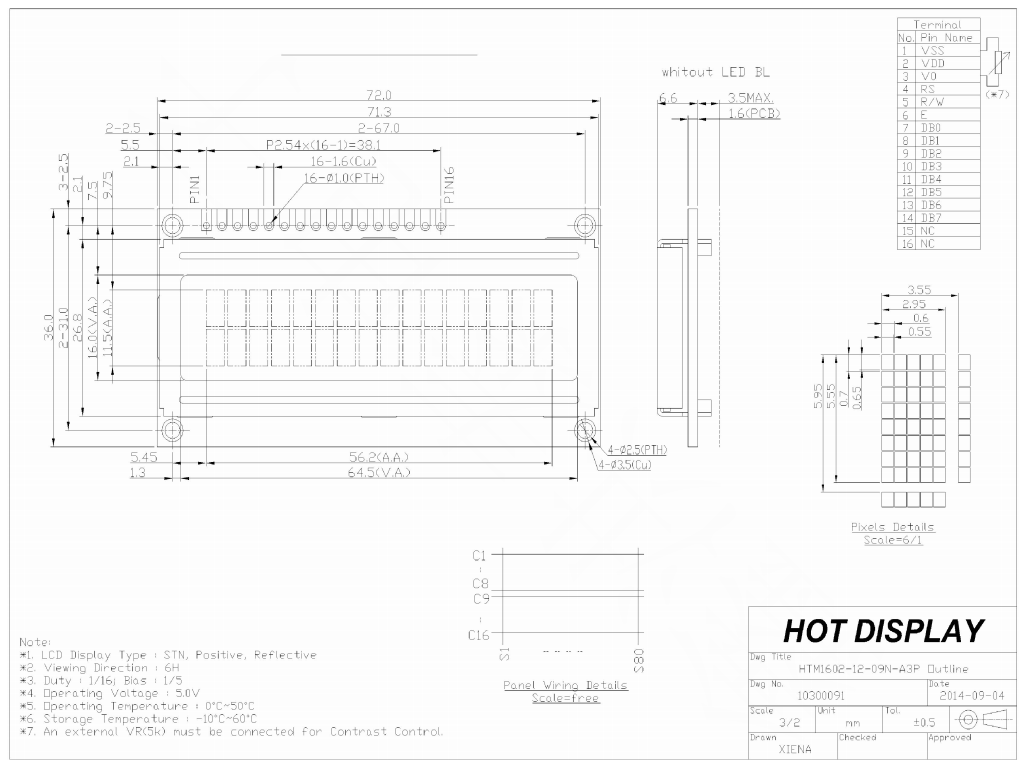

▶ Overall dimensions (mm): 72.0x36.0x10.1
▶ VA size (mm): 64.5x16.0
▶ AA size (mm): 56.2x11.5
▶ Point spacing mm: 0.6x0.7
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight type: white light
▶ Connection method PIN number: 16PIN
▶ Interface mode: MCU/8bit
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0V
▶ Driver chip: ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

character LCD module |Monochrome-2X16 STN+ yellow-green with yellow/green side backlight-Arduino
The character LCD module is a 16x2 character display with transflective LCD technology that displays dark pixels on a yellow/green background and provides excellent visibility in both ambient light conditions and green side light. The wide operating temperature range is -20 to 70 degrees, so the display is suitable for indoor and outdoor use. It has a built-in ST7066U driver and a flexible cable that provides an optimal view at 6:00. In addition, it is RoHS compliant and adheres to environmentally friendly standards.

Item	Specification content	Unit
model	HTM1602-12-01Y-A5P
words × lines	16words × 2lines	dots
Module size	72.0x36.0x10.1(MAX)	mm
Visual (VA) area	64.5x16.0	mm
Valid (AA) area	56.2x11.5	mm
Point (pixel) spacing	0.6x0.7	mm
IC	ST7066U
voltage	5V	V
backlight	Yellow/green light
model	STN(+)
Drive mode (Duty)	1/16 duty cycle
type	Character LCD Module
characteristic	Transflective polarizer
