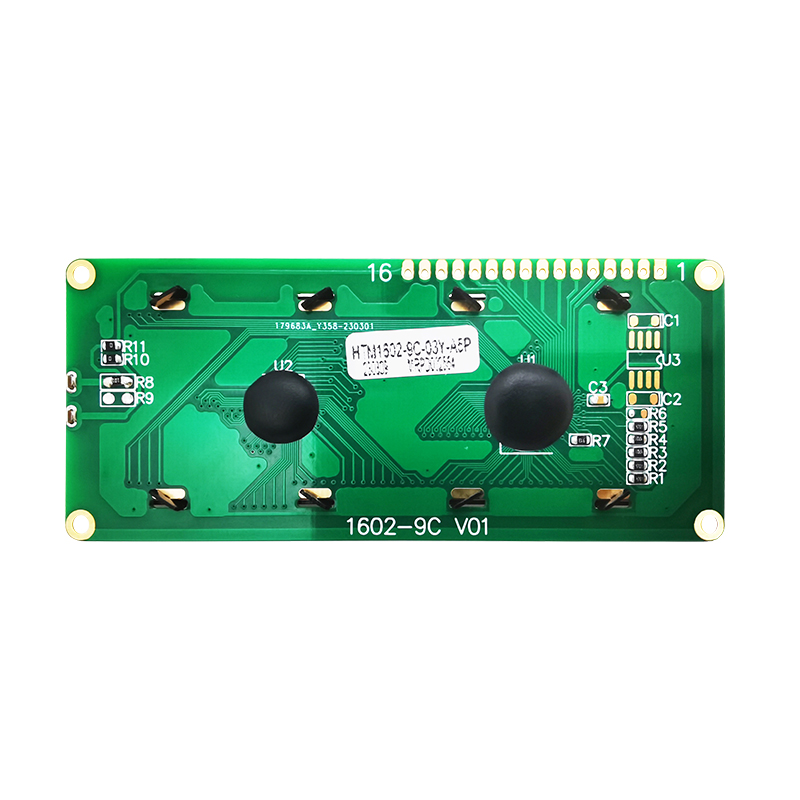

HTM-1602-9C-01Y-A5P | 2x16 Character Display | Yellow/Green Backlight | STN (+) Positive Yellow/Green Display | Arduino display
HTM-1602-9C is a 2x16 character LCD screen with a yellow/green display and backlight. It adopts transmission LCD technology, which can be displayed in ambient light and the backlight can be turned on to improve visibility under harsh lighting conditions. The working temperature range of the monitor is -20 to 70 degrees Celsius, suitable for various application scenarios.
The characters on the screen are displayed as black pixels on a bright yellow/green background. The backlight is a yellow/green LCD, providing uniform illumination throughout the entire screen. The communication method is parallel communication, with a working power supply voltage of 5V and a built-in ST7066U control chip. This display module complies with RoHS standards and is a high-quality display module suitable for the Arduino/C8051 project, compatible with other development boards. The HTM-1602-9C display module has undergone rigorous quality testing to ensure durability and excellent performance under various conditions.
Connector Customization: Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require. |
PCB Modifications: Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application. |
Backlight color customization: The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference. |
Font library customization: Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc. |
Cable Customization: Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure. |
