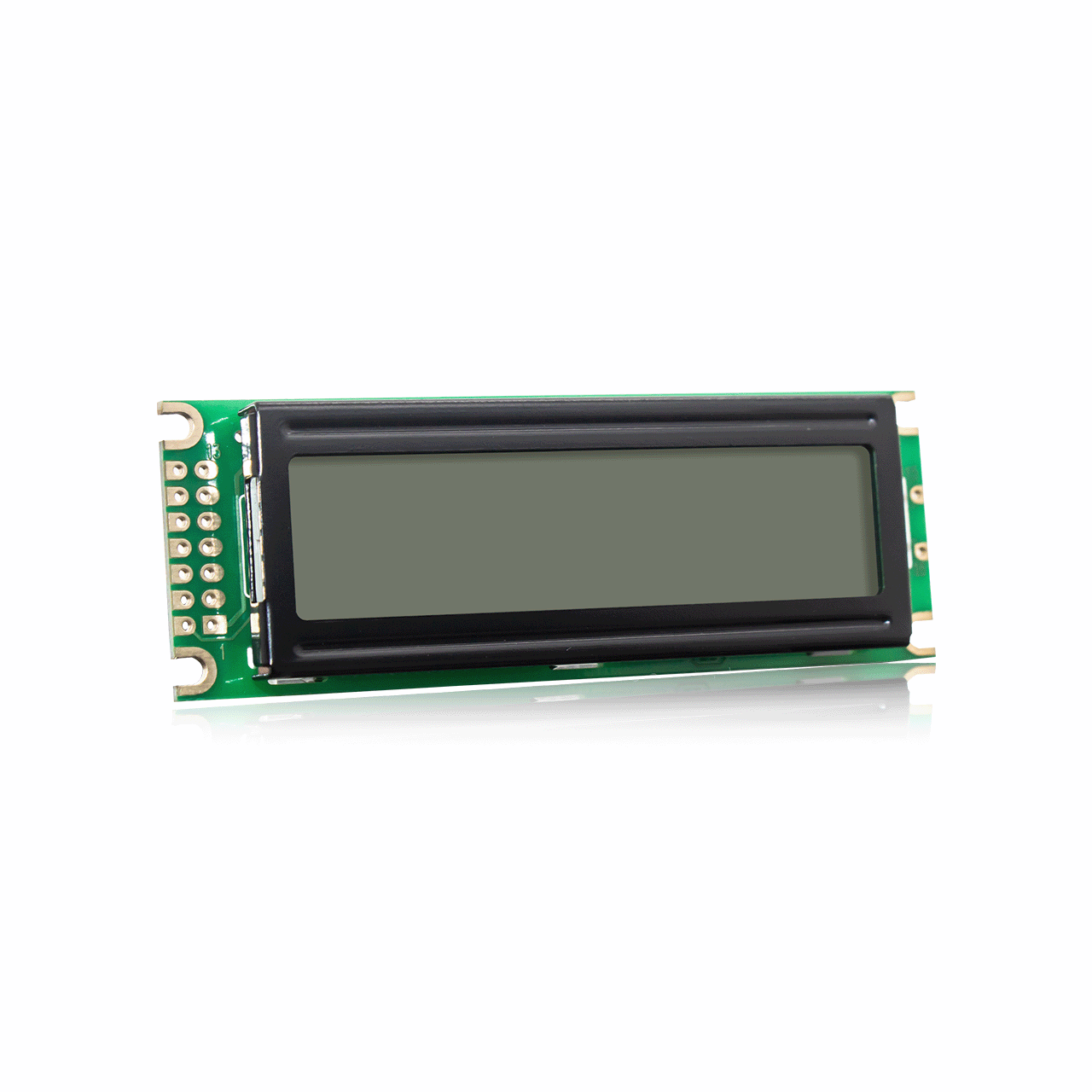

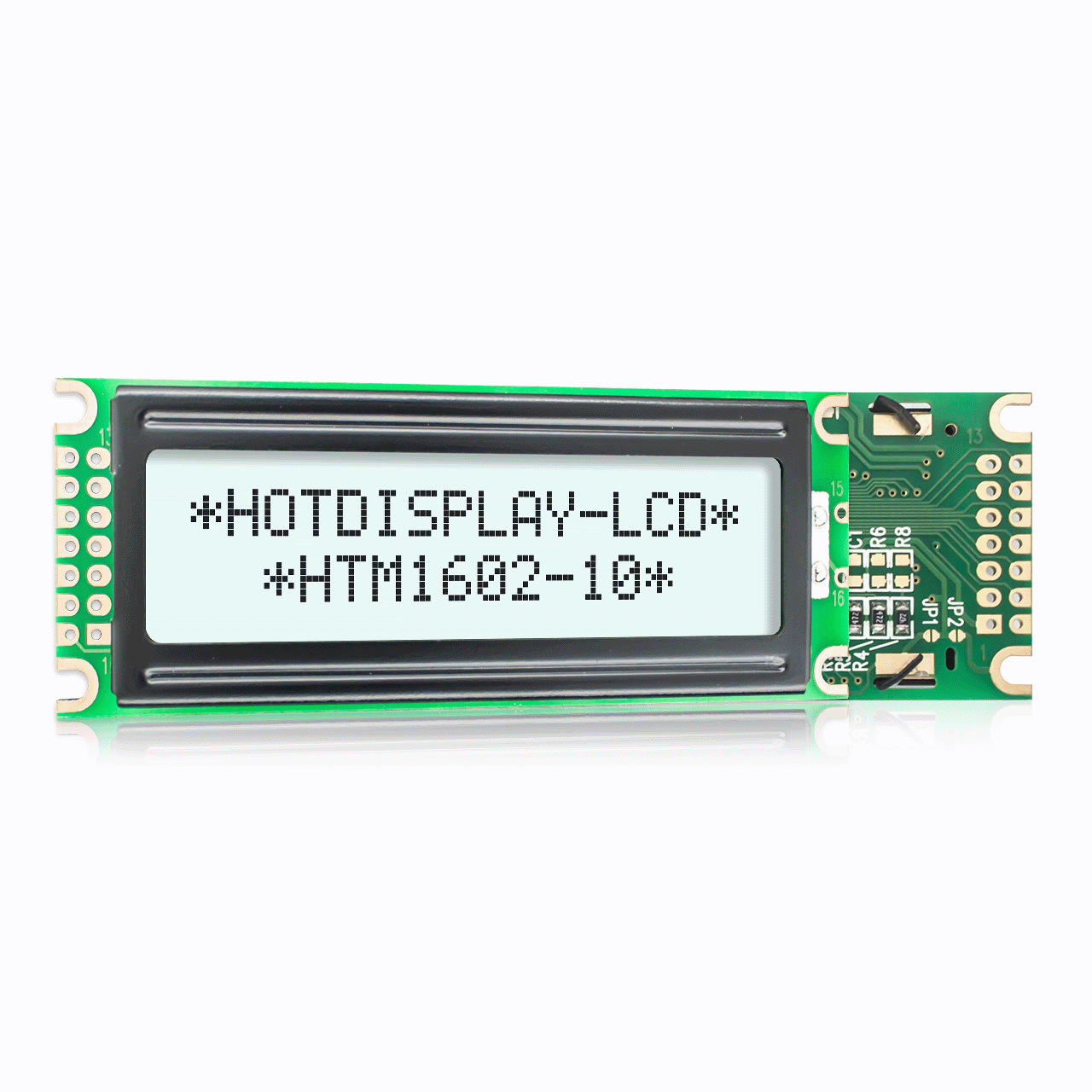

HTM1602-10-31W-A5P | Character 2X16 LCD Mono Display | FSTN+ with Side White Backlight 5.0V-Arduino
The 16 characters per line HTM1602-10-31W-A5P model is a character Chip-On-Glass (COG) LCD with high contrast that shows dark pixels against a bright white background LED backlight. This LCD employs an FSTN (+) positive display technology, which delivers superior contrast, capable of rendering excellent visibility both in ambient light and with the aid of a backlight. This quality LCD offers a wide operating temperature range from -20 to 70 degrees Celsius which is optimal for all types of environments, including indoor and outdoor. This 16-character, 2-line display has a built-in ST7066U controller, a 6:00 o'clock viewing angle, and a serial communication interface.
Operating at a supply voltage of 5.0V, thisLCD unit assures energy-efficient operation across a diverse range of applications. This LCD is compatible with Arduino and other similar boards.
Connector Customization: Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require. |
PCB Modifications: Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application. |
Backlight color customization: The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference. |
Font library customization: Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc. |
Cable Customization: Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure. |
