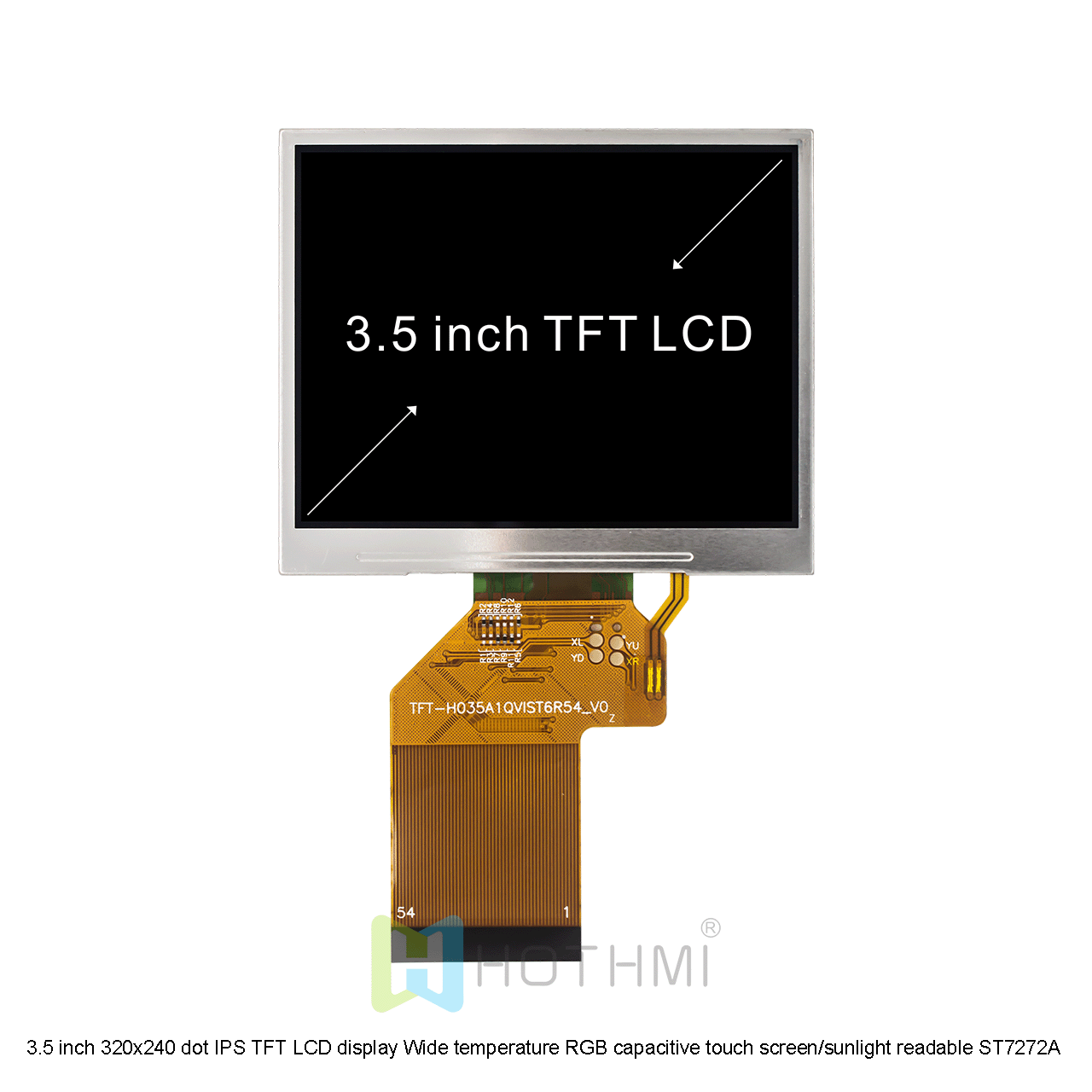

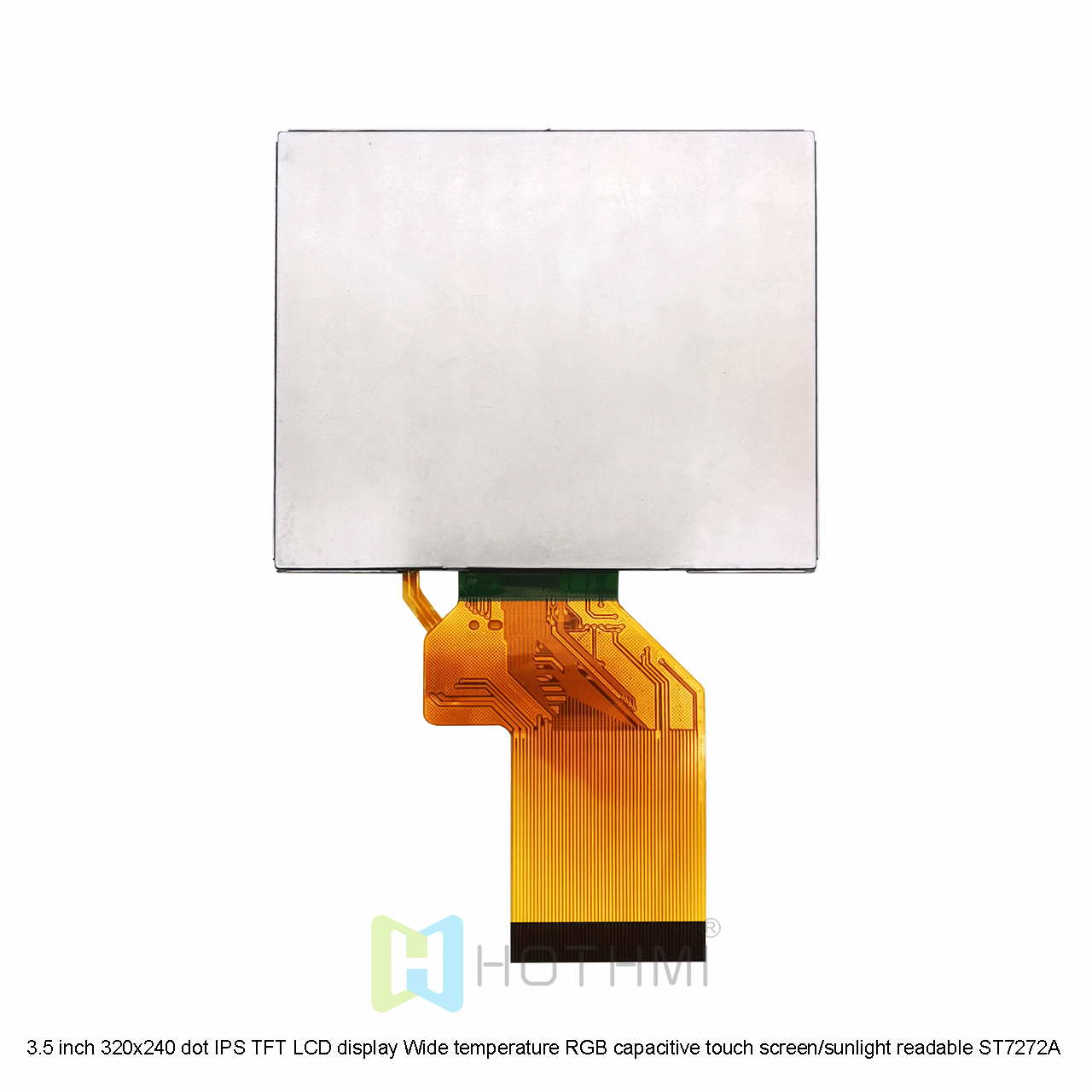

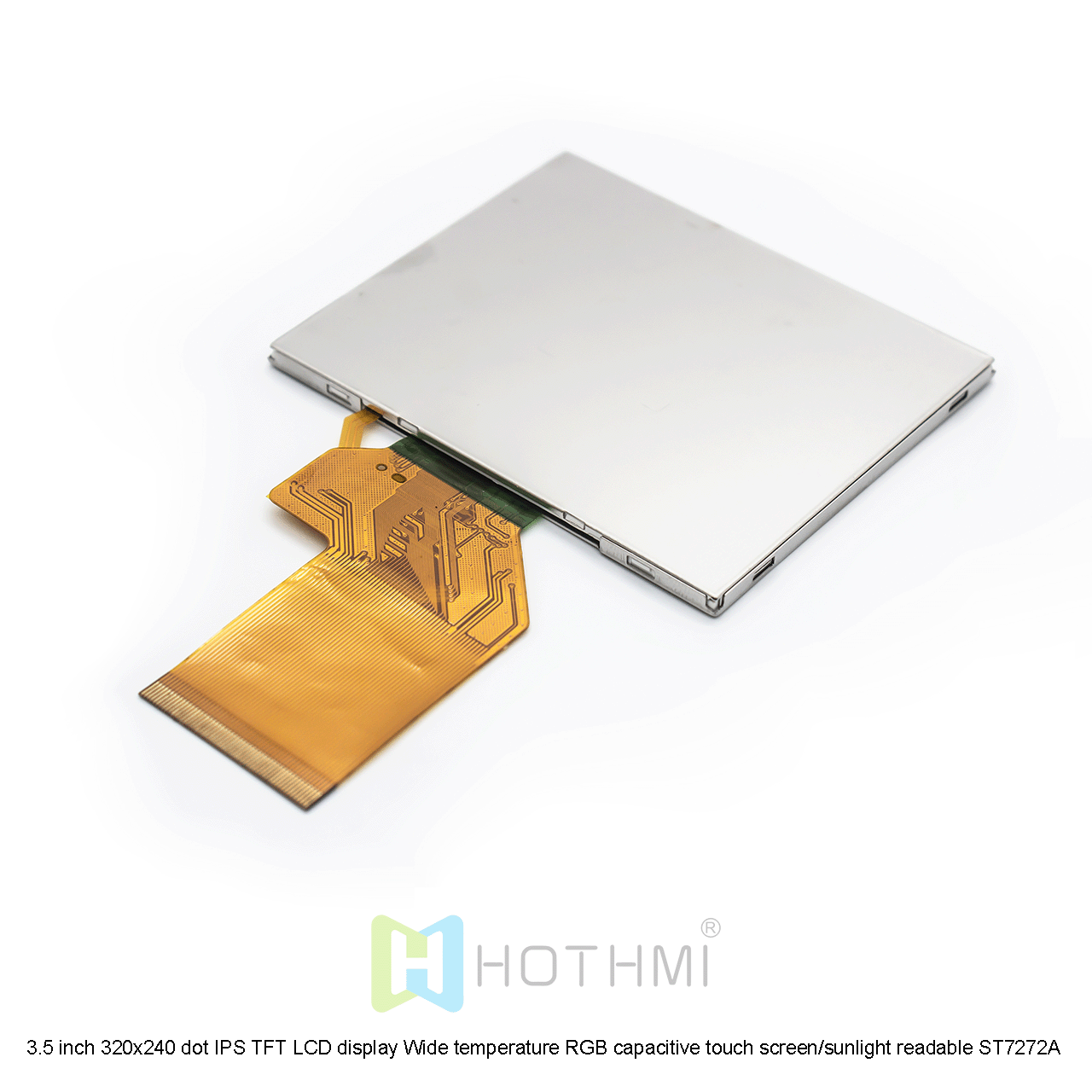

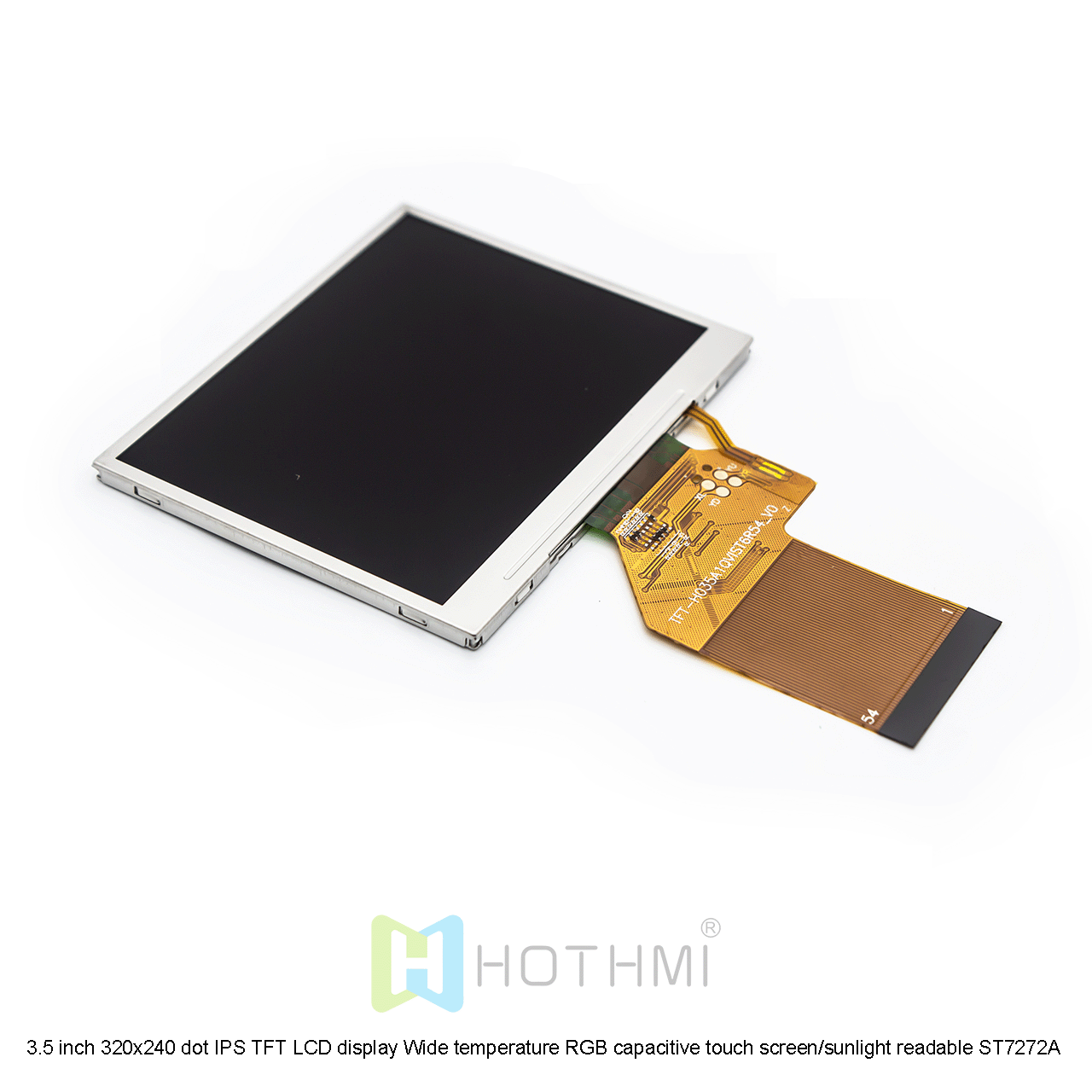

3.5 inch TFT LCD /240x320 dot color screen/IPS/TFT/LCD/ST7272A controller
TFT-H035A1QVIST6N54 is a 240x320 dot 3.5 inch color TFT LCD module display with ST7272A controller, optional 4-wire resistive touch screen, excellent display quality, ultra-wide viewing angle, and can be easily controlled by MCUs such as 8051, PIC, AVR, ARDUINO ARM and Raspberry PI. It can be used in any embedded system, industrial equipment, security and handheld devices that need to display with high quality and color images. It supports 8080 8-bit, 9-bit, 16-bit, 18-bit parallel, 3-wire, 4-wire serial spi interface. FPC with zif connector is easy to assemble or disassemble. Horizontal or vertical mode is also available. We also have a version with capacitive touch function for the same product.
Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure. |
Touchscreen add-ons: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design. |
Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals. |
Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris. |
