HTM-H080D13-HI-A01G | 8.0" TFT LCD Display Modules | 1024x768 HI TFT Modules

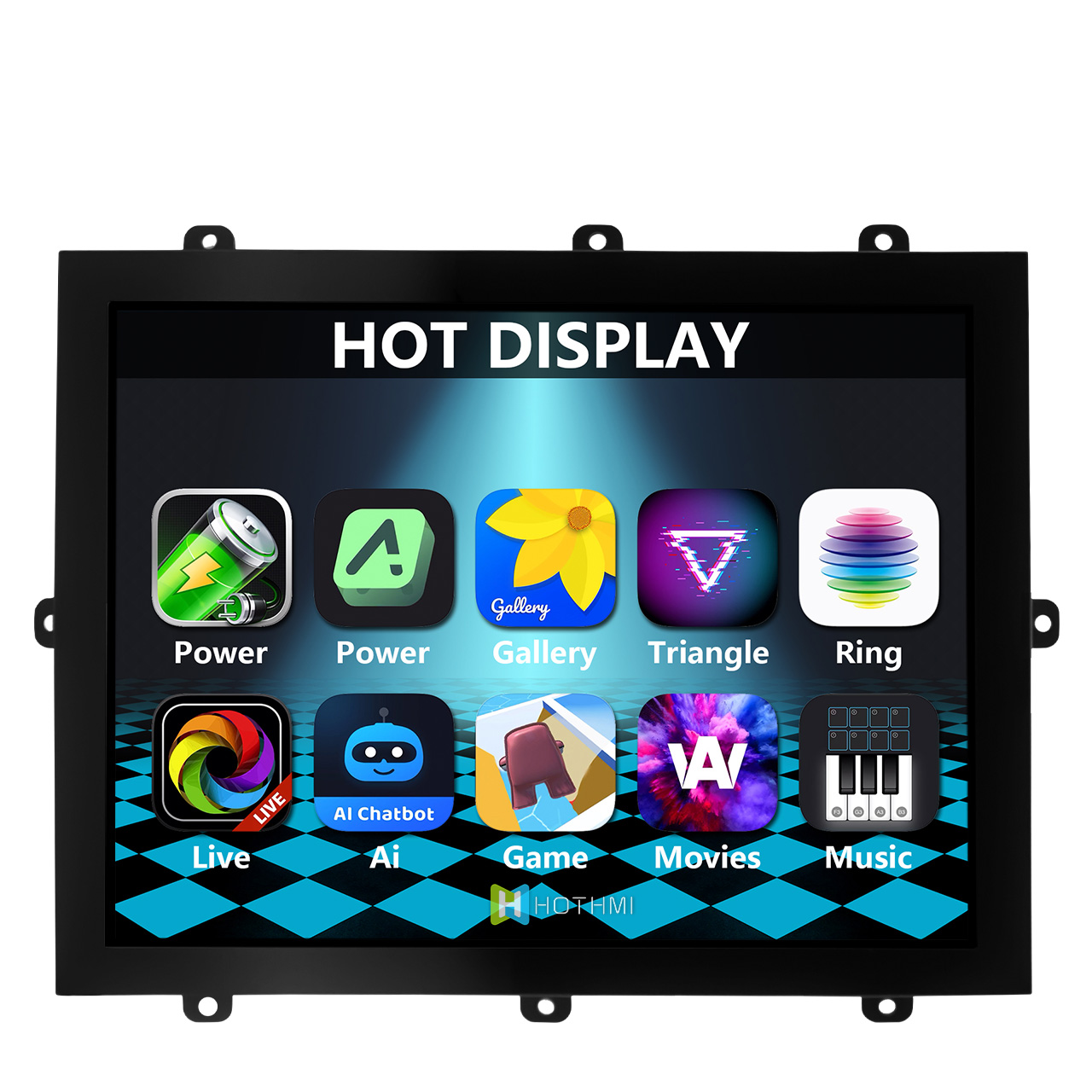

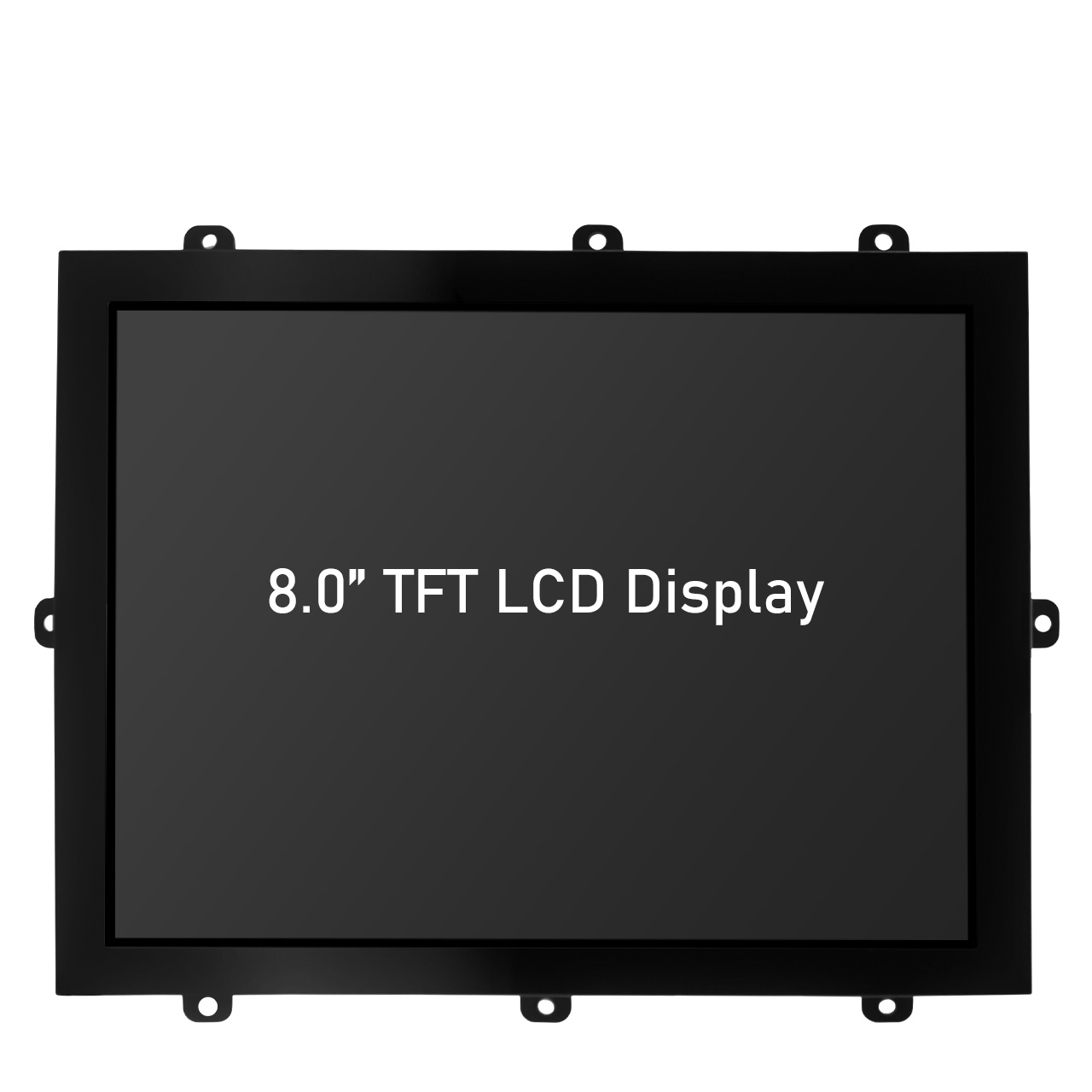

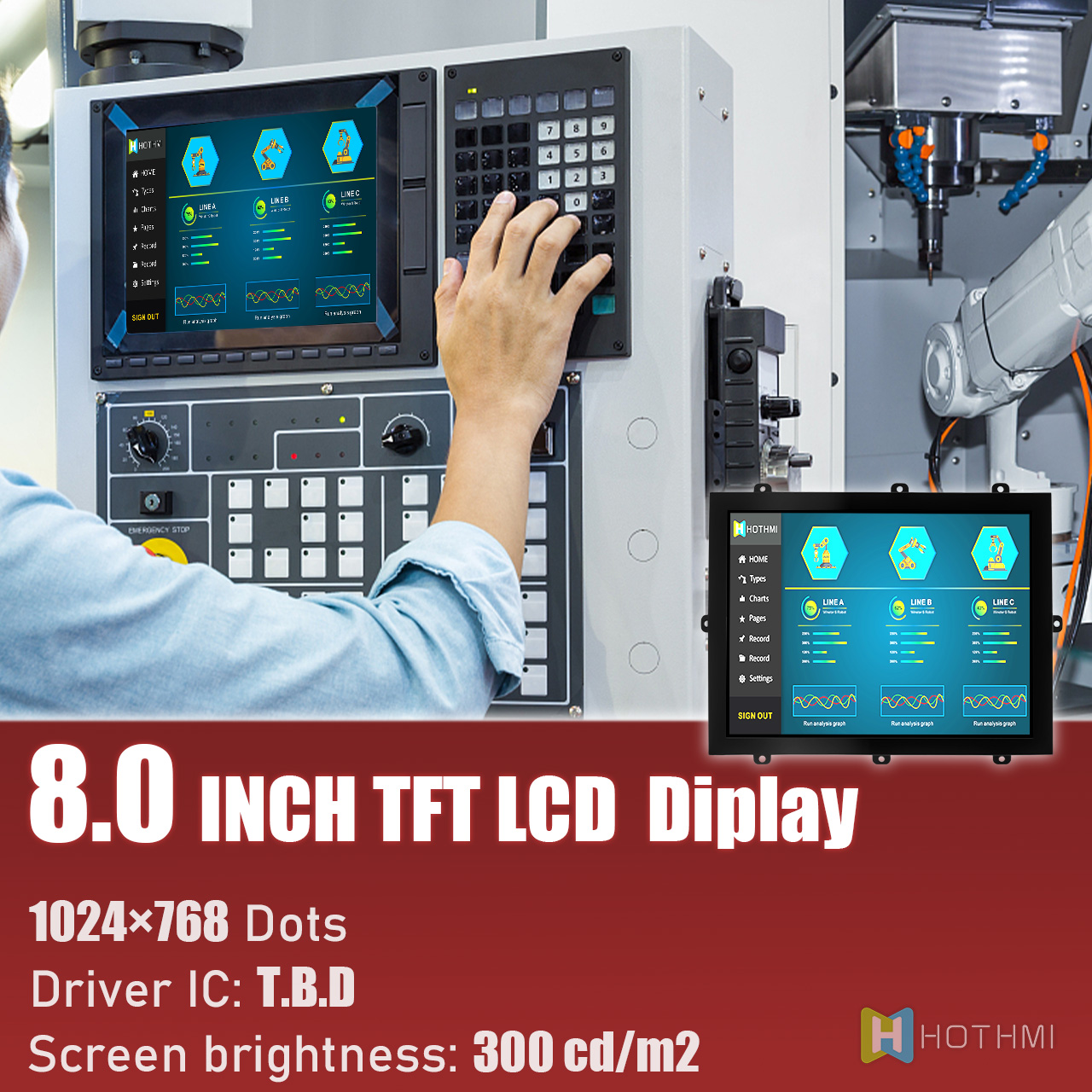

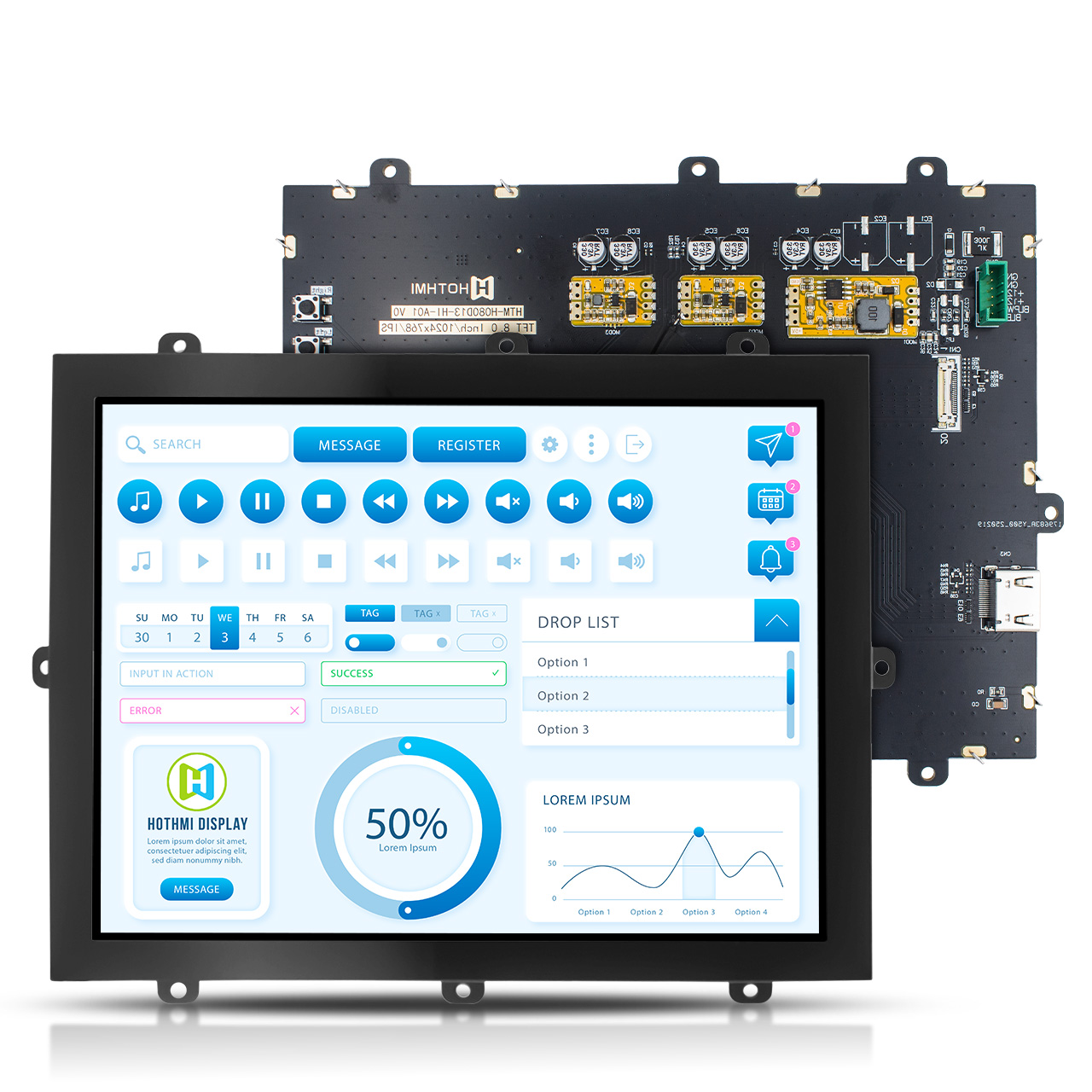

8.0" TFT LCD Display Modules HTM-H080D13-HI-A01G is a display with normally black panel design, a resolution of 1024 (RGB) × 768 pixels, supports NTSC 60% color gamut, and a brightness of 300 cd/m². The module operates at a +12V (typical value) voltage, and the recommended power supply current is no less than 1A. It can operate stably at an ambient temperature of -20℃ to +70℃, and the storage temperature range covers -30℃ to +80℃. The product is equipped with a white backlight system, and the display consistency is ensured by a fixed current test.
In terms of interface configuration, the CN1 interface integrates HMI signal pins, including HPD, HMI 5V, GND, Clock±, SDA/SCL and other signal lines, and supports standard HMI communication protocols; the CN2 interface adopts the vertical plug-in model JL4-6ZJB, which is dedicated to power and backlight control, including +12V power supply, BLPWM backlight frequency modulation and BLEN backlight enable functions. It is worth noting that the CN1 interface is adjusted to 180-degree rotation installation in the latest version, and the line sequence and definition remain unchanged to meet the wiring requirements of different scenarios.

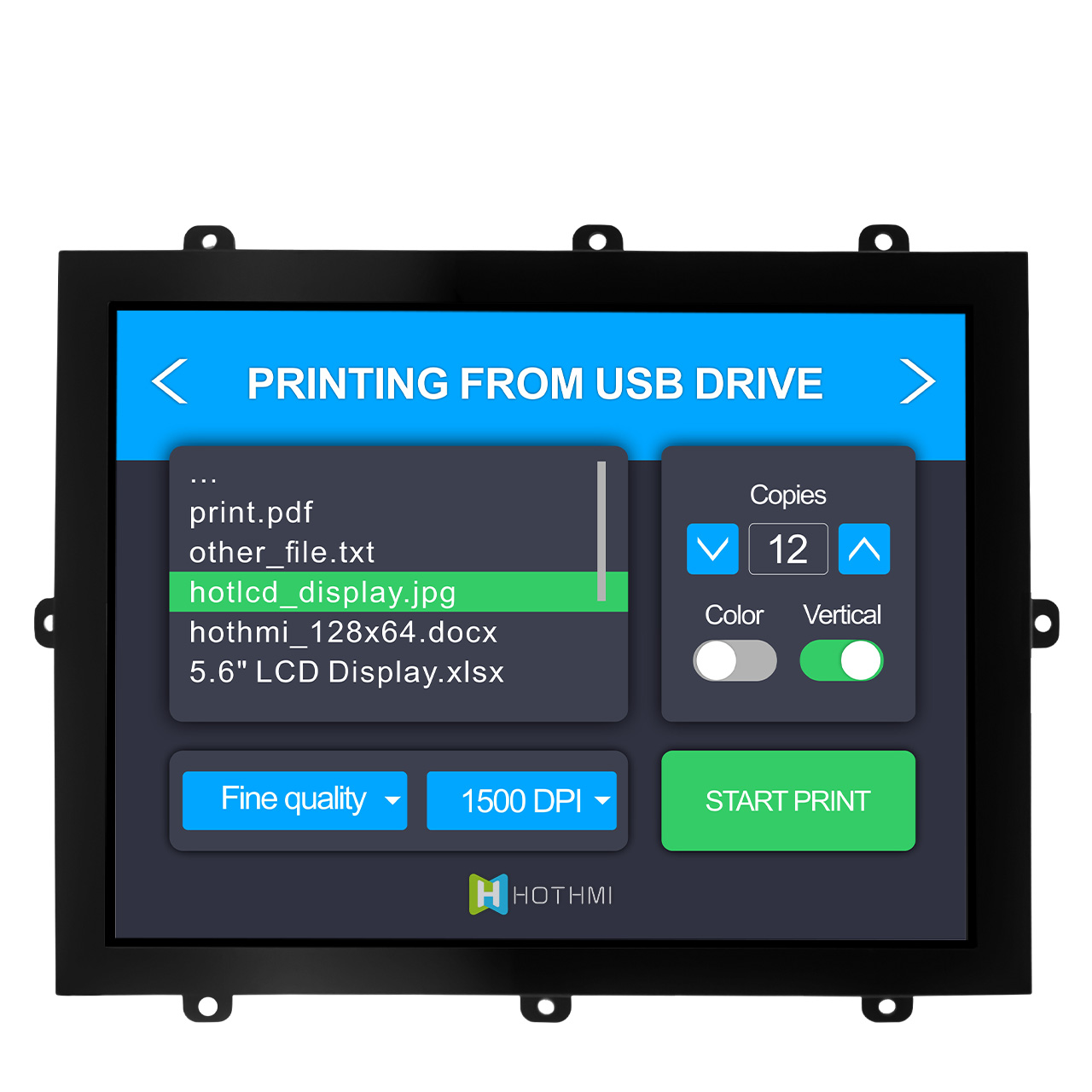

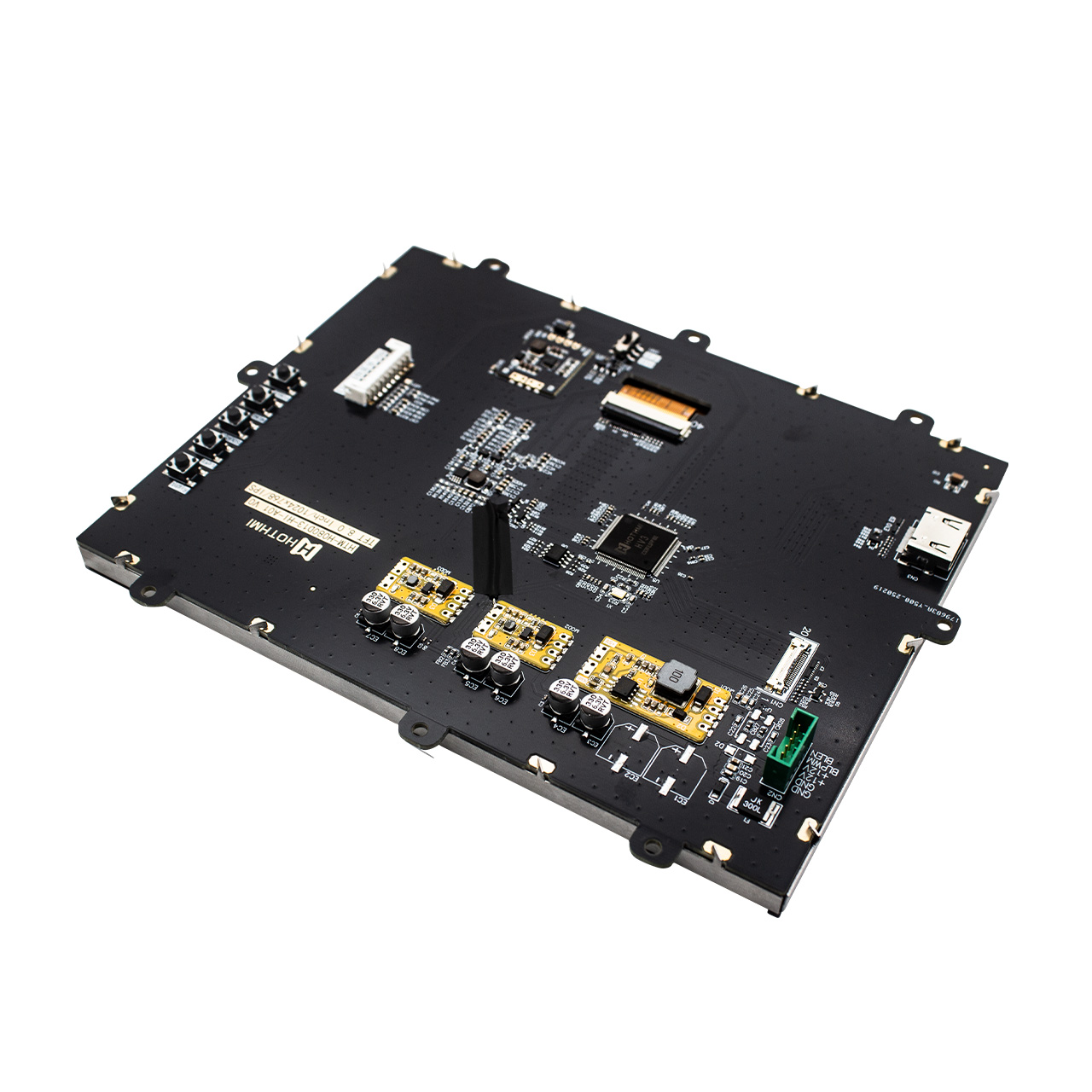

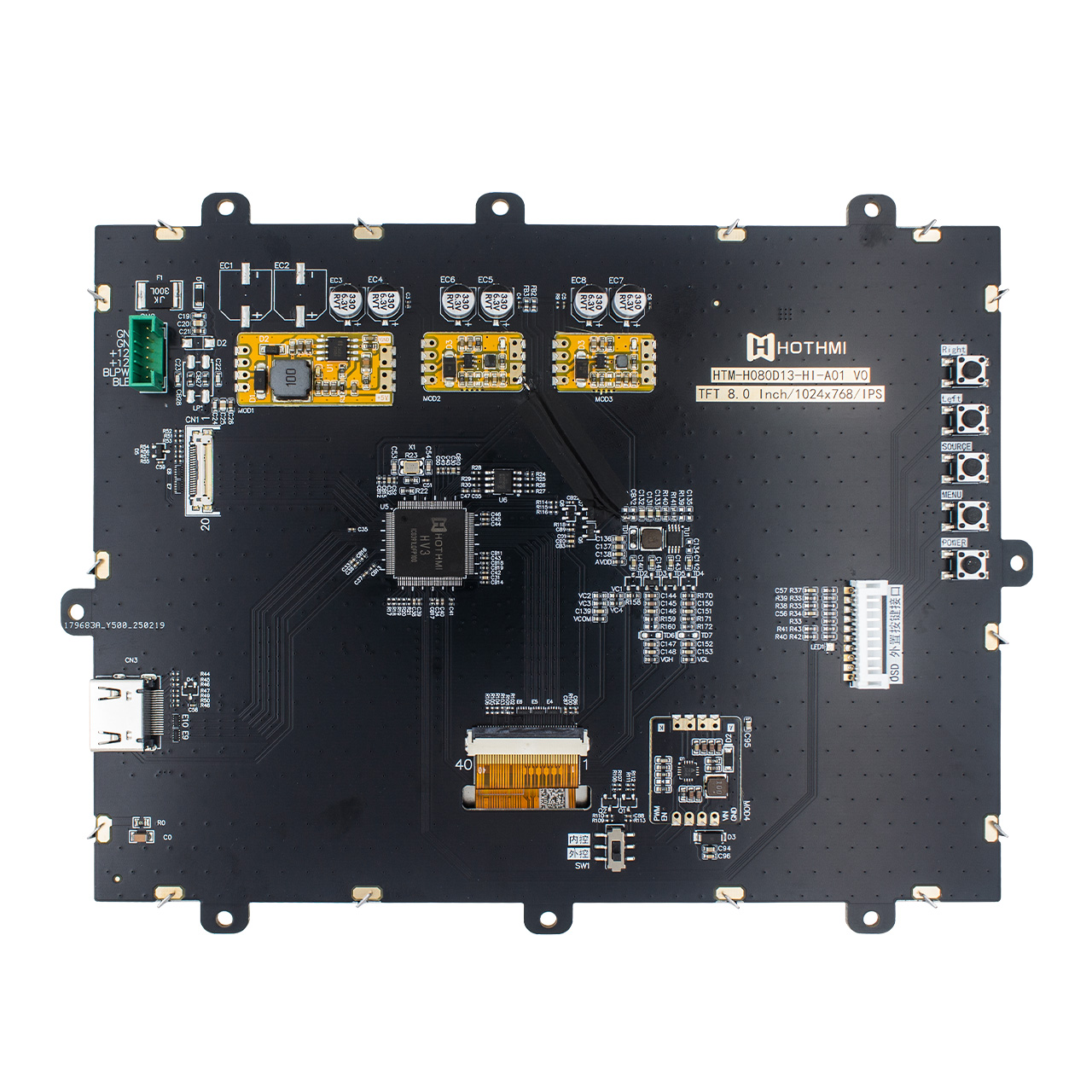

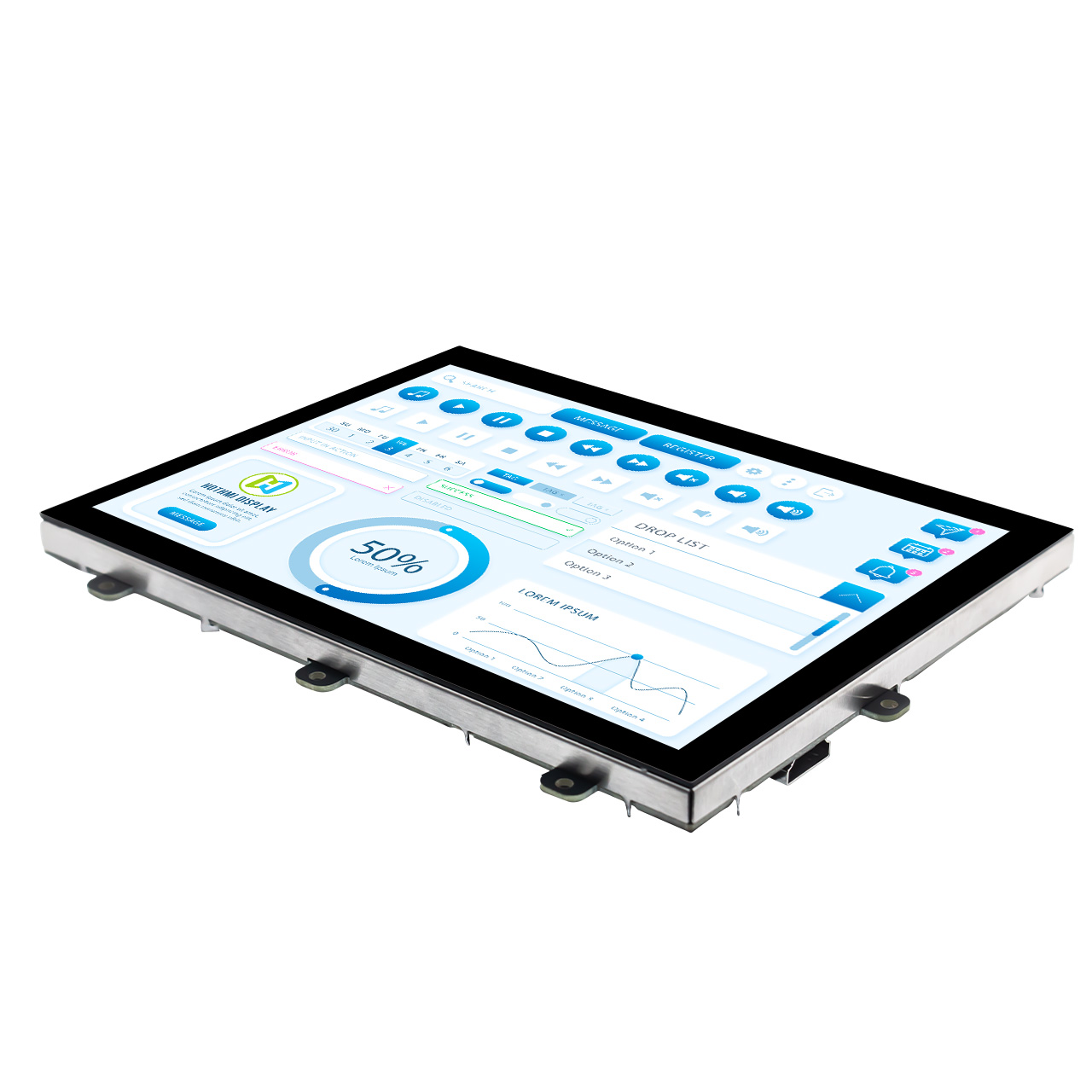

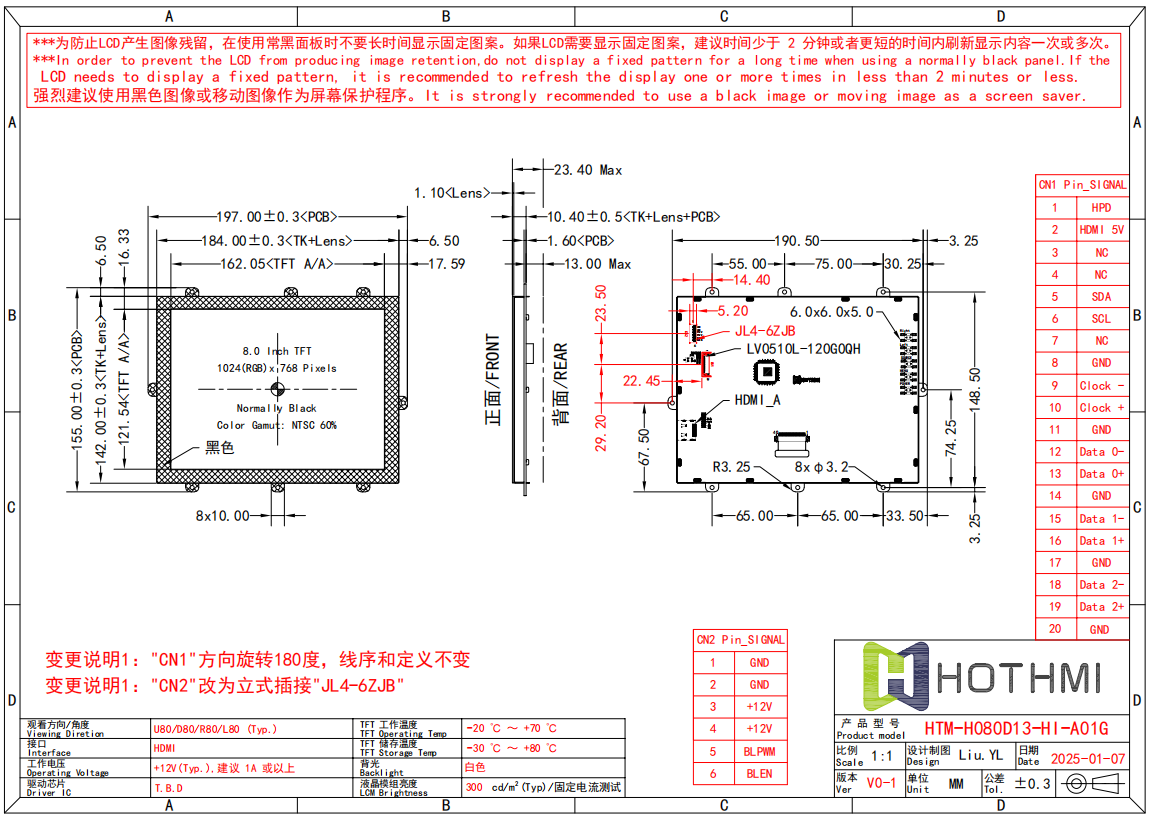

The physical structure is precisely designed, with a main body size of 197.00±0.3mm (PCB length), 184.00±0.3mm (TK+ lens assembly), and the overall thickness is controlled within 23.40mm. The back of the module is compactly laid out, and key components such as the driver chip LV0510L-120G0QH and the connector are strictly controlled to tolerance (±0.3mm) to ensure assembly reliability. In addition, the product provides multi-language operation prompts, including key function labels such as power, menu, and signal source.
