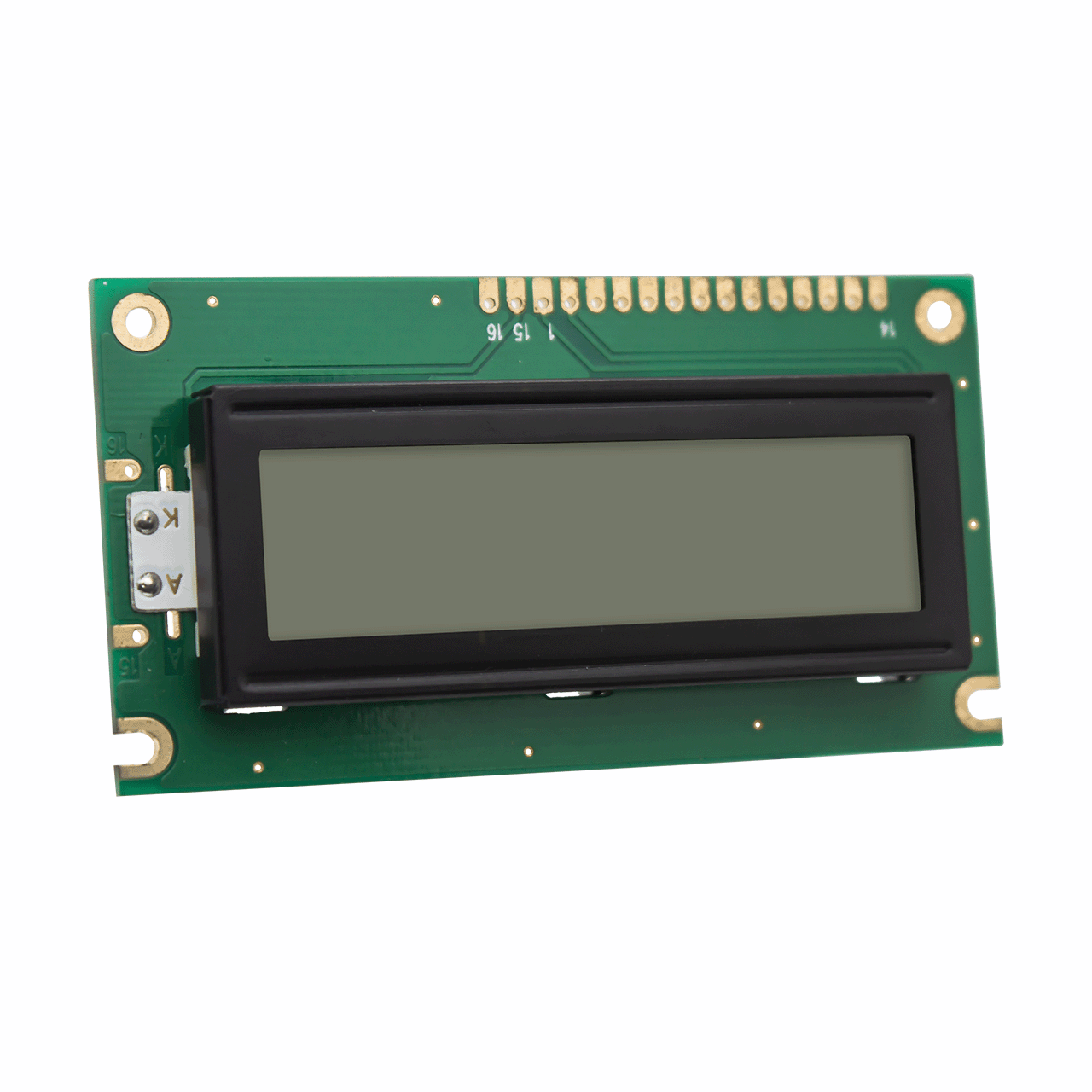

HTM1602-8-31W-A5P | 16x2 Character Display | Transflective LCD | White Backlight 5.0V | FSTN (+)
HTM1602-8-31W-A5P features a 16-character, 2 lines display screen panel that shows dark pixel characters against a light grey background. This transflective LCD Display is visible with ambient light or in low light conditions using the added white LED backlight. This high-contrast FSTN LCD display operates in a wide temperature range with a 5.0V supply voltage. The optimal 6:00 o'clock view ensures the display is visible from different angles. It comes with a temperature compensation circuit and a built-in ST7066U controller. The 4-bit or 8-bit parallel communication makes it super simple to get started with the most popular development boards, including Arduino.
Connector Customization: Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require. |
PCB Modifications: Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application. |
Backlight color customization: The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference. |
Font library customization: Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc. |
Cable Customization: Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure. |
