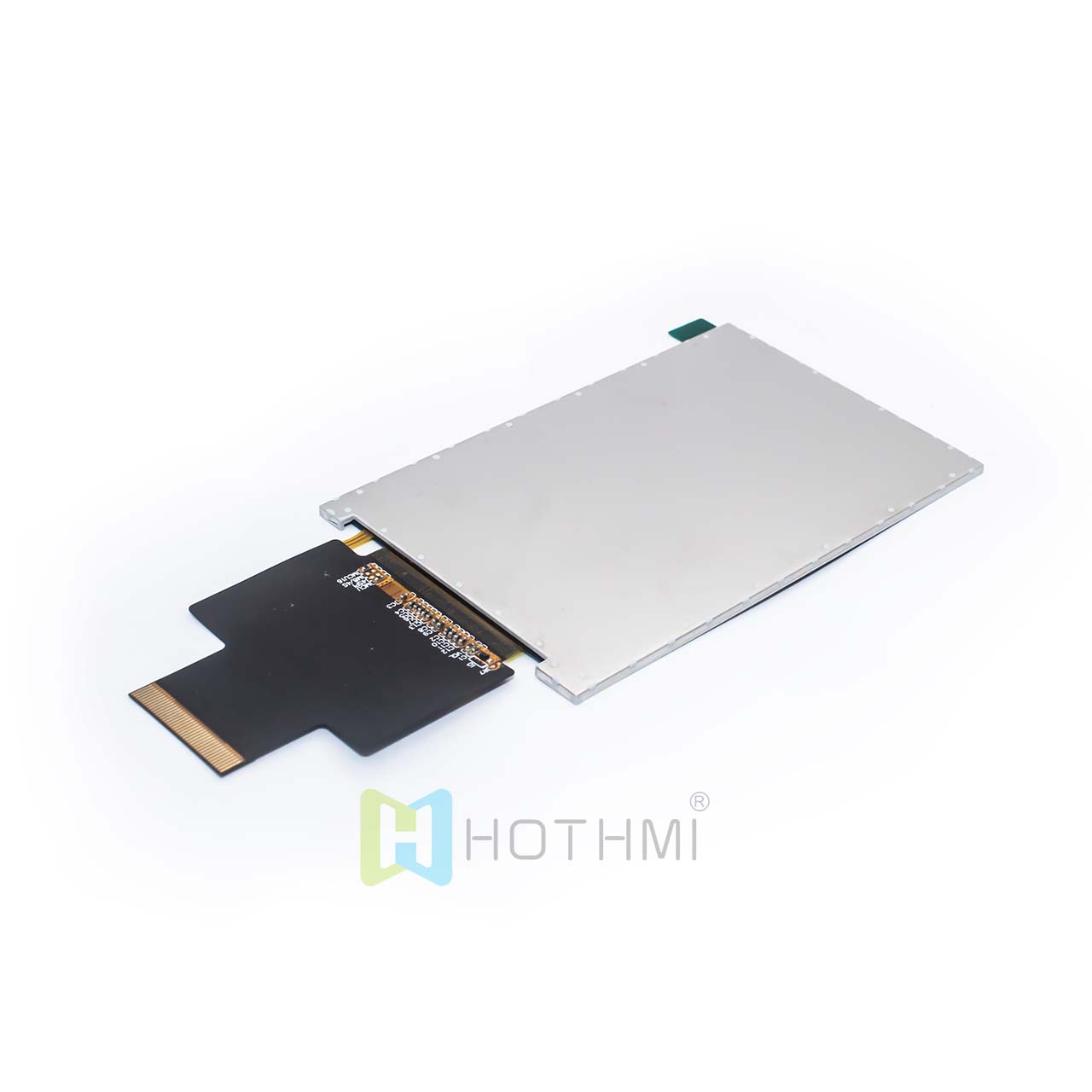

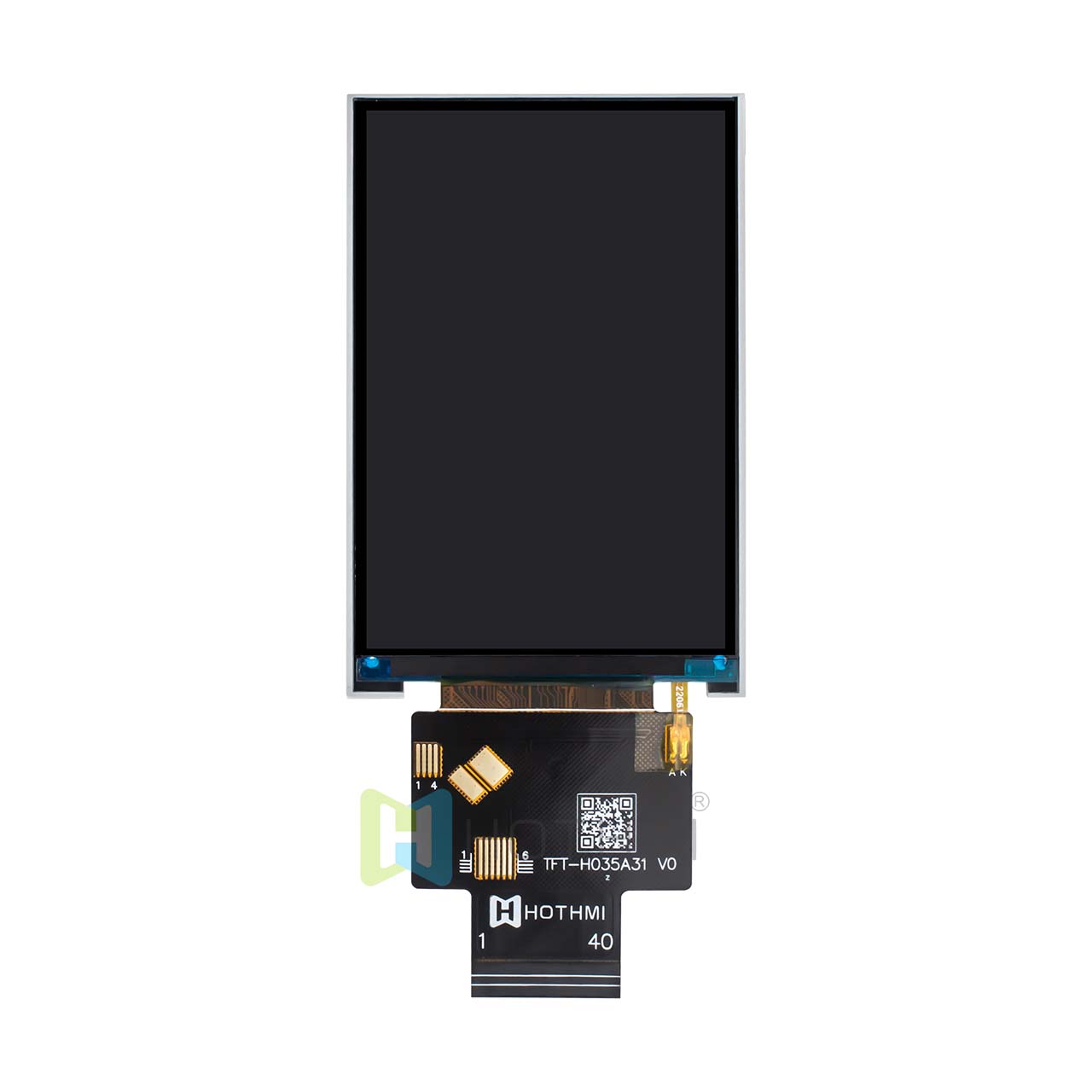

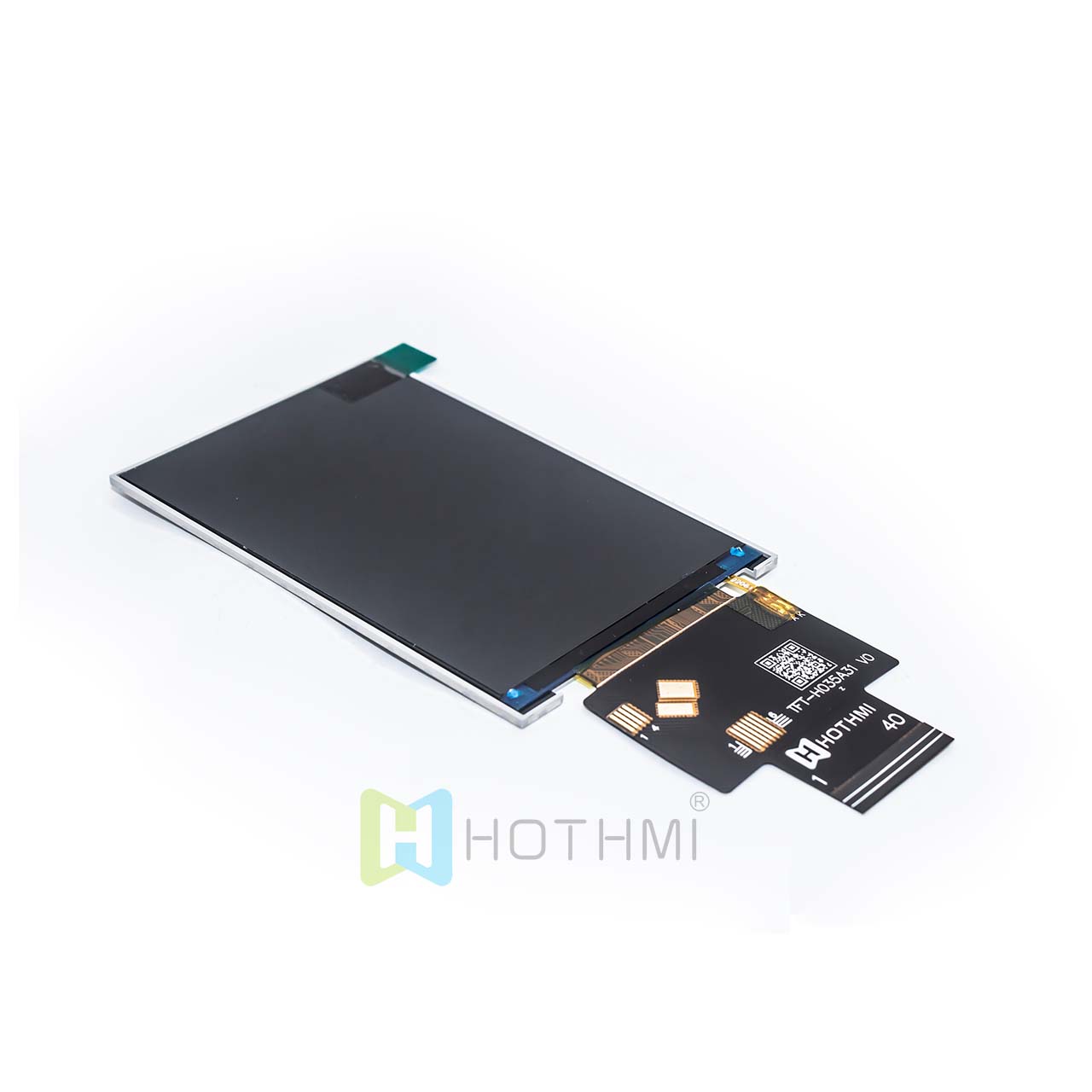

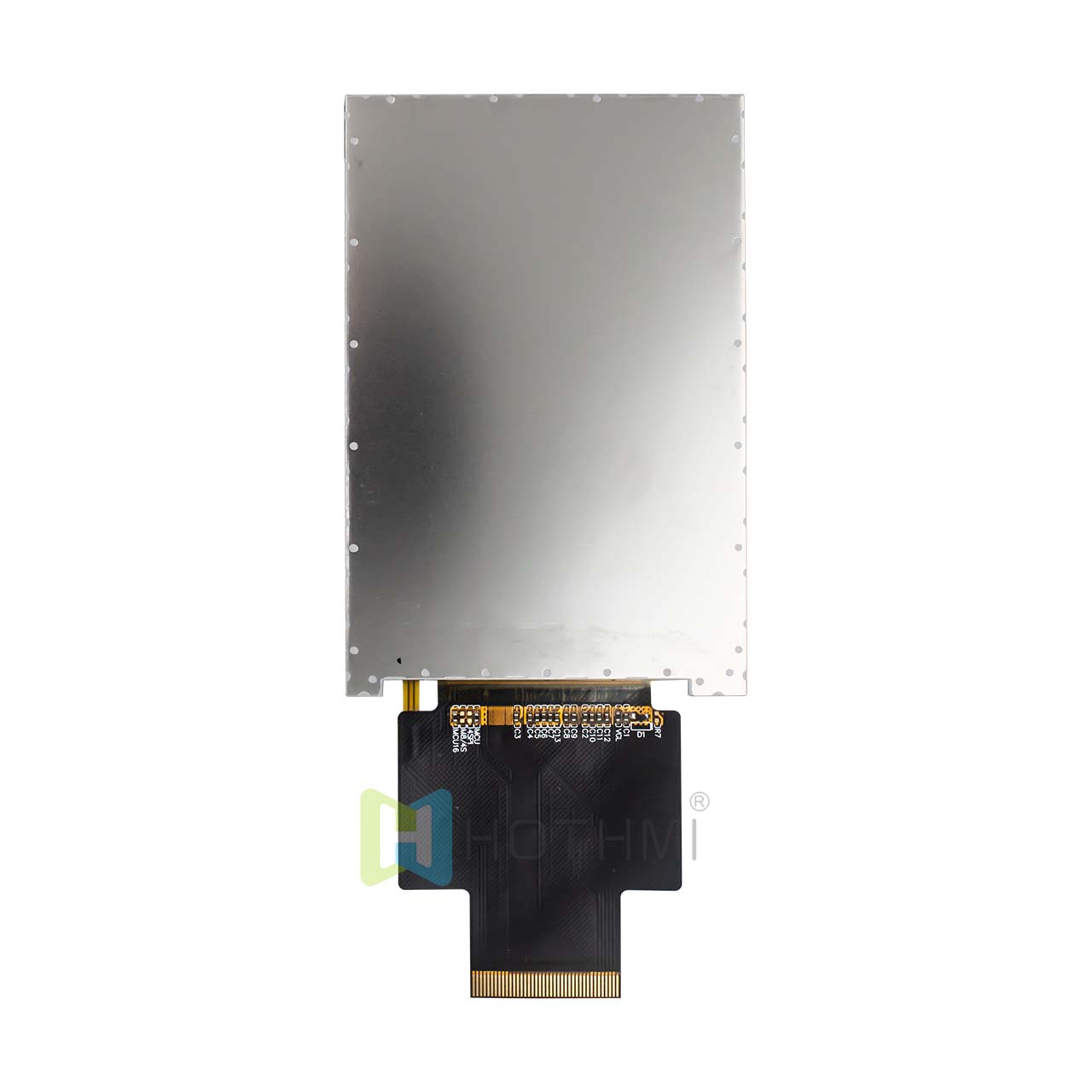

3.5-inch full-view MCU interface TFTLCD color display
In the field of industrial and consumer electronics that pursues efficiency and reliability, the TFT-H035A31HVIIL4N40 LCD redefines the visual experience with excellent performance. Whether it is a harsh industrial environment or a smart terminal device, this 3.5-inch high-definition screen can meet your diverse needs with stable performance.
Core advantages, defining industry benchmarks
High-definition display, realistic colors
Using 320 (RGB) × 480 pixel resolution, with NTSC 85% wide color gamut, the picture is delicate and full, and the details are clear at a glance. The normally black panel design (Normally Black) not only improves the contrast, but also significantly reduces power consumption when displaying dark content, taking into account energy saving and visual performance.
Super strong environmental adaptability
The operating temperature spans **-30℃ to +80℃, and the storage temperature covers -20℃ to +70℃**, calmly coping with extreme environmental challenges. Whether it is outdoor equipment, industrial control panels, or medical instruments, it can operate stably.
Multiple interface compatibility, flexible integration
Supports I-80 System 8/16-bit bus and 4-wire SPI interface, seamlessly adapts to a variety of master control solutions (such as ILI9488 driver chip), simplifies the development process, and shortens the product launch cycle.
Durable and anti-image retention
Built-in intelligent protection mechanism, it is recommended to avoid static image retention through dynamic screen saver or timed refresh (interval ≤ 2 minutes) to extend the screen life. 450 cd/m² high brightness design ensures clear visibility in strong light environment.
Precision design, reliable choice

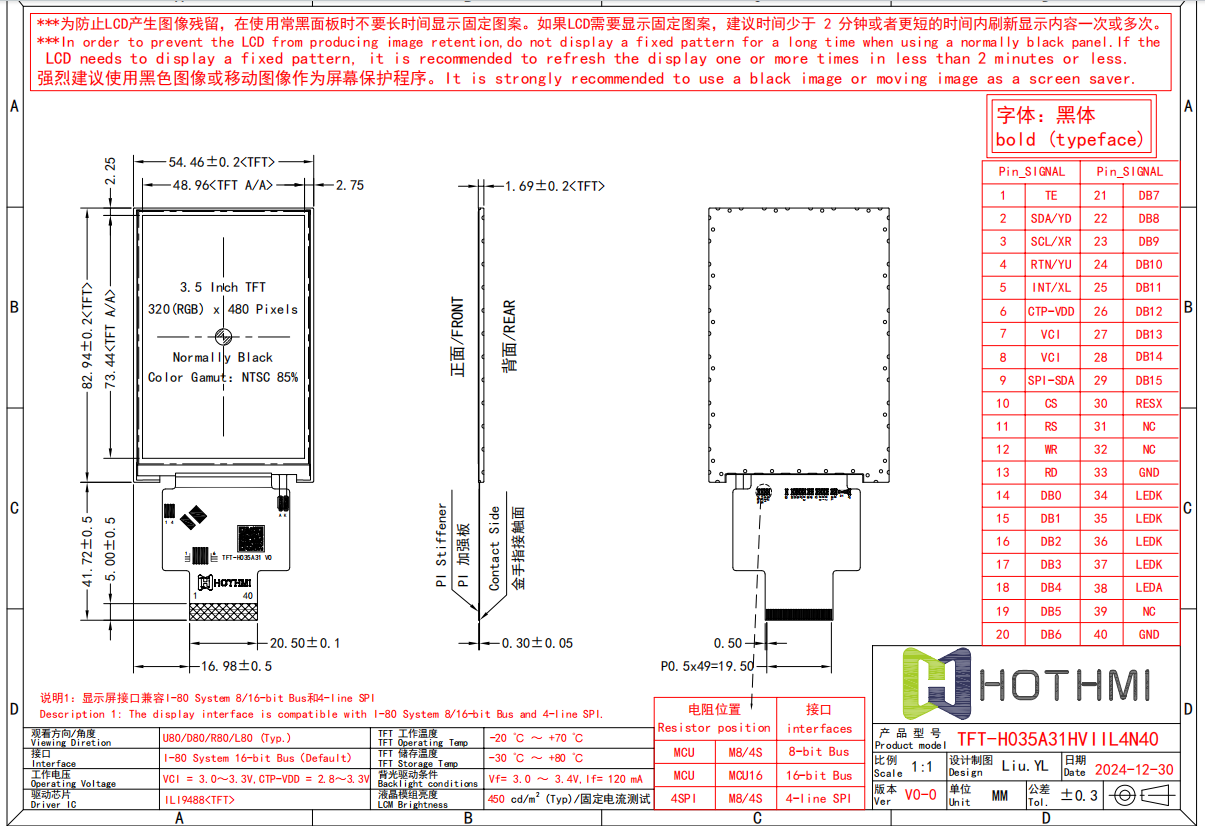

Industrial-grade structure: strict tolerance control (±0.3mm), with PI reinforcement board and gold finger contact surface to ensure mechanical strength and signal stability.
Backlight efficient drive: Vf=3.0~3.4V, If=120mA low power configuration, excellent brightness uniformity (U80/D80/R80/L80), meet long-term operation requirements.
Widely applicable scenarios
Industrial control: HMI human-machine interface, instrumentation, automation equipment.
Smart terminals: POS machines, handheld devices, smart home central control.
In-vehicle display: navigation system, in-vehicle entertainment screen.
Medical equipment: monitors, portable diagnostic equipment.
