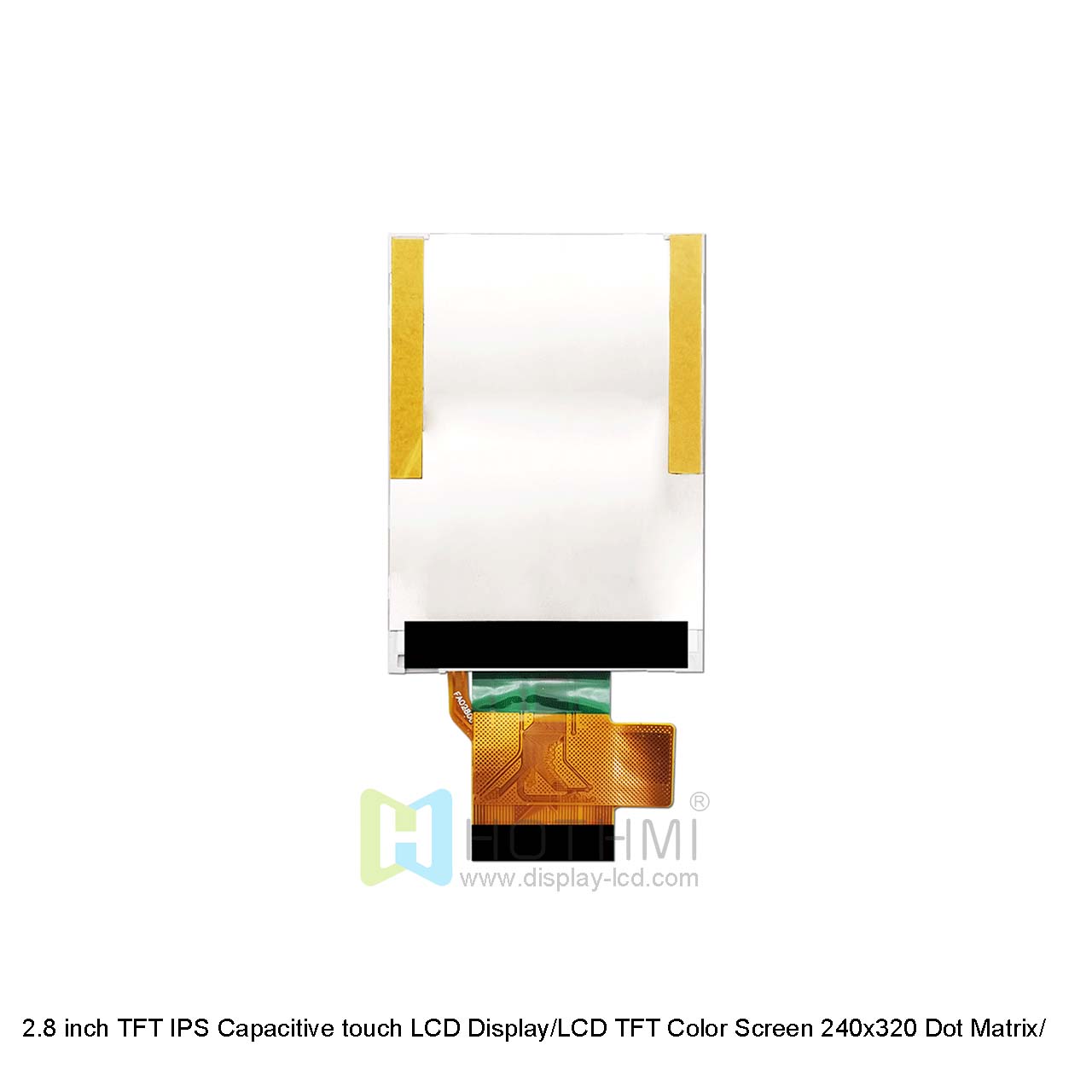

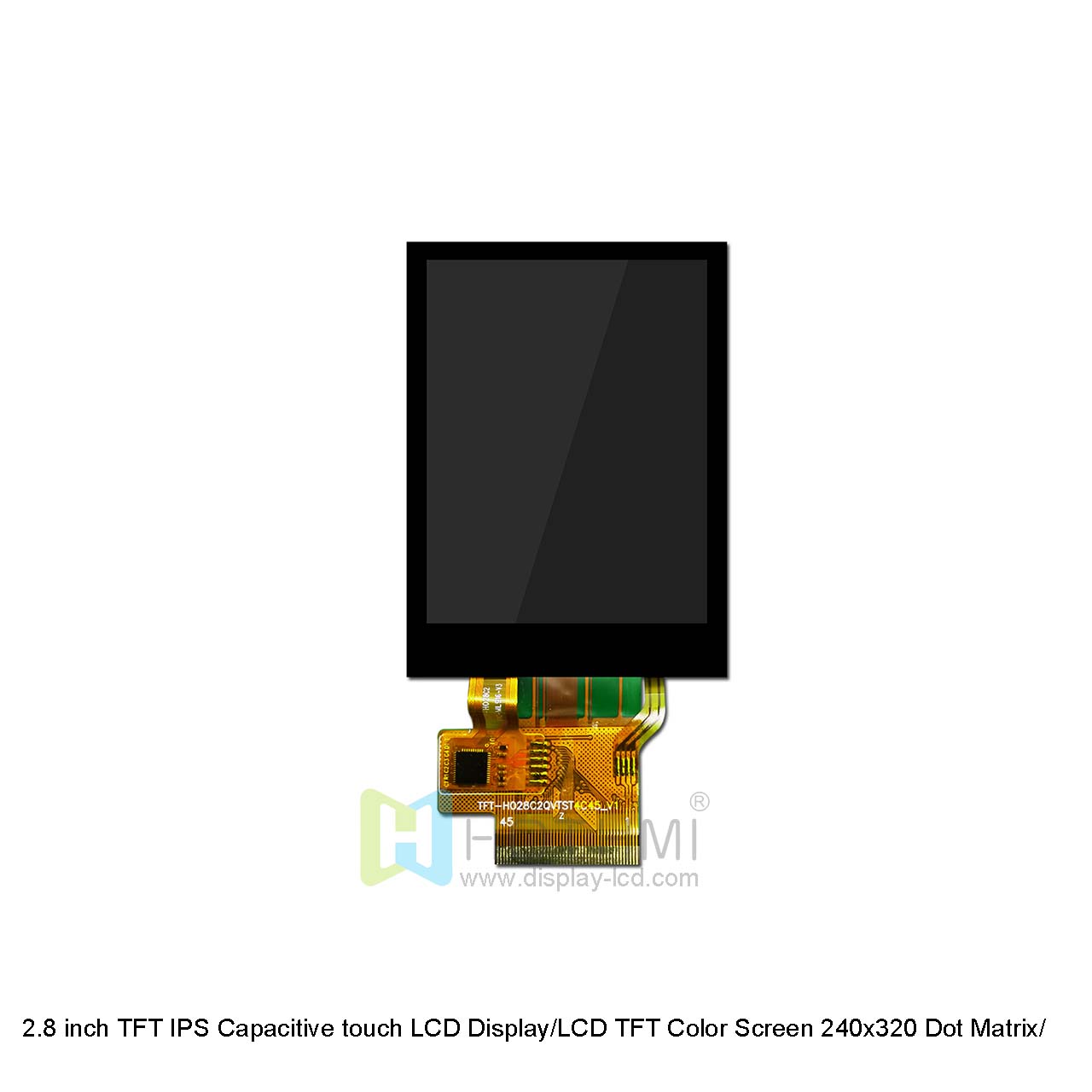

2.8 inch Capacitive touch LCD Display/240x320LCD TFT Color Screen /ST7789V/FPC

2.8 inch Capacitive touch LCD Display/240x320LCD TFT Color Screen /ST7789V/FPC

▶ Model: TFT-H028C2QVTST4C45

▶ Type: 2.8 inch Capacitive touch LCD Display
▶ Display content: 240X320
▶ Display inches: 2.8"

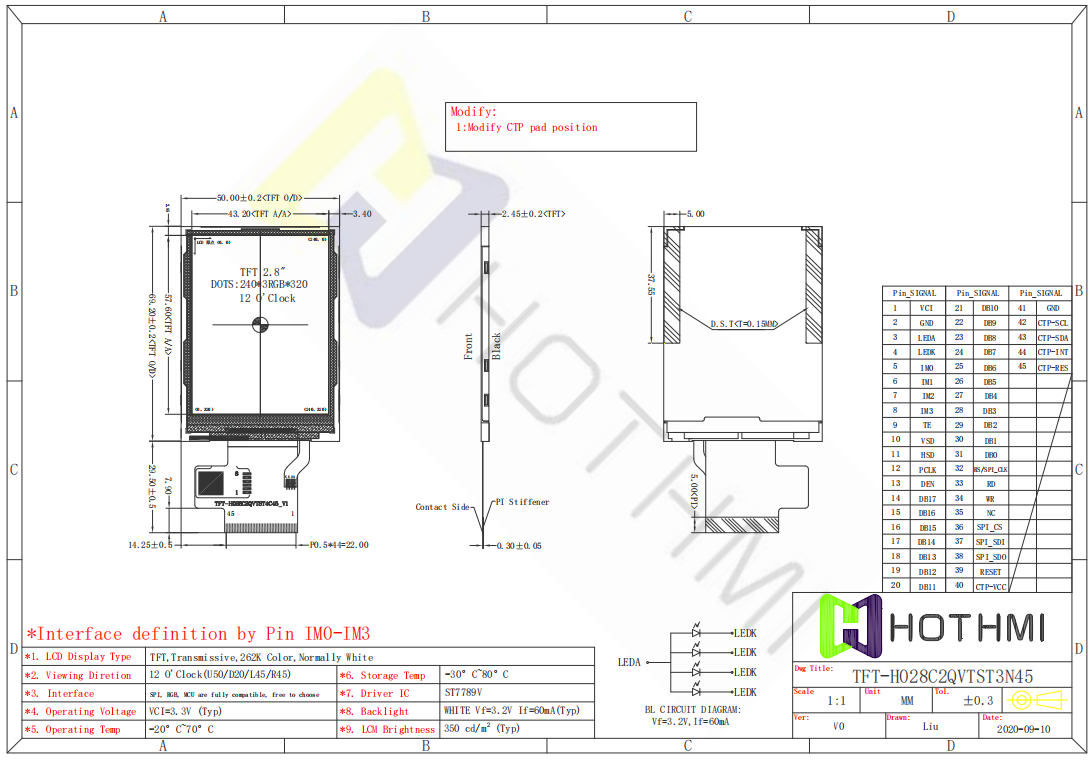

▶ Dimensions (mm): 50.0*69.20*3.7
▶ AA size (mm): 43.2*57.6
▶ Product application: medical monitor, handheld device
▶ Viewing angle: 12:00 (U50/D20/L45/R45)
▶ Backlight type or brightness: 280cd/M2
▶ Connection method PIN number: 45pin
▶ Interface method: MCU/SPI/RGB
▶ Special instructions: with touch screen
▶ Operating temperature: -20~70℃
▶ Supply voltage: +3.3 V
▶ Driver chip: ST7789V

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes

TFT-H028C2QVTST4C45/2.8 inch Capacitive touch LCD Display/240x320LCD TFT Color Screen /ST7789V/FPC
TFT-H028C2QVTST4C45 is a rectangular 2.8 inch Capacitive touch LCD Display that provides a clear 240x320 pixel resolution. It has excellent display quality, provides normal viewing angles, and the best viewing angle is 12 O'Clock (U50/D20/L45/R45), and can be easily controlled by a range of MCUs, including 8051, PIC, AVR, ARDUINO, ARM and Raspberry PI. There are many options for applicable interfaces, including SPI, RGB, MCU, etc., and it is equipped with ST7789V controller; it has a connector type FPC with an optional FPC connector. This display is a perfect choice for embedded systems, industrial equipment, security equipment, and handheld devices that require high-quality and vivid visuals.

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H028C2QVTST4C45
Diagonal size	2.8”	Inch
Resolution	240X320	Dot
Dimensions	50.069.23.7	mm
Active area (AA)	43.2*57.6	mm
LCD type	TFT LCD Display	mm
Display viewing angle	12 O'Clock(U50/D20/L45/R45)
Aspect ratio	3:4
Backlight type	LED white
TFT driver IC	ST7789V
Brightness	350	cd/m2
Operating temperature	-30~70℃	℃
Storage temperature	-30~80℃	℃
