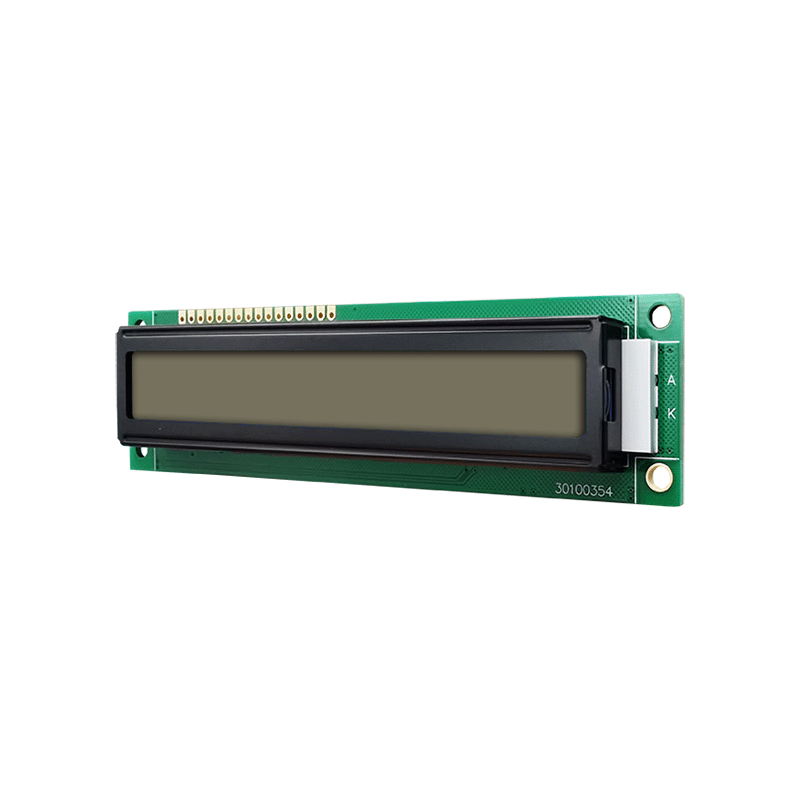

Ultra thin-1X16 Character LCD Display| FSTN+ Gray Background with White Backlight-Arduino

Ultra thin-1X16 Character LCD Display| FSTN+ Gray Background with White Backlight-Arduino

▶ Model: HTM1601C-31W-A5P

▶ Product type: Standard COB character LCD module
▶ Display content: 16x1 characters
▶ Overall dimensions (mm): 122.0x33.0x8.0
▶ View window size (mm): 99.0x13.0
▶ Display size (mm): 94.73x9.56
▶ Point spacing mm: 1.17x1.04
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight: white light
▶ Number of PINs: 16PIN
▶ Interface: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0v
▶ Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

HTM1601C-31W-A5P |1X16 Character LCD Display| FSTN+ Gray Background with White Backlight-Arduino

When turned on, this high-quality 16-character single LCD screen displays gray pixel characters on a very bright white background. The controller for this model is the ST7066U. Its operating voltage is 5V and is RoHS compliant, ensuring compliance with health and environmental standards. The LCD monitor has an operating temperature range of -20 degrees Celsius to 70 degrees Celsius, making it suitable for a variety of environments. The HTM1601C-31W-A5P reflective LCD display can be seen in ambient or background light, providing flexibility in a variety of lighting conditions. This Arduino compatible 16-character LCD display has an optimal viewing angle of 6:00.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

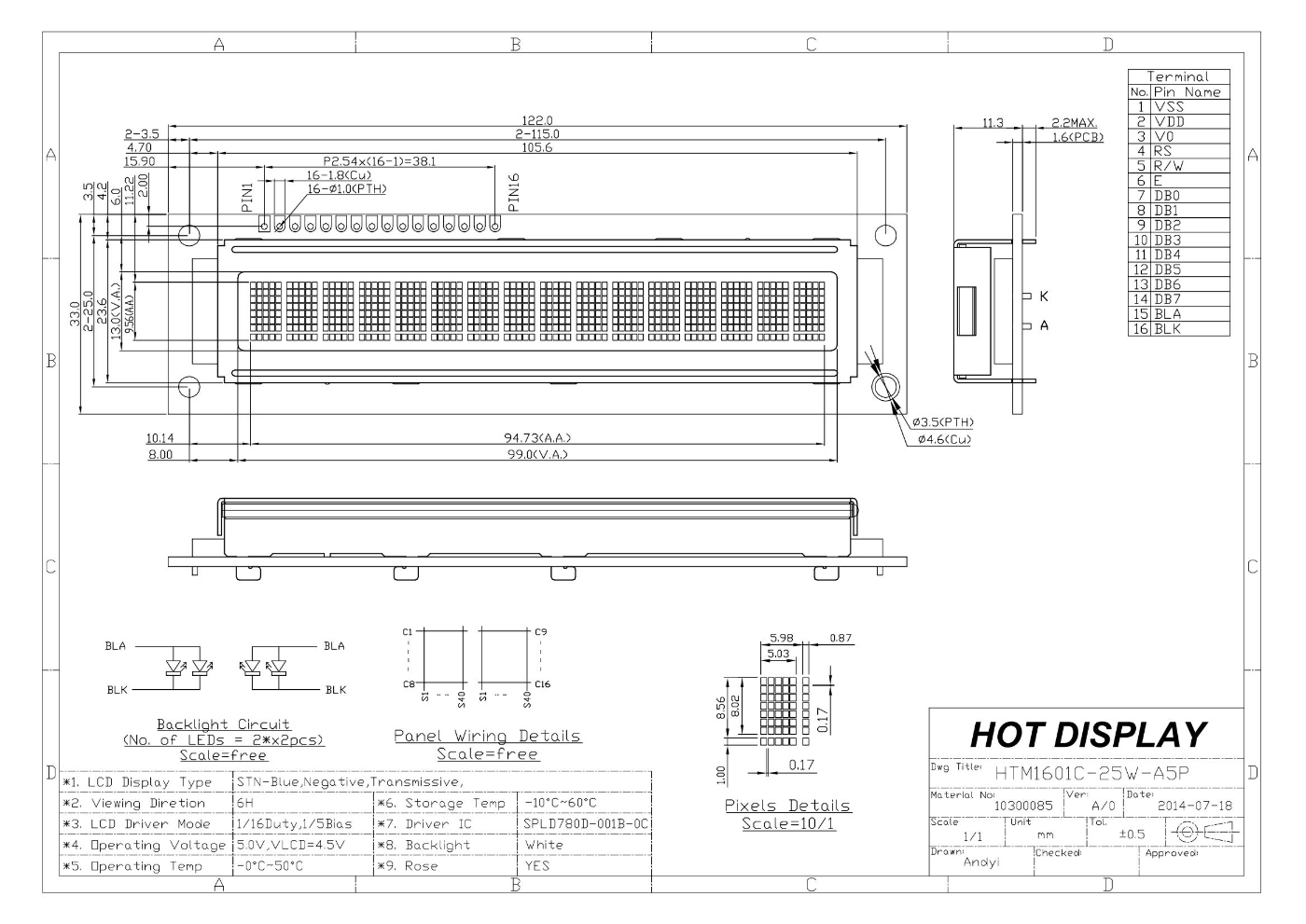

Item	Parameter Description	Unit
name	HTM1601C-31W-A5P
Number of dots	16words × 1line	dots
Module size	122.0x33.0x8.0 (MAX)	mm
Visual (VA) area	99.0（W） × 13.0（H）	mm
Valid (AA) area	94.73x9.56（H）	mm
Point (pixel) spacing	1.17x1.04mm	mm
IC	ST7066U driver chip
voltage	5.0V	V
back light	White
display mode	FSTN gray
Drive mode (Duty)	1/16 duty cycle
type	Character LCD
characteristic	Transflective polarizer
