1X16 monochrome-character LCD Display | STN(-)+Blue Background with white backlight-Arduino

1X16 monochrome-character LCD Display | STN(-)+Blue Background with white backlight-Arduino

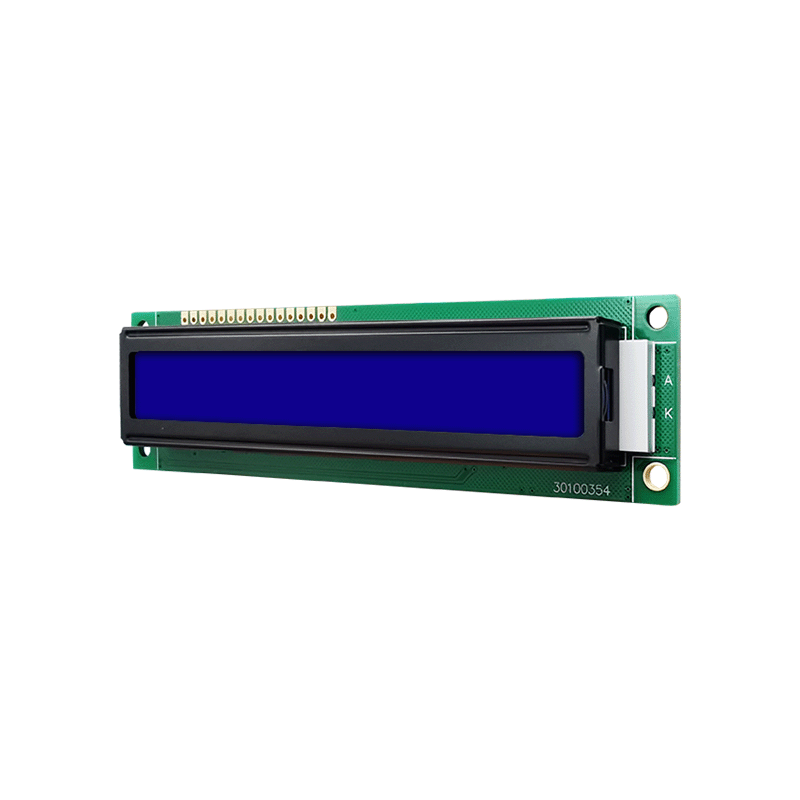

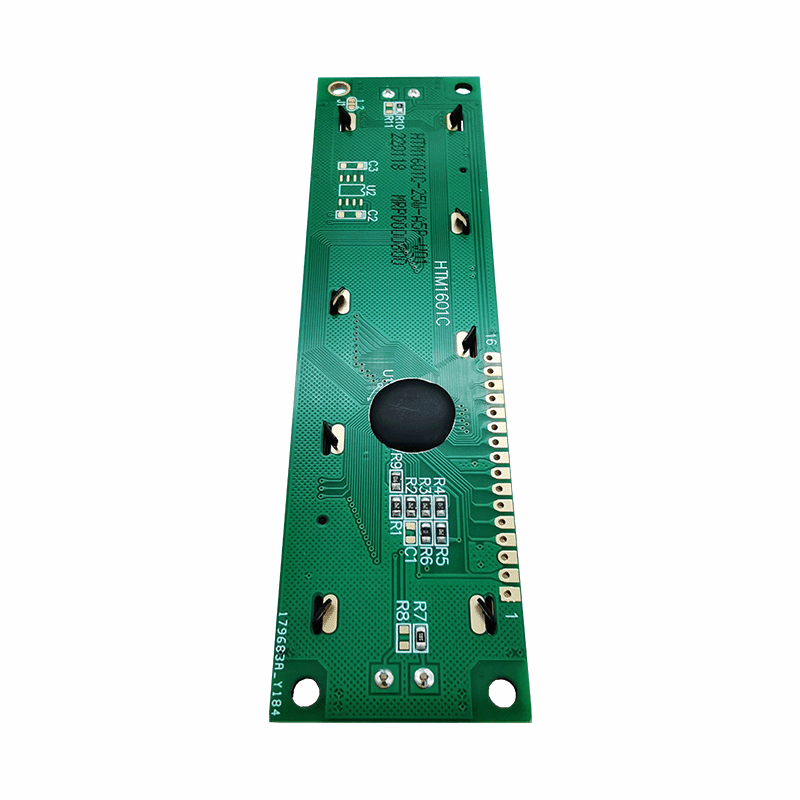

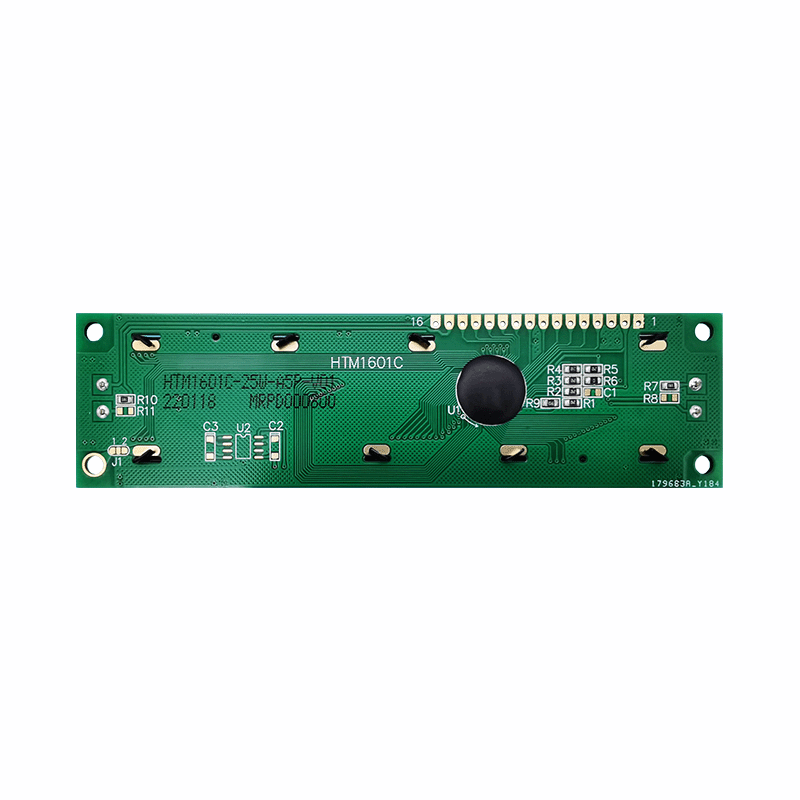

▶ Model: HTM1601C-25W-A5P

▶ Product type: Standard COB character LCD module
▶ Display content: 16x1 characters
▶ Overall dimensions (mm): 122.0x33.0x8.0
▶ View window size (mm): 99.0x13.0
▶ Display size (mm): 94.73x9.56
▶ Point spacing mm: 1.17x1.04
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight: white light
▶ Number of PINs: 16PIN
▶ Interface: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0v
▶ Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

HTM1601C-25W-A5P |1X16 Character LCD Display| STN(-)+ Blue Background with White Backlight-Arduino

HOT DISPLAY Model HTM1601C-25W-A5P is a 1x16 character LCD with a white display and backlight. It is a reflective LCD, which means it can be seen both in ambient light and in poor lighting conditions when the backlight is turned on for better visibility. The monitor has a wide operating temperature range of -20 to 70 degrees Celsius, making it suitable for different applications.

The characters on the display are dark pixels on a bright blue background. The backlight is a white LED. The display communicates via parallel communication, operates on a 5V supply voltage, and has an internal ST7066U control chip. This high quality RoHS compliant display module is RoHS compliant and can be used in Arduino projects and is compatible with other development boards. The HTM1601C-25W-A5P display module has undergone rigorous quality testing to ensure its durability and performance under various conditions.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

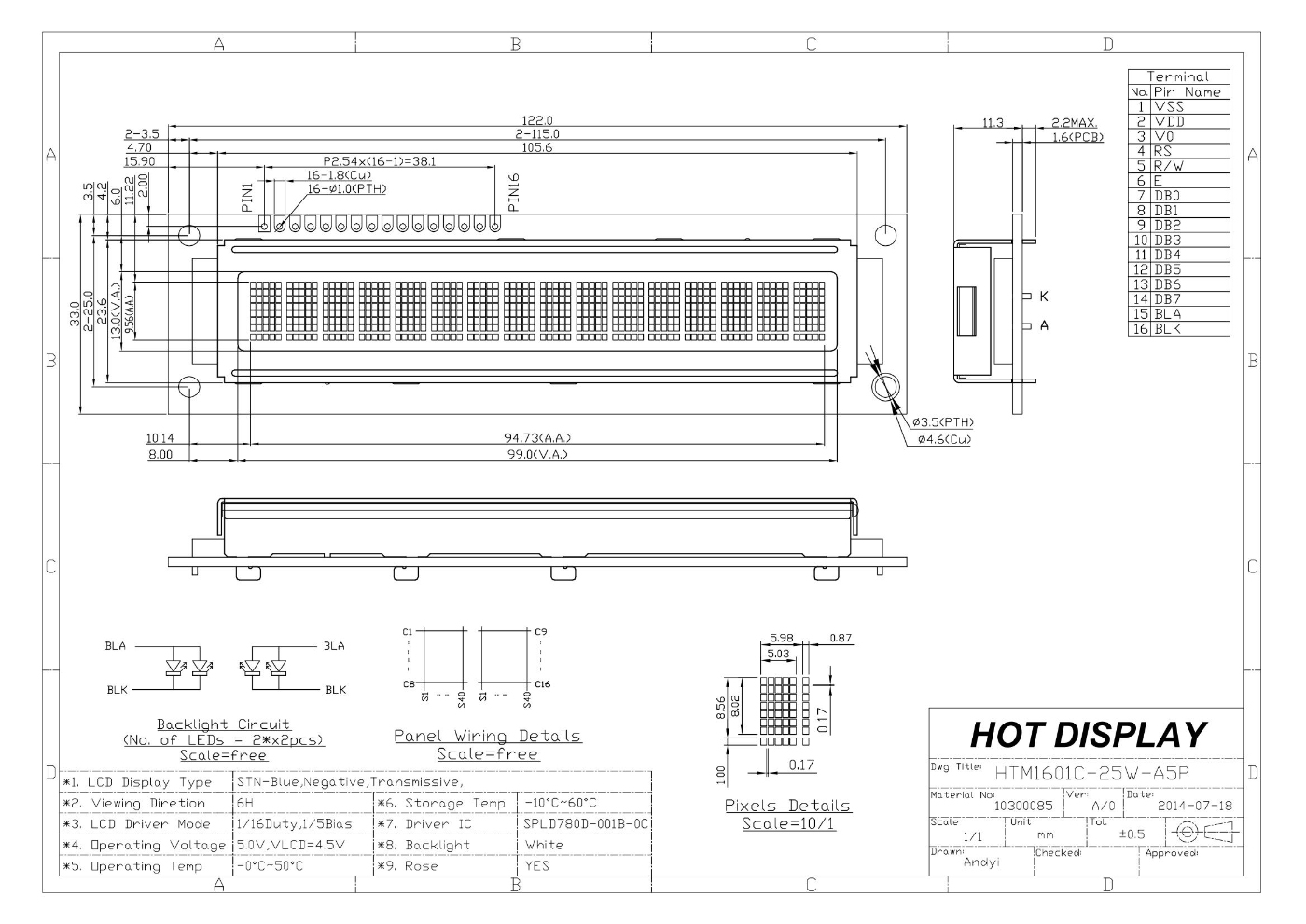

Item	Specification content	Uint
model	HTM1601C-25W-A5P
words × lines	16 words × 1line	dots
Module size	122x33x11.3 (MAX)	mm
Visual (VA) area	99x13	mm
Valid (AA) area	94.73x9.56	mm
Point (pixel) spacing	1.17x1.04	mm
IC	ST7066U
voltage	5V	V
backlight	White
model	STN(-)
Drive mode (Duty)	1/16 duty cycle
type	Character LCD module
characteristic	Totally transflective polarizer
