2.0 inch 128x64 3.3v LCD Graphic LCD Module | 128 X 64 Graphic Dot Matrix Module | FSTN Positive Display | SPI Interface |Transmissive Polarizer

2.0 inch 128x64 3.3v LCD Graphic LCD Module | 128 X 64 Graphic Dot Matrix Module | FSTN Positive Display | SPI Interface |Transmissive Polarizer | RGB Red, Green and Blue Backlight

▶ Model: HTM12864T01A-35S-A5P

▶ Type: Standard COB LCD module
▶ Display pixels: 128x64
▶ Overall dimensions (mm): 58.0x51.2
▶ VA size (mm): 45.2x27.0
▶ AA size (mm): 40.92x24.28
▶ Viewing angle: 6H
▶ Backlight/brightness: red green blue light
▶ Pin: 12PIN
▶ Interface mode: SPI
▶ Special instructions: Chinese font library can be brought
▶ Working temperature: -20~70℃
▶ Supply voltage: 3.3V
▶ Driver chip: ST7567

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes
Download Related Materials

2.0 inch 128x64 3.3v LCD Graphic LCD Module | 128 X 64 Graphic Dot Matrix Module | FSTN Positive Display | SPI Interface | Fully Transparent Polarizer | RGB Red, Green and Blue Backlight

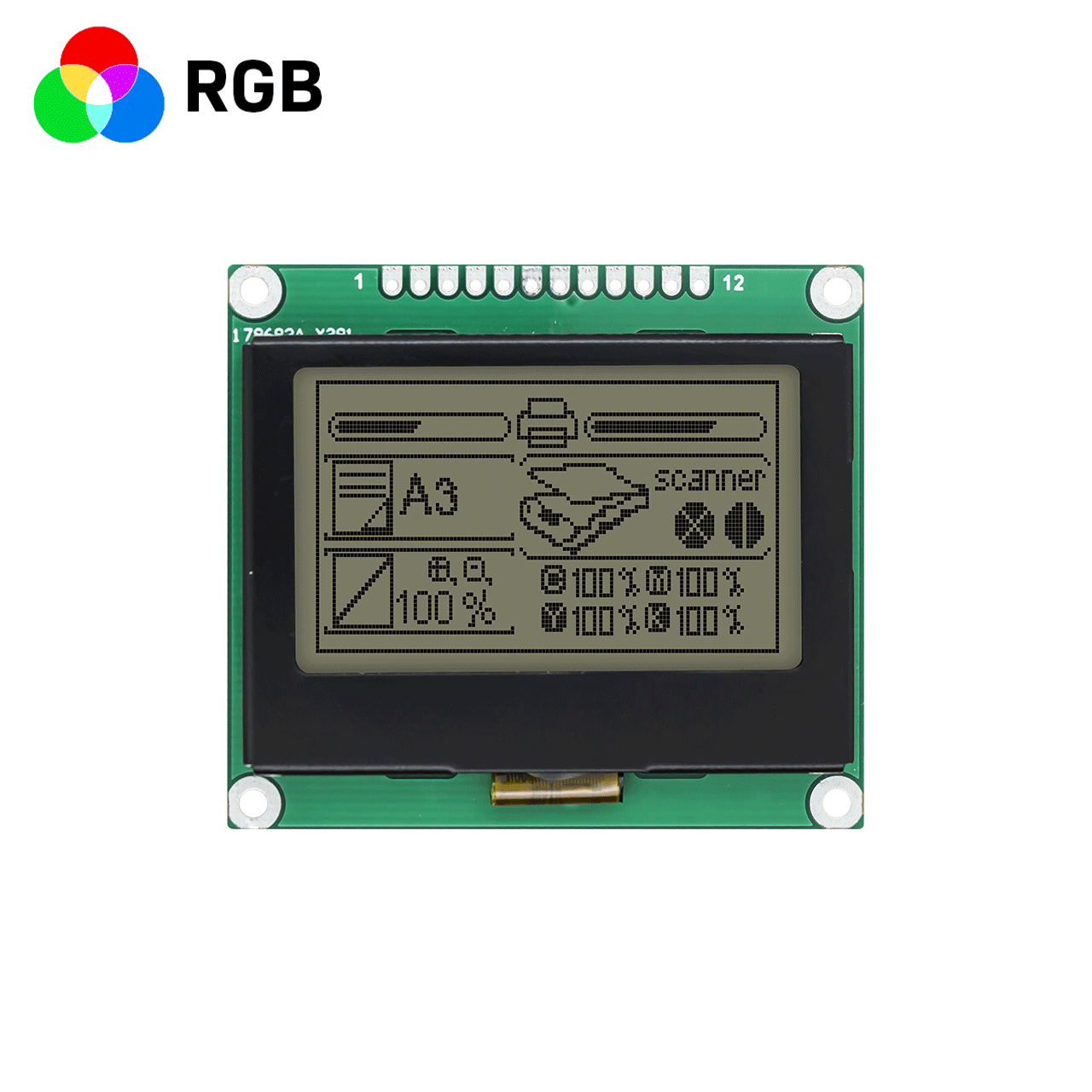

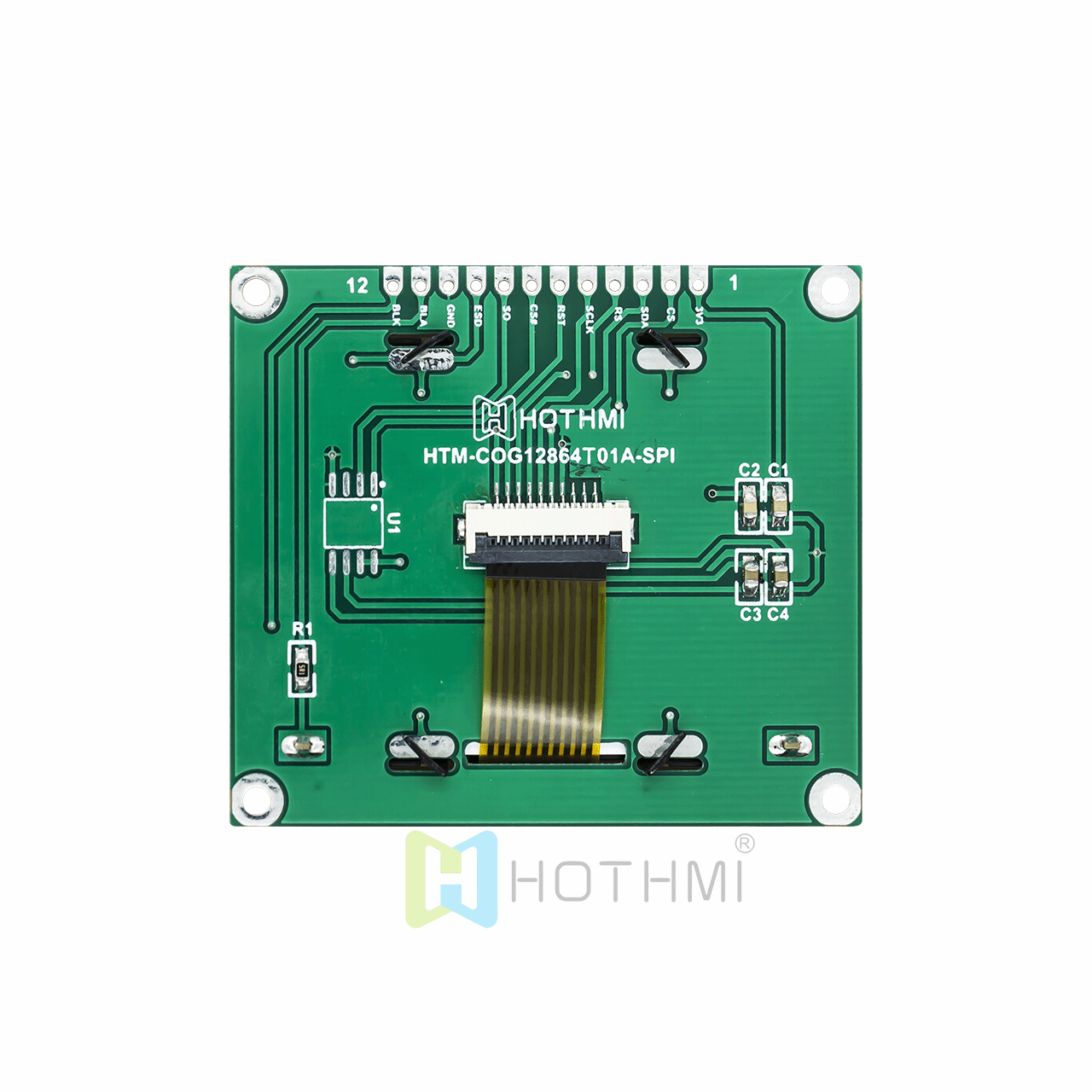

2.0 inch 128x64 3.3v LCD Graphic LCD Module displays dark gray pixels on a red, green and blue background. It is a liquid crystal graphic LCD module consisting of 128x64 dots. The built-in controller ST7567 IC driver supports 6800 8 parallel bit interface, FFC output PIN. This model only provides 3.3V voltage, which can be used for the internal oscillator of 2 kHz. The HTM12864T01A series module has multi-color LED backlight options, LCD has positive and negative screens STN and FSTN LCD, and the operating temperature is -20~70 degrees Celsius

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

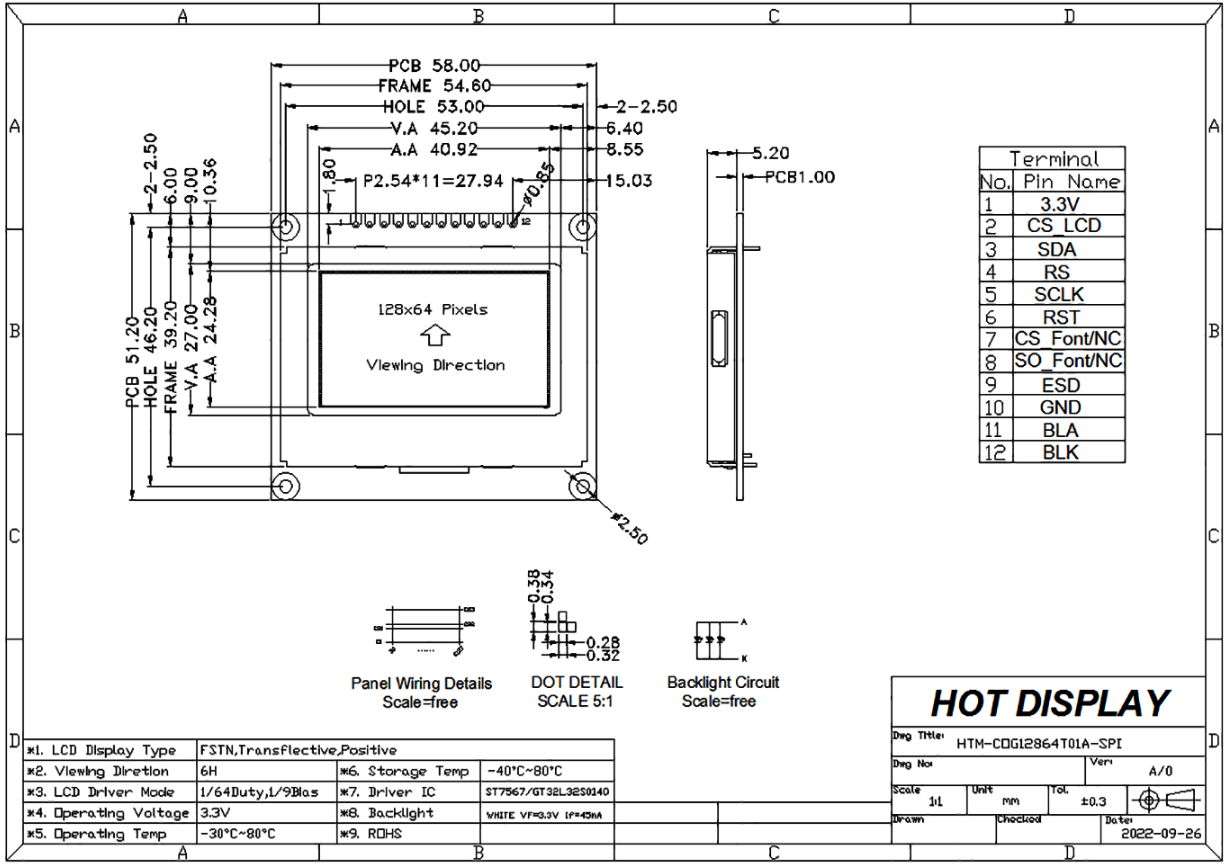

Parameter	Specification	Unit
Model	HTM12864T01A-35S-A5P
Column × Row	128列x64行	dots
Module Size	58 x 51.2 (MAX)	mm
VA Size	45.2（W） × 27.0（H）	mm
AA Size	40.92（W） × 24.28（H）	mm
Dot (Pixel) Pitch	0.65 × 0.70	mm
IC	ST7567
Applied Voltage	5.0V	V
Backlight	RGB red green blue
Mode	FSTN+
Drive Mode	1/64 duty cycle
Type	Graphic LCD
Polarizer Type	Transmissive
