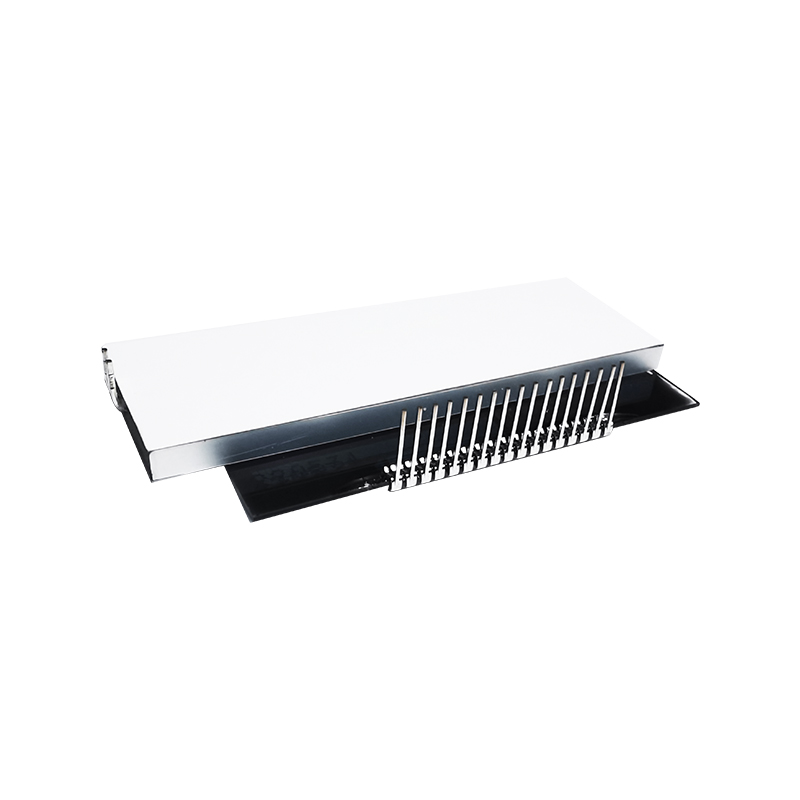

2X16 Character COG LCD STN+ Gray Display with Side White Backlight 3V

2X16 Character COG LCD STN+ Gray Display with Side White Backlight 3V

▶ Model: HTG1602F-11N-17Z-V01

▶ Type: COG character module
▶ Display pixels: 16x2

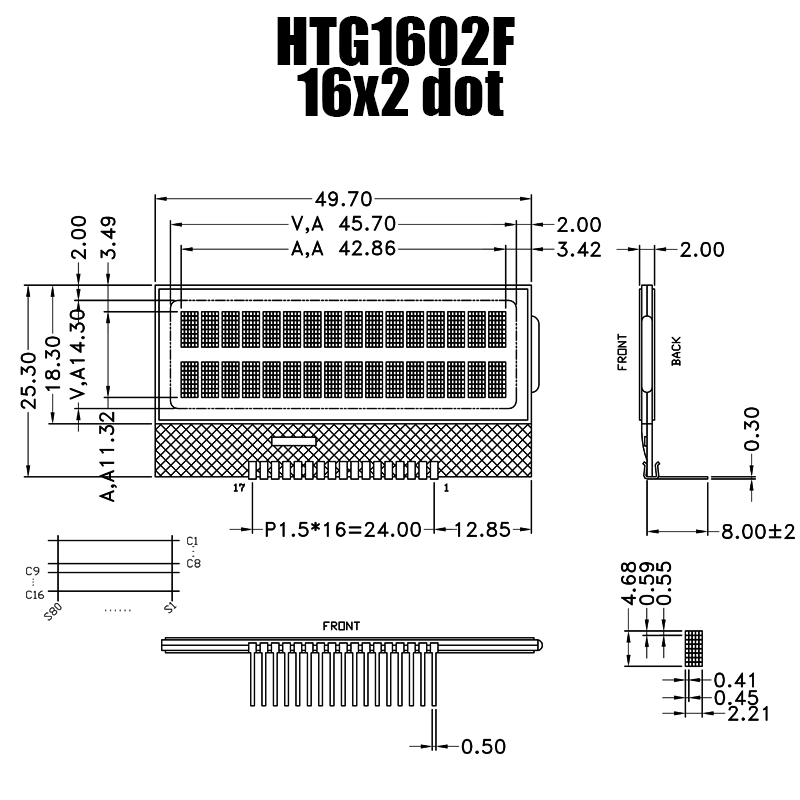

▶ Overall dimensions (mm): 49.7x25.3x2.0
▶ VA size (mm): 45.7x18.3
▶ AA size (mm): 42.86x14.30
▶ Point spacing (mm): 0.59x0.45
▶ Application: Internet phone
▶ Viewing angle: 6H
▶ Backlight/Brightness: White
▶ Pin: FPC-17PIN
▶ Interface mode: MCU/8bit
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Supply voltage: 3.0V
▶ Driver chip: ST7032I

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

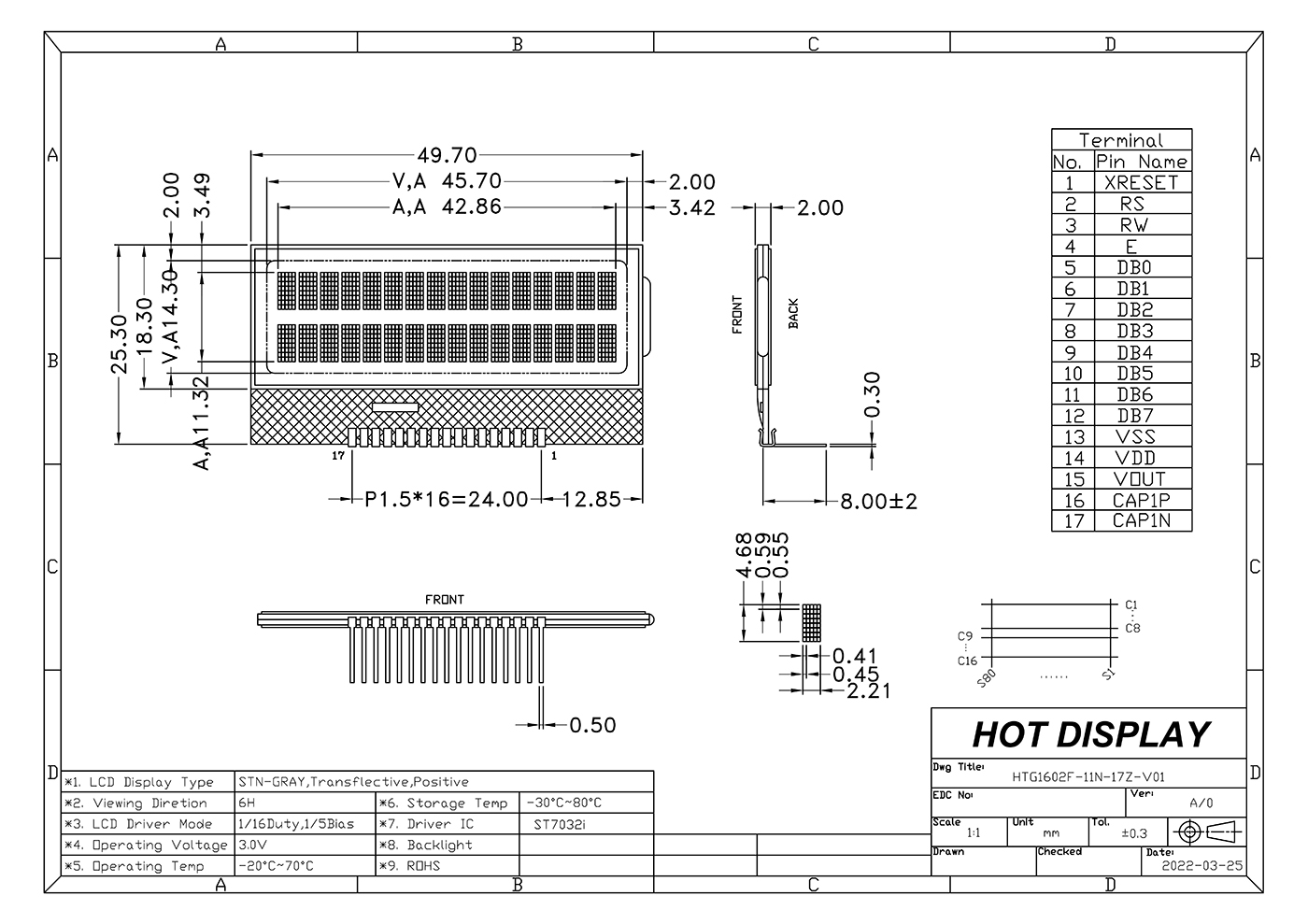

HTG1602F-11N-17Z-V01 | 16x2 character display | Transflective LCD display | Side white backlight | STN (+) positive gray display

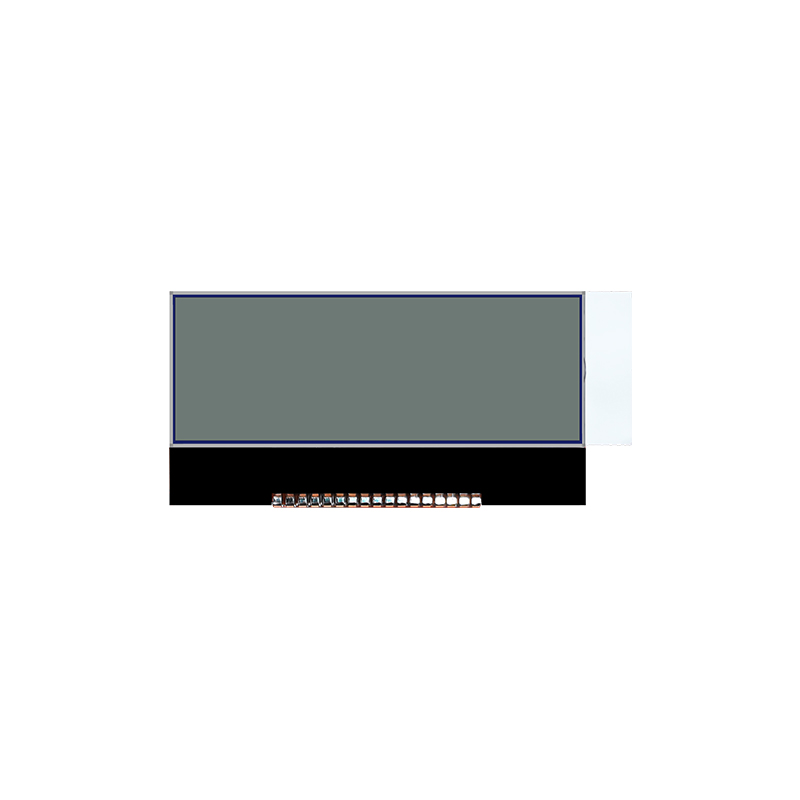

This 16x2 Character Chip on Glass (COG) LCD displays blue pixels on a gray background. This transflective STN positive LCD is visible in ambient or backlight. As a COG monitor, there is no PCB and the controller/driver is bonded directly to the glass of the monitor. The LCD monitor offers a wide operating temperature range of -20 to 70 degrees Celsius. This HTG1602F-11N-17Z-V01 monitor has a built-in ST7032I controller, has a 6:00 optimal viewing angle, an 8-bit parallel interface, operates at 3.0V, and is RoHS compliant.
