character LCD Module |4x16 STN(-) white side backlit monochrome display | Arduino | MCU interface

character LCD Module |4x16 STN(-) white side backlit monochrome display | Arduino | MCU interface | ST7066U controller

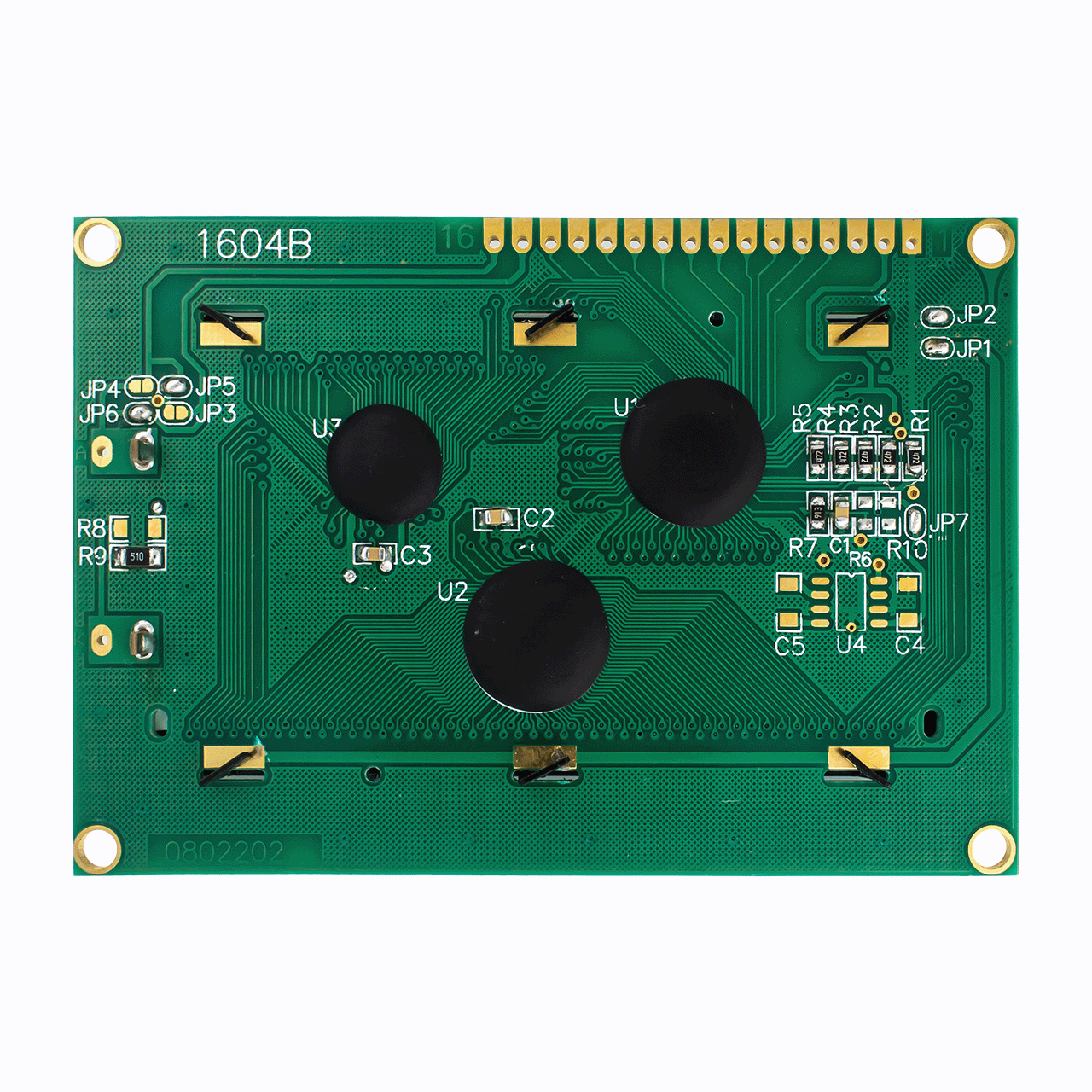

▶ Model: HTM1604B-25W-A5P

▶ Type: character LCD Module
▶ Display content: 4x16 characters

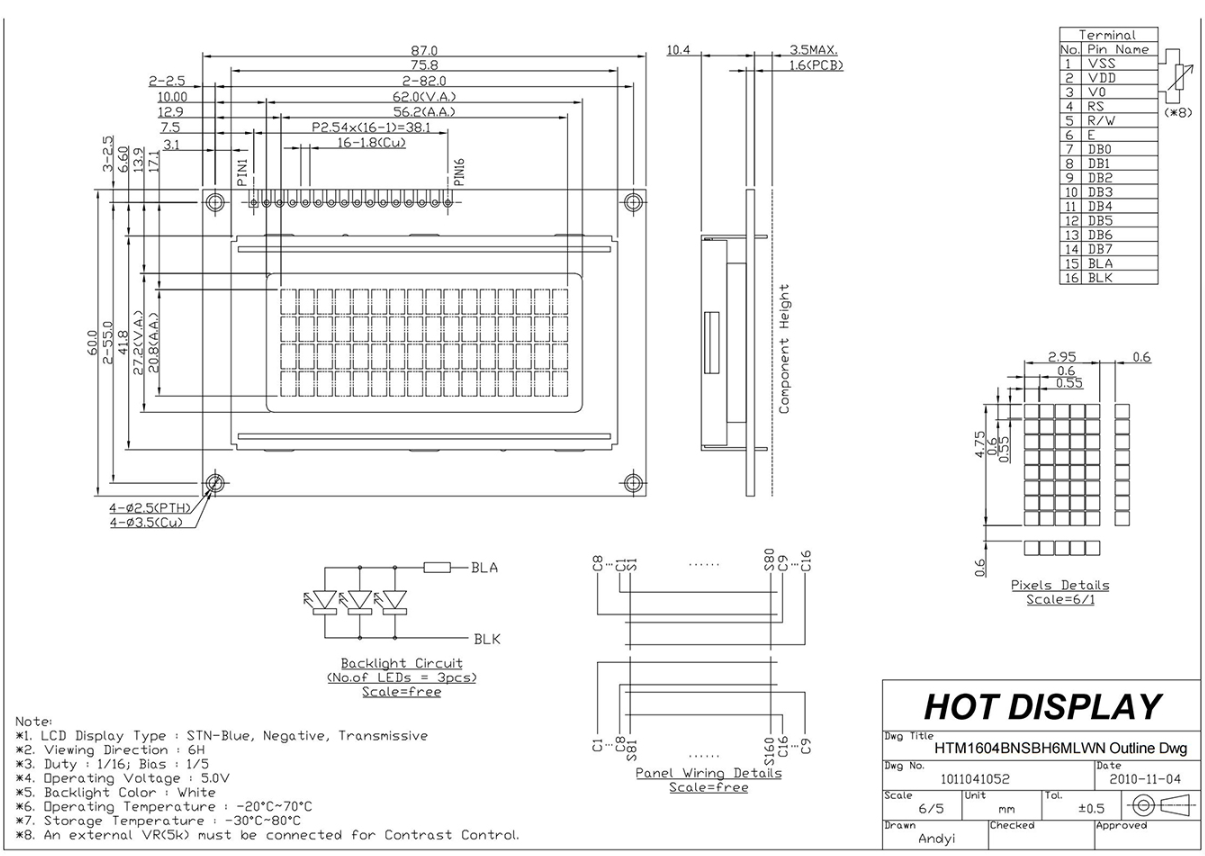

▶ Overall dimensions (mm): 87x60x10.4
▶ VA size (mm): 62x27.2
▶ AA size (mm): 56.2x20.8
▶ Point spacing mm: 0.6x0.6
▶ Product application: Instrumentation
▶ Viewing angle: 6H
▶ Backlight: white
▶ Connection method PIN number: 16pin
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Supply voltage: 5.0V
▶ Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

character LCD Module |4x16 STN(-) white side backlit monochrome display | Arduino | MCU interface | ST7066U controller

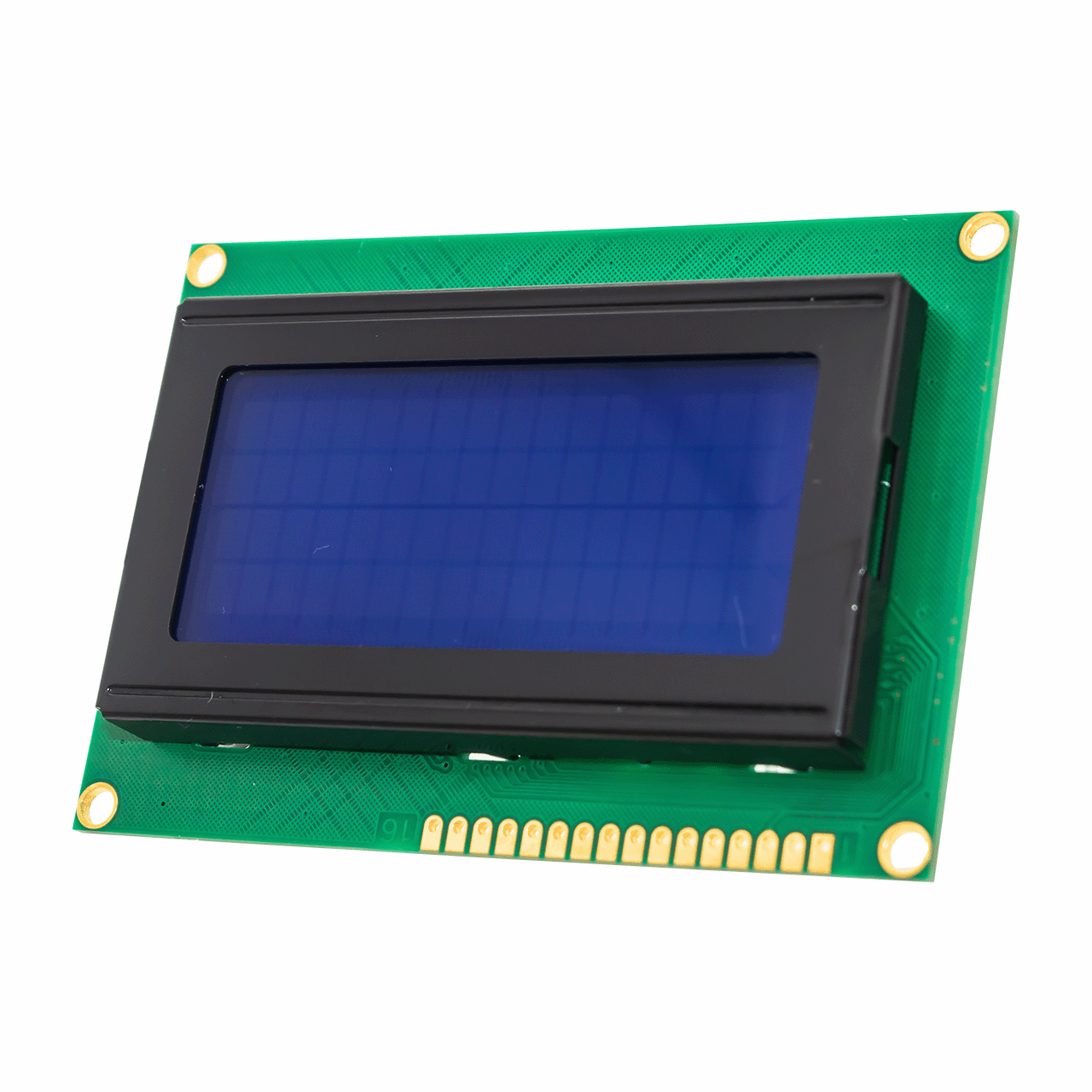

This character LCD Module high-quality 16x4 character LCD shows characters with white pixels on a very bright blue background when powered on. The controller/driver of this model is the ST7066U. It operates at a 5V supply voltage and is RoHS compliant, ensuring it adheres to health and environmental standards. The LCD has a wide operating temperature range from -20 to 70 degrees Celsius, with STN(-) Full transparency mode ，making it suitable for various environments. This HoT Display Module HTM1604B-25W-A5P transflective LCD display can be viewed with ambient light or a backlight, providing flexibility in various lighting conditions. The optimal viewing angle for this Arduino compatible 16 character LCD is 6:00.

Item	Specification content	Unit
name	HTM1604B-25W-A5P
Number of dots	4 x 16	dots
Module size	87.0（W） × 60.0（H） × 10.4（T）	mm
Visual (VA) area	62x27.2	mm
AA size	56.2（W） × 20.8（H）	mm
Point (pixel) spacing	0.60（W） × 0.60（H）mm	mm
IC	ST7066U driver
Applied voltage	5.00V	V
back light	white
model	STN（-）
Drive mode (Duty)	1/16 duty cycle
type	Character LCD
Polarizer type	Totally transflective polarizer
