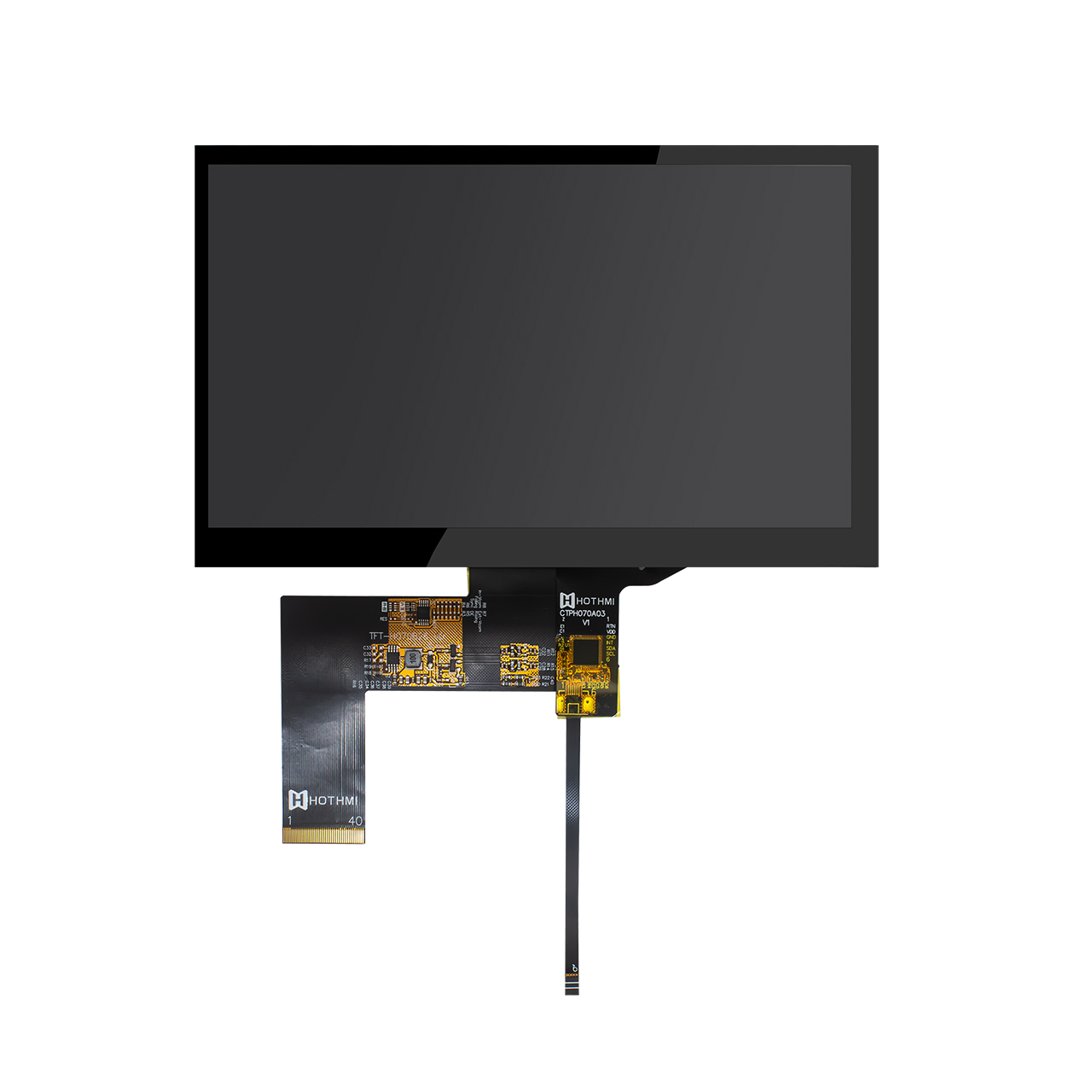

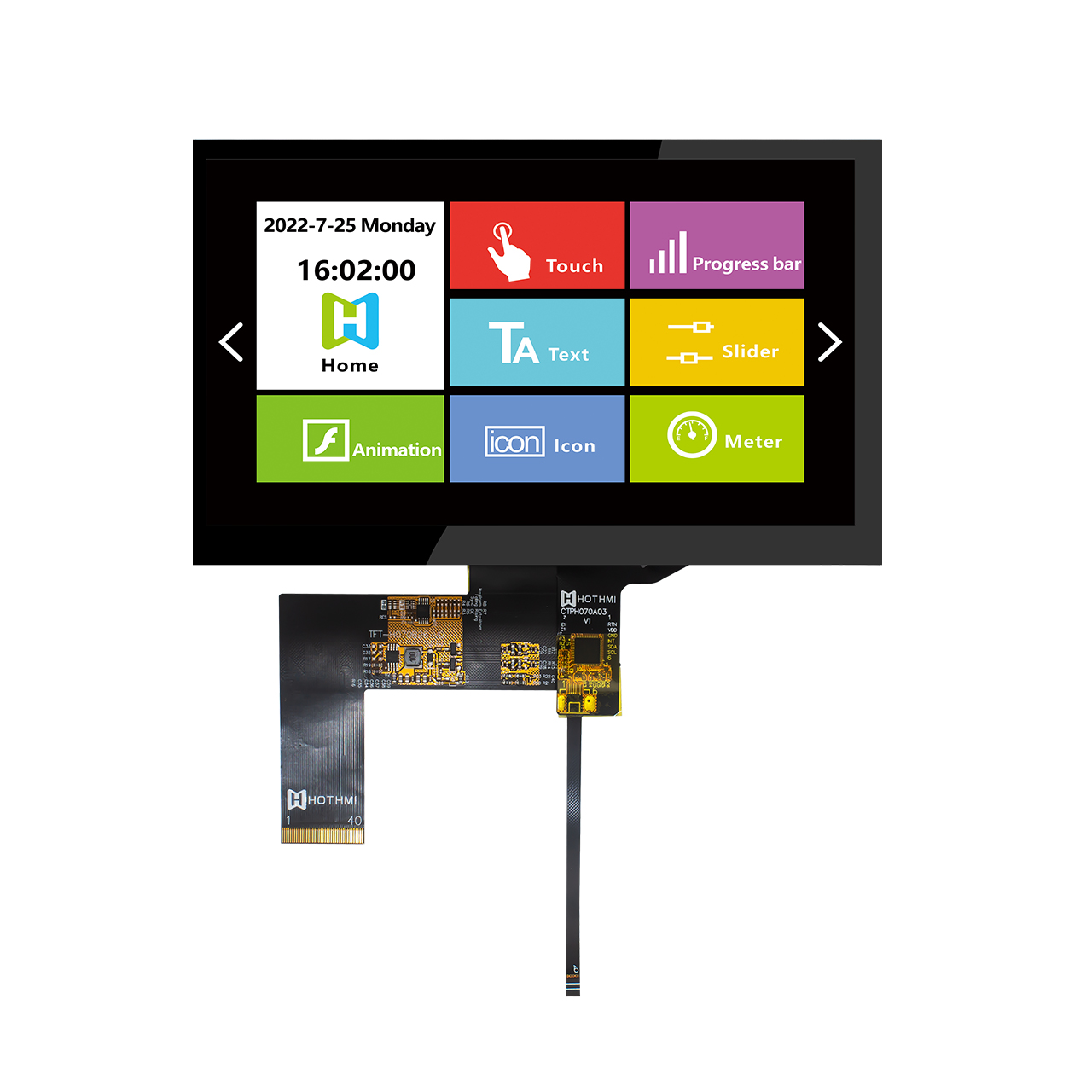

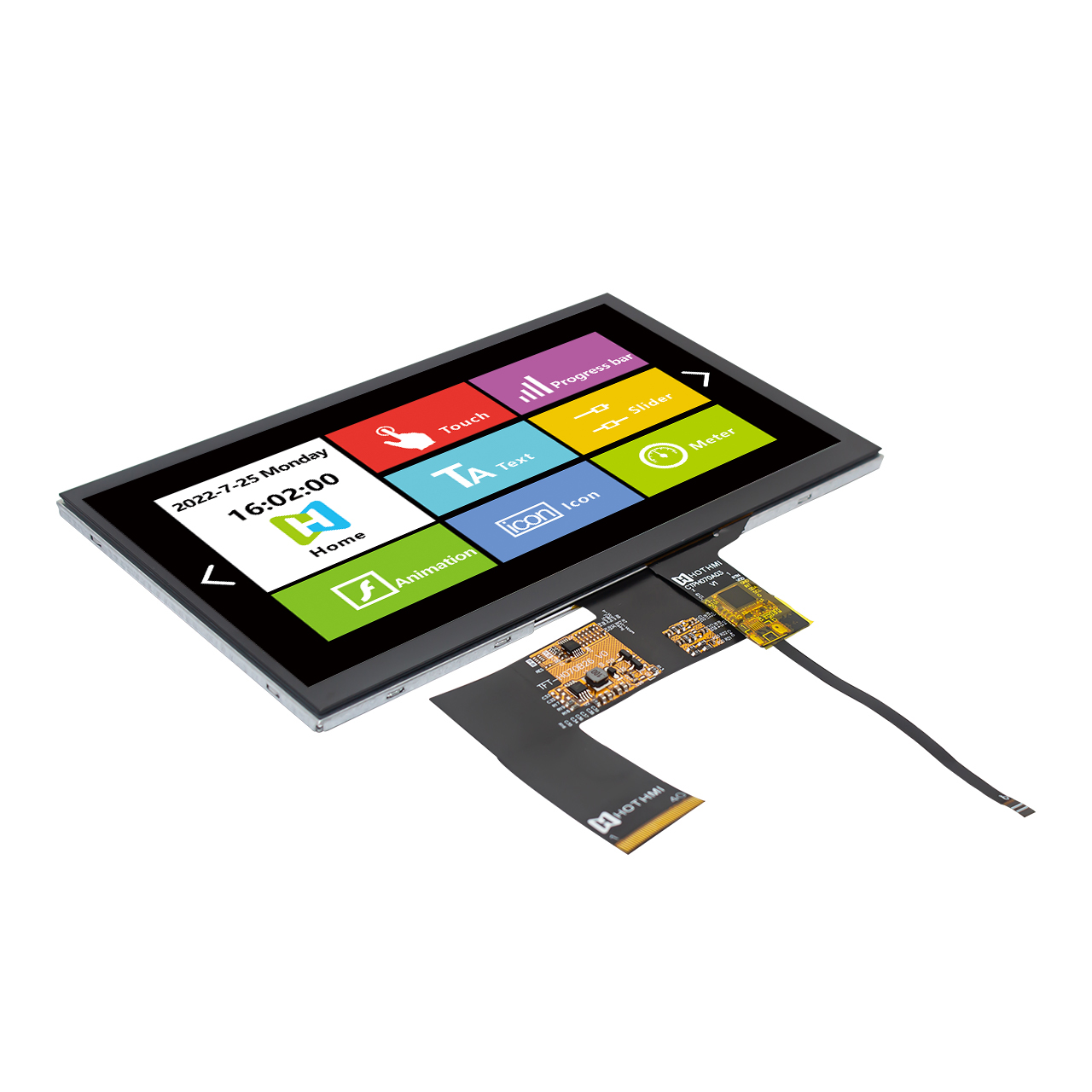

  • TFT-H070B26WSIJDKC40 | 7.0"TFT Display | 1024x600 Capacitive Touch | RGB Interface High Brightness LCD | JD9165 Controller


    This display has a high-definition resolution of 1024 (3RGB) x 600 pixels, which delicately presents every detail of the picture. Supporting 24-bit true color (RGB 24 Bit), the color level is rich and full, and with the NTSC 50% color gamut performance, it can truly restore natural colors. Whether it is displaying complex industrial data charts, clear navigation maps, or vivid multimedia content, it can bring satisfactory visual enjoyment. Its "Normally Black" panel design presents deep black when not powered on, effectively improving the contrast performance and ensuring sharp and transparent images.


    Multi-touch, responsive. The touch panel integrates the industry's mainstream GT911 capacitive touch chip (CTP), bringing an accurate, fast and smooth touch experience. Whether it is a tap, a slide or a complex gesture operation, it can be sensitively captured and responded to instantly, greatly improving the efficiency and pleasure of human-computer interaction. With its moderate size of 7.0 inches, it provides sufficient viewing area while maintaining the portability of the device. It is an ideal choice for applications such as embedded systems, portable terminals, industrial HMI, vehicle displays, and smart home control panels.


    Compared with the same series of products, this model is characterized by ultra-high brightness. Its backlight system has been carefully adjusted to achieve a typical brightness of up to 1000 cd/m², ensuring that the content is still clearly visible in strong light environments. At the same time, the product design fully considers the stability of long-term use, and has a built-in intelligent anti-image retention mechanism to effectively avoid the impact that may be caused by long-term display of fixed patterns, ensuring that the screen is durable and new.

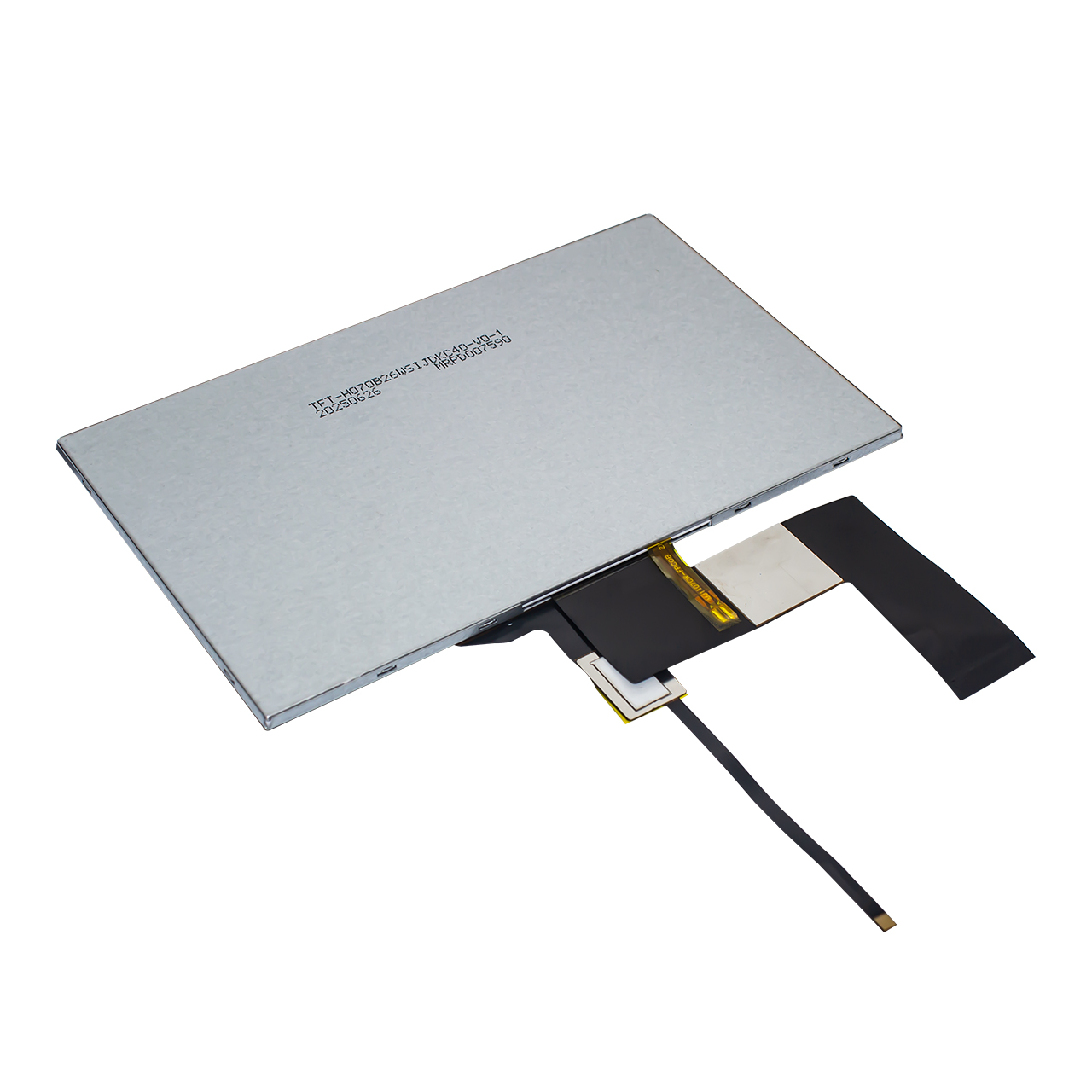

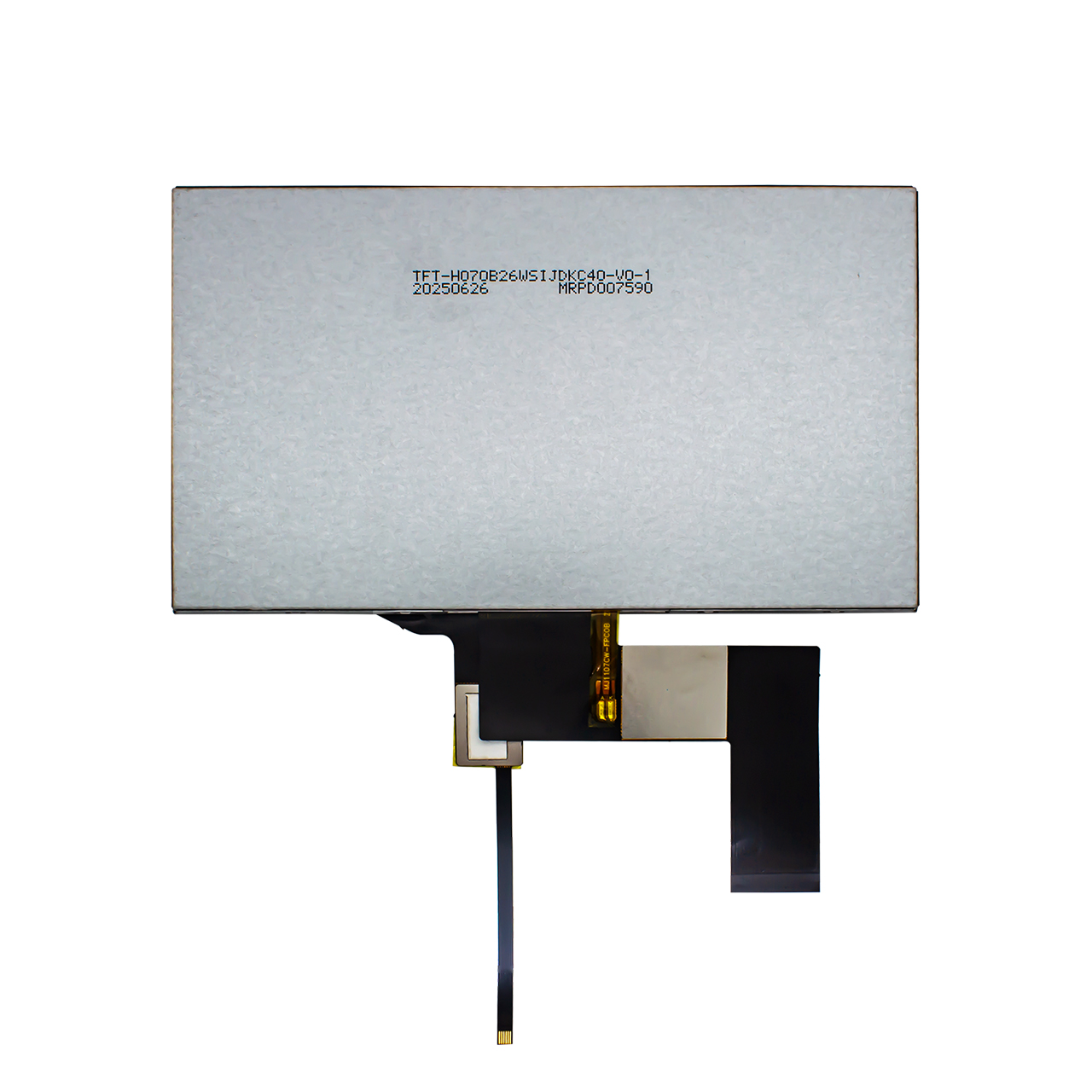

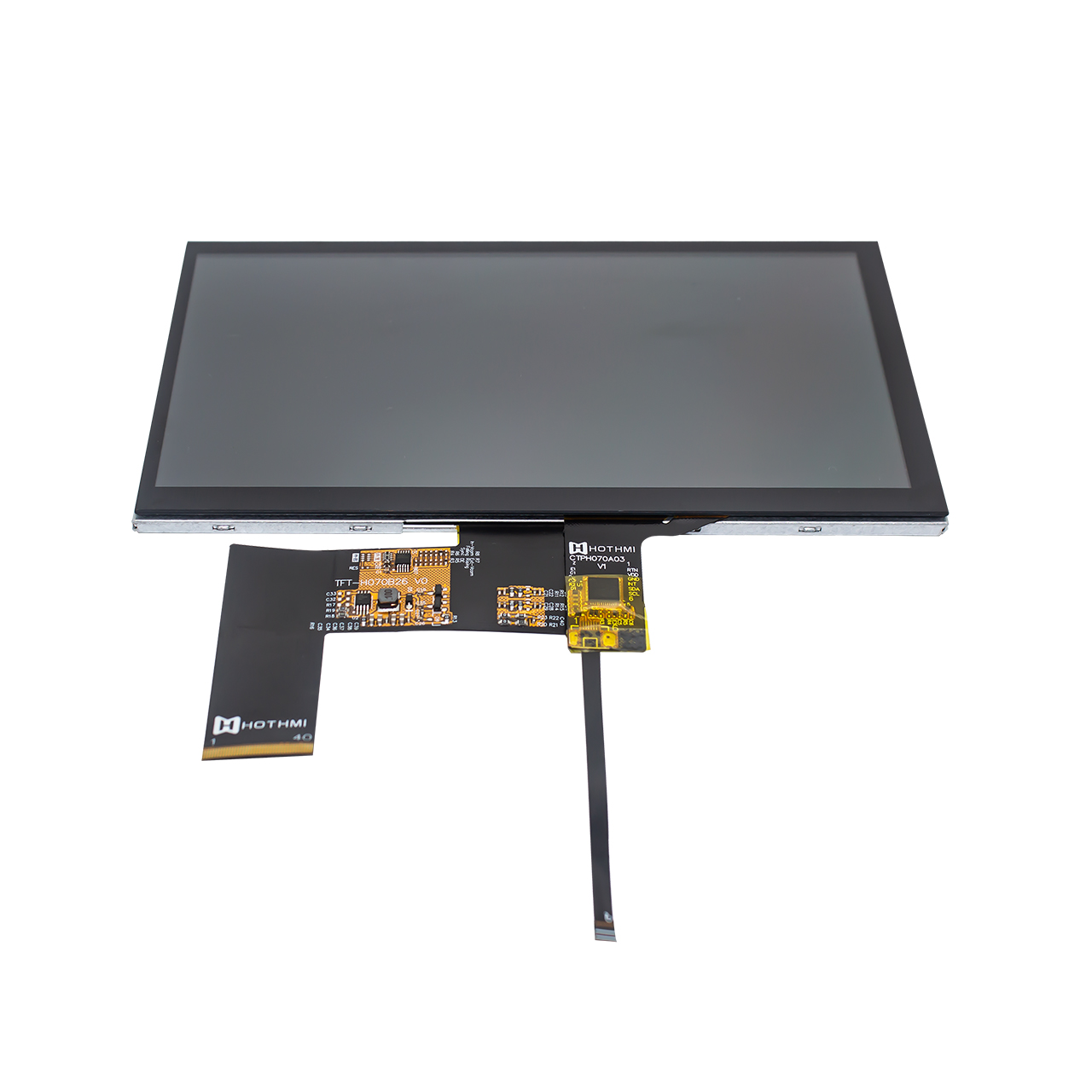

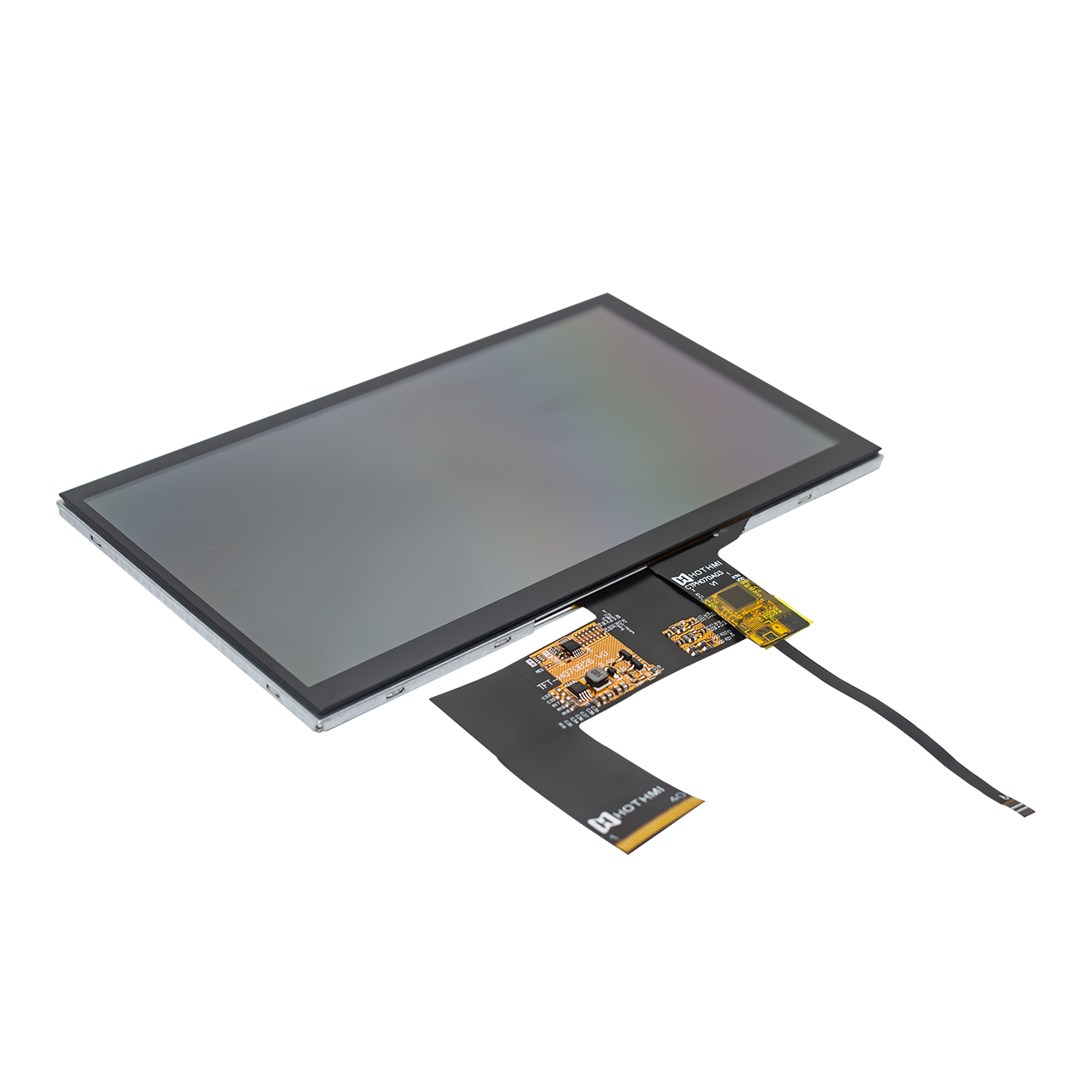

    TFT-H070B26WSIJDKC40 adopts a compact modular design, solid structure, clear interface definition, and built-in FPC makes it easy for users to install and connect. The slim profile and optimized frame design help create a more modern and space-efficient product appearance.


    In the same series of other products, we provide a TFT display module with a 7.0-inch metal frame: TFTH070A2WSIFT8N50, a 7.0-inch rounded corner touch TFT module: TFT-H070A20WSIFT7C50-V02, a 7.0-inch LVDS interface TFT display: TFT-H070A22WSIJD8N40, and a 7.0-inch 800x480 display: TFT-H070A3SVTFT3N40. The 7.0-inch bar display TFT-H070A21ZBINV6N40 may be your choice.


    All Hot Display products comply with ROHS standards.


  • Datasheet for Touch Panel,Controller↓

    Name Date Size
    TFT-H070B26WSIJDKC40 June 06, 2025 104.23KB
  • Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

    Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

    Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

    Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.


  • ITEM

    PARAMETER DESCRIPTION

    UNIT

    TFT series

    TFT-H070B26WSIJDKC40

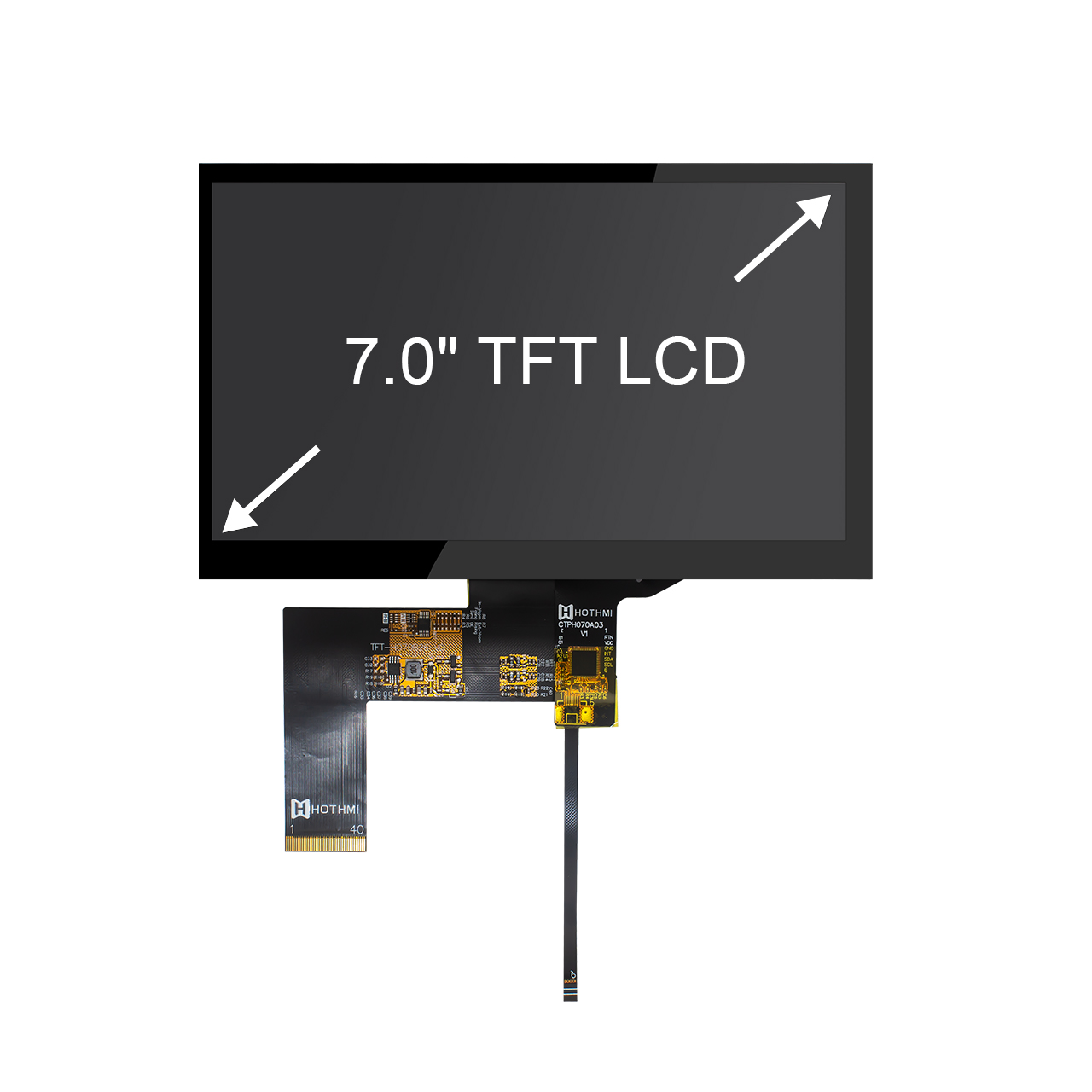

    Diagonal size

    7.0”

    Inch

    Resolution

    1024x600

    Dot

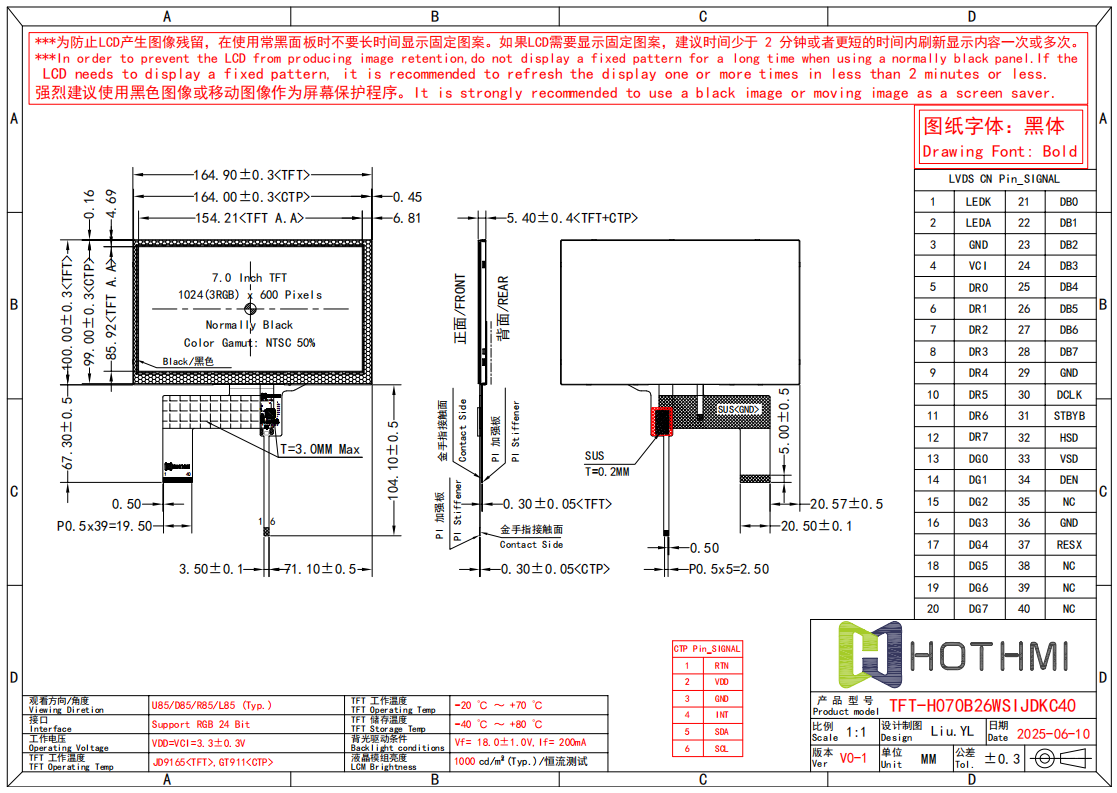

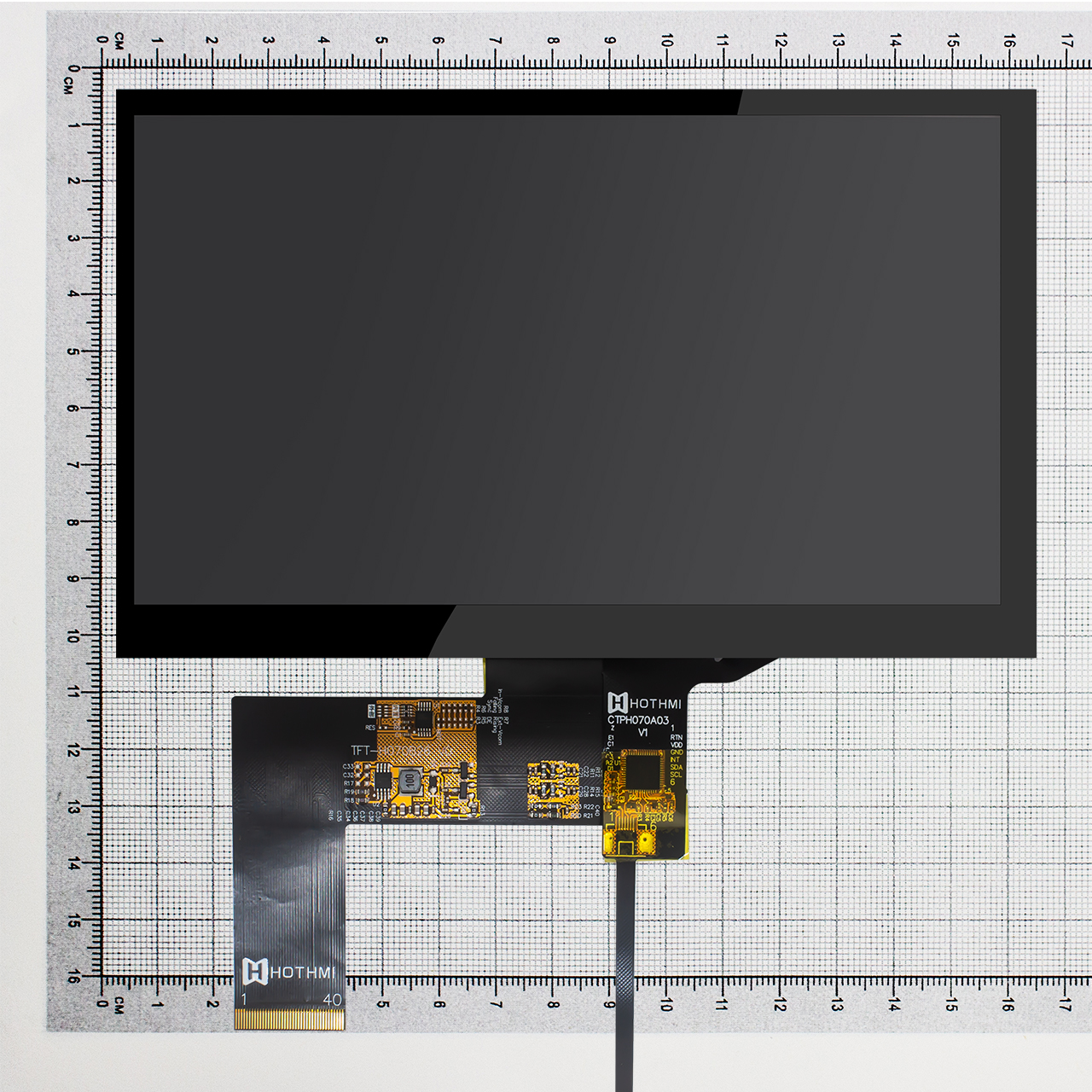

    Dimensions

    164.9x100.0x5.4

    mm

    Active area (AA)

    154.21x85.92

    mm

    LCD type

    7.0” TFT Module

    mm

    Display viewing angle

    Full View


    Aspect ratio

    3:2


    Backlight type

    LED white


    TFT driver IC

    JD9165


    Brightness

    1000cd/m2

    cd/m2

    Operating temperature

    -20~70℃

    Storage temperature

    -40~80℃
