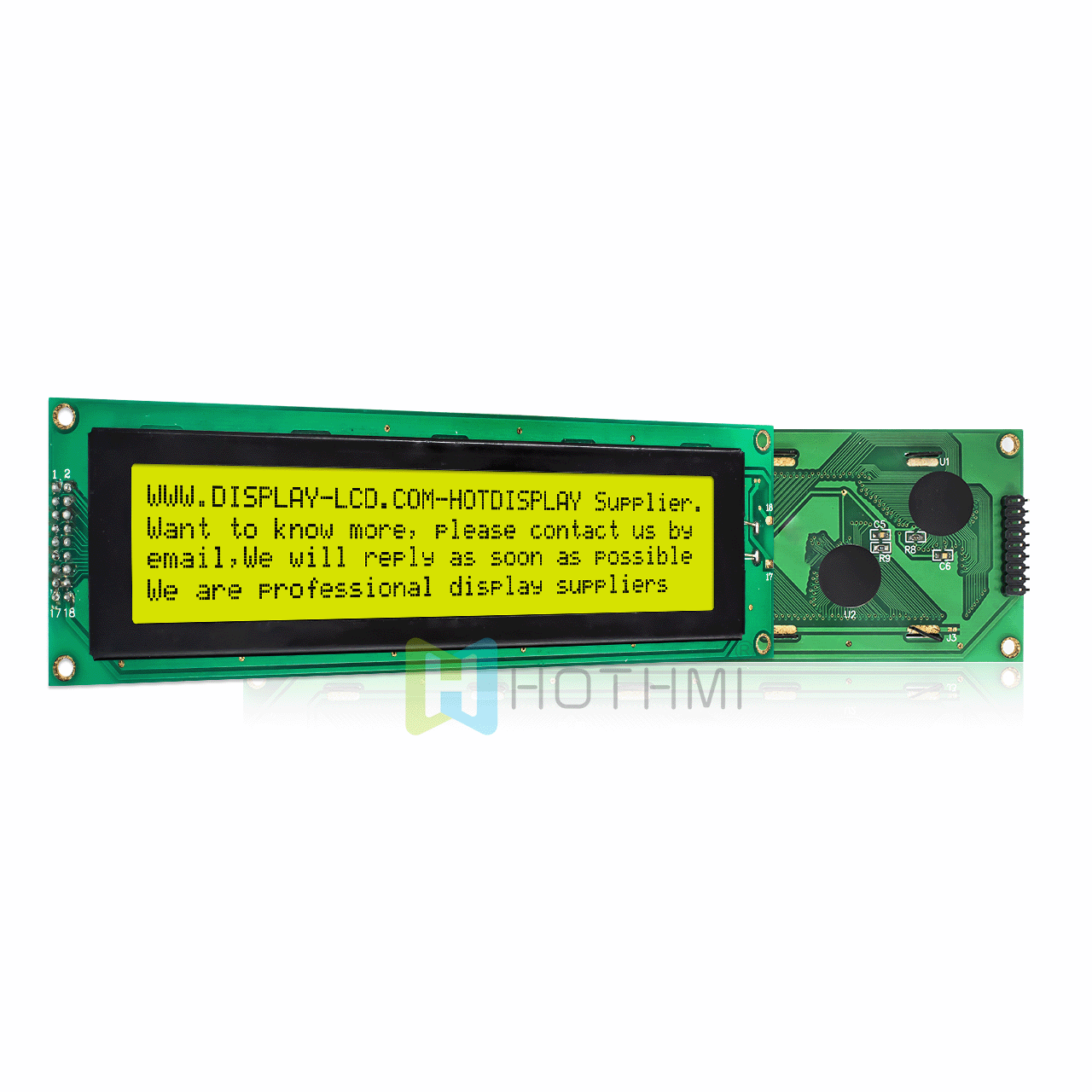

4X40 character monochrome LCD display module | STN positive display | with yellow-green backlight | Arduino display

4X40 character monochrome LCD display module | STN positive display | with yellow-green backlight | Arduino display | ST7066U

▶ Model: HTM-4004B-11Y-A5P

▶ Type: Standard COB character LCD module
▶ Display content: 40x4 characters
▶ Dimensions (mm): 190.0 x 54.0 x 14.9
▶ VA size (mm): 147.0 x 29.5
▶ AA size (mm): 140.47 x 23.18
▶ Pixel pitch mm: 0.57 x 0.62
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight type: yellow/green light
▶ Number of PINs: 16PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 5.0V
▶ Driver chip:ST7066U
