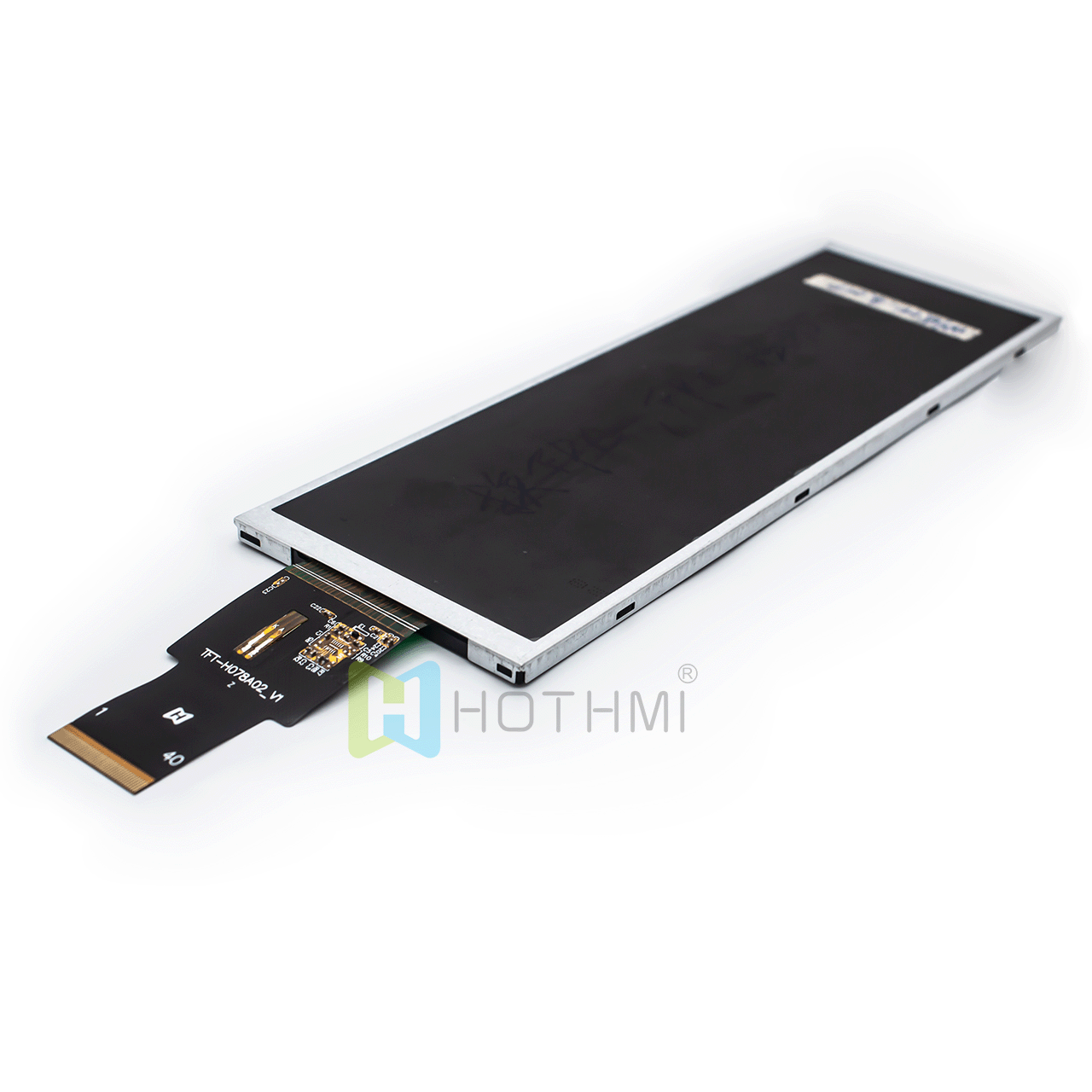

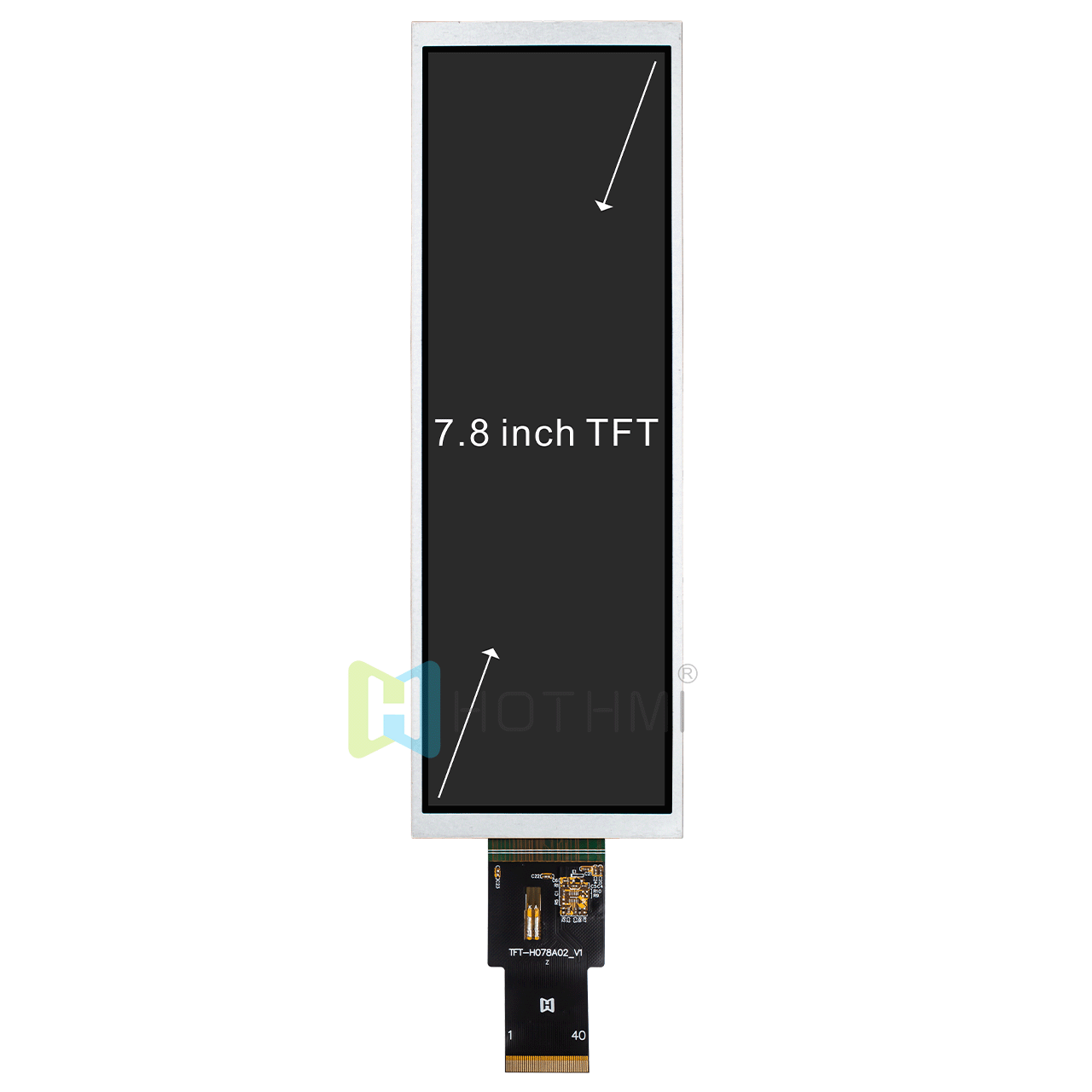

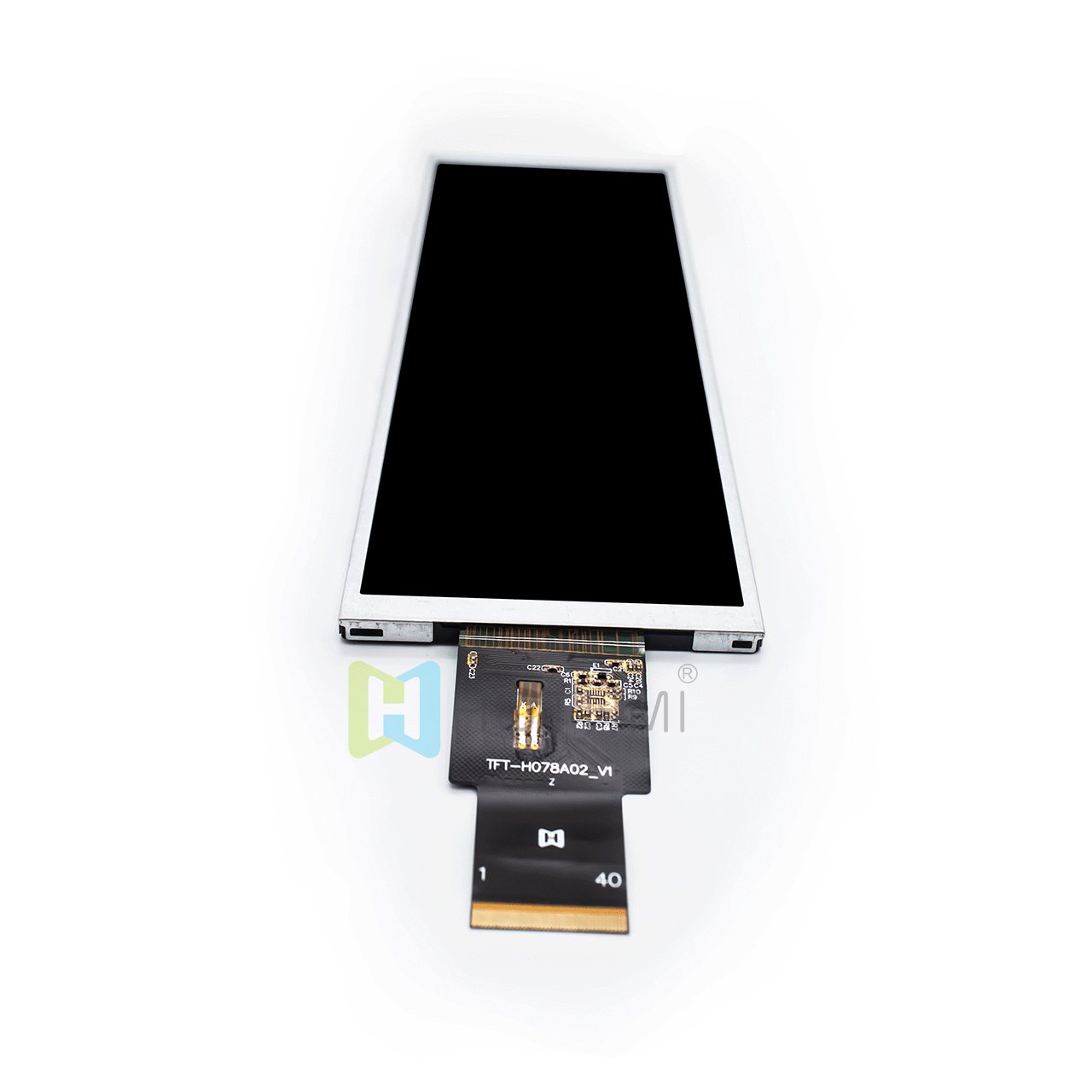

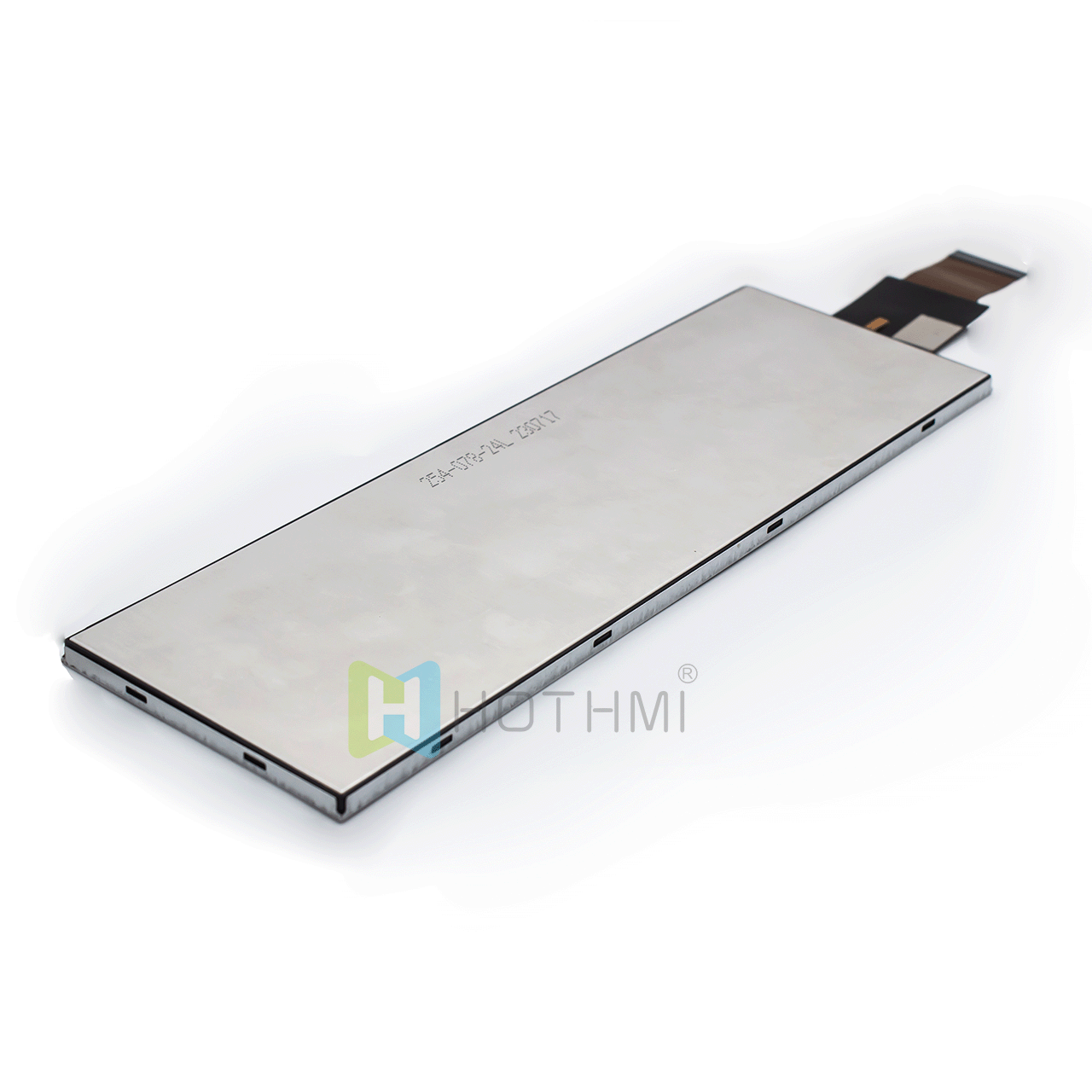

7.8-inch 400x1280 resolution color display / IPS TFT LCD / SPI+LVDS interface / NV3051 controller / ultra-high brightness wide-angle TFT LCD / sunlight visible/C8051/Arduino/STM32

7.8-inch 400x1280 resolution color display / IPS TFT LCD / SPI+LVDS interface / NV3051 controller / ultra-high brightness wide-angle TFT LCD / sunlight visible/C8051/Arduino/STM32

▶ Model: TFT-H078A02ZAINVTN40

▶ Type: IPS full-viewing angle TFT display
▶ Display pixels: 400x1280 px
▶ Dimensions (mm): 208.78X67.8X4.7
▶ Display inches: 7.8"
▶ AA size (mm): 190.08X59.4
▶ Application: industrial control systems, portable electronic devices
▶ Viewing angle: IPS
▶ Backlight/brightness: 2000cd/m2
▶ Pin: FPC-40 pin
▶ Interface mode: SPI+LVDS
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 3.3V
▶ Driver chip: NV3051

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes

7.8-inch 400x1280 resolution color display / IPS TFT LCD / SPI+LVDS interface / NV3051 controller / ultra-high brightness wide-angle TFT LCD / sunlight visible/C8051/Arduino/STM32
7.8-inch 400x1280 resolution color display / IPS TFT LCD / SPI+LVDS interface / NV3051 controller / wide-angle TFT LCD is an 8-inch IPS TFT long-bar LCD display with a resolution of 400x1280 pixels. The display has a high contrast ratio of 800:1, which can present deep blacks and vivid colors. This model has an ultra-high brightness of 2000 nits, and the display is still clearly visible in a sunny environment. IPS technology enables full viewing angles. TFT-H078A02ZAINVTN40 controller uses SPI+LVDS interface to transmit data with the display. This model is equipped with an optional capacitive touch screen, allowing users to interact with the display through bare finger touch and multi-touch input.
This is suitable for a wide range of applications, including industrial control systems, home automation, and portable electronic devices.

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H078A02ZAINVTN40
Diagonal size	7.8”	Inch
Resolution	172x320px	Dot
Dimensions	208.78x67.8x4.7	mm
Active area (AA)	190.08x59.4	mm
LCD type	TFT LCD Display	mm
Display viewing angle	Full View
Aspect ratio	3:1
Backlight type	LED white
TFT driver IC	NV3051
Brightness	2000	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
