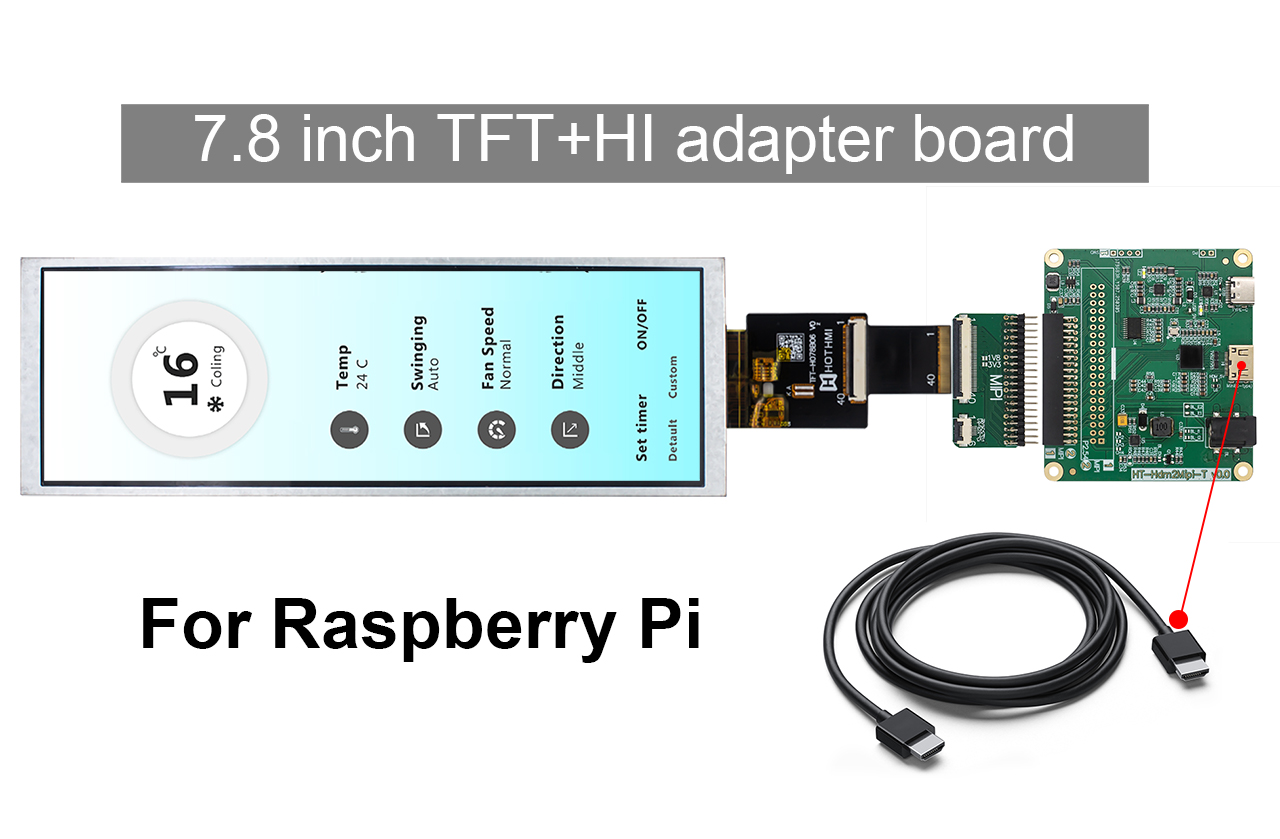

  • MIPI interface display to HI driver board Raspberry Pi universal 20pin/30pin/40pin

    MIPI interface display to HI driver board Raspberry Pi universal 20pin/30pin/40pin

  • HI-MIPI-H2M078B06 dedicated adapter

    HI-MIPI-H2M078B06 dedicated adapter

  • EZUI-C driver board/MIPI/LVDS/RGB (800*480 or above)

    EZUI-C driver board/MIPI/LVDS/RGB (800*480 or above)

  • typ-c data cable T-port charging data cable/COB adapter board/COG adapter board

    typ-c data cable T-port charging data cable/COB adapter board/COG adapter board

  • Product Description
  • Customized Services
  • Attributes
  • TFT-H078B06ZAISTTC40 | 7.8 inch 400x1280 TFT display | Optically bonded capacitive touch display | MIPI interface | IPS full viewing angle

    This 7.8 inch 400x1280 optical bonding TFT Display uses IPS full-viewing technology, with a visible range of ±80° in both horizontal and vertical directions. No matter from which angle you observe, the picture can maintain consistent color and clear image, eliminating color deviation and distortion. In actual use, whether standing, looking down, or holding the device sideways, you can get a consistent viewing experience, which greatly improves the comfort and professionalism of human-computer interaction.


    High brightness is another major advantage of this screen. Under different backlight settings, its brightness can reach up to 1700 cd/m², and it is easy to read the content even outdoors in direct sunlight. For outdoor equipment such as cycling meters, drone remote controls, and outdoor detectors, visibility under strong light is particularly important, and this screen is born for this purpose. At the same time, the display module supports multiple brightness levels, which can balance power consumption and heat dissipation performance while ensuring clear vision, thereby extending the operating life of the entire machine.


    The optional capacitive touch panel (CTP) adopts a high light transmittance design, is sensitive to response, accurately positioned, supports multi-touch, and the touch experience is like writing freely on paper. Whether completing password input on smart door locks or performing complex operations on industrial control equipment, this screen can give users light and smooth tactile feedback. Even if your fingers are wet or wearing gloves, it still maintains an excellent recognition rate, fully meeting various complex interaction needs.


    Whether it is consumer electronics, smart wearables, medical equipment, vehicle systems, or industrial control terminals, this 7.8-inch TFT display can give products better visual performance and smarter control capabilities. It is not just a display device, but also a "digital window" that allows devices to see, touch and feel. Through it, users can not only see the world, but also interact with the world more efficiently and freely.


  • Datasheet for Touch Panel,Controller↓

    Name Date Size
    7.8 inch TFT LCD -TFT-H078B06ZAISTTC40 June 06, 2025 1.29MB
  • Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

    Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

    Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

    Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.


  • ITEM

    PARAMETER DESCRIPTION

    UNIT

    TFT series

    TFT-H078B06ZAISTTC40


    Diagonal size

    7.8”

    Inch

    Resolution

    400x1280

    Dot

    Dimensions

    67.8x205.78x6.4

    mm

    Active area (AA)

    59.4x190.08

    mm

    LCD type

    7.8” TFT Module

    mm

    Display viewing angle

    Full View


    Aspect ratio

    1:3


    Backlight type

    LED white


    TFT driver IC

    ST7703


    Brightness

    1700cd/m2

    cd/m2

    Operating temperature

    -30~70℃

    Storage temperature

    -30~80℃
