2.7 inch LCD128x64 Graphic LCD Display Module | 128 x 64 Graphic LCD Module | STN+Yellow-Green Backlight | SPI Interface

2.7 inch LCD128x64 Graphic LCD Display Module | 128 x 64 Graphic LCD Module | STN+Yellow-Green Backlight | SPI Interface | Arduino

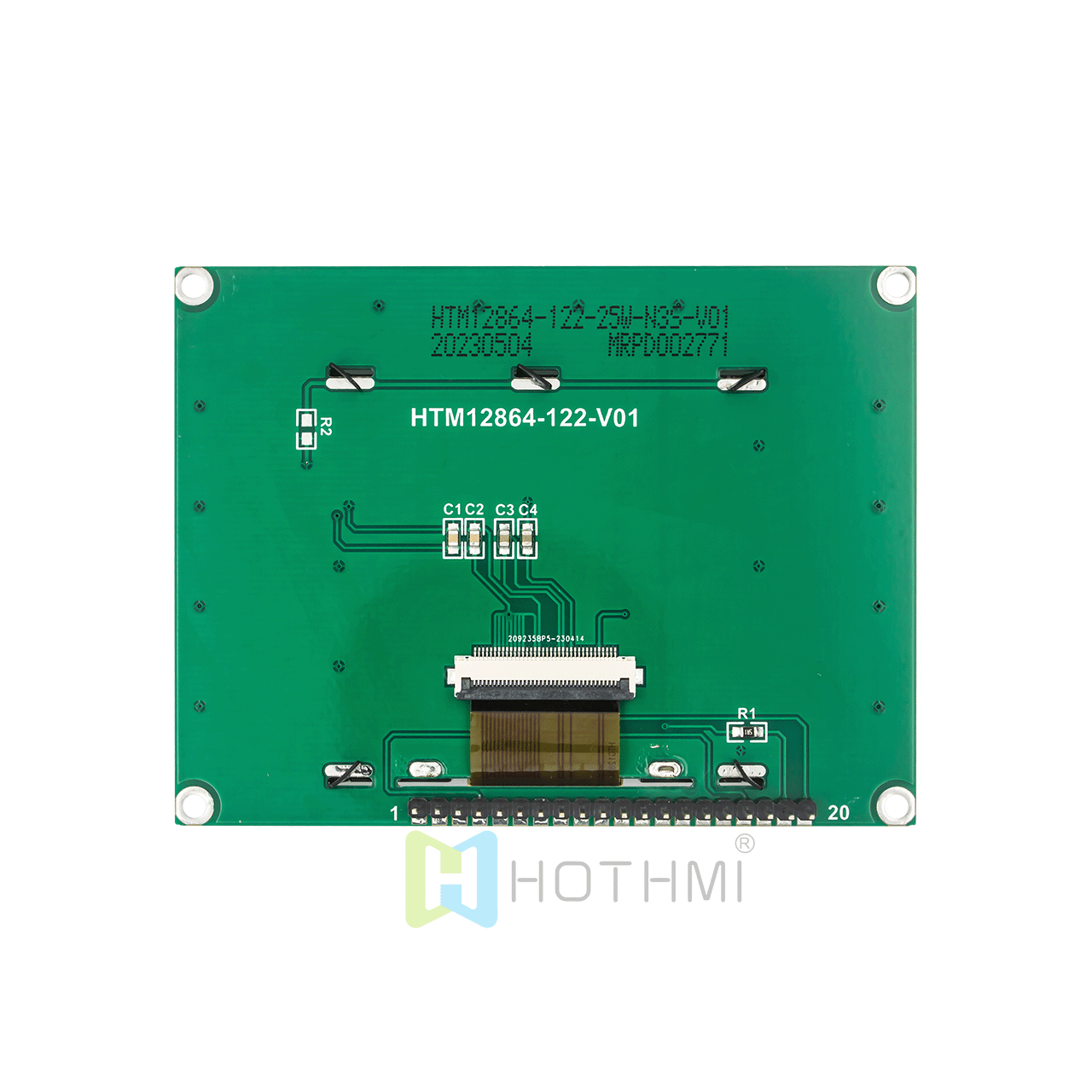

▶ Model: HTM12864-122-01Y-A5P

▶ Type: LCM graphic dot matrix
▶ Display pixels: 128x64

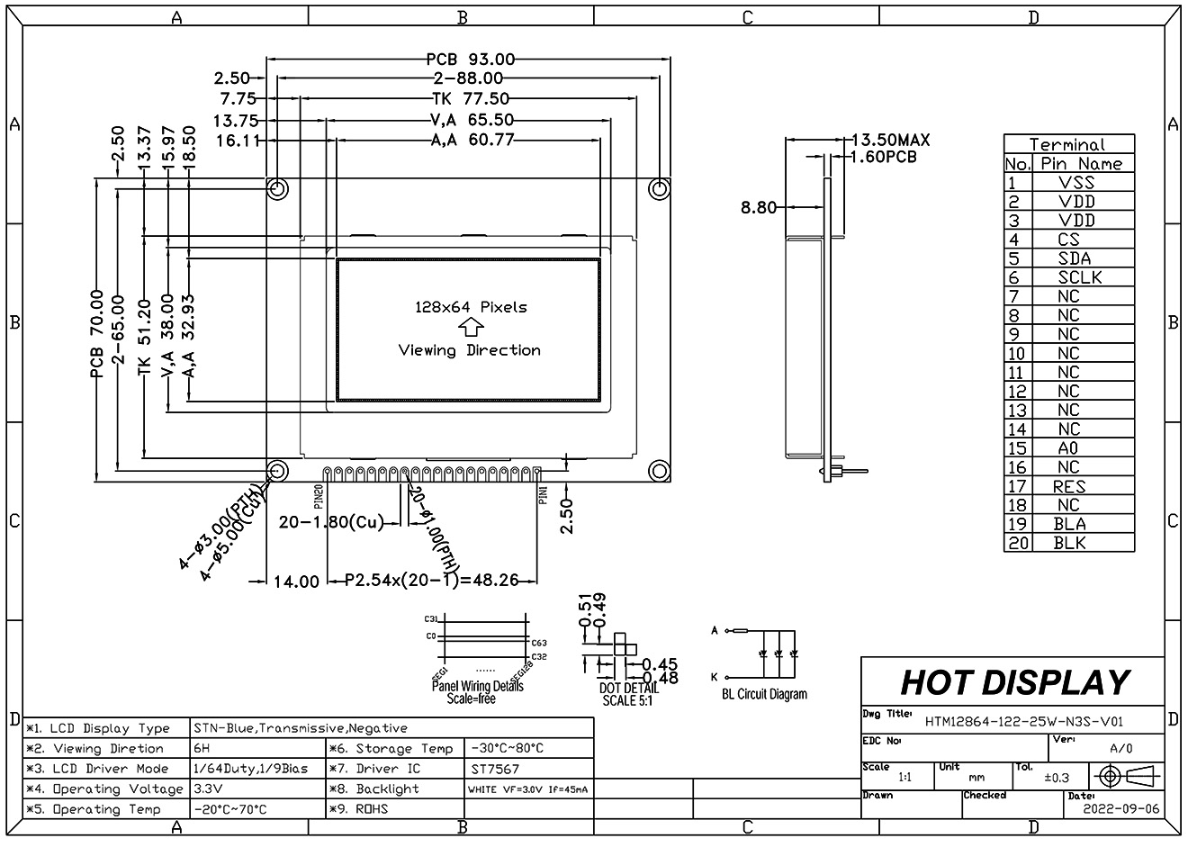

▶ Overall dimensions (mm): 93x70x13.5
▶ VA size (mm): 65.5x38.0
▶ AA size (mm): 60.77x32.93
▶ Application: Instrumentation
▶ Viewing angle: 6H
▶ Pin: 20pin
▶ Interface mode: SPI
▶ Backlight：yellow-green
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Supply voltage: 3.3V
▶ Driver chip: ST7567

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

2.7 inch LCD128x64 Graphic LCD Display Module | 128 x 64 Graphic LCD Module | STN+Yellow-Green Backlight | SPI Interface | Arduino

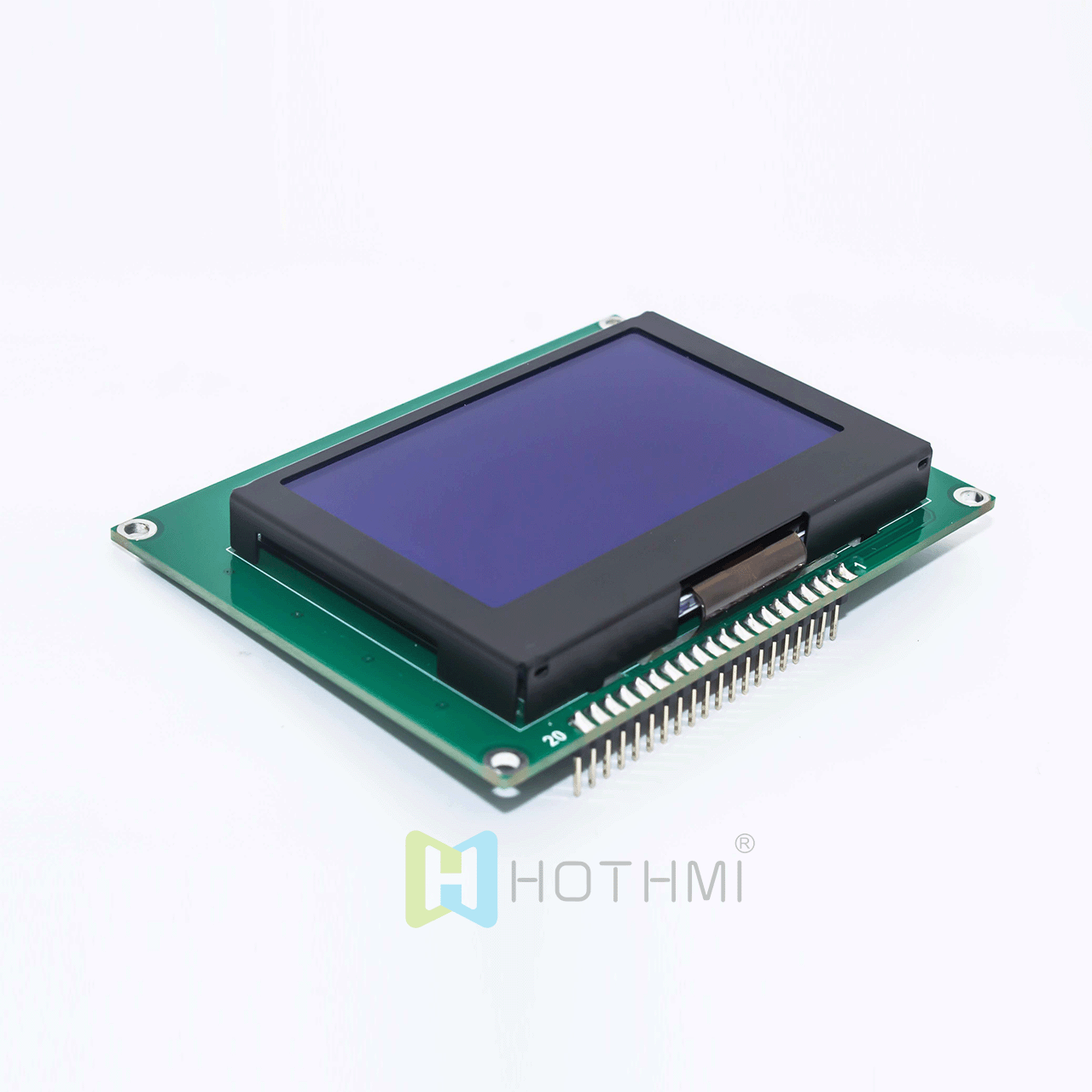

This Hot Display 128 x 64 Graphic LCD Display Module displays dark grey pixels on a vivid yellow-green background. This transflective LCD display is engineered to provide optimal visibility in a variety of lighting conditions in many different environments. In bright sunlight, the display uses its reflective layer to reflect ambient light back to the viewer, making the screen easy to read. In darker environments, the LCD has a strong built-in backlight that provides high contrast and displays clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions.
