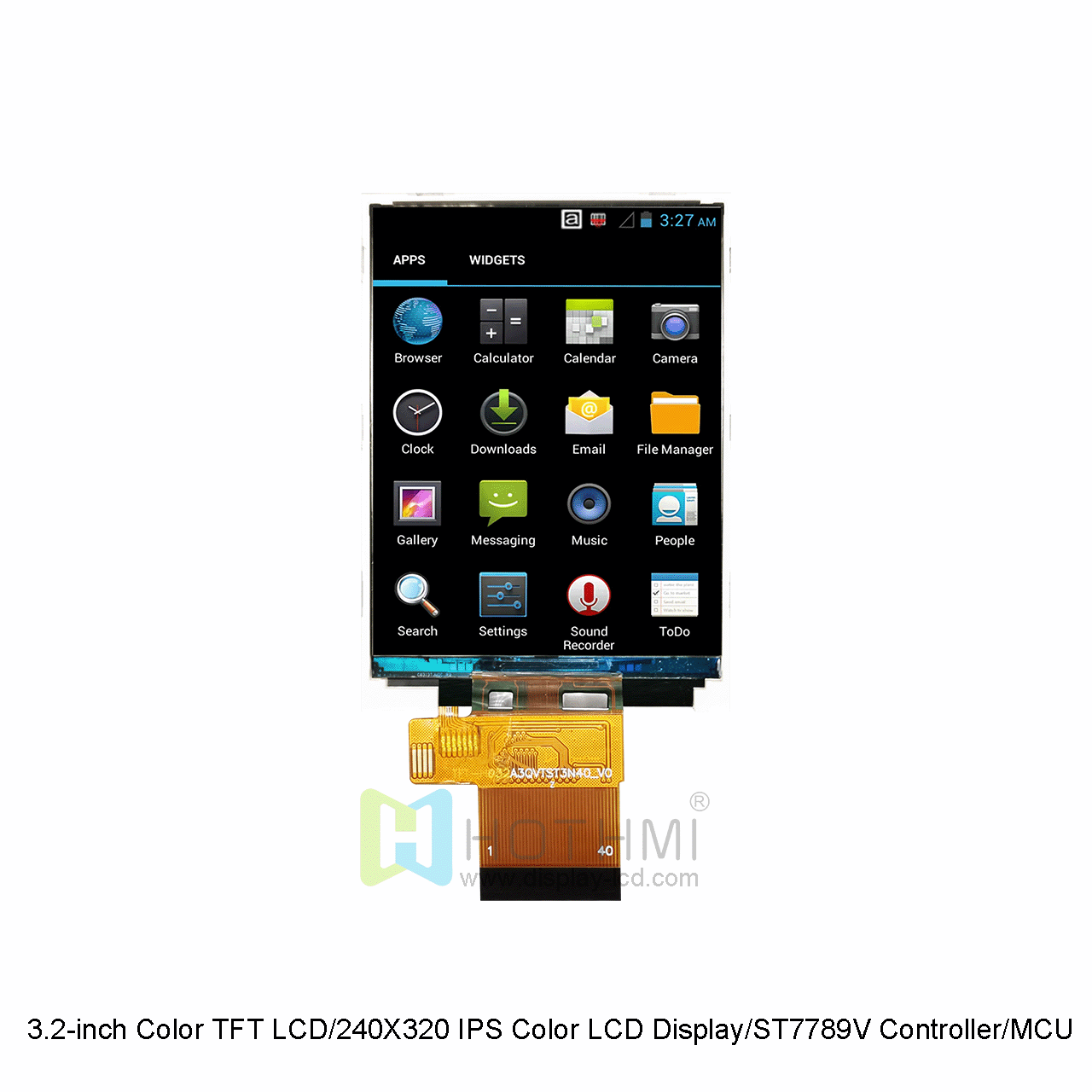

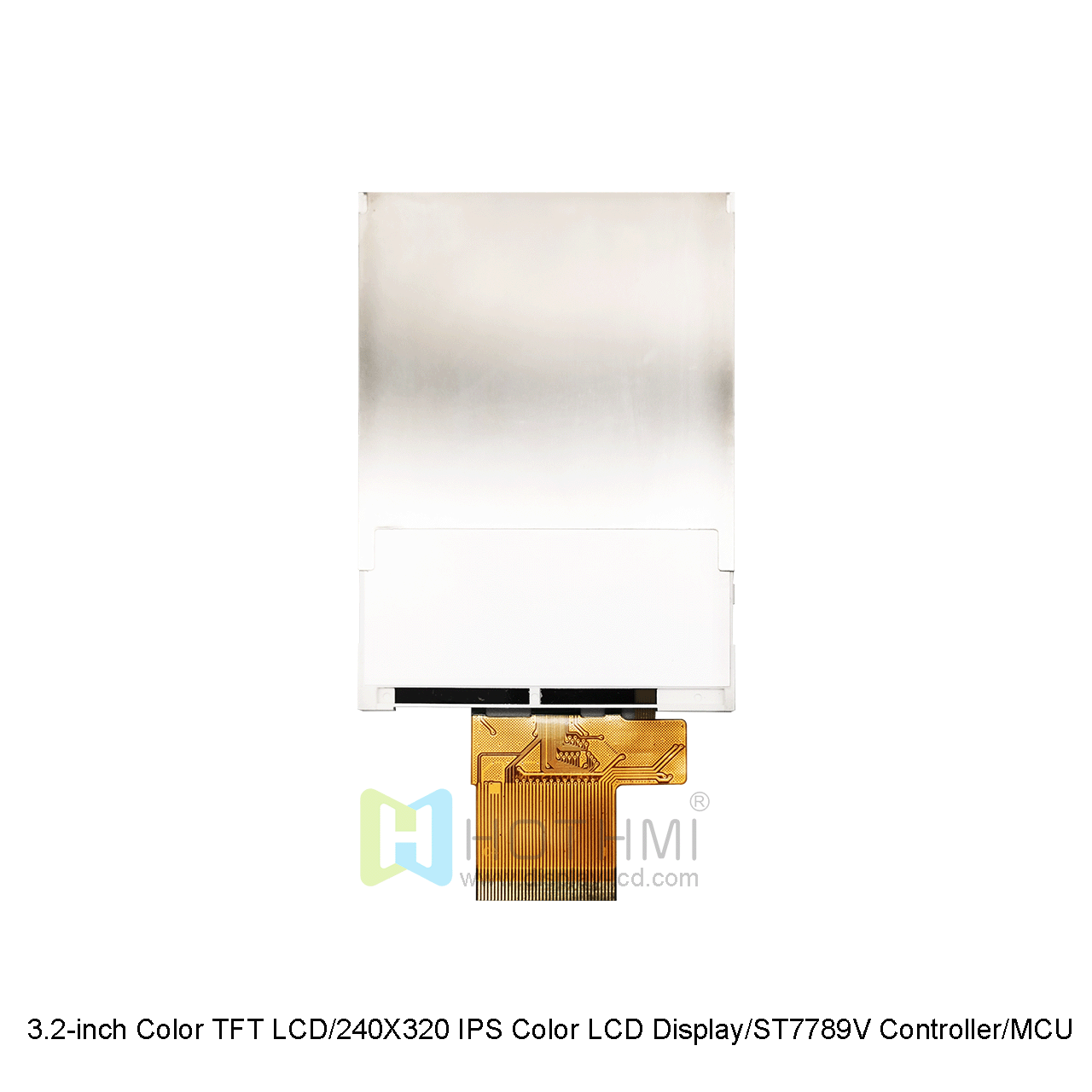

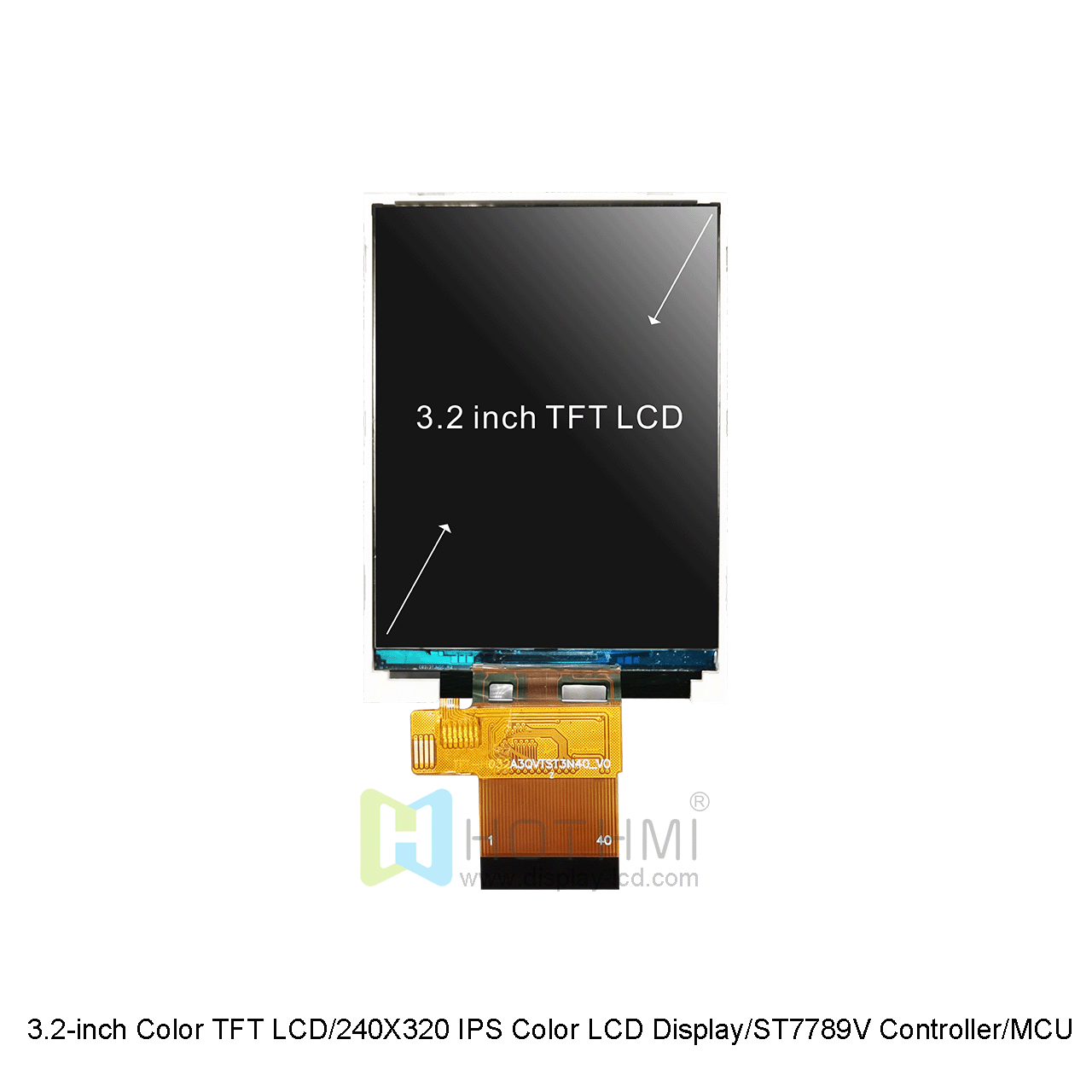

3.2-inch 240x320 IPS TFT color display/industrial-grade MCU interface/ST7789V controller/plug-in FPC/Arduino/C8051/STM32
This standard 3.2-inch TFT LCD display TFT-H032A3QVTST3N40 has a resolution of 240x320 pixels, IPS full viewing angle, and high-quality viewing effects regardless of the direction. The standard brightness LED backlight brightness is 350 nits. Although this transmissive LCD does not have a touch screen, its compact size, 2.8V low-voltage power supply, and impressive display quality make it an excellent choice for projects that require portrait mode visual output without touch functionality.
This 3.2-inch LCD display uses a 40PIN FPC flexible cable connection to provide a safe and reliable electrical connection. The FPC flexible cable connection method makes disassembly easier and easier to operate. This TFT LCD display is powered by the ST7789V controller, which provides excellent performance and reliability. The controller optimizes the display's functionality, ensuring smooth operation and accurate rendering of images and graphics. Popular industries for this TFT size include IoT, industrial automation, consumer electronics, test and measurement, and handheld devices. They are also ideal for DIY or prototyping projects due to their compatibility with Arduino. The MCU interface enables fast and efficient communication between Arduino and the display, ensuring smooth data transfer and real-time updates. This interface provides flexibility and compatibility with a wide range of Arduino models. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.
