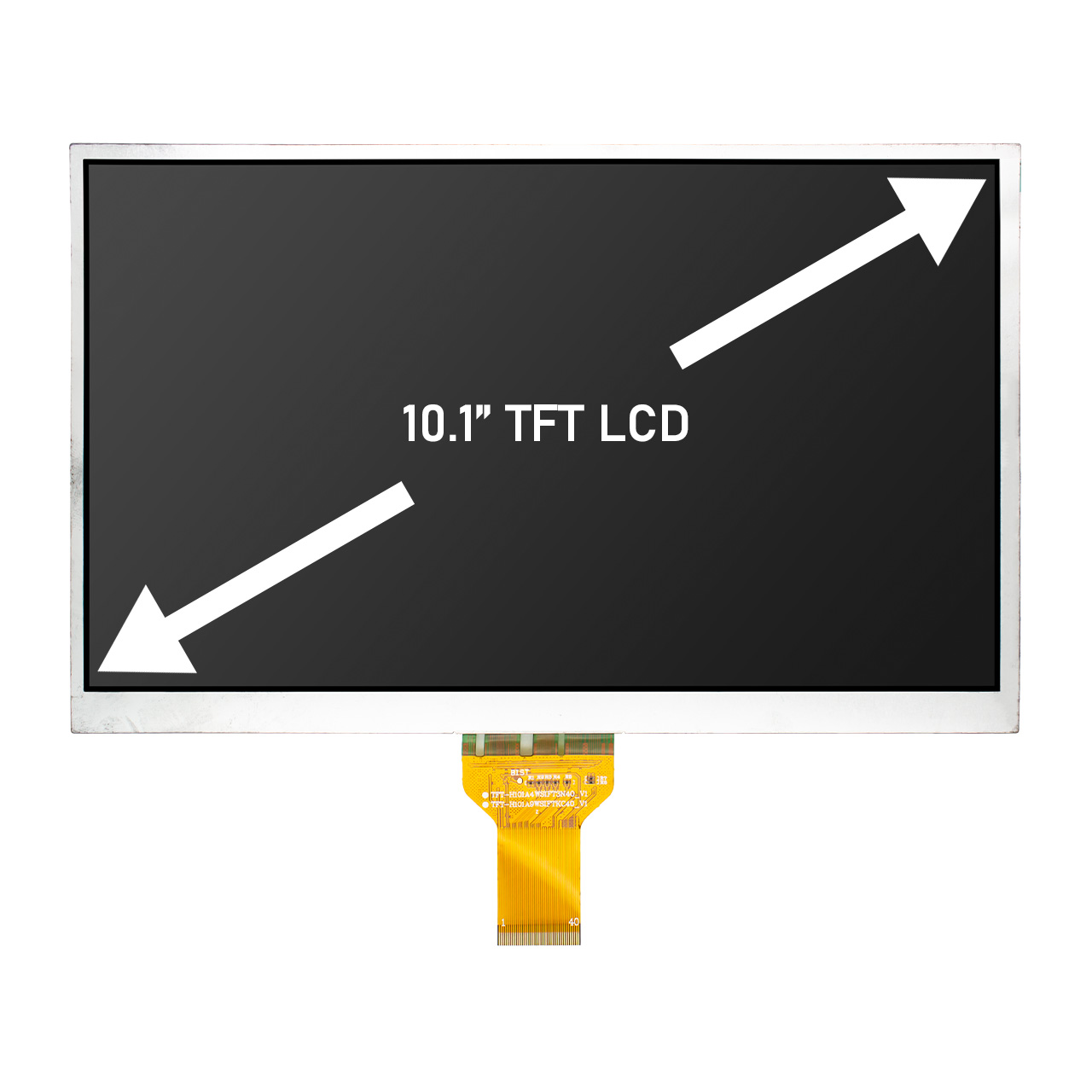

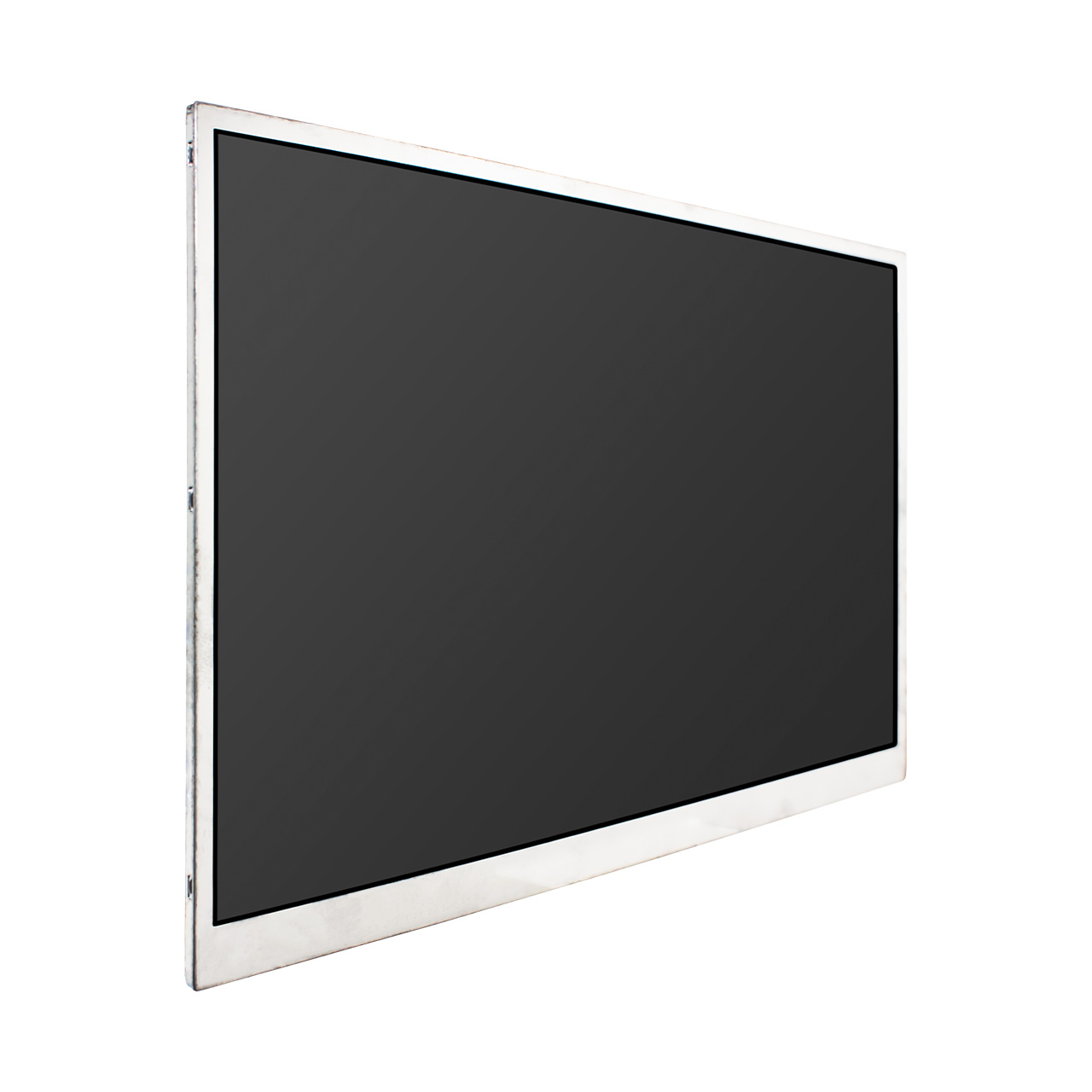

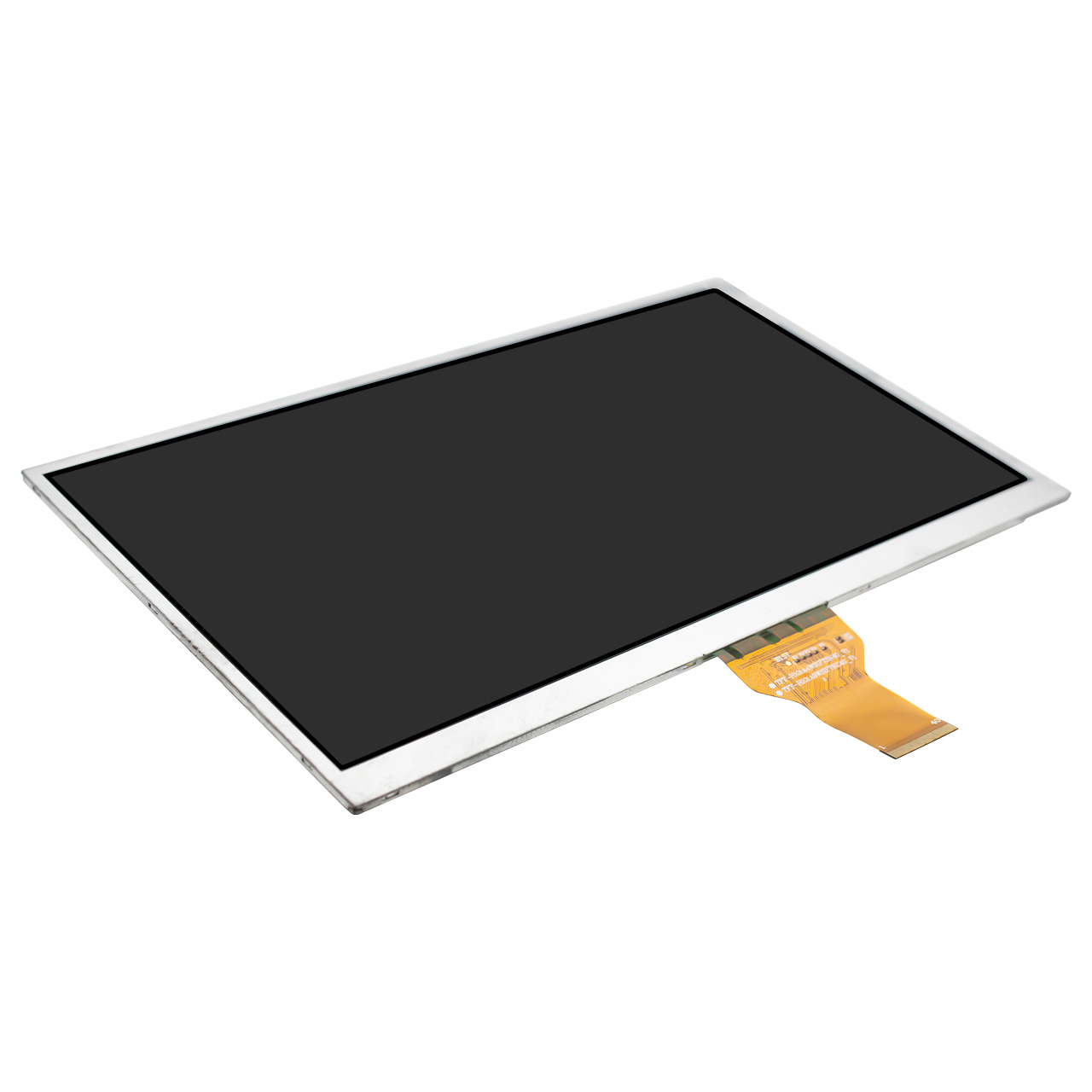

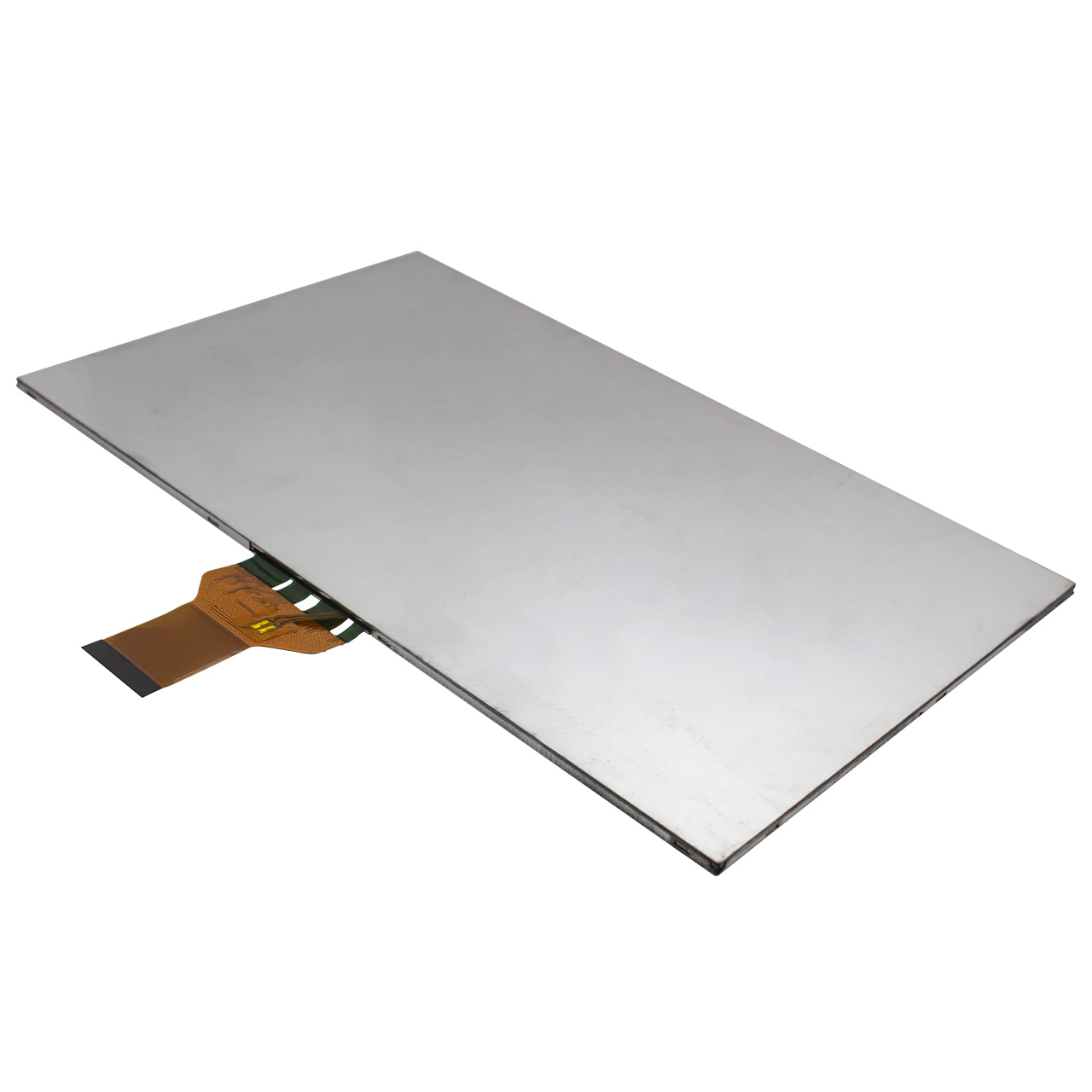

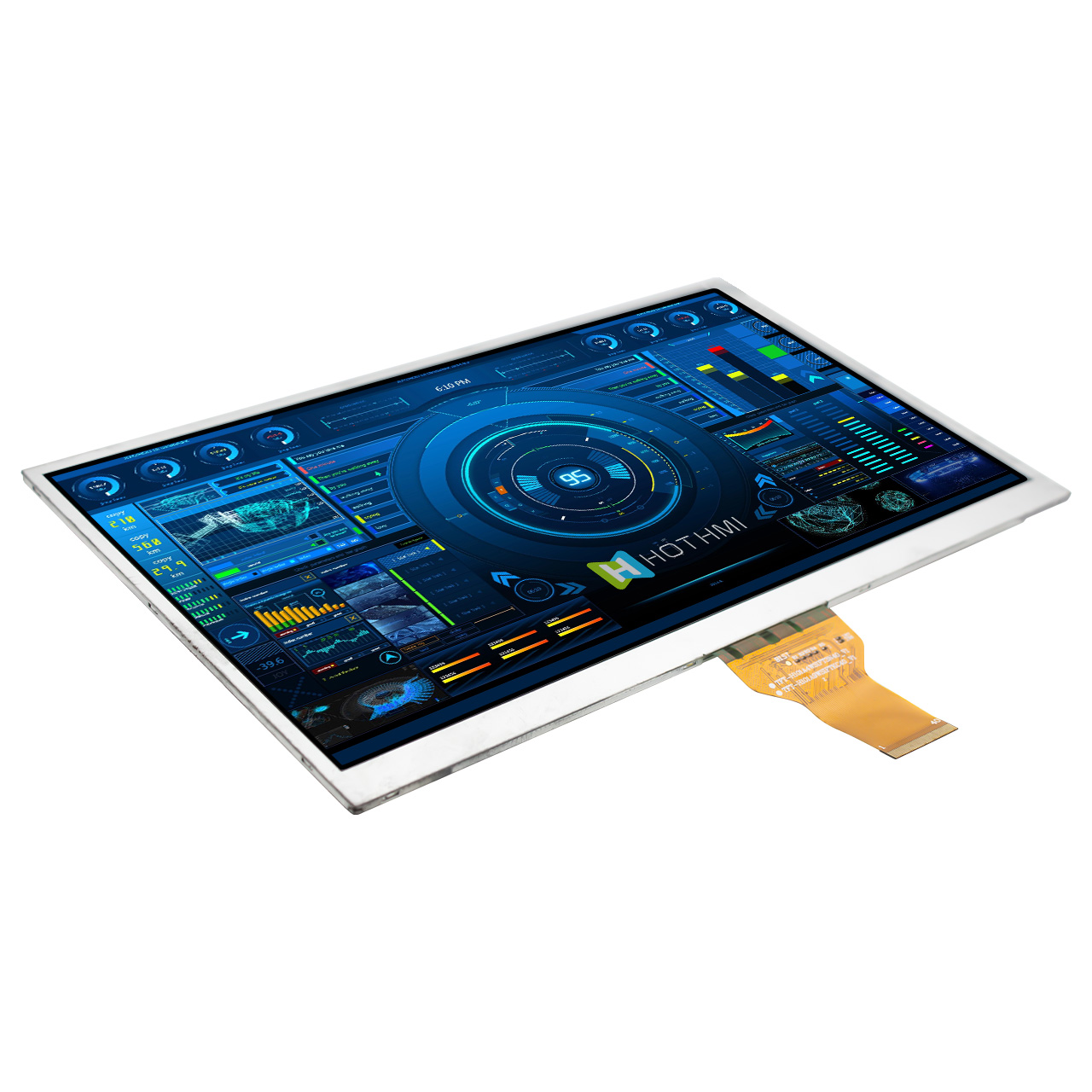

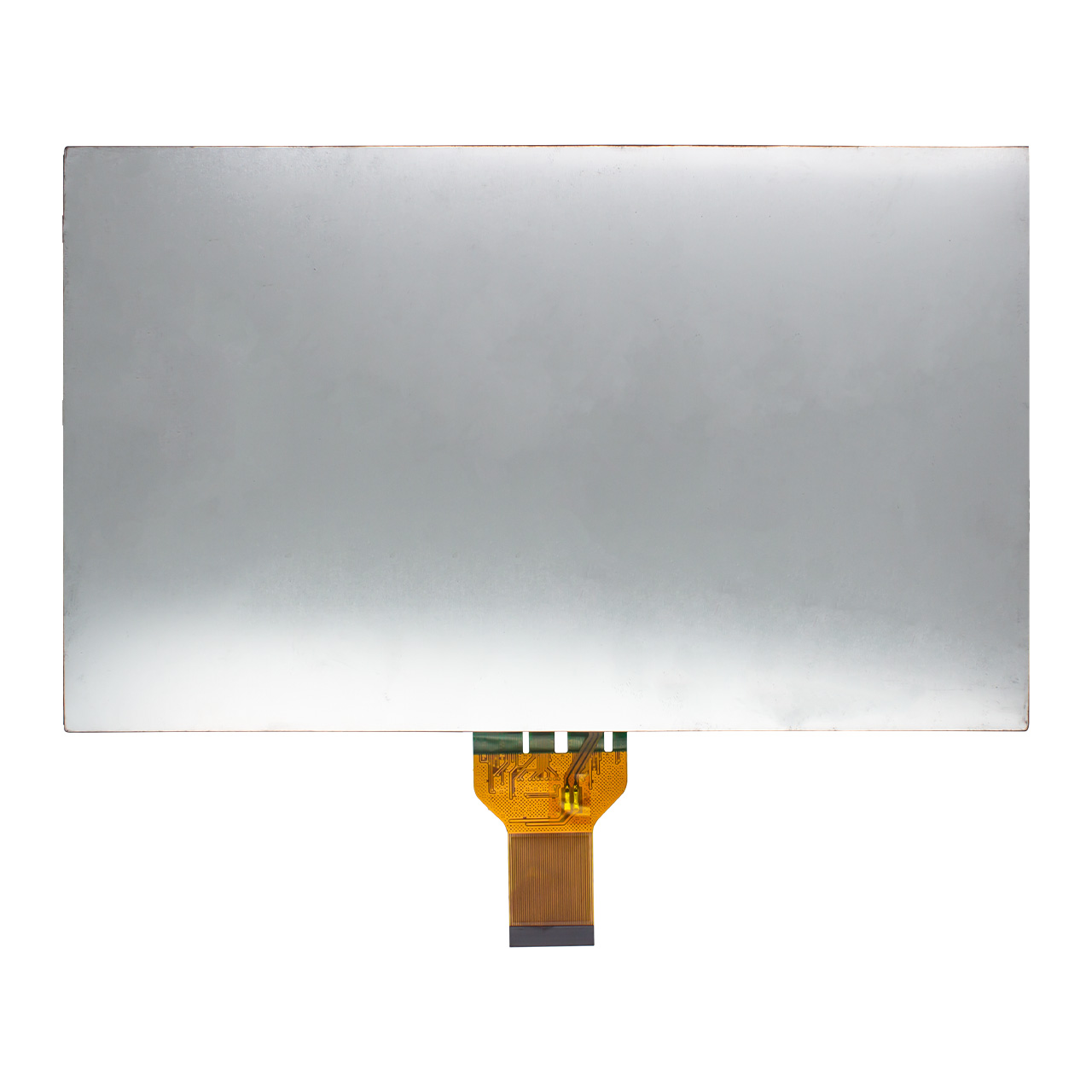

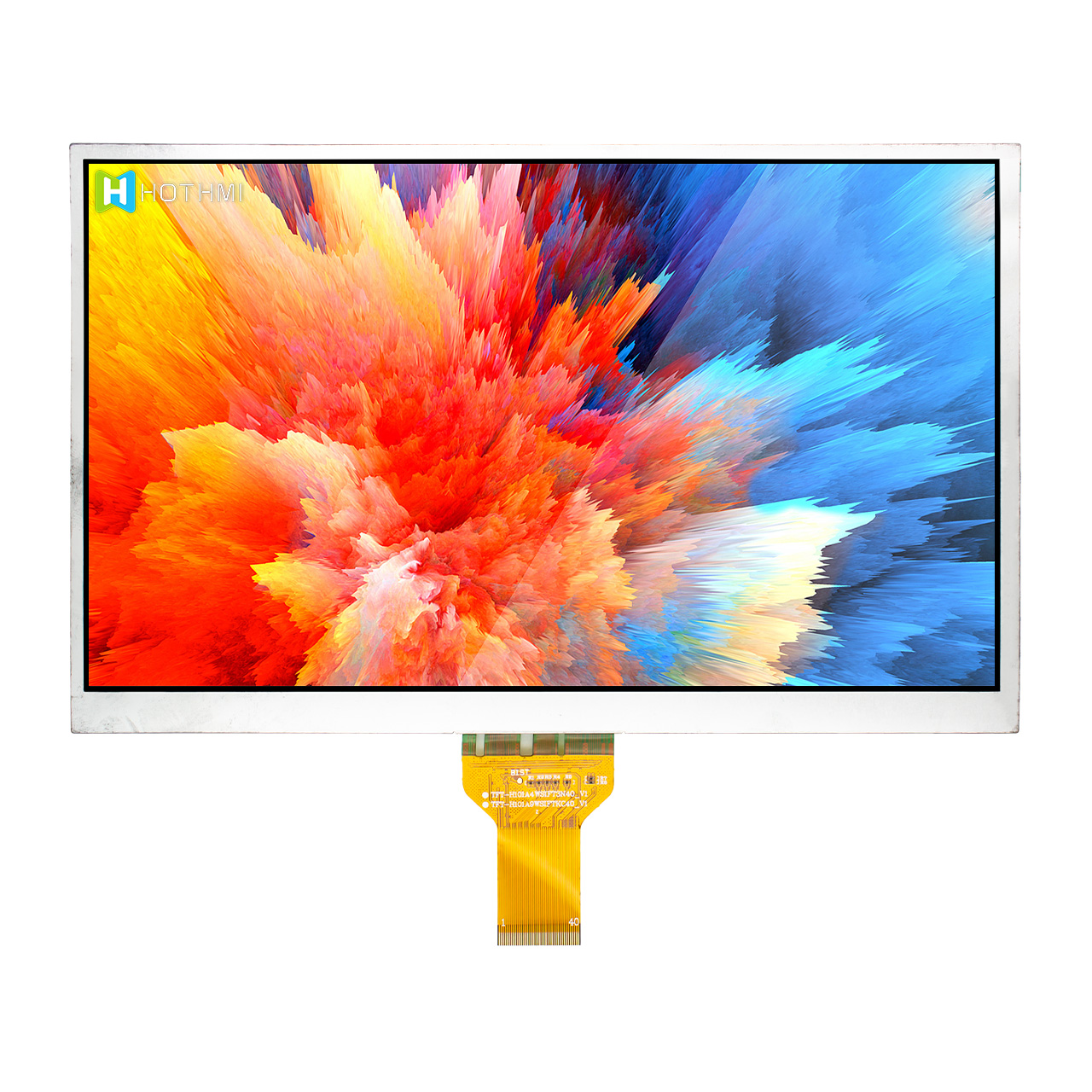

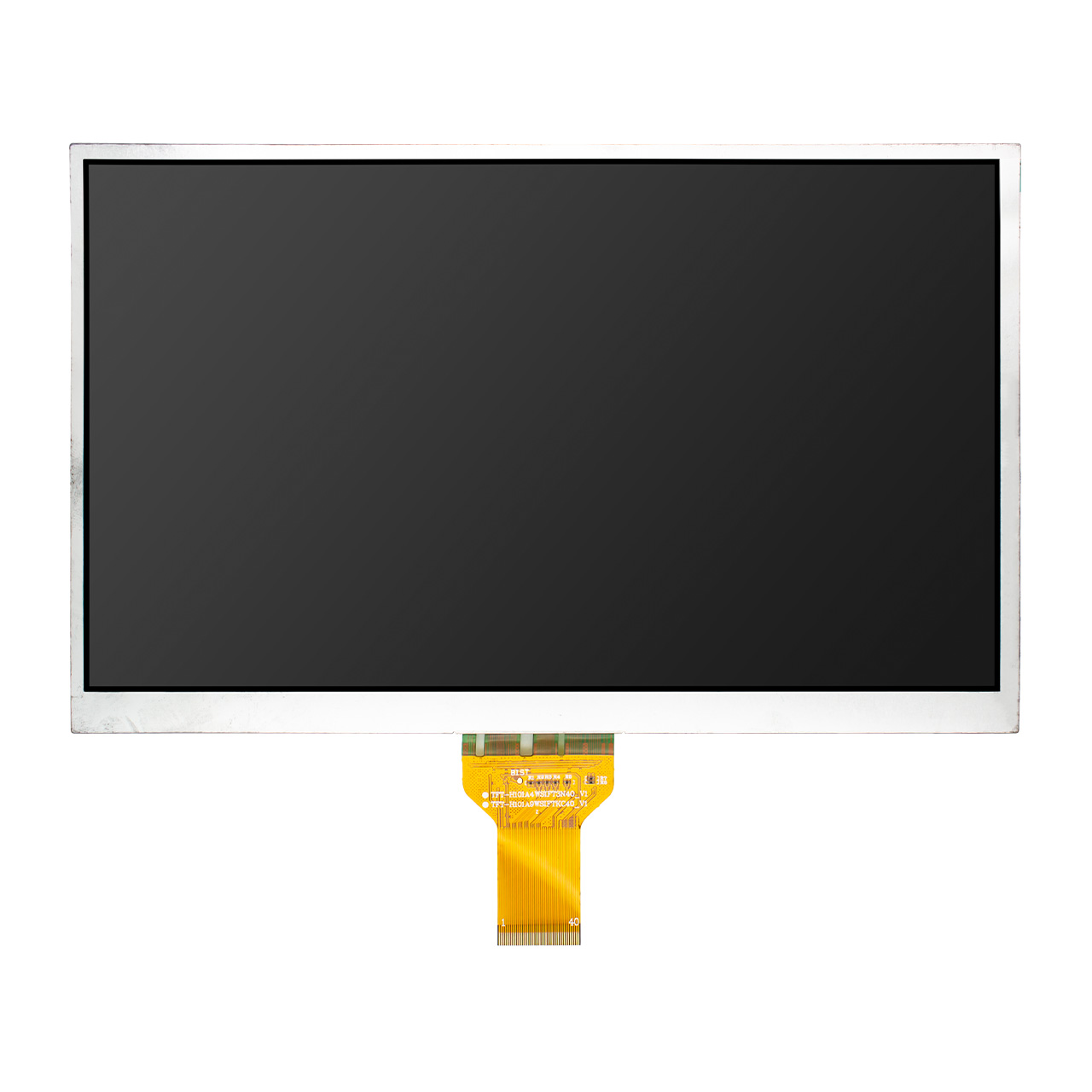

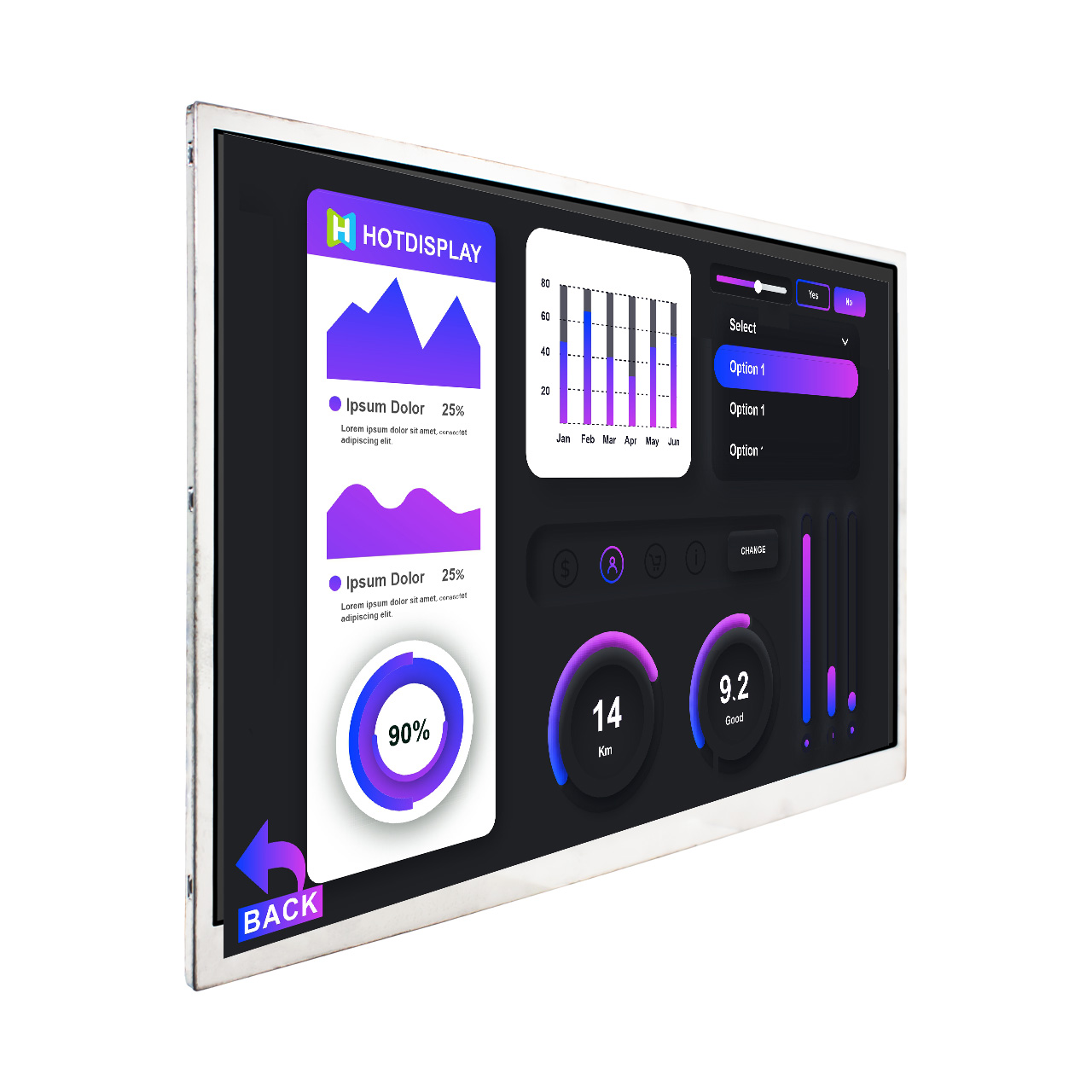

  • 10.1-inch 1024x600 full-view standard TFT LCD display | LVDS interface | EK79001+EK73215

    Core features

    High resolution and clear display


    Resolution: 1024 × RGB × 600 (1024 pixels horizontally and 600 pixels vertically), supporting delicate images and text presentation.


    Effective display area: 222.72 mm × 125.28 mm, 10.1-inch screen size, suitable for medium and large device interaction interfaces.


    Wide viewing angle and high contrast

    Full viewing angle (85° for U/D/L/R each) ensures no color shift at multiple angles.

    Contrast ratio of 800:1 (typical value), supporting clear black and white levels and bright colors.


    Stable drive and compatibility

    Interface type: LVDS (4 channels), supports 6-bit/8-bit data input mode, compatible with mainstream controllers.

    Driver IC: EK79001 + EK73215, with 3.3V digital power supply to ensure stable signal transmission.


    Durability and environmental adaptability

    Operating temperature: -20℃ ~ 70℃, storage temperature: -30℃ ~ 80℃, suitable for harsh industrial environments.

    Through reliability tests such as high temperature and humidity, hot and cold shock, vibration and electrostatic protection (ESD ±8kV), long-term stable operation is guaranteed.


    Efficient backlight design

    White LED backlight, typical brightness 300 cd/m², supports wide voltage input (9.6V/280mA), long life and low power consumption.


    Usage suggestions

    Avoid displaying static images for a long time. It is recommended to enable the screen saver function to prevent residual images.

    Pay attention to anti-static measures during installation to ensure that the interface connection is stable.

    For detailed driver timing and initialization code, please refer to the official technical documentation.


    Quality comes from professionalism - TFT-H101A4WSIFT3N40 helps customers create excellent visual solutions with precise display performance and reliable industrial-grade design.


  • Datasheet for Touch Panel,Controller↓

    Name Date Size

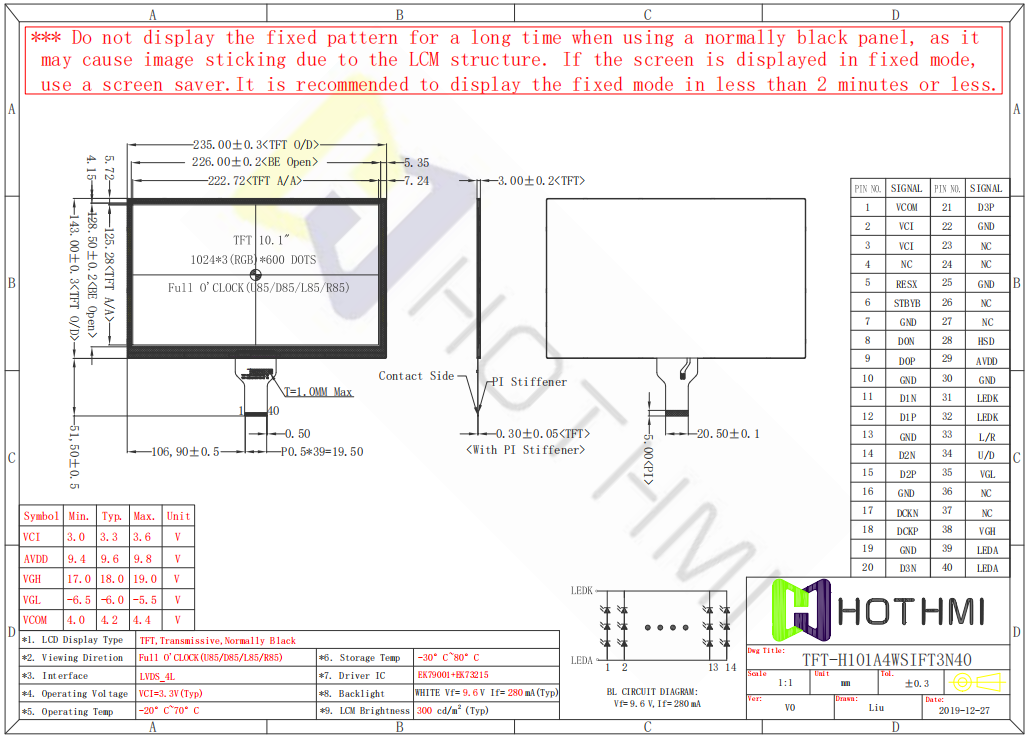

    TFT-H101A4WSIFT3N40 March 03, 2025 921.85KB
  • 101A4.png

  • ITEM

    PARAMETER DESCRIPTION

    UNIT

    TFT series

    TFT-H101A4WSIFT3N40


    Diagonal size

    10.1”

    Inch

    Resolution

    1024x600

    Dot

    Dimensions

    235x143x3.0

    mm

    Active area (AA)

    222.72x125.28

    mm

    LCD type

    TFT LCD Display

    mm

    Display viewing angle

    Full View


    Aspect ratio

    2:1


    Backlight type

    LED white


    TFT driver IC

    EK79001+EK73215


    Brightness

    300

    cd/m2

    Operating temperature

    -20~70℃

    Storage temperature

    -30~80℃
