Character LCD Modules DFSTN 2X40 Display with Green Backlight Arduino Display

Character LCD Modules DFSTN 2X40 Display with Green Backlight Arduino Display

▶ Model: HTM4002C-41G-A5P

▶ Model: HTM4002C
▶ Type: Character LCD Modules
▶ Display content: 40x2 characters
▶ Overall dimensions (mm): 182x33.5x9.3
▶ VA size (mm): 154.4x16.5
▶ AA size (mm): 147.5x11.5
▶ Point spacing mm: 0.7x0.65
▶ Product application: industrial instrumentation
▶ Viewing angle: 6H
▶ Backlight type: green light
▶ Number of PINs: 16PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -10~60℃
▶ Power supply voltage: 5.0v
▶ Driver chip: ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

Character LCD Modules DFSTN 2X40 Display with Green Backlight Arduino Display

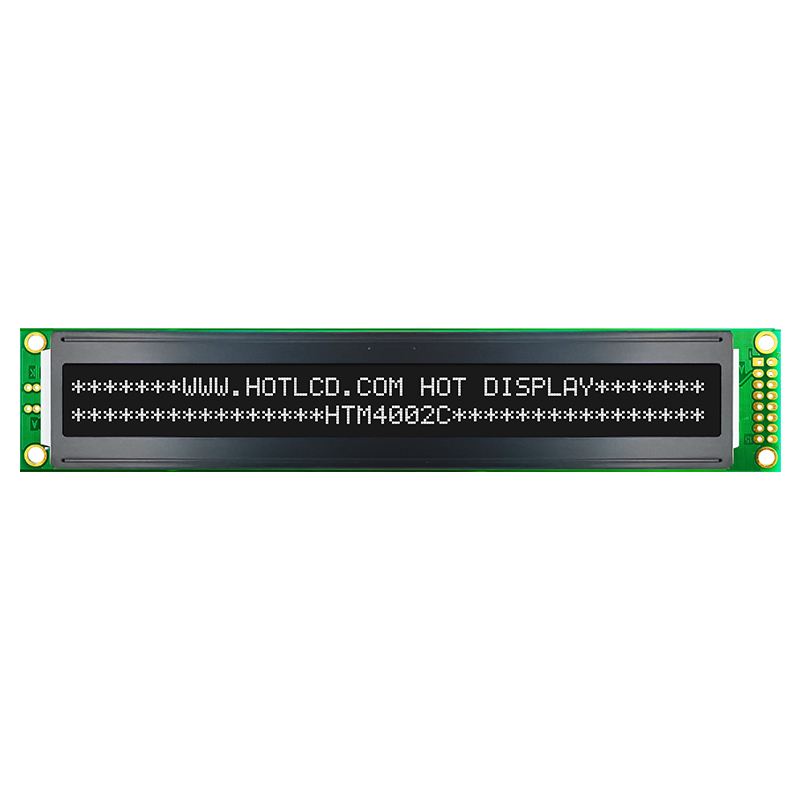

Character LCD Modules 40x2 characters LCD shows green pixels on a black background. This high-quality LCD monitor uses the transmitting mode and requires a constru - in rear light to ensure visibility in low light environments. It has a wide range of operating temperatures and is suitable for various environments from minus 20 degrees Celsius to 70 degrees Celsius.
The HTM4002C monitor has an optimal viewing angle of 6:00 and offers standard English and Japanese fonts. It is compatible with Arduino and can be easily integrated into Arduino/C8051 projects. The display works with a supply voltage of 5 V, ensuring compatibility with common electronic systems.
Globally, the HOTDISPLAY 40x2 Character LCD is a versatile display solution with green pixels displayed on a black background, suitable for various applications, and is compatible with Arduino/C8051 for easy use in various projects.

Item	Specifications	Unit
name	HTM4002C-41G-A5P
Number of lattice points	40x2 Character	dots
Module Size	182x33.5x9.3 (MAX)	mm
VA size	154.4（W） × 16.5（H）	mm
AA size	147.5（W） × 11.5（H）	mm
Pixel spacing	0.7x0.65	mm
IC	ST7066
supply voltage	5.0V	V
Backlight	Green backlight
display mode	DFSTN-
Duty driving mode	1/16 duty cycle
type	Character LCD
characteristic	Transflective polarizer
