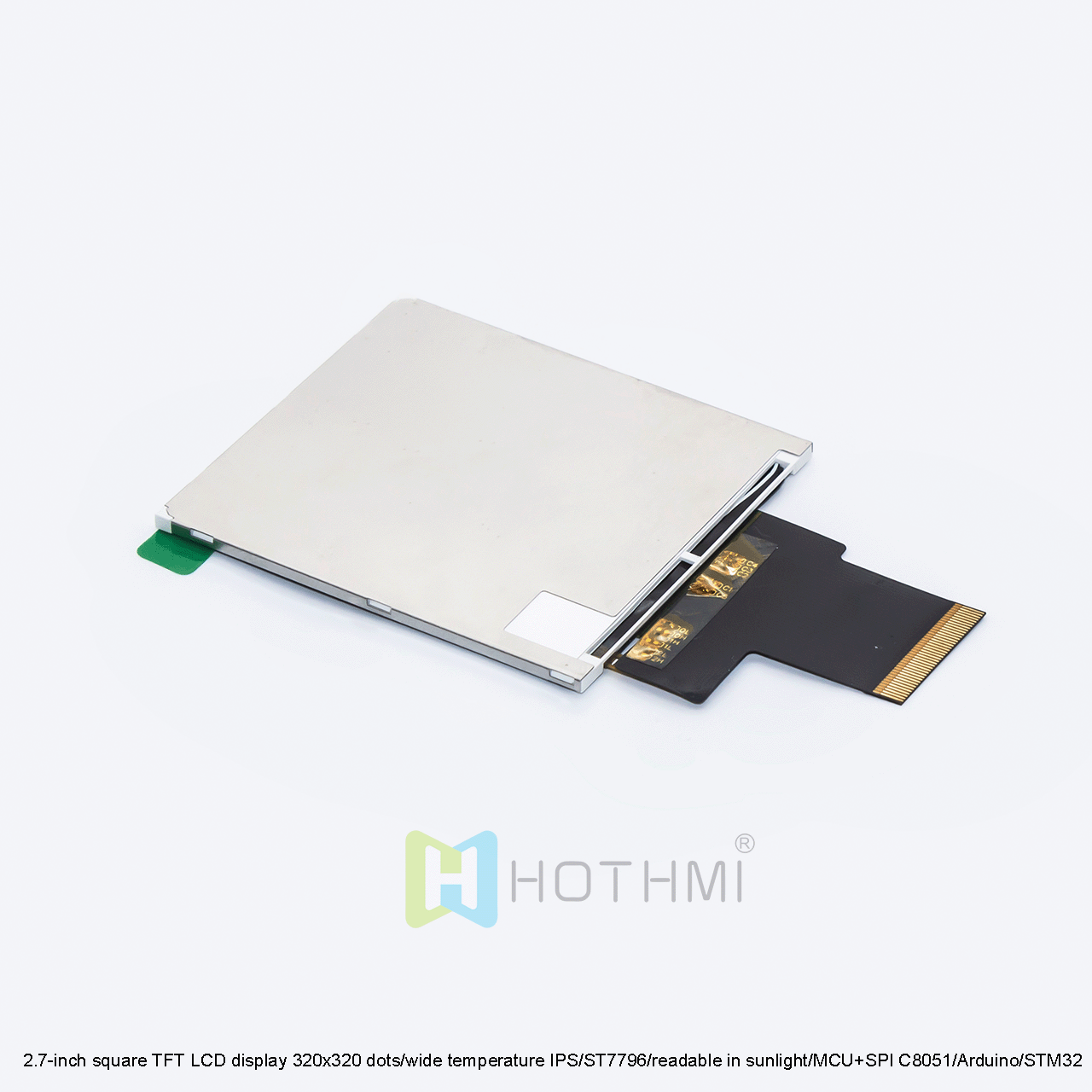

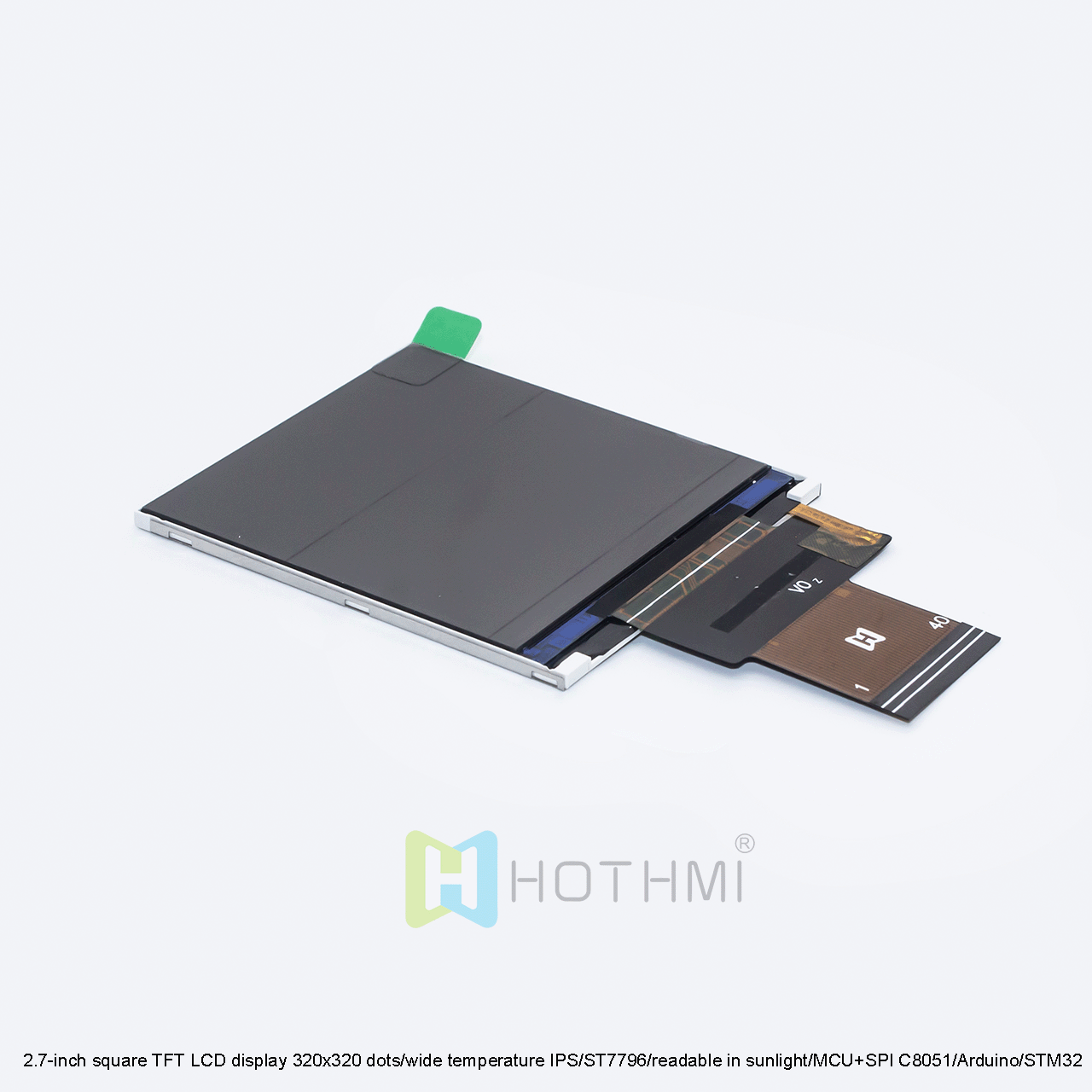

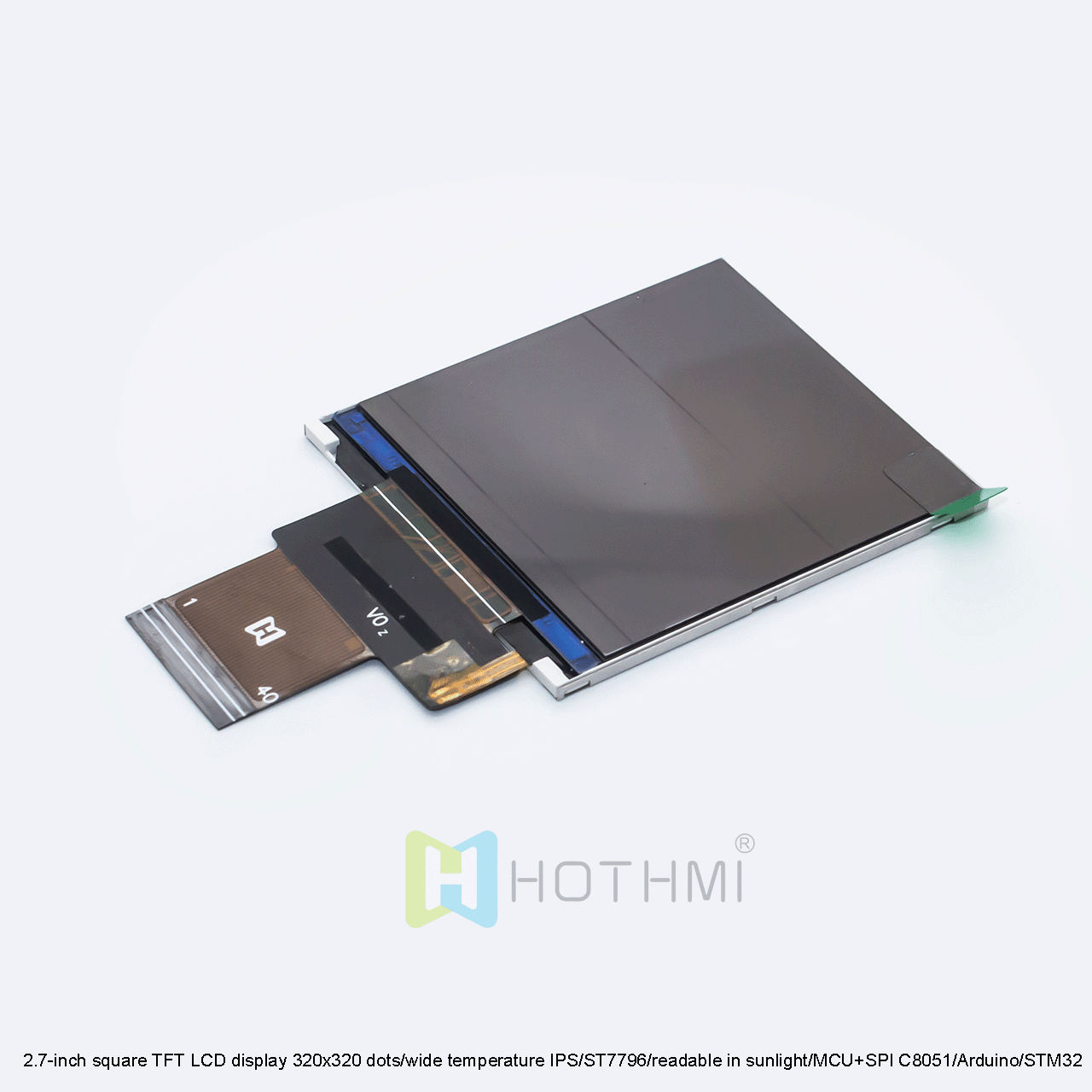

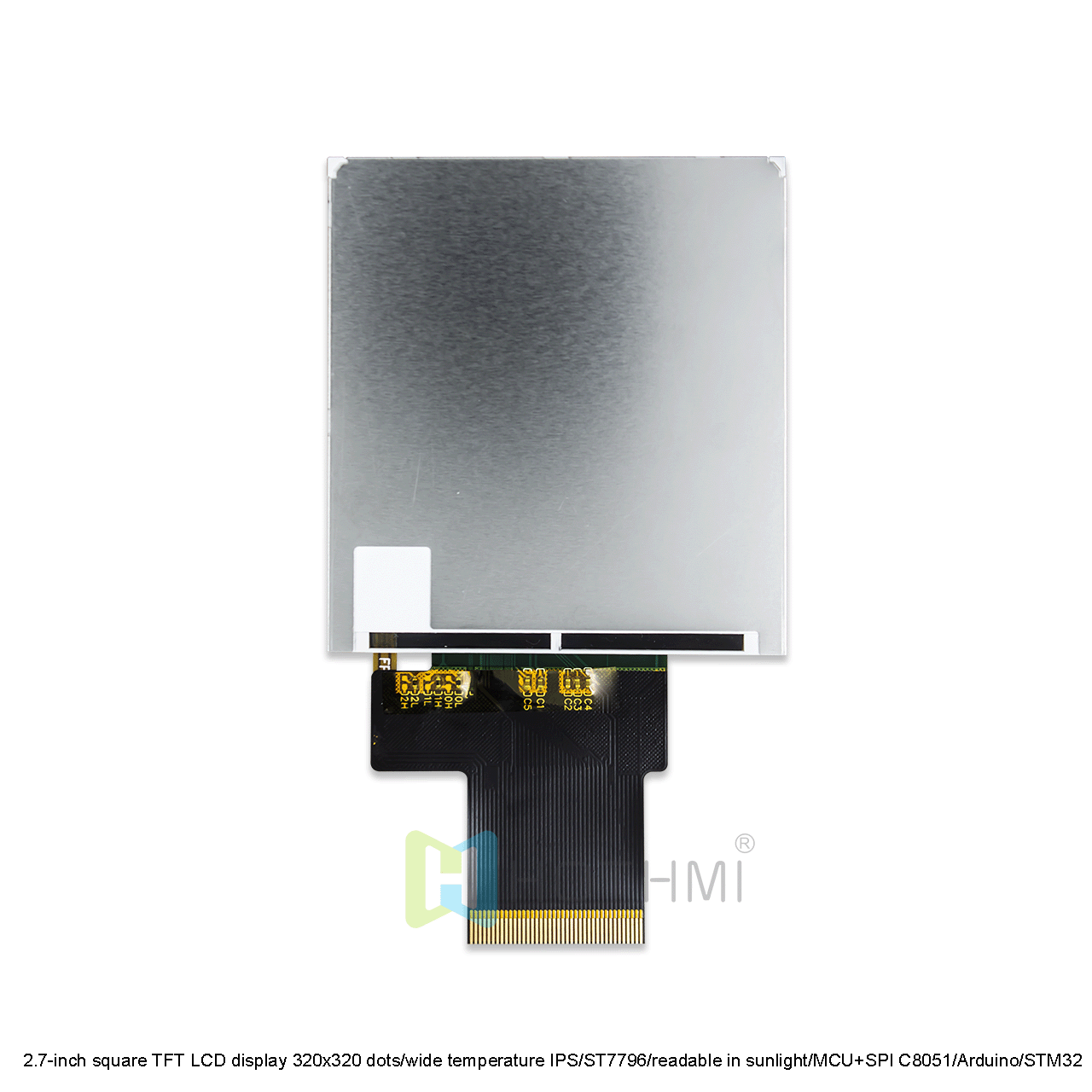

2.7-inch square TFT LCD display 320x320 dots/wide temperature IPS full angle/ST7796/readable in sunlight/MCU+SPI compatible with C8051/Arduino/STM32

2.7-inch square TFT LCD display 320x320 dots/wide temperature IPS full angle/ST7796/readable in sunlight/MCU+SPI compatible with C8051/Arduino/STM32

▶ Model: TFT-H027A01HQINV4N40

▶ Type: TFT square display
▶ Display pixels: 320x320 dot matrix
▶ Dimensions (mm): 53.40x59.9x2.27
▶ Display inches: 2.7"
▶ Effective size (mm): 48.96x48.96
▶ Application: Medical monitor
▶ Viewing angle: IPS (U85/D85/R85/L85)
▶ Brightness: 750cd/m2
▶ Pin: FPC-40PIN
▶ Interface: MCU/SPI
▶ Special reminder: Anti-static ESD 8KV
▶ Working temperature: -30~80℃
▶ Power supply voltage: 3.3V
▶ Driver chip: ST7796

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes
Download Related Materials

TFT-H027A01HQINV4N40 | 2.7-inch TFT square display | MCU/SPI interface | 320x320 dot matrix LCD screen | optional capacitive touch/resistive touch | IPS | wide temperature | readable in sunlight | compatible with C8051/Arduino/STM32

TFT-H027A01HQINV4N40 is a 2.7-inch TFT LCD screen with a resolution of 320X320, built-in ST7796 controller, optional touch screen, high picture quality, wide viewing angle, support 8080 8-bit, 9-bit, 16-bit, 18-bit parallel interface and 3-wire, 4-wire serial interface, high resolution, FPC connection (optional connector), 3.3V voltage. All materials meet environmental protection requirements and RoHS standards. This module is widely used in various instruments, smart devices, etc., suitable for 8051 PIC, AVR, ARDUINO, ARM, Raspberry Pi, STM32/RK and other MCU development platforms.

Customized Ribbon Cables/Flexible Printed Circuits (FPC):

Tailor your cables to perfection by adjusting their length, position, and pin arrangements, or adding other connectors. Obtain a precisely designed cable solution to streamline and enhance the safety of your connections

Touchscreen Add-On Components:

Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization:

Choose from various interface options or consult with our experts to select the options that best suit your project. We can integrate HI,USB, SPI, VGA, and other interfaces into your display to achieve your design goals.

Cover Glass:

Equip your display with custom-cut cover glass to improve durability. Choose from various thicknesses of cover glass and undergo optical bonding to prevent moisture and debris.

parameter	Parameter Description	unit
TFT LCD	Standard TFT square
Diagonal inches	2.7”	Inch
resolution	320 × RGB ×320 (TFT)	dots
Dimensions	53.40x59.9x2.27	mm
Size (AA) area	48.96x48.96	mm
LCD specifications	TFT square
Display perspective	85/85/85/85 (IPS)
aspect ratio	1:1
Backlight specifications	LED, white
TFT driver chip	ST7796
Touch glass type	None
surface	Anti-glare
Display brightness	750	cd/㎡
Operating temperature	-30~+80	°C
Storage temperature	-30~+80	°C
