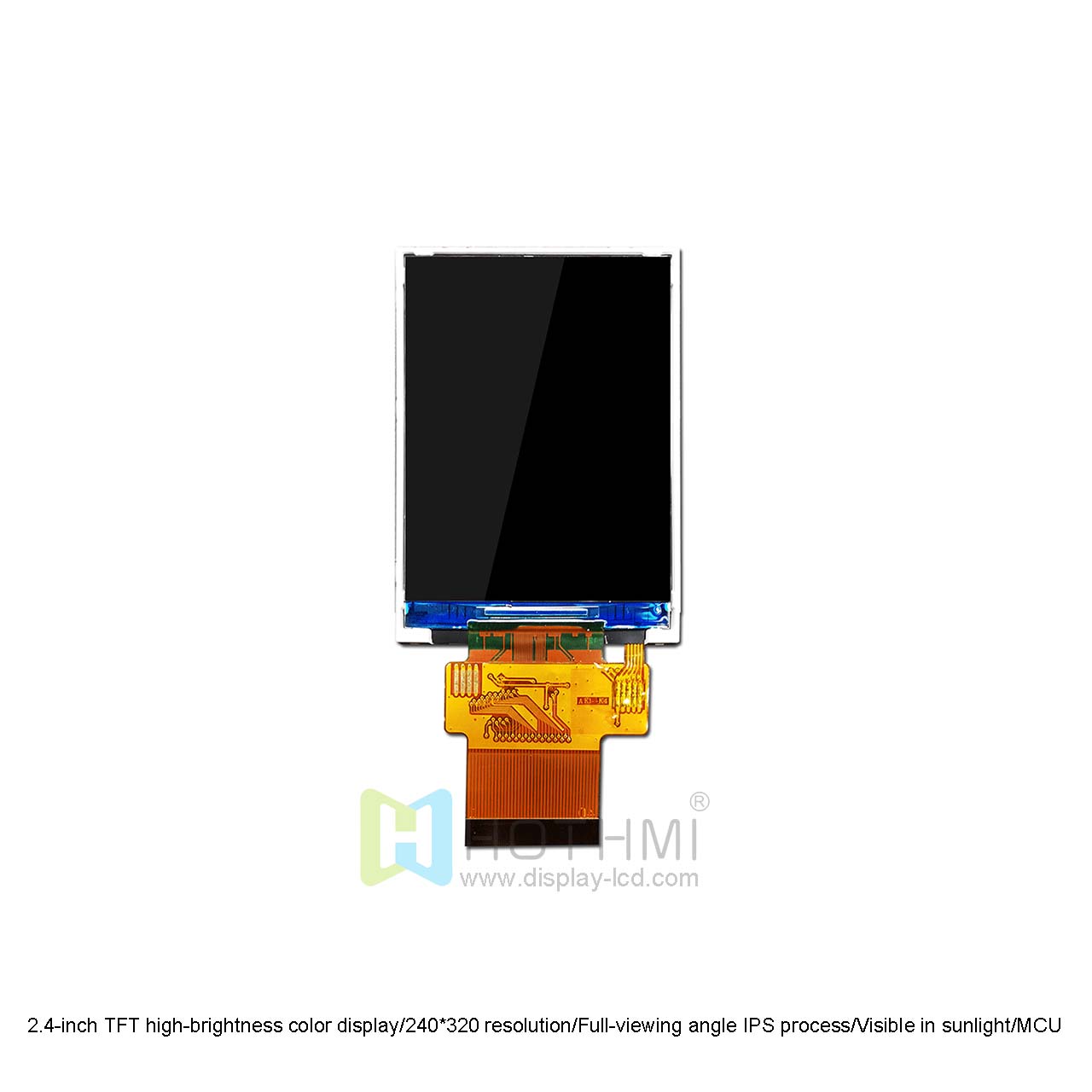

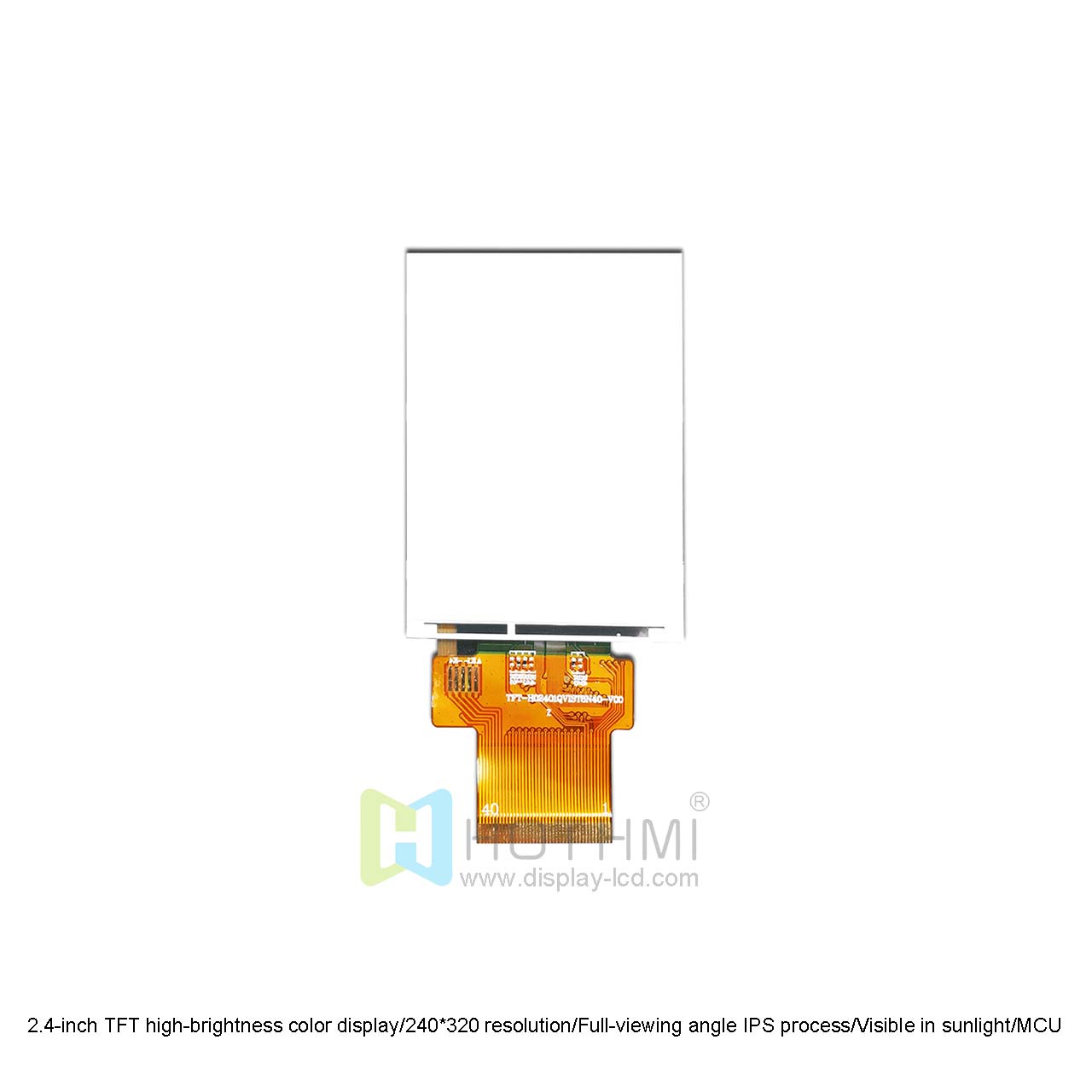

2.4-inch TFT high-brightness color display/240*320 resolution/Full-viewing angle IPS process/Visible in sunlight/MCU interface compatible with SPI/ST7789V/Arduino/C8051/STM32/Wide temperature display
TFT-H024A1QVISTKN40 is a 2.4-inch wide-temperature IPS TFT-LCD display. This product does not have a touch function, but can add a touch function and a cover plate. The resolution is 240x320 pixels, the brightness is very high, visible in sunlight, the module has a built-in ST7789V driver IC, and supports MCU interface. TFT-H024A1QVIST8N40 uses an IPS panel, which has the advantage of a wider viewing angle, left: 80/right: 80/up: 80/down: 80 degrees (typical), contrast 800:1 (typical), brightness 800 nits (typical) value), glare panel, 16:9 aspect ratio. The touchscreen has an FT6236U IC built in, supports I2C interface and multi-touch function. The related H024A1 model has a projected capacitive touch panel (PCAP), but no touch panel option (TFT-H024A1QVIST8N40). The supply voltage (VCC) of the TFT-H024A1QVIST8N40 is 3.0V to 3.6V, with a typical value of 3.3V. It can operate in temperatures from -30°C to +80°C, and a storage temperature of -40°C to +80°C.
