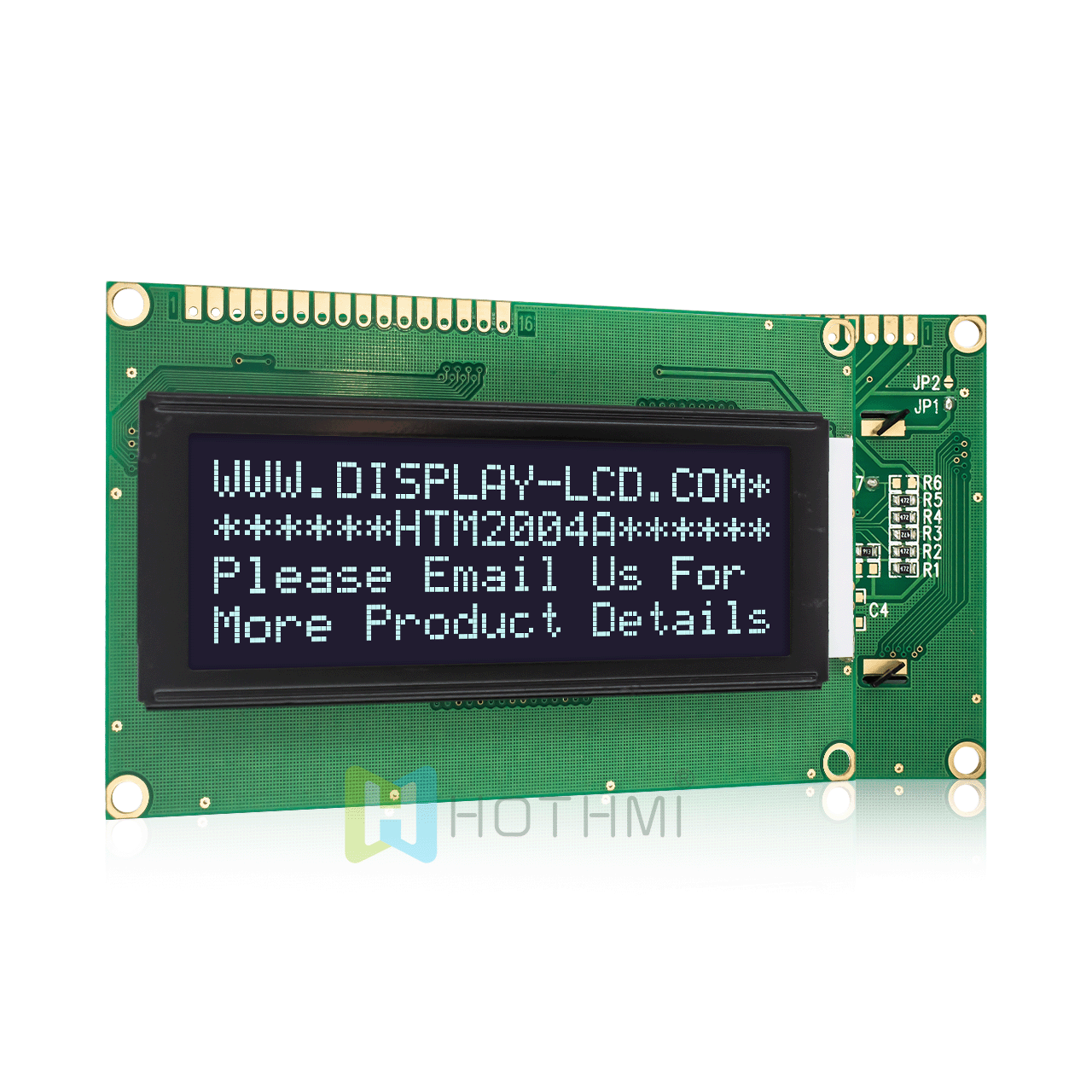

20x4 | Monochrome character LCD display | DSTN - | With white side backlight | Arduino display | Transflective | White text on black background | 3.3v/5.0v

20x4 | Monochrome character LCD display | DSTN - | With white side backlight | Arduino display | Transflective | White text on black background | 3.3v/5.0v | ST7066 control

▶ Model: HTM-2004A-41W-A5P

▶ Type: Standard COB character LCD module
▶ Display content: 20x4 characters

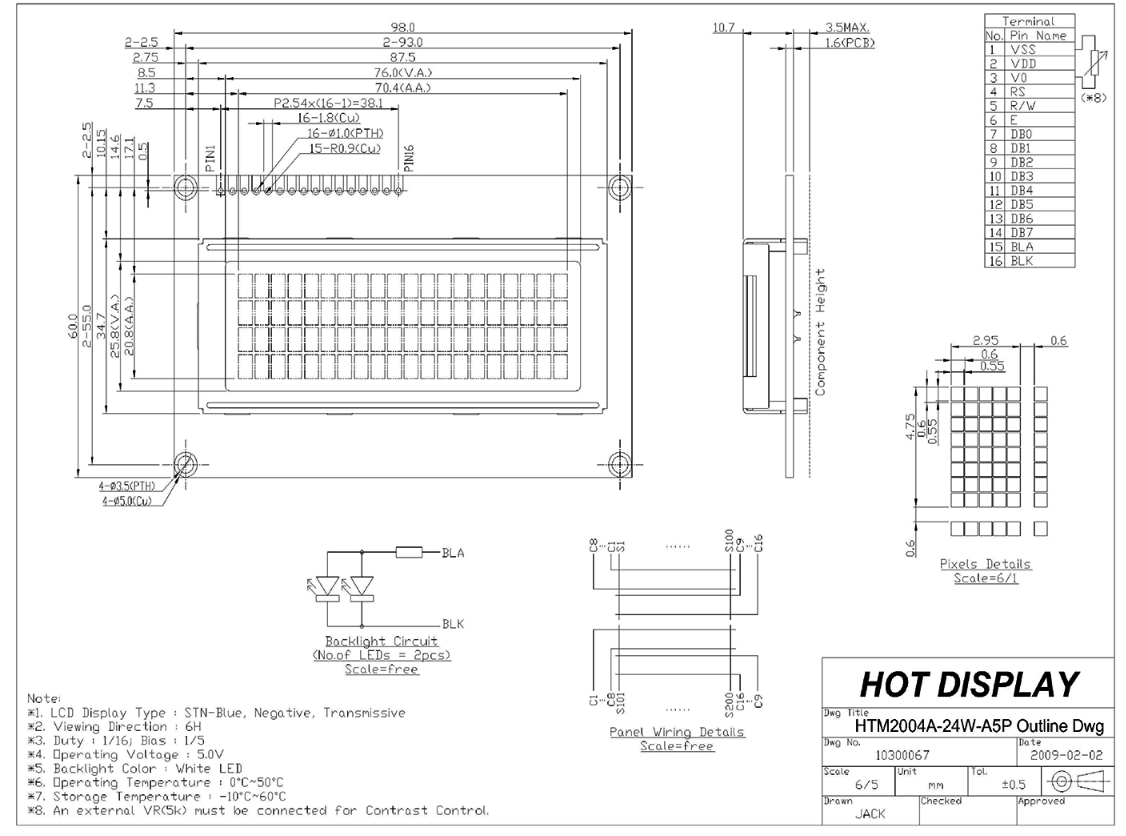

▶ Overall dimensions (mm): 98.0x60.0x14.2
▶ VA size (mm): 76.0x25.8
▶ AA size (mm): 70.4x20.8
▶ Point spacing mm: 0.6x0.6
▶ Application: Industrial instrumentation
▶ Viewing angle: 6H
▶ Backlight type:white light
▶ Number of PINs: 16PIN
▶ Interface mode: MCU/8bit
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0v
▶ Driver chip: ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

HTM-2004A-41W-A5P| 20x4 | Monochrome character LCD display | DSTN - | With white side backlight | Arduino display | Transflective | White text on black background | 3.3v/5.0v | ST7066 control

This semi transparent LCD screen can be viewed around or under backlight, and provides a wide operating temperature range of -20 to 70 ° C. This 20X4HTM-2004A-41W-A5P character display line is clearest at 6 o'clock. Compatibility with Arduino and other similar development boards has improved usability in various projects. The working voltage of the monitor is 3.3V or 5.0V, and it is equipped with an ST7066U controller that complies with RoHS standards.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

project	Parameter Description	unit
name	HTM-2004A-41W-A5P
Number of dots	20x4 Character	dots
Module size	98.0 × 60.0 × 14.2 (MAX)	mm
VA size	76.0（W） × 25.8（H）	mm
AA size	70.4（W） × 20.8（H）	mm
Pixel pitch	0.60 × 0.60	mm
IC	ST7066
voltage	5.0V	V
backlight	White backlight
display mode	DSTN(-)
Drive mode (Duty)	1/16 duty cycle
type	Character Module
characteristic	Transflective Polarizer
