3.0"Arduino LCD | 128x64 LCM graphic display module | FSTN Positive | Gray text on white background | 5.0v

3.0"Arduino LCD | 128x64 LCM graphic display module | FSTN Positive | Gray text on white background | 5.0v | KS0108 or compatible

▶ Model: HTM12864D-31W-A5P

▶ Type: COG LCD module with board
▶ Display pixels: 128x64
▶ Overall dimensions (mm): 78.0x70.0x12.5
▶ VA size (mm): 62.0x44.0
▶ AA size (mm): 56.28x38.36
▶ Point spacing (mm): 0.60x0.4
▶ Application: Instrumentation
▶ Viewing angle: 6H
▶ Backlight/brightness: white light
▶ Pin: 20PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0v
▶ Driver chip: KS0108

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

3.0"Arduino LCD | 128x64 LCM graphic display module | Gray text on white background | 5.0v | KS0108 or compatible

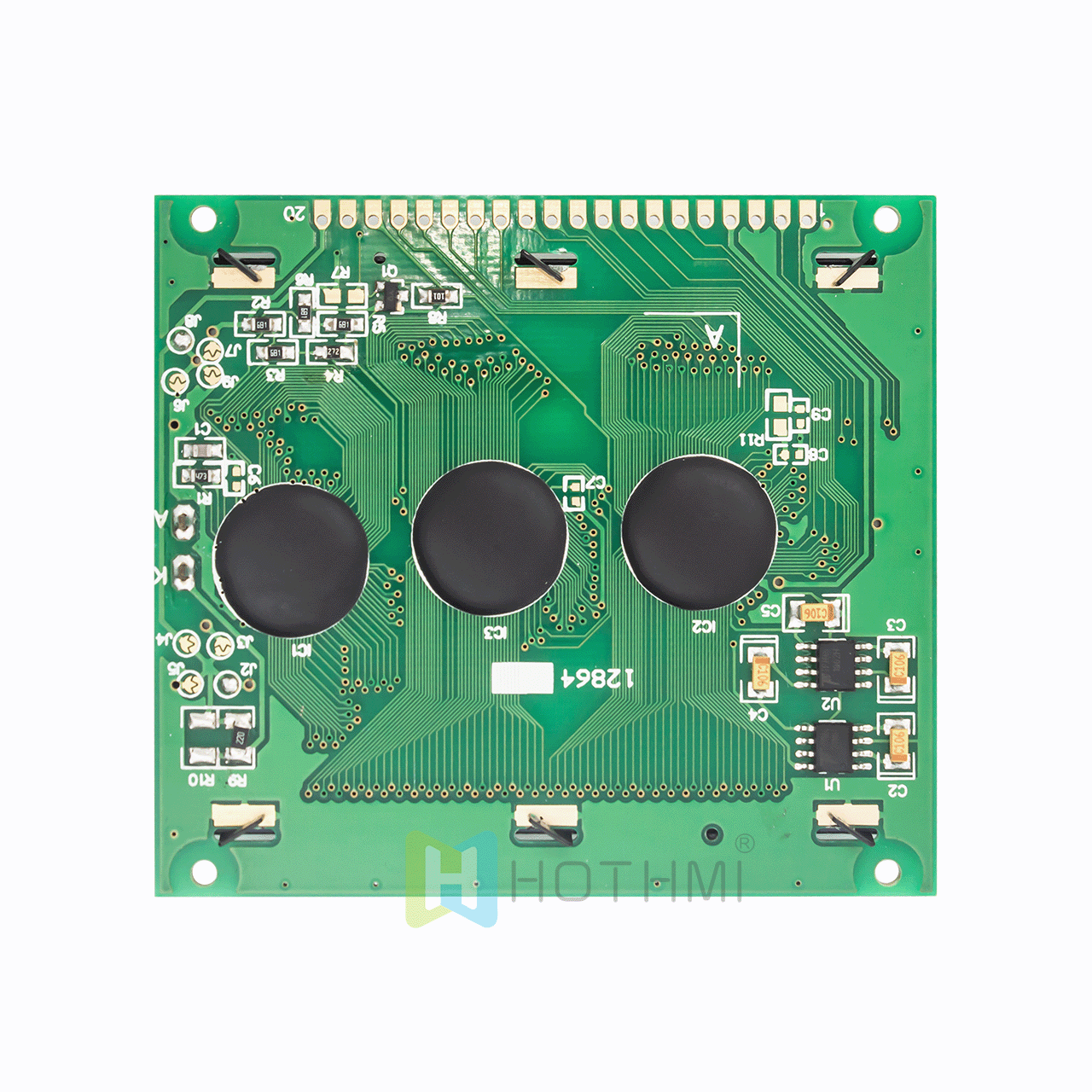

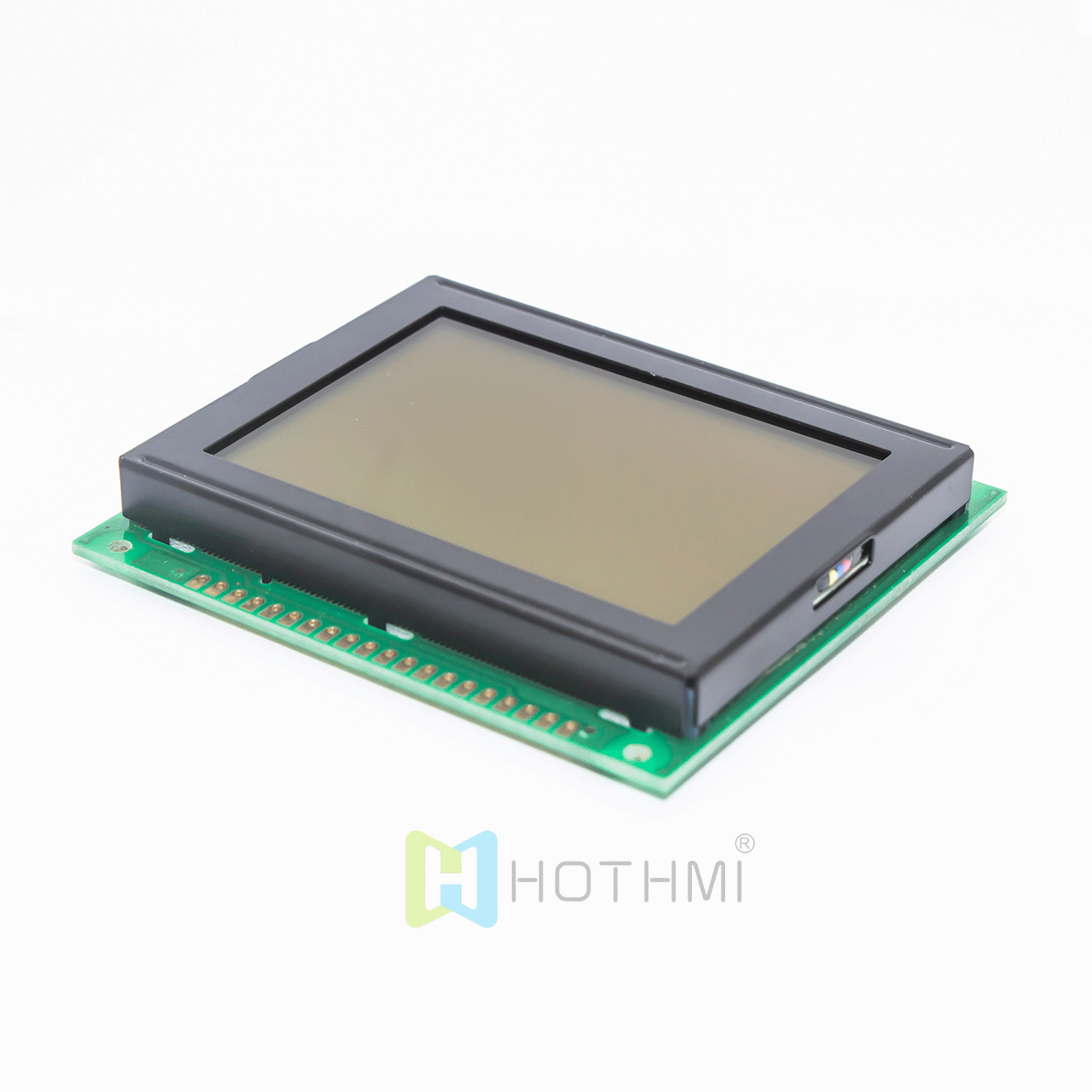

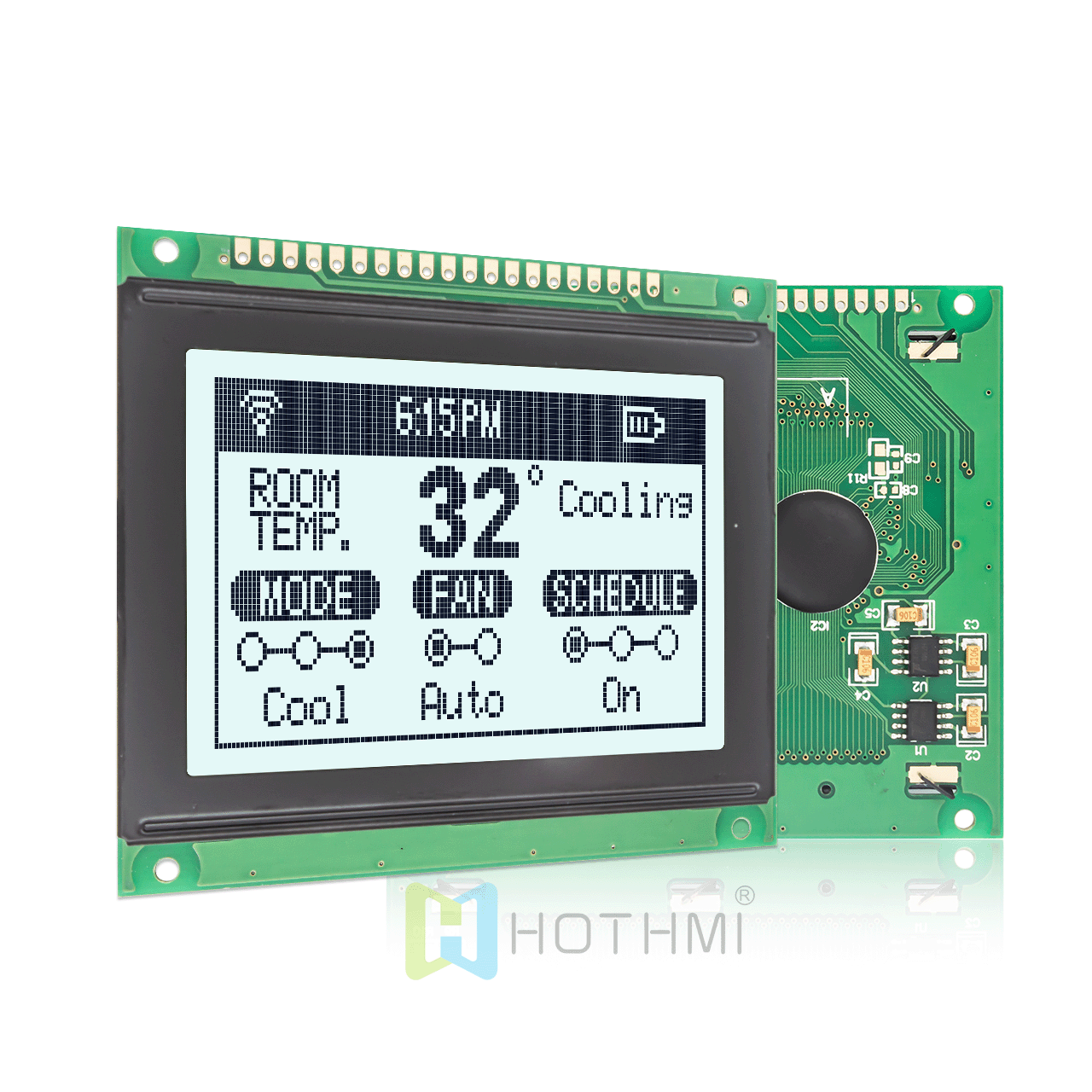

HTM12864D-31W-A5P is white background with 128x64 gray pixels on white background, S6B0107 and S6B0108 controllers are very common and well documented, contains a white single LED backlight that can be easily dimmed via resistor or PWM, FSTN positive LCD screen, Wide operating temperature range and wide viewing angle, compliant with RoHS standards, compact size.

It can be easily controlled by MCUs such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded system, industrial equipment, security, medical and handheld devices.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

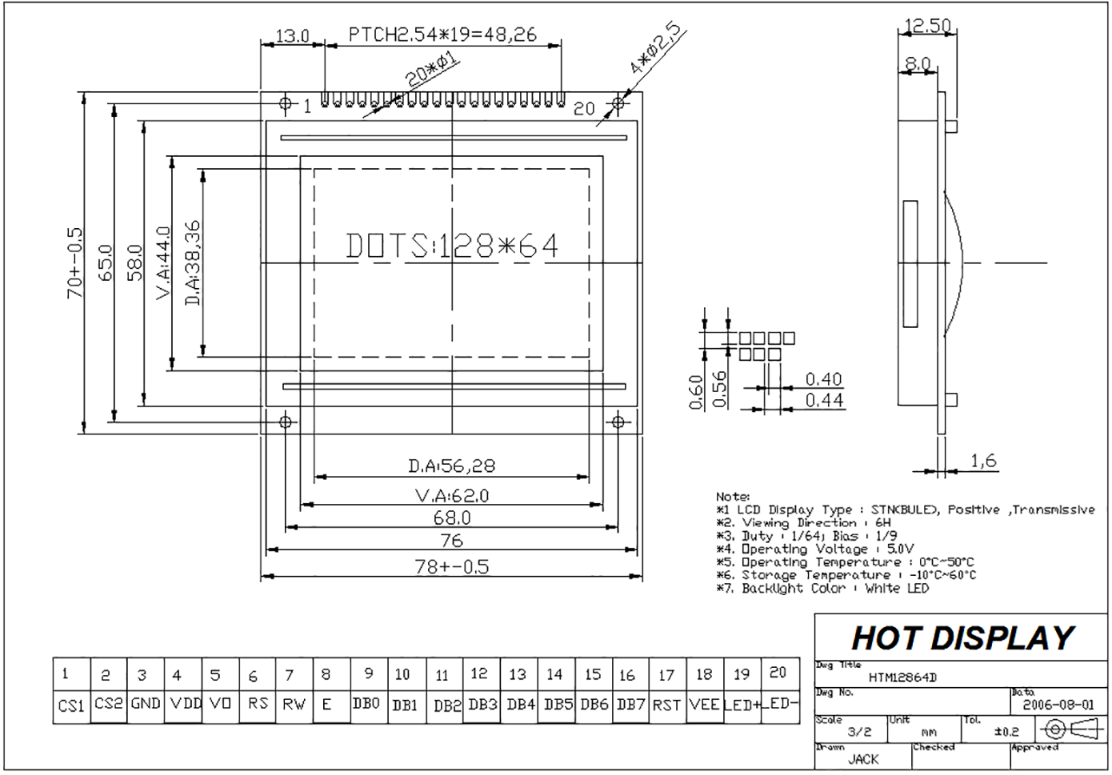

Item	Specification content	Unit
name	HTM12864D-31W-A5P
Number of dots	128 x 64	dots
Module size	78.0（W） × 70.0 （H） × 12.5 （T）	mm
Visual (VA) area	62.0 x 44.0	mm
AA size	56.28（W） ×38.36（H）	mm
Point (pixel) spacing	0.60（W） × 0.4（H）mm	mm
IC	KS108 or compatible
Applied voltage	5.00V	V
back light	White
model	FSTN(+)
Drive mode (Duty)	1/64 duty cycle
type	Graphic LCD
Polarizer type	Semi-transparent polarizer
