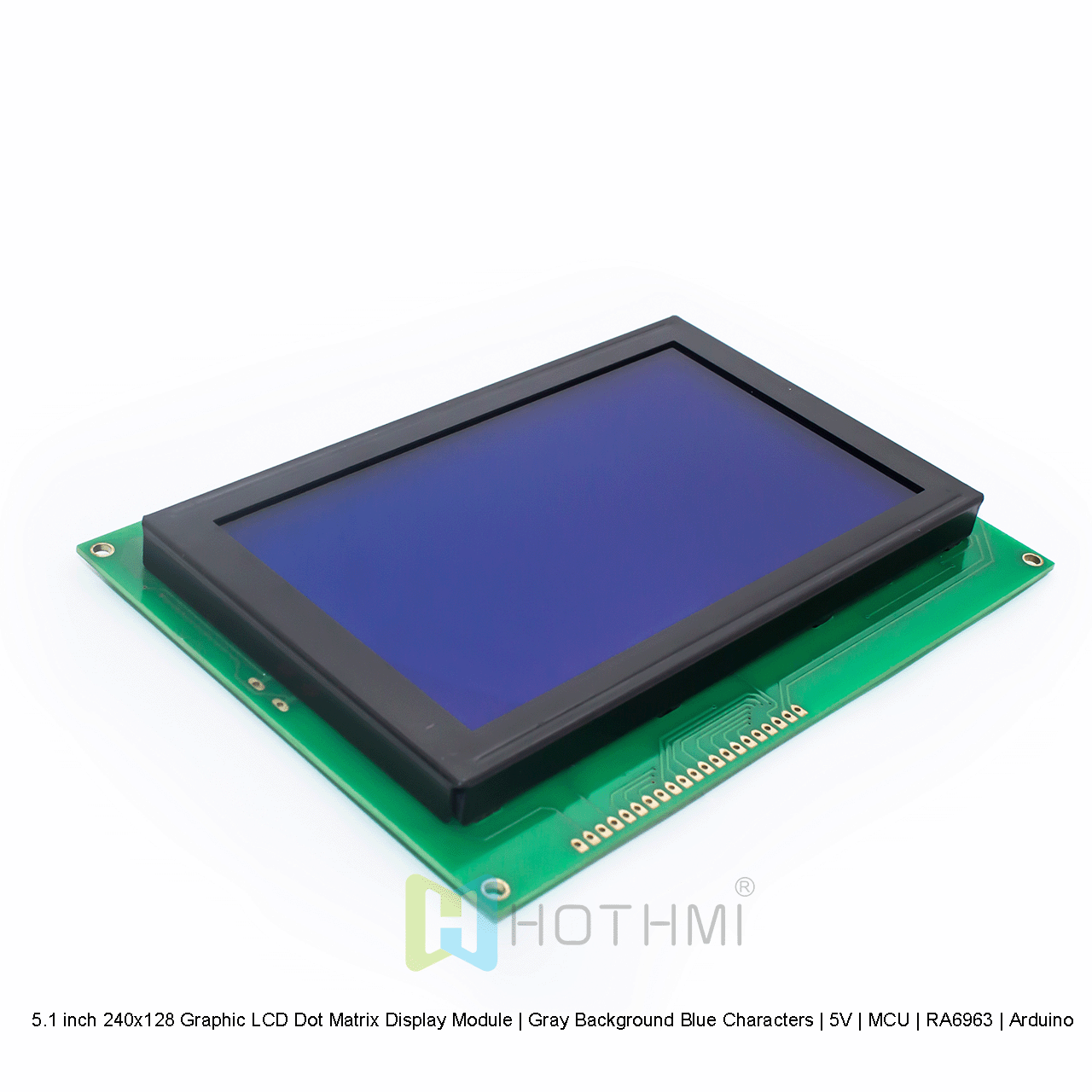

5.1 inch 240x128 Graphic LCD Dot Matrix Display Module | Gray Background Blue Characters | 5V | MCU | RA6963

5.1 inch 240x128 Graphic LCD Dot Matrix Display Module | Gray Background Blue Characters | 5V | MCU | RA6963 | Arduino

▶ Model: HTM240128A-11W-A5P

▶ Type: Standard COB dot matrix module
▶ Display pixels: 240x128

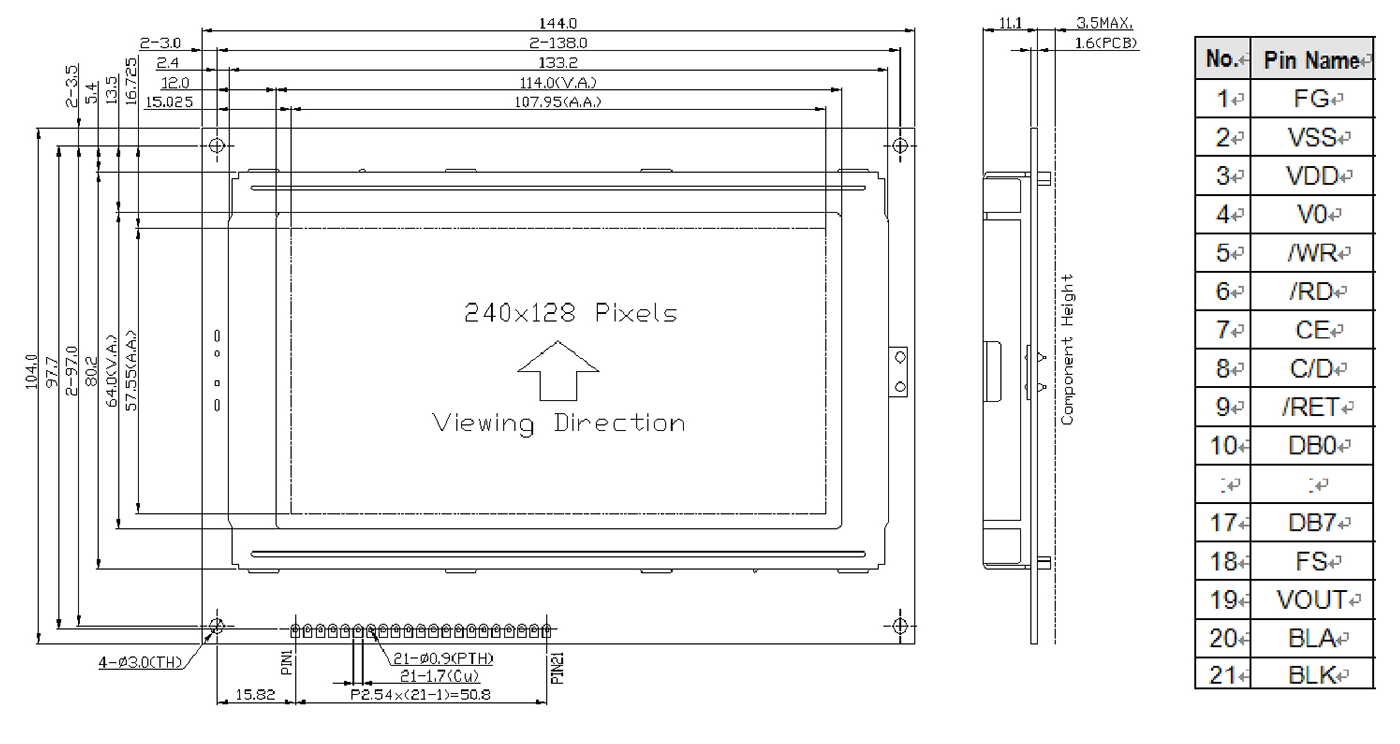

▶ Overall dimensions (mm): 144..0x104.0x14.6
▶ VA size (mm): 114.0x64.0
▶ AA size (mm): 107.95x57.55
▶ Point spacing (mm): 0.45x0.41
▶Application: Industrial control
▶Viewing angle: 6H
▶ Backlight/brightness: white light
▶ Pin: 21PIN
▶Interface mode: MCU
▶ Working temperature: -20~70℃
▶ Supply voltage: 5.0V
▶ Driver chip: RA6963

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes
Download Related Materials

5.1 inch 240x128 Graphic LCD Dot Matrix Display Module | Gray Background Blue Characters | 5V | MCU | RA6963 | Arduino

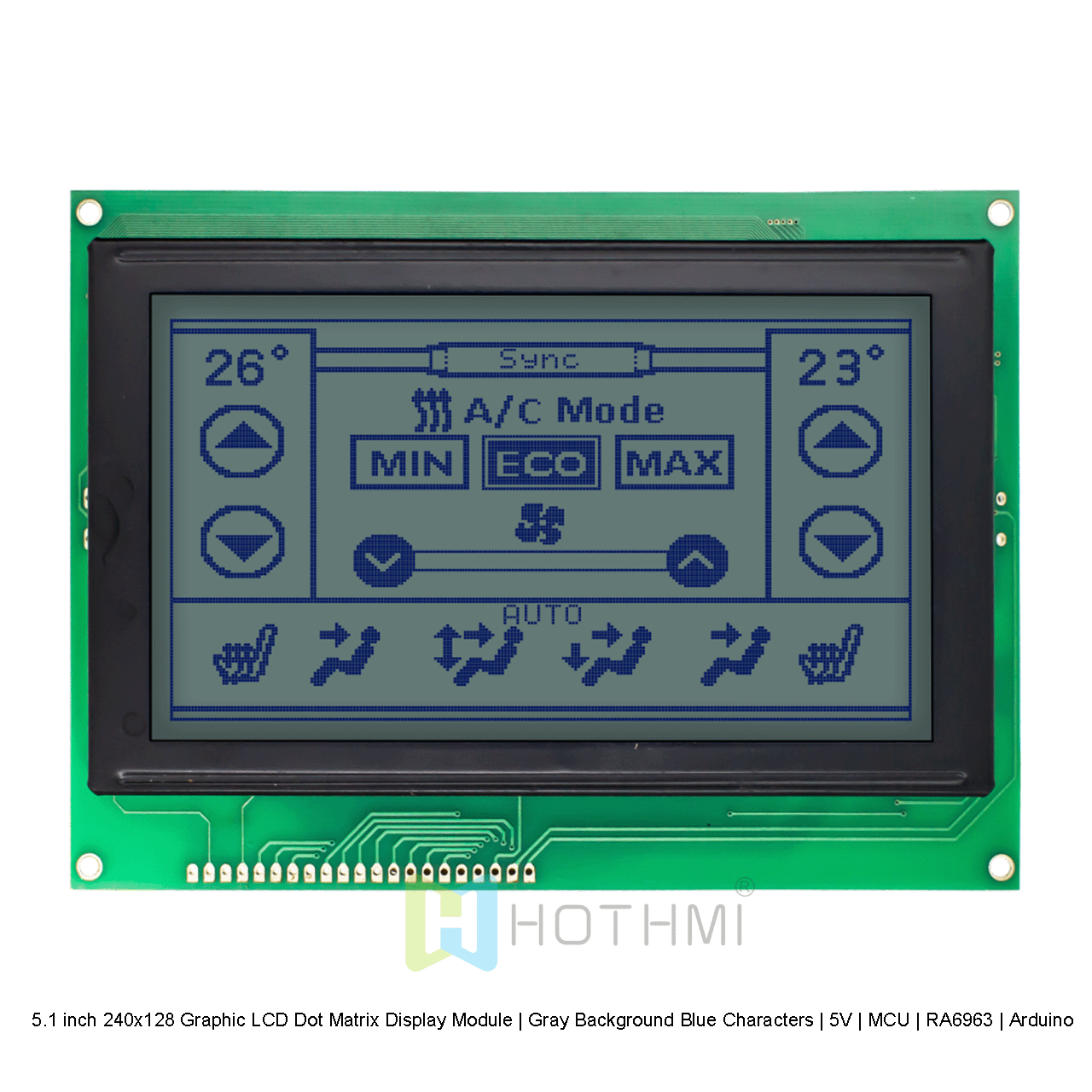

The 5.1 inch 240x128 Graphic LCD Dot Matrix Display Module displays dark blue pixels on a gray background. This translucent LCD display is designed so that in a well-lit environment, the reflective nature of the polarizer reflects the image to the viewer's eyes, making the image clearly visible. In a dark environment, the LCD has a strong backlight built in, and the transmissive nature of the polarizer allows the backlight to pass through, providing high contrast and showing clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions.

This graphic LCD display module is fully compatible with Arduino and can be seamlessly connected with other electronic systems for a variety of applications. With multi-language word lists available, this product model is designed to withstand harsh operating conditions and performs well when used in a temperature range of -20 to 70 degrees Celsius. This LCD has an optimal viewing angle of 6:00, operates at a 5V supply voltage, and is RoHS compliant.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

Item	Specification content	Unit
Name	HTM240128A-11W-A5P
Number of dots	240 × 128	dots
Module size	144.0 x 104.0 x 14.6 (MAX)	mm
Viewable (VA) area	114.0 x 64.0	mm
AA size	107.95 x 57.55	mm
Dot (pixel) pitch	0.45 x 0.41	mm
IC	RA6963
Applied voltage	5V	V
Backlight	White
Mode	STN(+)
Drive mode (Duty)	1/128 duty cycle
Type	Graphic LCD
Polarizer type	Transflective
