1.1" 96X64 Graphic COG LCD | STN+ Display | 3.0V with Yellow-Green Backlight | Arduino

1.1" 96X64 Graphic COG LCD | STN+ Display | 3.0V with Yellow-Green Backlight | Arduino | ST7549

▶ Model: HTG9664F-01Y-A5P

▶ Type: COG graphics module
▶ Display pixels: 96x64
▶ Overall dimensions (mm): 28.0x22.3x1.7
▶ Display inch : 1.1"
▶ VA size (mm): 25.0x15.3
▶ AA size (mm): 23.02x14.06
▶ Point spacing (mm): 0.24x0.22
▶ Application: Handheld devices
▶ Viewing angle: 6H
▶ Backlight/Brightness:yellow-green
▶ Pin: FPC-18PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: 0~55℃
▶ Supply voltage: 3.0V
▶ Driver chip: ST7549

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description

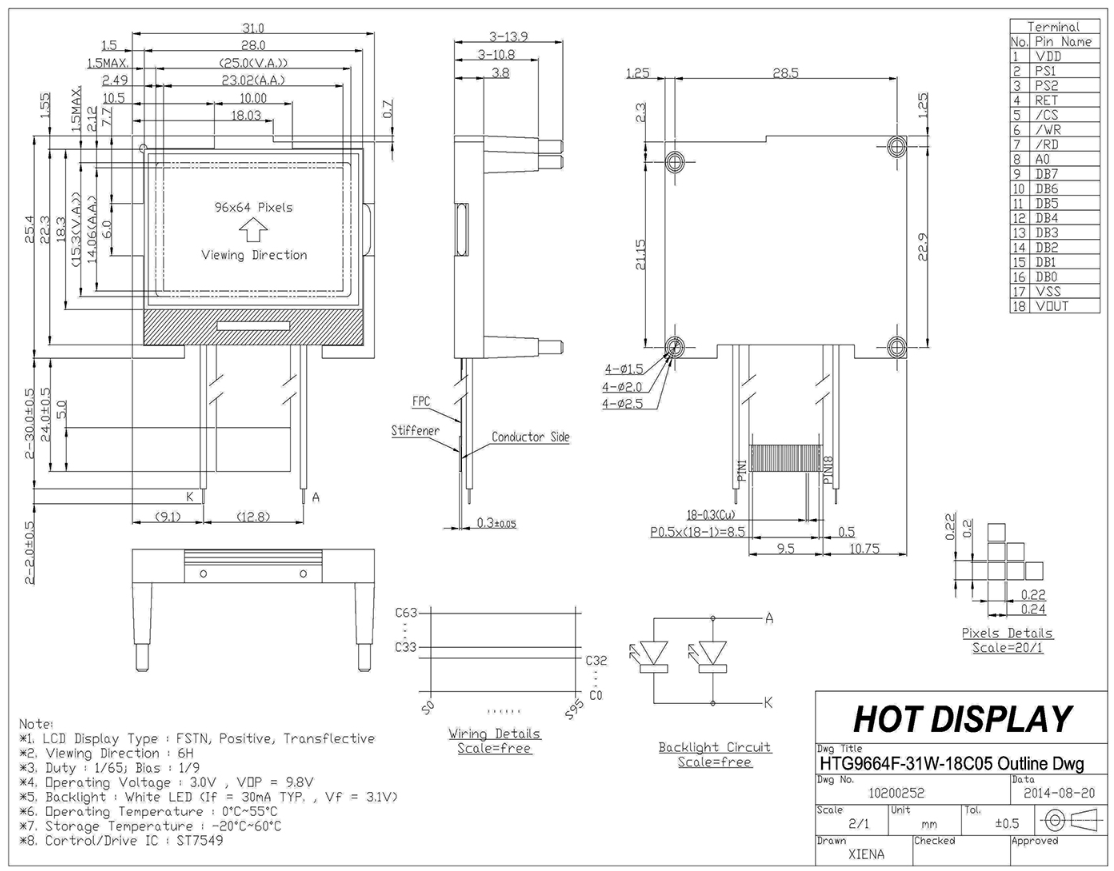

Specification
Attributes

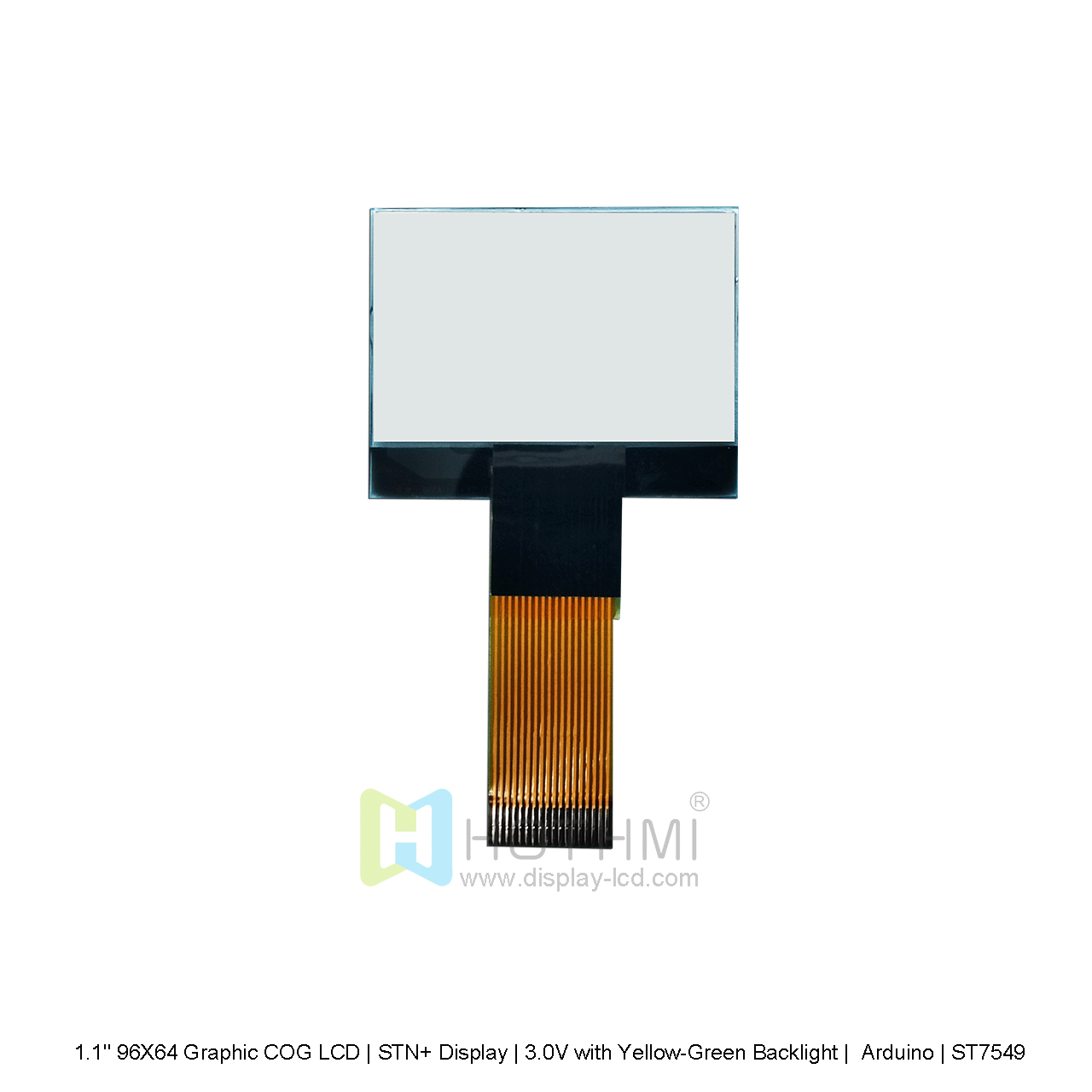

1.1" 96X64 Graphic COG LCD | STN+ Display | 3.0V with Yellow-Green Backlight | Arduino | ST7549

1.1" 96X64 Graphic COG LCD, This 96x64 Chip-on-Glass (COG) LCD displays dark grey pixels on a yellow-green background. This translucent STN positive LCD is visible in ambient light or backlight. In ambient light, the display's contents are clearly visible due to the reflective effect of the polarizer, which reflects the contents back to the viewer. In dark environments, the display has a backlight, which allows the viewer to clearly see the display contents. As a COG display, there is no PCB, and the controller/driver is bonded directly to the glass of the display. The LCD offers a wide operating temperature range from -20 to 70 degrees Celsius. This built-in ST7032I controller. The display features a 6:00 optimal view, 4-bit/8-bit parallel interface, operates at 3.0V supply voltage and is RoHS compliant.

Customized LCD size:

Combined with the product structure, determine the required LCD size, screen type, etc. Mold manufacturing, according to the design, manufacture LCD molds, this process requires sophisticated manufacturing technology and equipment. Support customization within 396*345mm.

Customized dot matrix and display icon content:

Supports customization of display content within 640*320 dot matrix, and icon style can be customized according to customer needs.

Customized backlight color and structure:

There are multiple combinations of module backlight to choose from, no backlight or with yellow-green/blue/white/amber/red/RGB backlight, up to 48 effects, you can click on the customization page for reference.

Customized interface:

Provides a variety of interface options, SPI\I8080\I2C, etc.

Driver board customization:

Supports adjustment of driver board size, component sorting, interface type, etc.

ITEM	Parameter Description	UNIT
Name	HTG9664F-01Y-A5P
Number of dots	96× 64	dots
Module size	28.0 x 22.3 x 1.7 (MAX)	mm
VA size	25.0 x 15.3	mm
AA size	23.02 x 14.06	mm
Pixel pitch	0.24 x 0.22	mm
IC	ST7549
Power supply voltage	3.0	V
Backlight	Yellow-green
Display mode	STN(+)
Drive mode (Duty)	1/64 duty cycle
Type	Graphic COG
Characteristics	Transflective
