HTM-1604B-11Y-A5P | 3.3V/5V 4x16 character LCD | STN(+) yellow-green side backlit monochrome display | Arduino | MCU interface | ST7066U controller | transflective display

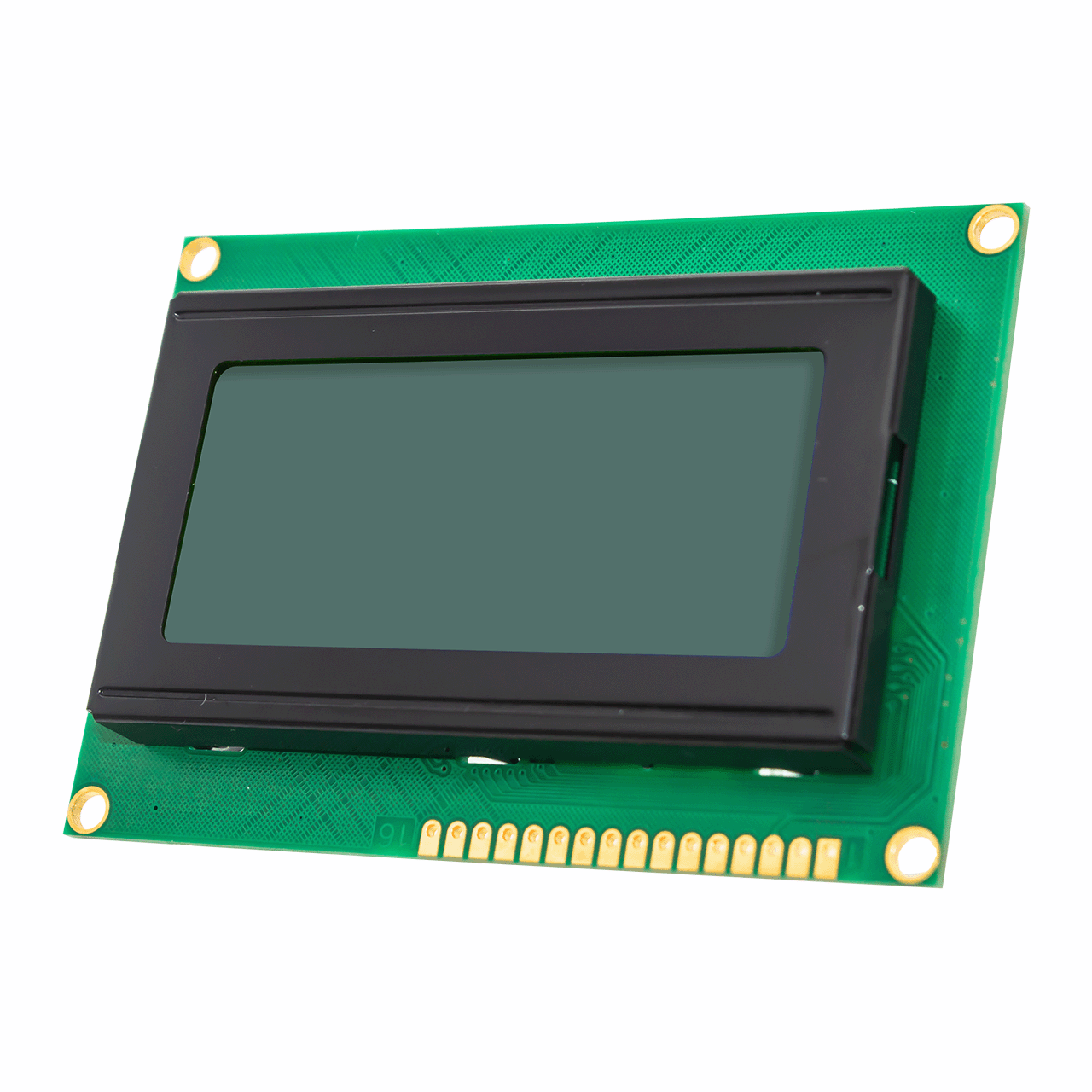

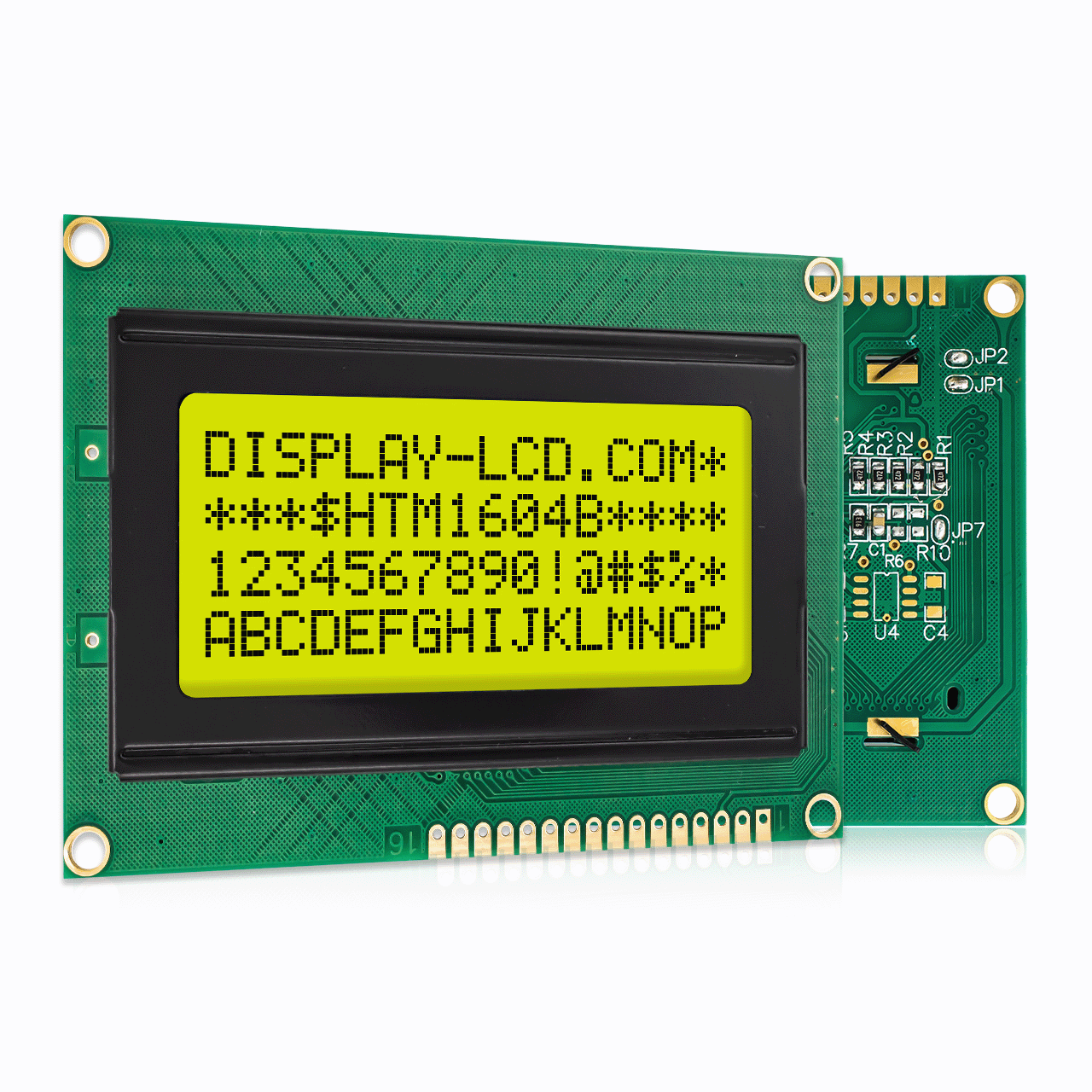

HOT DISPLAY HTM1604B-11Y-A5P is a 16-character wide, 4-line character LCD module, ST7066U controller, single LED backlight, yellow-green, STN positive display semi-transparent film, black text on a yellow-green background, wide operating temperature range, compliant with Rohs standards , the built-in character set supports English/Japanese text, regarding the complete character set. Choice of pin header connections, 5V or 3.3V power supply, and I2C adapter board for arduino.
It can be easily controlled by MCUs such as 8051 and ARDUINO. It can be used in any embedded system, industrial equipment, security, medical and handheld devices.
Connector Customization: Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require. |
PCB Modifications: Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application. |
Backlight color customization: The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference. |
Font library customization: Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc. |
Cable Customization: Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure. |
