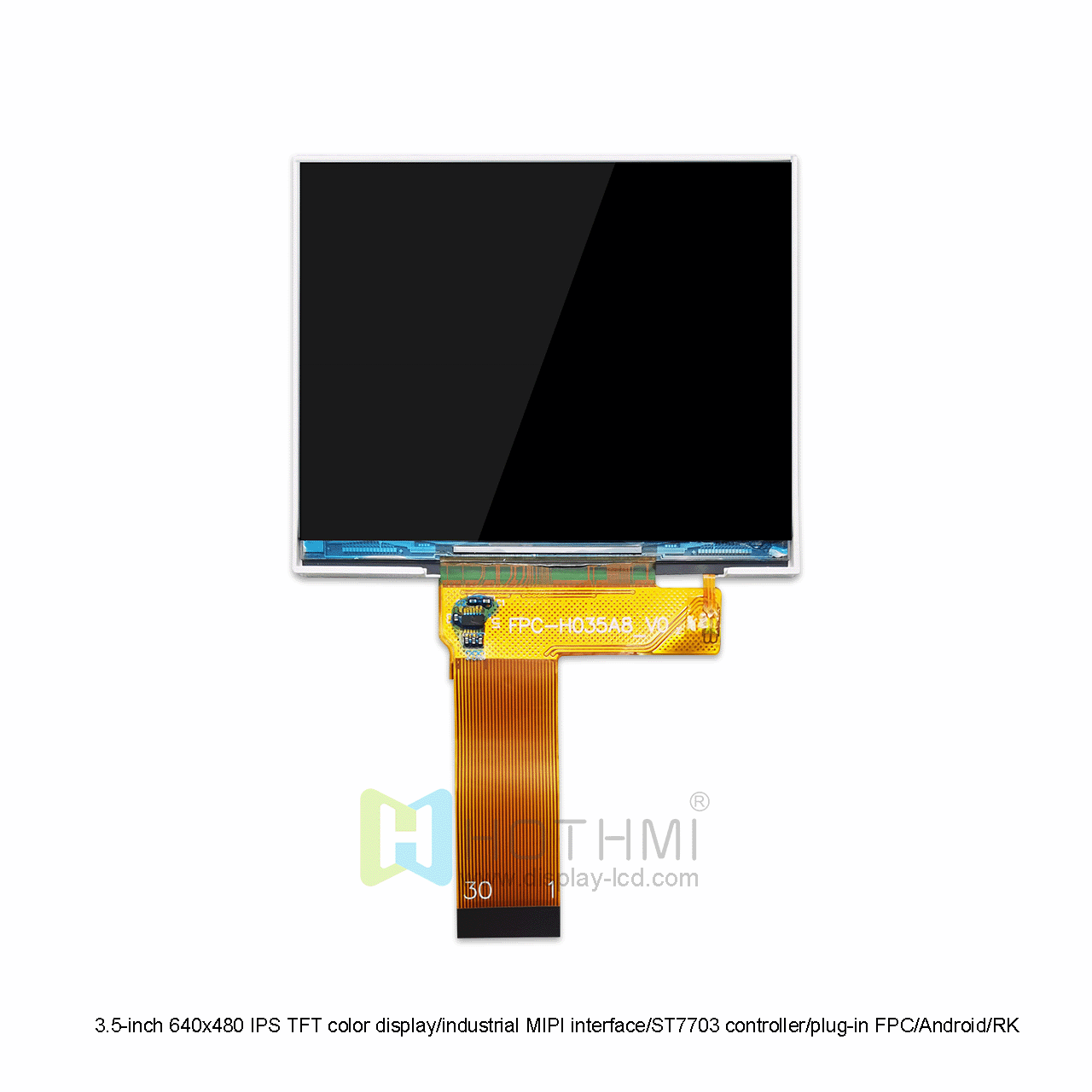

3.5-inch 640x480 IPS TFT color display/industrial MIPI interface/ST7703 controller/plug-in FPC/Android/RK
This standard 3.5-inch TFT LCD display TFT-H035A8VGIST6N30 has a resolution of 640x480 pixels, IPS full viewing angle, and high-quality effects regardless of viewing direction. The standard brightness LED backlight brightness is 650 nits. Although this transmissive LCD has a touch screen, the compact size, 3.3V low-voltage power supply, and impressive display quality make it an excellent choice for projects that require portrait mode visual output without touch function.

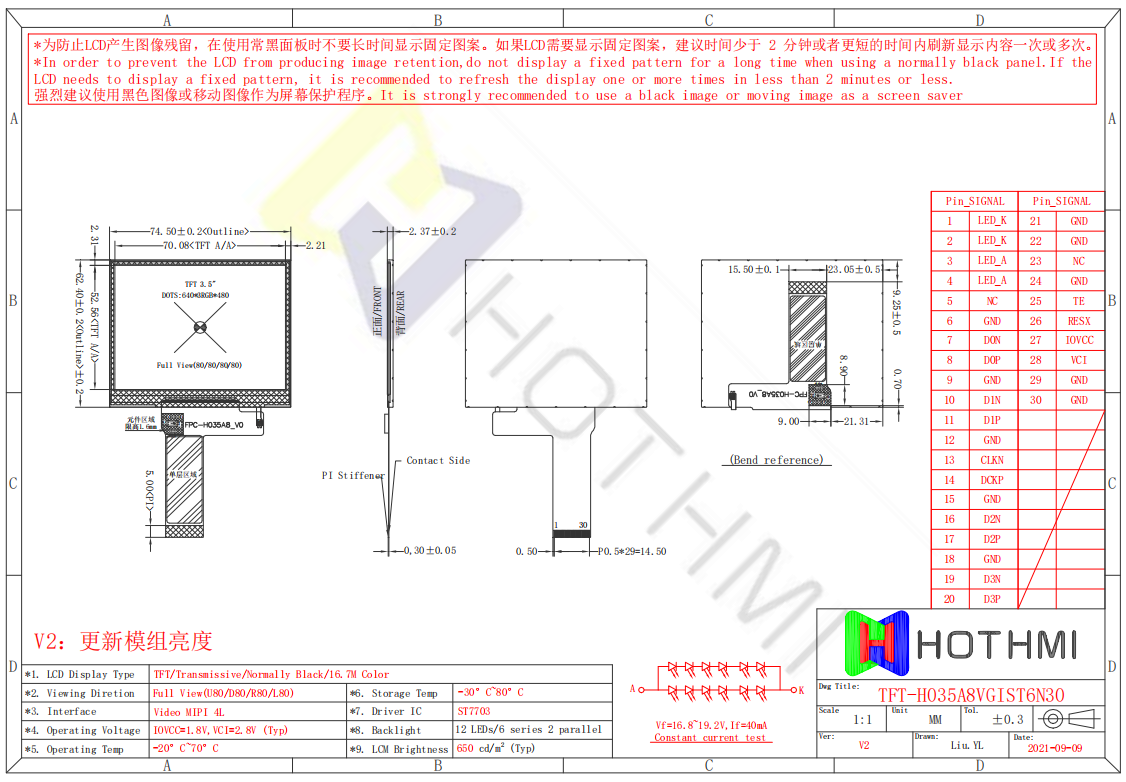

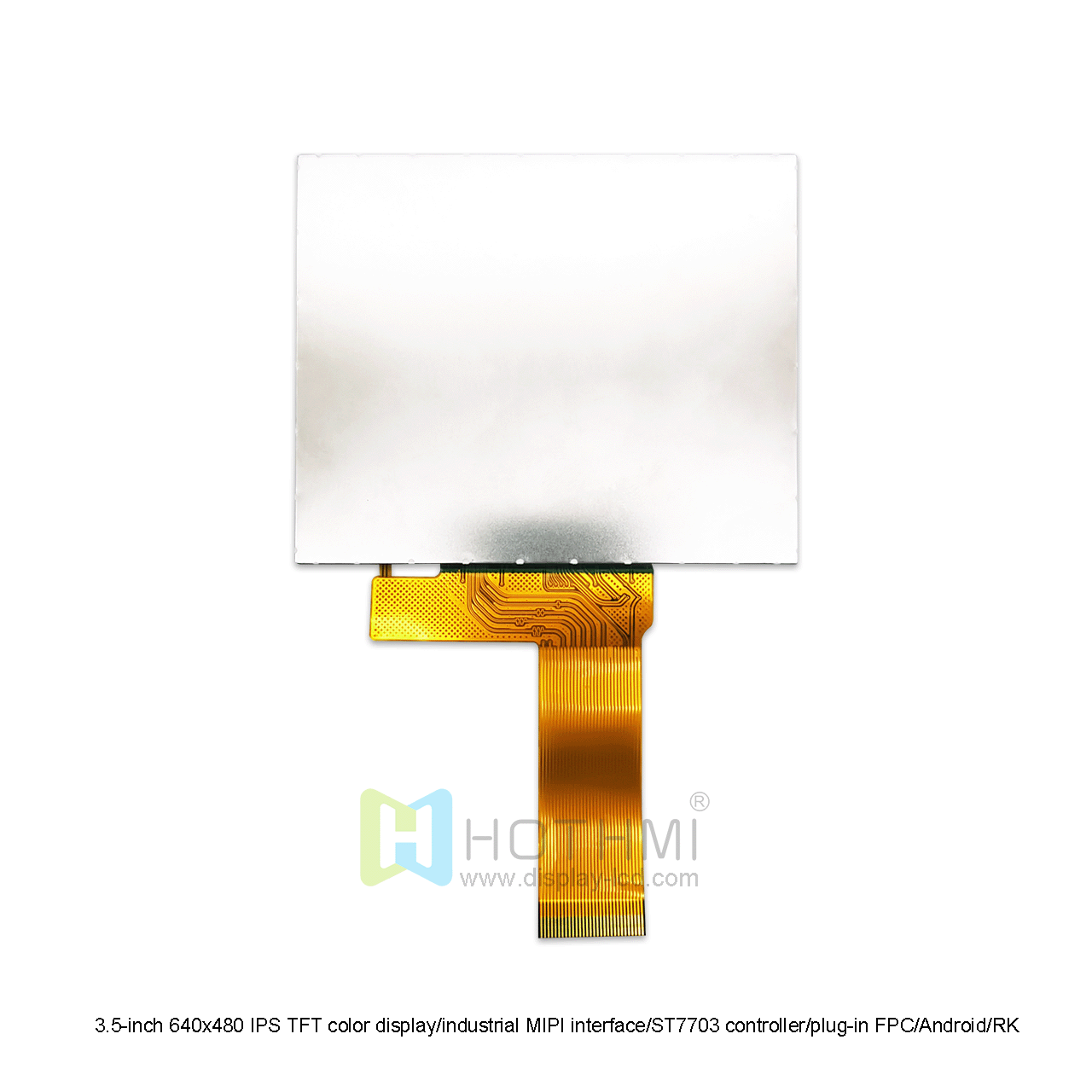

This 3.5-inch LCD display uses a 30PIN FPC soft cable connection to provide a safe and reliable electrical connection. The connection method of the FPC soft cable makes disassembly easier and easier to operate. This TFT LCD display is powered by the ST7703 controller. It can provide excellent performance and reliability. The controller optimizes the functions of the display to ensure smooth operation and accurate presentation of images and graphics. Popular industries for this TFT size include IoT, industrial automation, consumer electronics, test and measurement, and handheld devices. They are also great for DIY or prototyping projects due to their compatibility with Arduino. The MIPI interface enables fast and efficient communication between the Android system and RK motherboard and the display, ensuring smooth data transmission and real-time updates. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.
