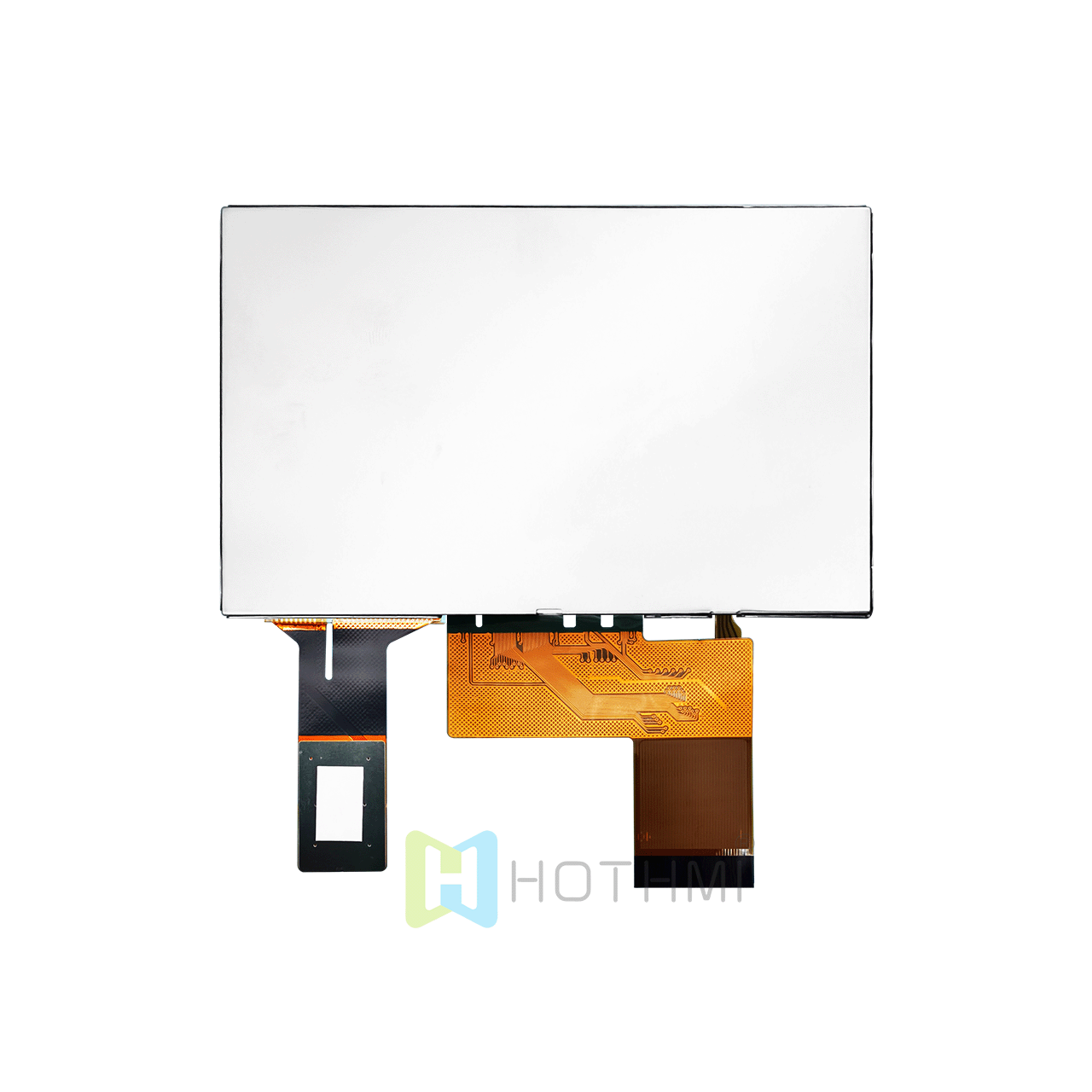

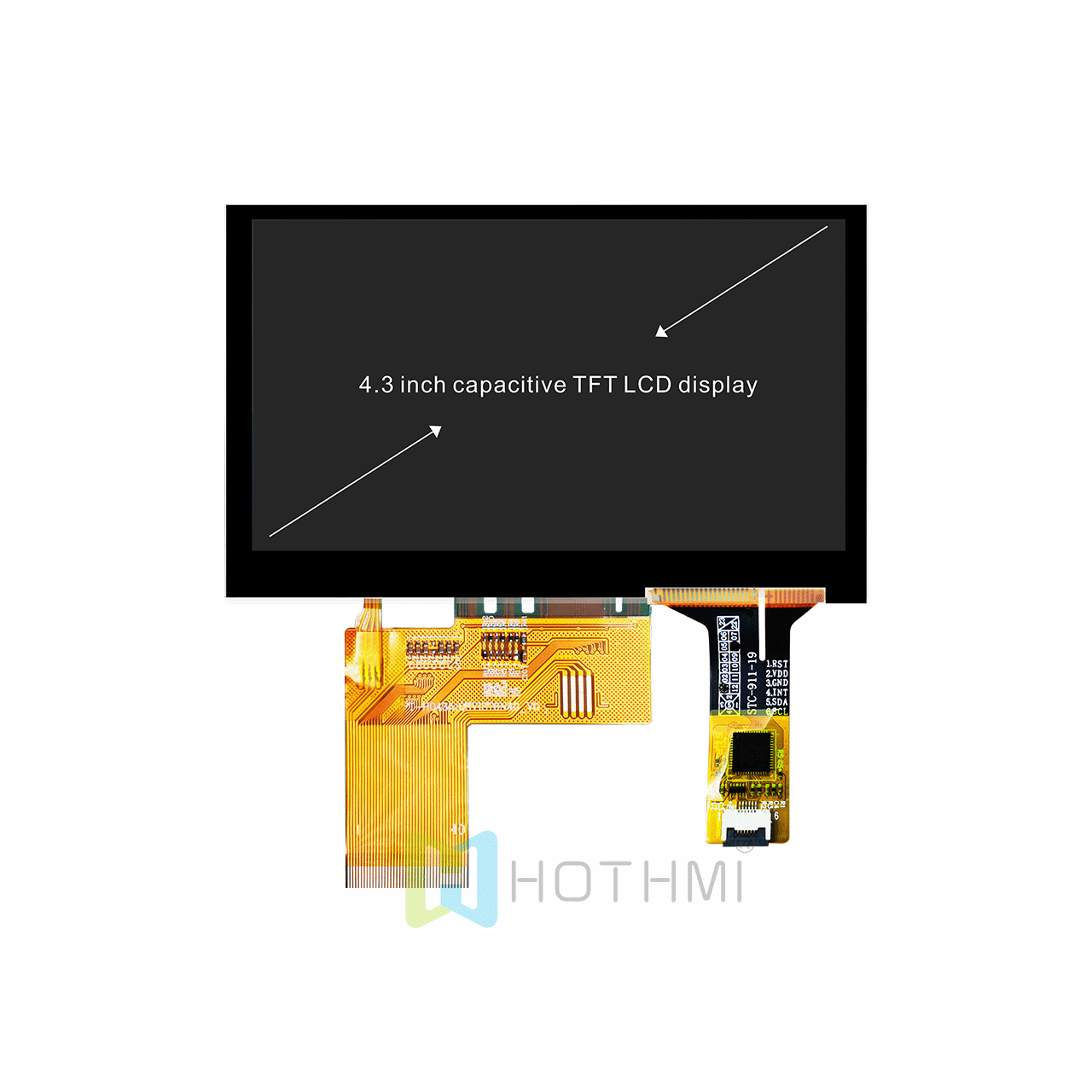

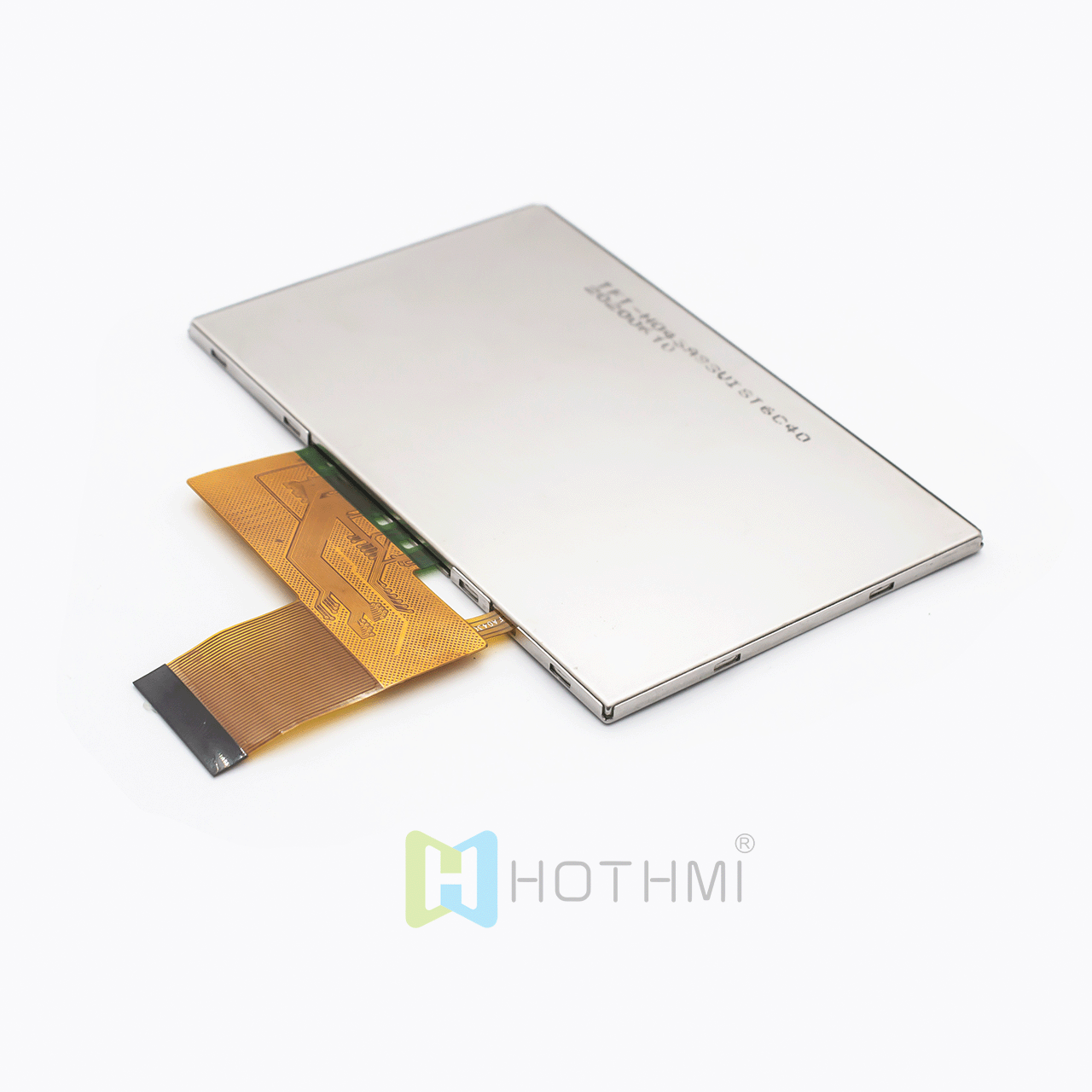

4.3-inch TFT LCD display module capacitive touch GT911 800x480 dot matrix wide temperature IPS full angle sunlight readable TTL ST7262 compatible with STM32/RK

4.3-inch TFT LCD display module capacitive touch GT911 800x480 dot matrix wide temperature IPS full angle sunlight readable TTL ST7262 compatible with STM32/RK

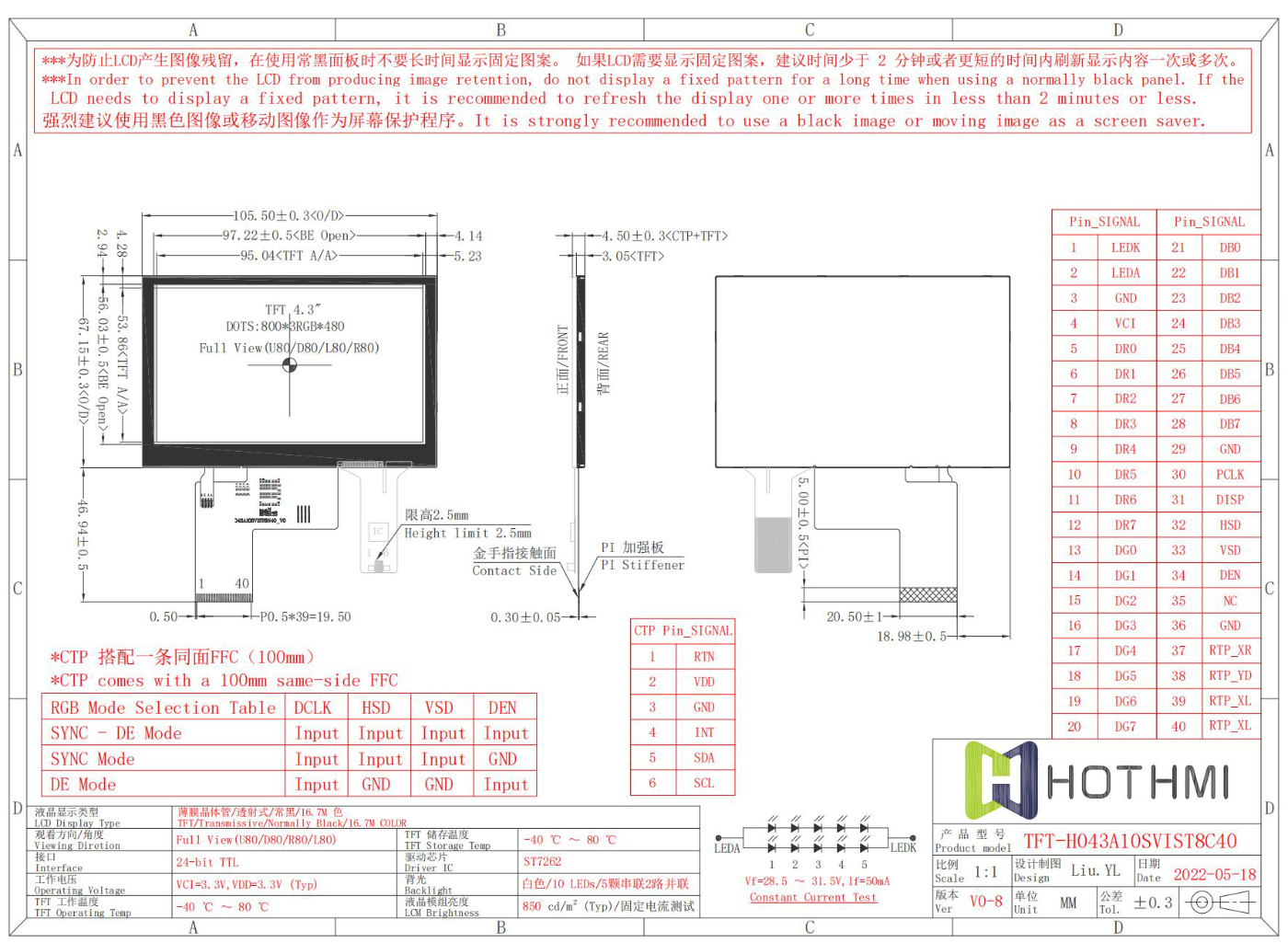

▶ Model: TFT-H043A10SVIST8C40

▶ Type: TFT wide temperature display screen
▶ Display pixel: 800x480 dot matrix
▶ External dimensions (mm): 105.50x67.15x4.50
▶ Display inches: 4.3"
▶ Effective size (mm): 96.7x55.5
▶ Application: handheld remote control, smart devices
▶ Visual angle: IPS (U80/D80/L80/R80)
▶ Brightness: 850cd/m2
▶ Pin: FPC-40PIN
▶ Interface: 24 bit TTL
▶ Special reminder: Anti static ESD 8KV
▶ Working temperature: -40~80 ℃
▶ Power supply voltage: 3.3V
▶ Driver chip: ST7262

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes
Download Related Materials

TFT-H043A10SVIST8C40 | 4.3-inch TFT wide temperature LCD display | TTL interface | 800x480 pixel resolution LCD screen | capacitive touch | visible in sunlight | wide temperature -40~80 ℃

TFT-H043A10SVIST8C40 is a 4.3-inch TFT wide temperature LCD display with a resolution of 800x480 pixels. It uses ST7262 display driver IC and plug-in FPC, which can be used together with connectors. In addition, the driving chip of TP is the GT911, which uses IPS technology to provide full view and excellent color reproduction, allowing you to easily view from various angles without distortion. The display screen has a high contrast of 1000:1 and can provide dark black and bright colors, supporting landscape or vertical display. Can be read in the sunlight. Brightness up to 850cd/m2, FPC connection (optional connector), 3.3V voltage, supporting vertical screen display. All materials comply with environmental requirements and RoHS standards. This module is widely used in various instruments, intelligent devices, etc., and is suitable for various microcontroller development platforms such as STM32, 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi.

Customized Ribbon Cables/Flexible Printed Circuits (FPC):

Tailor your cables to perfection by adjusting their length, position, and pin arrangements, or adding other connectors. Obtain a precisely designed cable solution to streamline and enhance the safety of your connections

Touchscreen Add-On Components:

Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization:

Choose from various interface options or consult with our experts to select the options that best suit your project. We can integrate HI,USB, SPI, VGA, and other interfaces into your display to achieve your design goals.

Cover Glass:

Equip your display with custom-cut cover glass to improve durability. Choose from various thicknesses of cover glass and undergo optical bonding to prevent moisture and debris.

project	Specification	unit
Display size (diagonal)	4.3	Inch
Dot matrix (resolution)	800 × RGB × 480 (TFT)	dots
Module size	105.50(W)x67.15x4.50	mm
Effective area (AA)	96.7x55.5	mm
brightness	850	cd/㎡
Operating temperature	-40~+80	°C
Storage temperature	-40~+80	°C
LCD type	TFT, Normal white, transmissive
TFT driver IC	ST7262
TFT interface	TTL
perspective	IPS (U80/D80/L80/R80)
aspect ratio	1.1:2
Backlight type	LED, Normal white
Touch panel type	nothing
surface	Anti Glare
