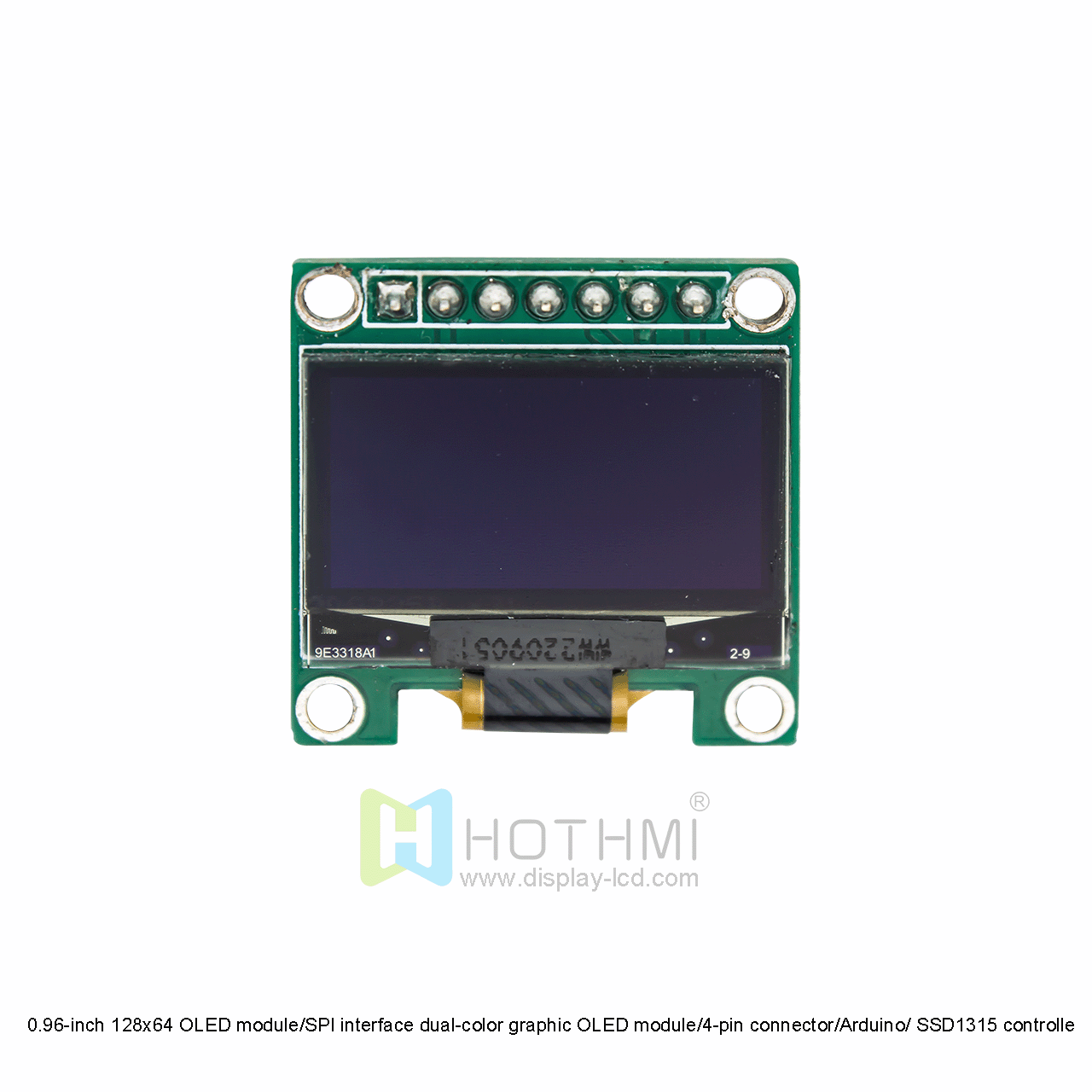

0.96-inch 128x64 OLED module/SPI interface dual-color graphic OLED module/4-pin connector/Arduino/ SSD1315 controlle

0.96-inch 128x64 OLED module/SPI interface dual-color graphic OLED module/4-pin connector/Arduino/ SSD1315 controlle

▶ Model: HTM-OLED0.96-SPI-03A-B&Y

▶ Display type: Graphic OLED module
▶ Size: 0.96 inches diagonal
▶ Display format: 128x64 pixels
▶ Display color: blue&yellow
▶ Appearance (mm): 26.0x26.0x2.8
▶ VA (mm): 22.74x12.18
▶ AA (mm): 21.74x11.18
▶ Dot pitch (mm): 0.15x0.15
▶ Power supply voltage: 3.3V
▶ Interface: SPI
▶ Backlight brightness: 90cd/m2
▶ Compatibility: Arduino
▶ Controller model: SSD1315
▶ Operating temperature: -40°C~85°C
▶ Storage temperature: -40°C~90°C

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

0.96-inch 128x64 OLED module/SPI interface dual-color graphic OLED module/4-pin connector/Arduino/ SSD1315 controller
This 128x64 resolution graphic OLED display provides high-contrast viewing, showing bright blue and yellow dual-color graphics on a deep black background. We have white and blue options for the same product. OLED display technology is self-luminous, designed to provide high visibility and ensure easy reading from any angle in different environments. With this OLED, you can expect the fastest response time. It is a passive matrix display with a built-in I2C interface option, fully compatible with Arduino, and seamlessly integrates with many different electronic systems for a variety of applications. The display also comes with a 7-pin connector and a built-in SSD1315 controller. The HTM-OLED0.96-SPI-03A-B/Y model is designed to withstand extreme operating conditions and performs well when used in a temperature range of -40 to 85 degrees Celsius. It requires a 3.3V power supply to operate and is RoHS compliant.

ITEM	Parameter Description	UNIT
OLED Model	HTM-OLED 0.96-SPI-03A-B&Y
Diagonal Size	0.96”	“
Pixels	128x64	Dot
Appearance Size	26.0X26.0X2.8	mm
VA Size	22.74X12.18	mm
Active Area (AA)	21.74X11.18	mm
Dot Pitch	0.15x0.15	mm
Supply Voltage	3.3	v
Driver IC	SSD1315
Drive Mode	1/64 duty
Interface	SPI
Type	Oled Module
Display Color	Blue&Yellow
Operating Temperature	-40°C~85°C	℃
Storage Temperature	-40°C~90°C	℃
