1.6-inch round TFT LCD display/MIPI interface/400x400 dots/IPS full viewing angle/wide temperature/ST7797/optional touch screen/compatible with Android

1.6 inch round TFT LCD display/MIPI interface/400x400 IPS full viewing angle/wide temperature/optional touch screen

▶ Model: TFT-H016A01ZGIST4N20

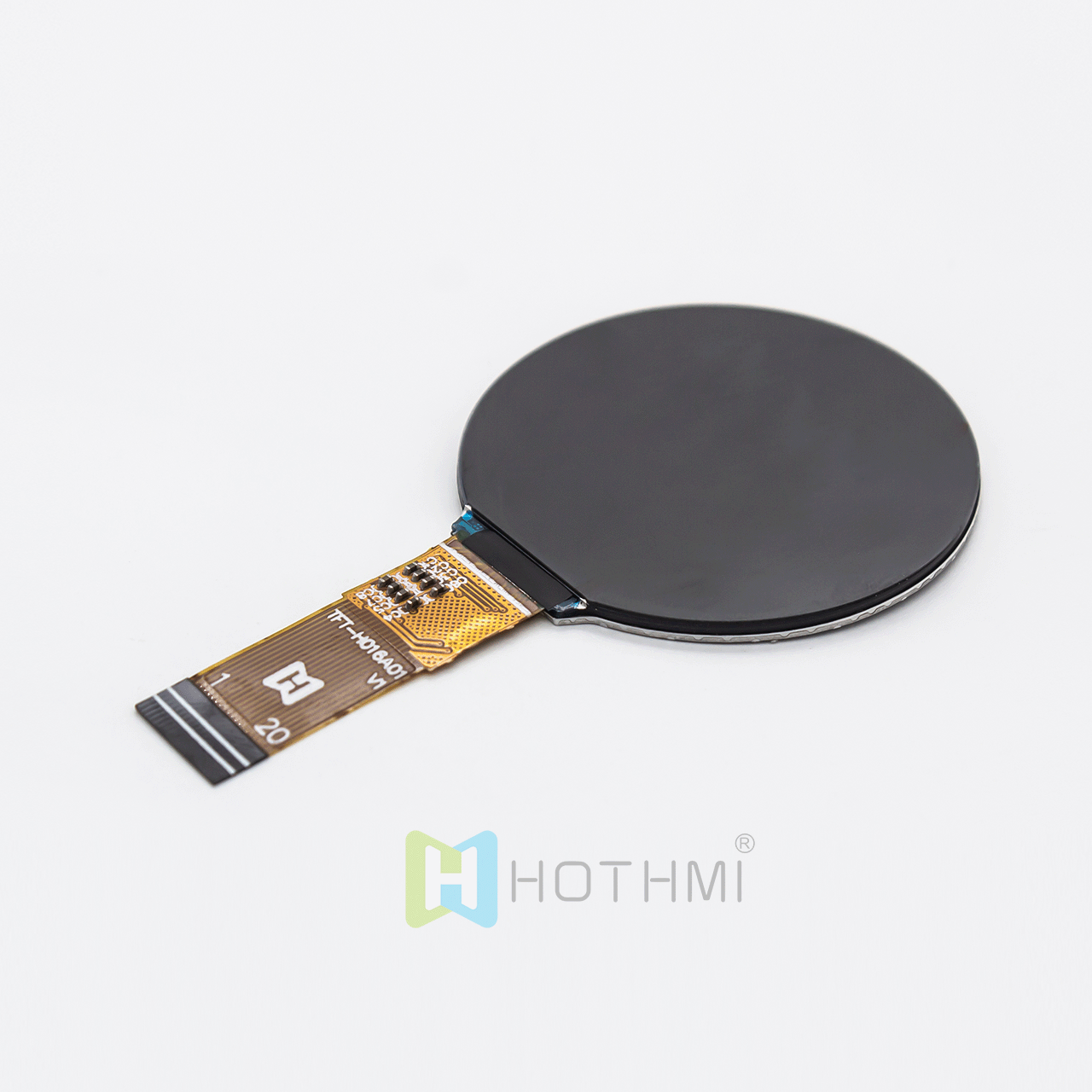

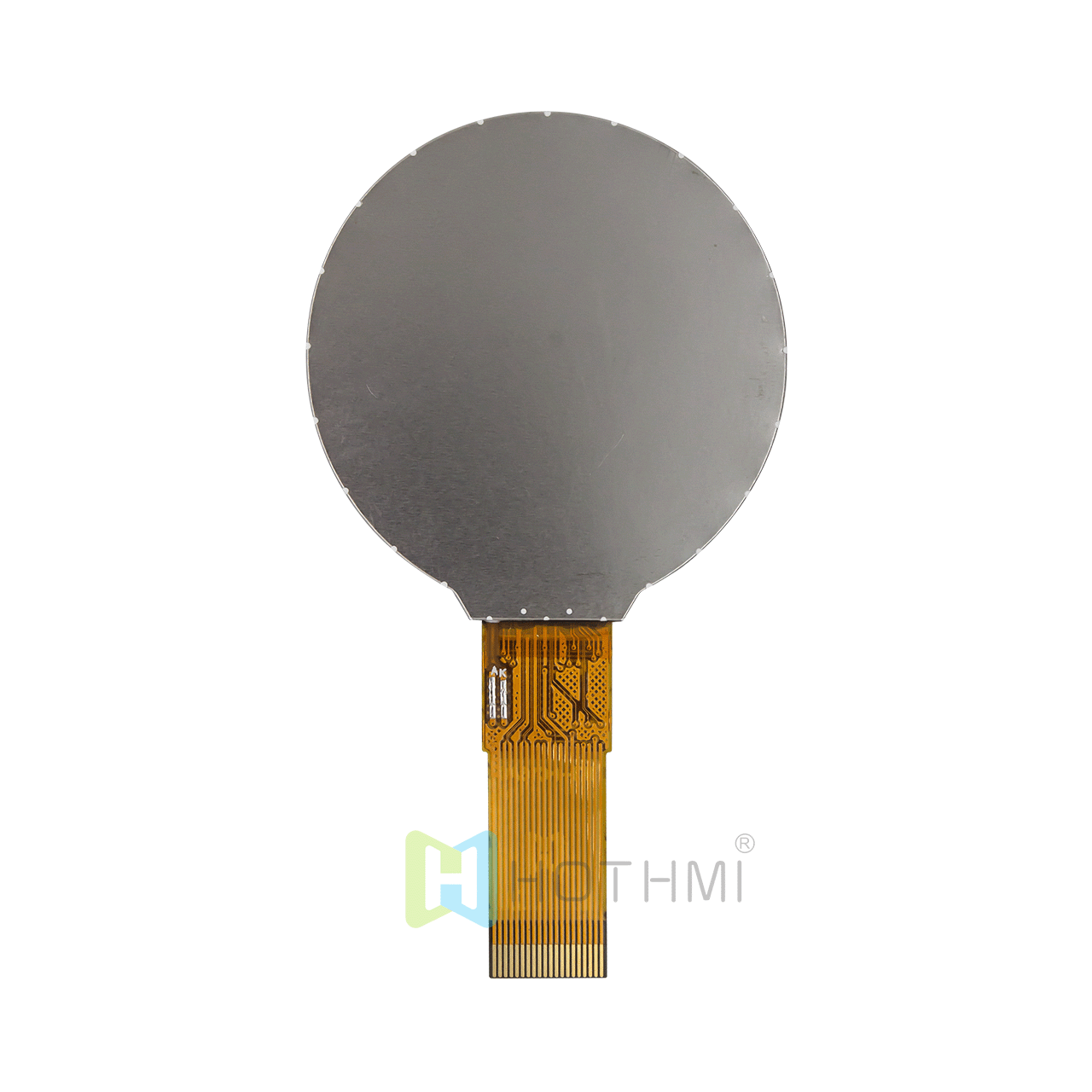

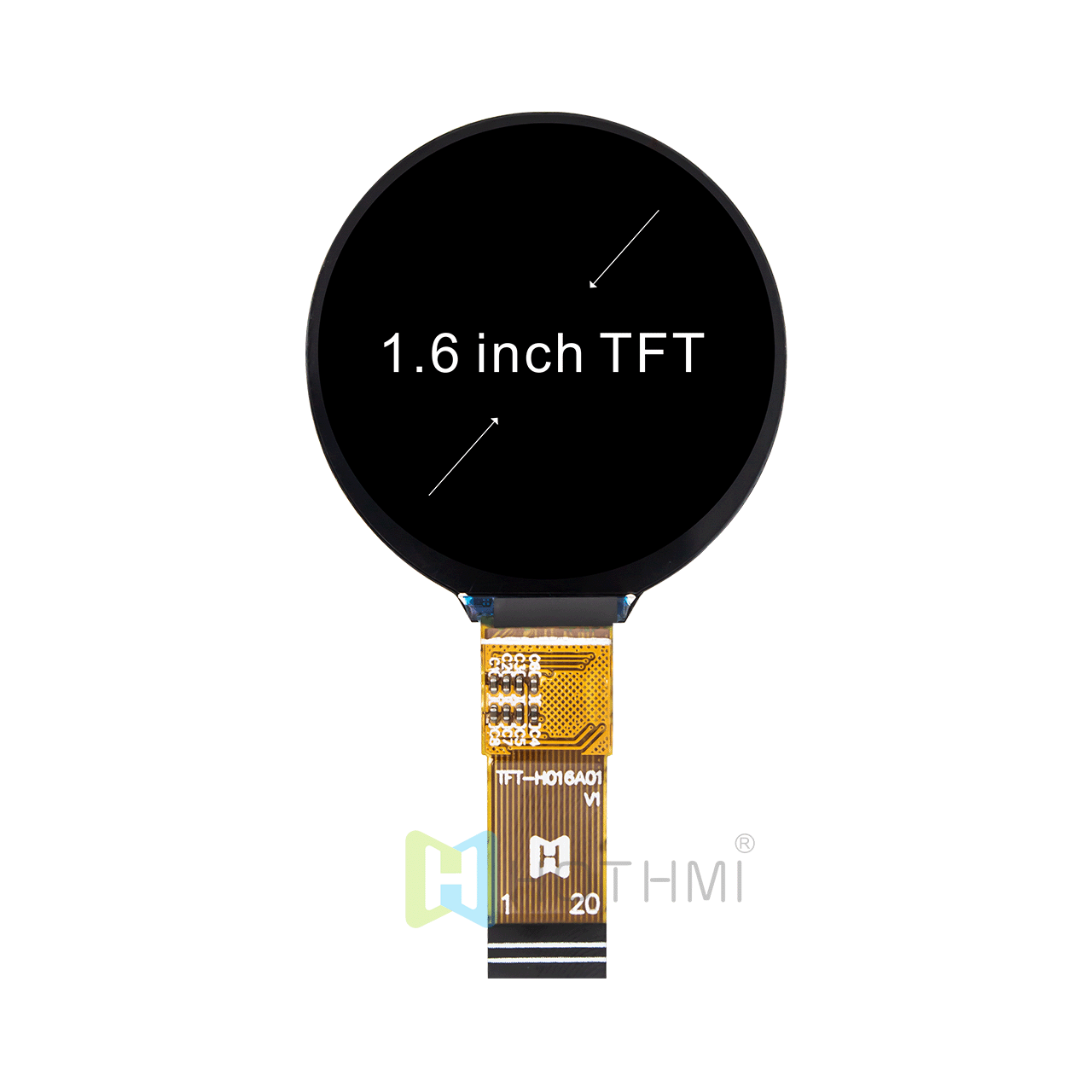

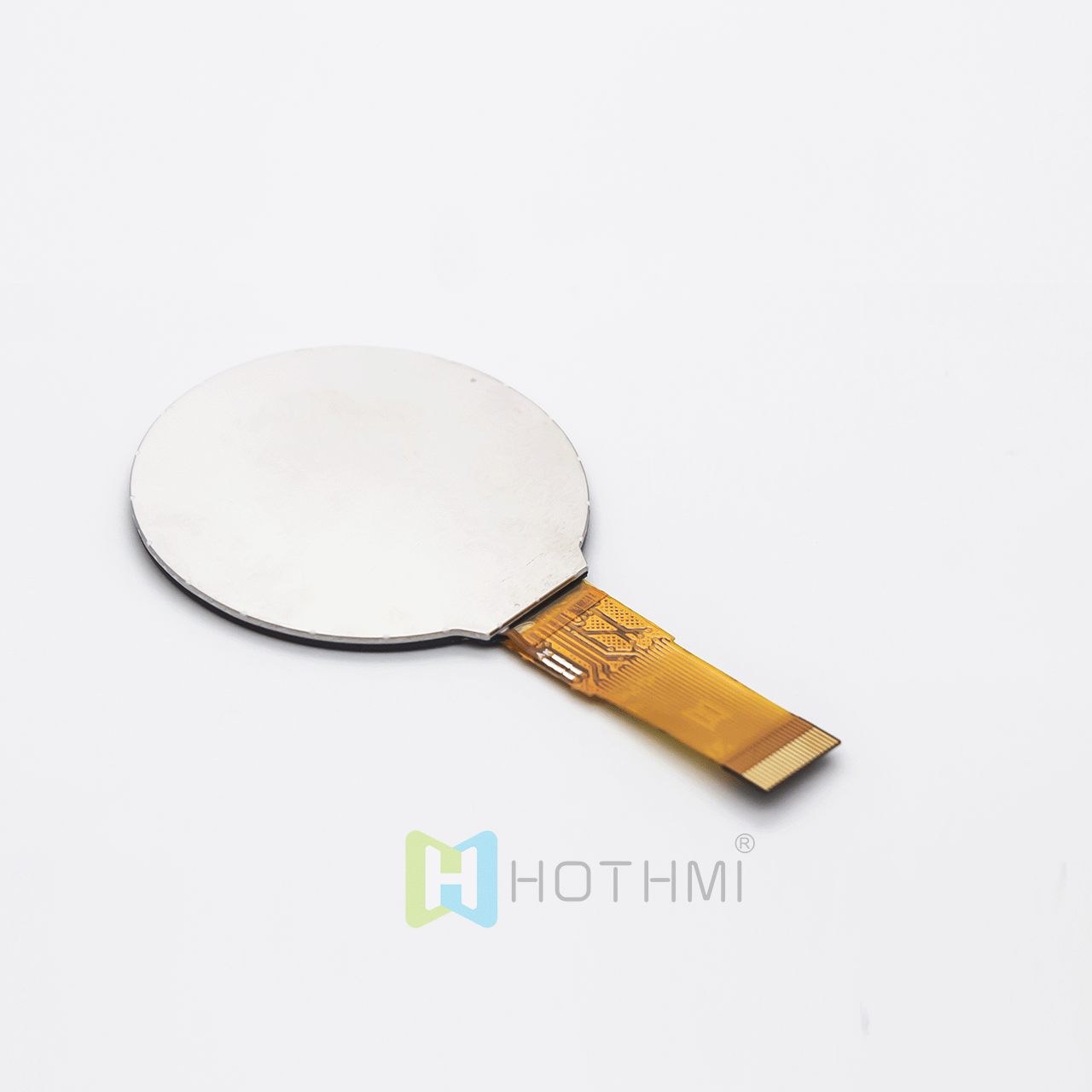

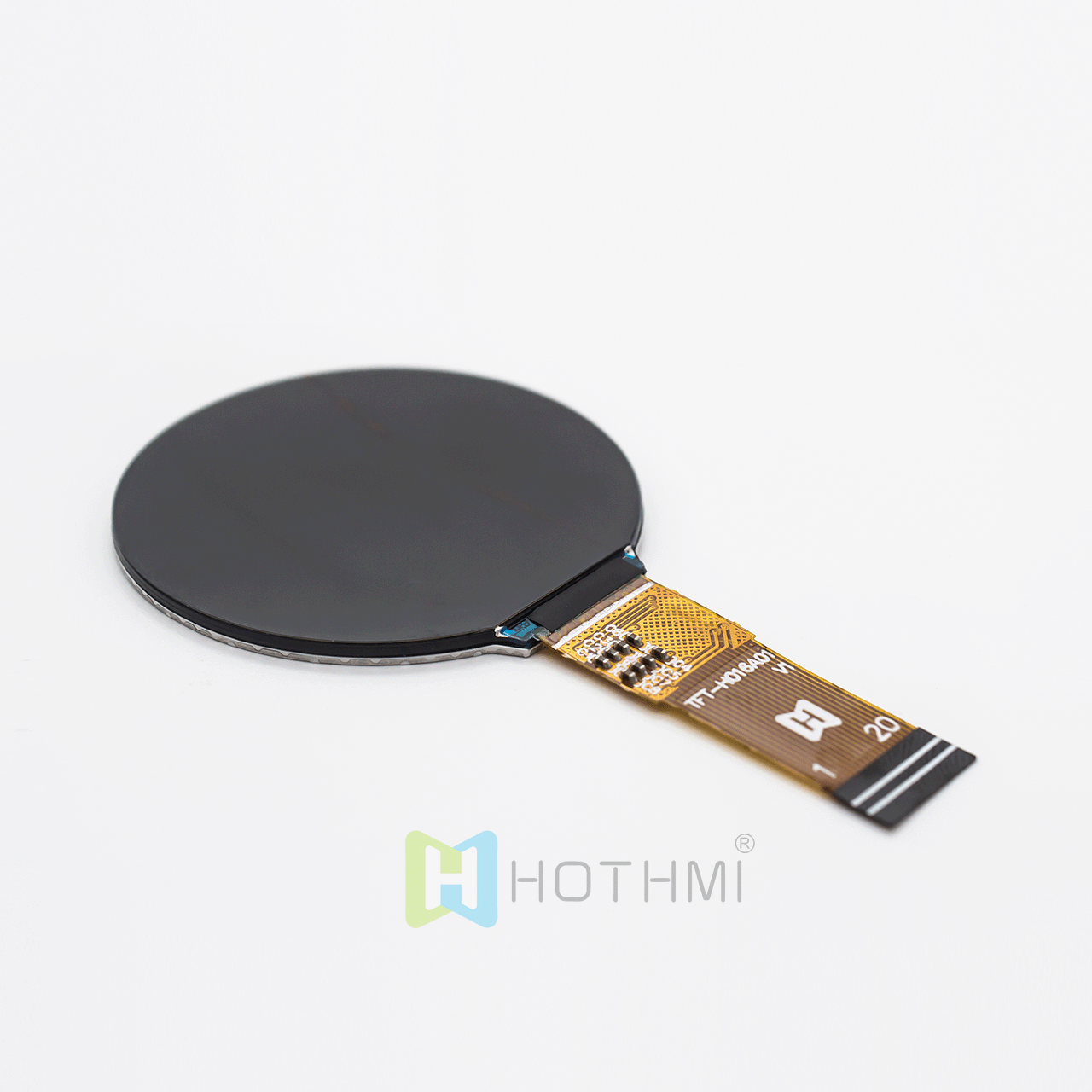

▶ Type: 1.6 inch round TFT LCD display
▶ Display pixel: 400x400 dot matrix
▶ External dimensions (mm): 42.14x44.34x1.95
▶ Display inches: 1.6"
▶ Effective size (mm): 39.84x39.84
▶ Application: C8051/Arduino/STM32
▶ Perspective: IPS (U80/D80/L80/R80)
▶ Brightness: 450cd/m2
▶ Pin: FPC-20PIN
▶ Interface: MIPI
▶ Special reminder: Anti static ESD 8KV
▶ Working temperature: -30~80 ℃
▶ Power supply voltage: 3.3V
▶ Driver chip: ST7797

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes

1.6 inch round TFT LCD display/MIPI interface/400x400 IPS full viewing angle/wide temperature/optional touch screen
TFT-H016A01ZGIST4N20 is a 1.6 inch round TFT LCD display with a resolution of 400x400, built-in ST7797 controller, optional touch screen, high image quality, IPS wide viewing angle, MIPI/QSPI interface support, 65K/262K true color, FPC connection (optional connector), 1.8V~3.3 voltage, and vertical display support. All materials comply with environmental requirements and RoHS standards. This module is widely used in various instruments, intelligent devices, etc., and is suitable for single-chip development platforms such as 8051 PIC, AVR, ARDUINO, ARM, Raspberry Pi, etc.

parameter	Parameter Description	unit
TFT LCD	Standard TFT
Diagonal inches	1.6 "	Inch
resolution	400 x RGB x 400 (TFT)	dots
Dimensions	42.14x44.34x1.95	mm
Size (AA) area	39.84x39.84	mm
LCD specifications	TFT, White, transparent
Display perspective	80/80/80/80 (IPS)
aspect ratio	1: 1
Backlight specifications	LED, white
TFT driver chip	ST7797
Touch glass type	nothing
surface	Anti-Glare
Display brightness	four hundred and fifty	cd/㎡
Operating temperature	-30~+80	°C
Storage temperature	-30~+80	°C
