2-inch LCD graphic display module | 128x64 dot matrix graphic LCD module | 12864 graphic LCD module | STN gray film yellow-green backlight

2-inch LCD graphic display module | 128x64 dot matrix graphic LCD module | 12864 graphic LCD module | STN gray film yellow-green backlight | adruino

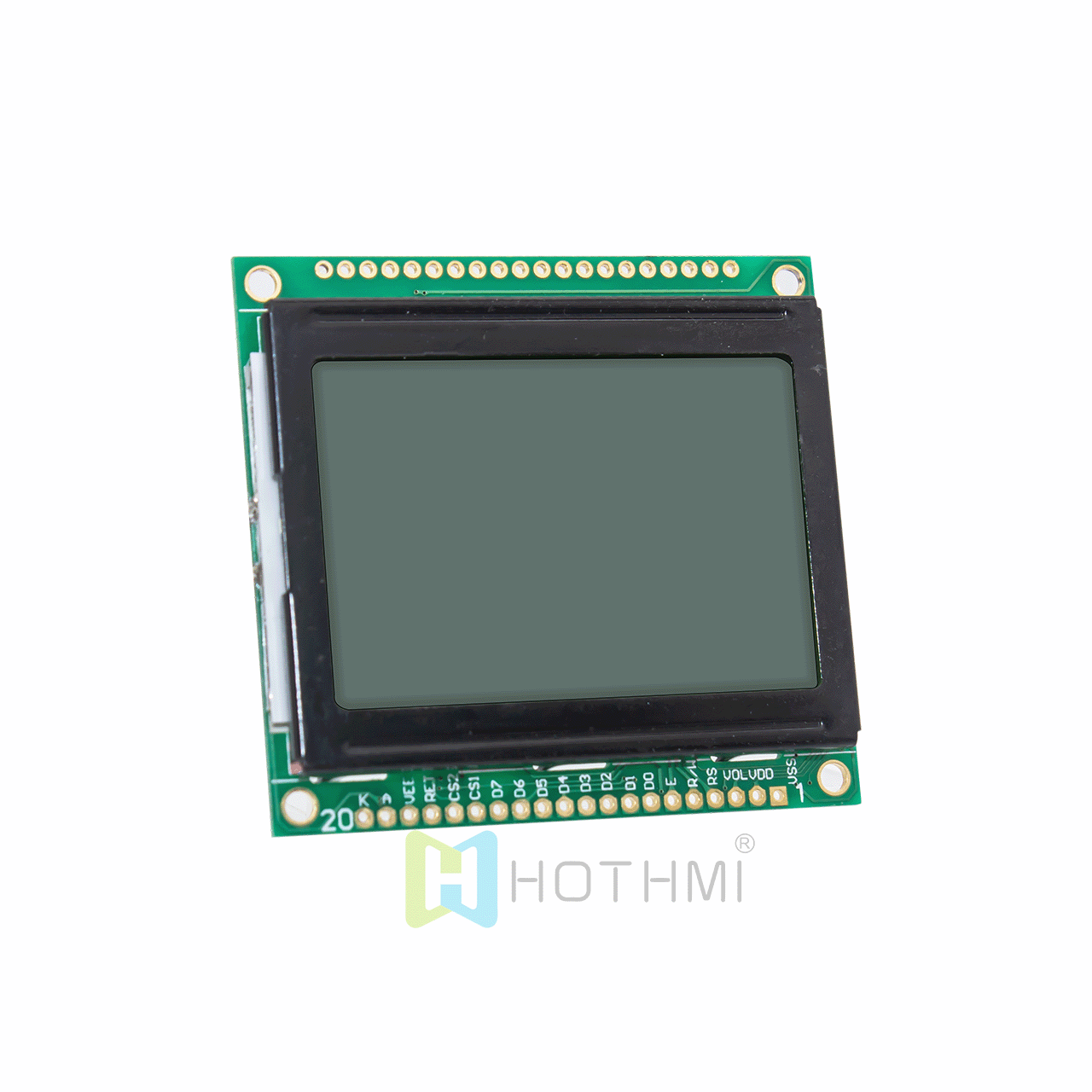

▶ Model: HTM12864F-11Y-A5P

▶ Type: LCM graphic dot matrix
▶ Display pixels: 128x64

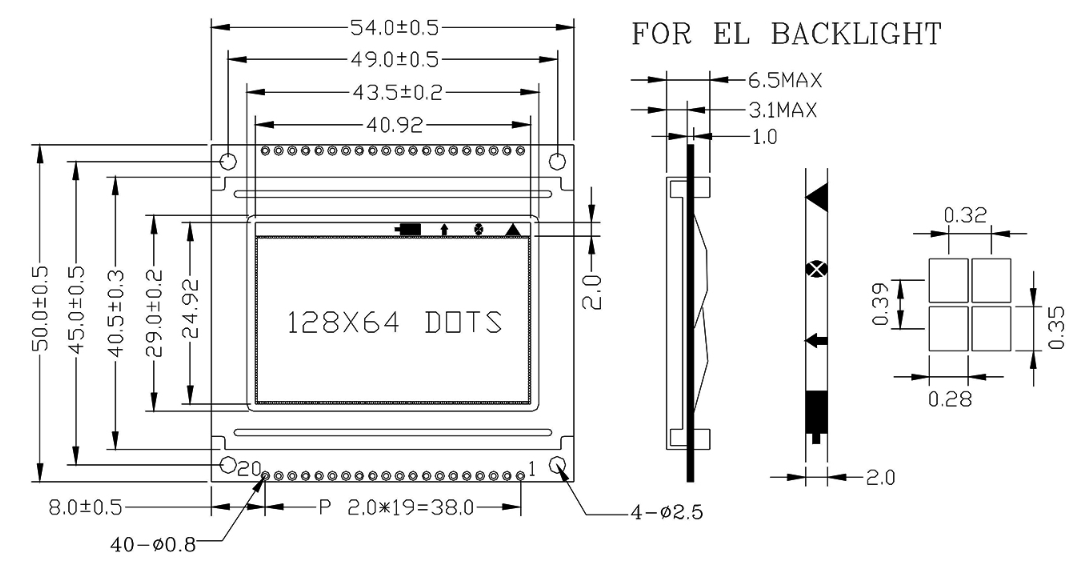

▶ Overall dimensions (mm): 54X50X6.5
▶ VA size (mm): 43.5x29
▶ AA size (mm): 40.92x24.92
▶ Dot pitch (mm): 0.32x0.39
▶ Viewing angle: 6H
▶ Backlight/brightness: white
▶ Pin: 20PIN
▶ Interface mode: MCU
▶ Working temperature: -20℃~70℃
▶ Supply voltage: 3.3v
▶ Driver chip: KS0107/KS0108/AIP31108/AIP31107

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes
Download Related Materials

2-inch LCD graphic display module | 128x64 dot matrix graphic LCD module | 12864 graphic LCD module | STN gray film yellow-green backlight | adruino

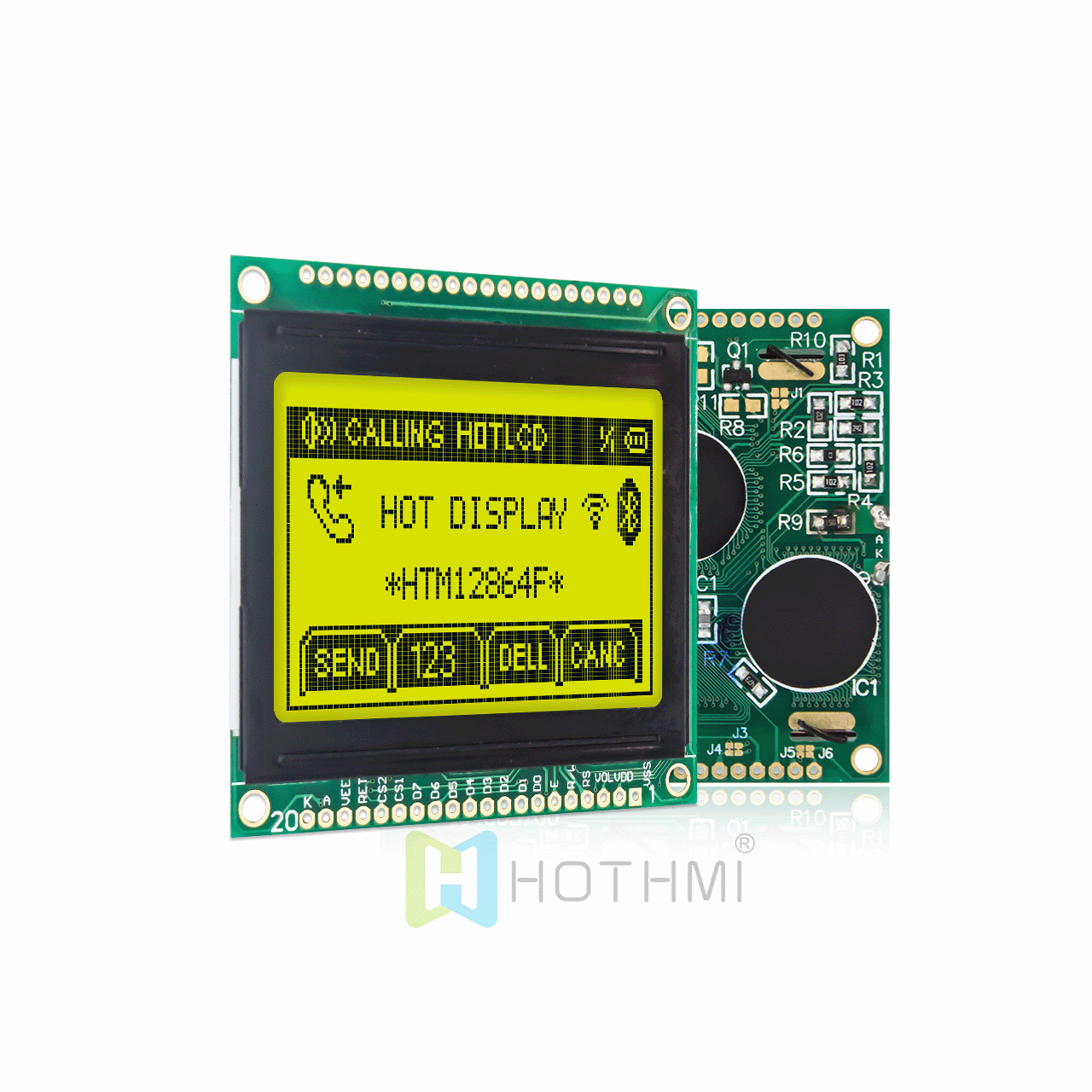

HTM12864F-11Y-A5P is a monochrome LCD display module with 128*64 graphic dot matrix, built-in SK108 or AIP31108 controller (or compatible IC), 6800 8-bit parallel interface, 5V voltage, optional negative voltage 3V Driver, this model has a built-in external oscillator 2KHz. Multi-color LED backlight options, LCD with STN positive display, negative display and FSTN type LCD, operating temperature is minus 20 degrees to +70 degrees, all materials comply with environmental requirements RoHS standards. This graphics module is widely used in various industrial instruments and consumer products, such as: measuring instruments, fuel dispenser equipment, vending machines, coffee machines, audio, POS systems, or home appliances, communication equipment, automation equipment, etc. .

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

project	Parameter Description	Unit
name	HTM12864F-11Y-A5P
Number of dots	128 × 64	dots
Module size	54.0 x 50.0 x 6.5 (MAX)	mm
Visual (VA) area	43.5（W） × 29（H）	mm
Valid (AA) area	40.92 （W） × 24.92（H）	mm
Point (pixel) spacing	0.32 × 0.32mm	mm
IC	KS107+KS108 or AIP31108 driver chip
voltage	5.0V	V
back light	Yellow/green
display mode	STN gray
Drive mode (Duty)	1/64 duty cycle
type	Graphic LCD
characteristic	Transflective Polarizer
