Character LCD Module STN+2X20 Yellow/Green Display with Yellow/Green Backlight Arduino display

Character LCD Module STN+2X20 Yellow/Green Display with Yellow/Green Backlight Arduino display

▶ Model: HTM2002B-01Y-A5P

▶ Type: Character LCD Module
▶ Display content: 20x2 characters
▶ Overall dimensions (mm): 180.0x40.0x11.0
▶ VA size (mm): 149.0x23.0
▶ AA size (mm): 142.8x20.64
▶ Point spacing mm: 1.22x1.22
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight type: yellow green
▶ Number of PINs: 16PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -10~60℃
▶ Supply voltage: 5.0V
▶ Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

Character LCD Module STN+2X20 Yellow/Green Display with Yellow/Green Backlight Arduino display
Character LCD Module This 20-character, 2-line shows dark pixels on a bright yellow/green background. This transflective LCD Display is visible with natural, ambient light or in low-light environments using its backlight. It operates in a wide temperature range of -10 to 60 degrees Celsius with a power supply of 5V. This amber background display has an optimal view of 6:00 and comes with a built-in ST7066U controller.
This HTM2002C display is compatible with Arduino/C8051 and other popular development boards.

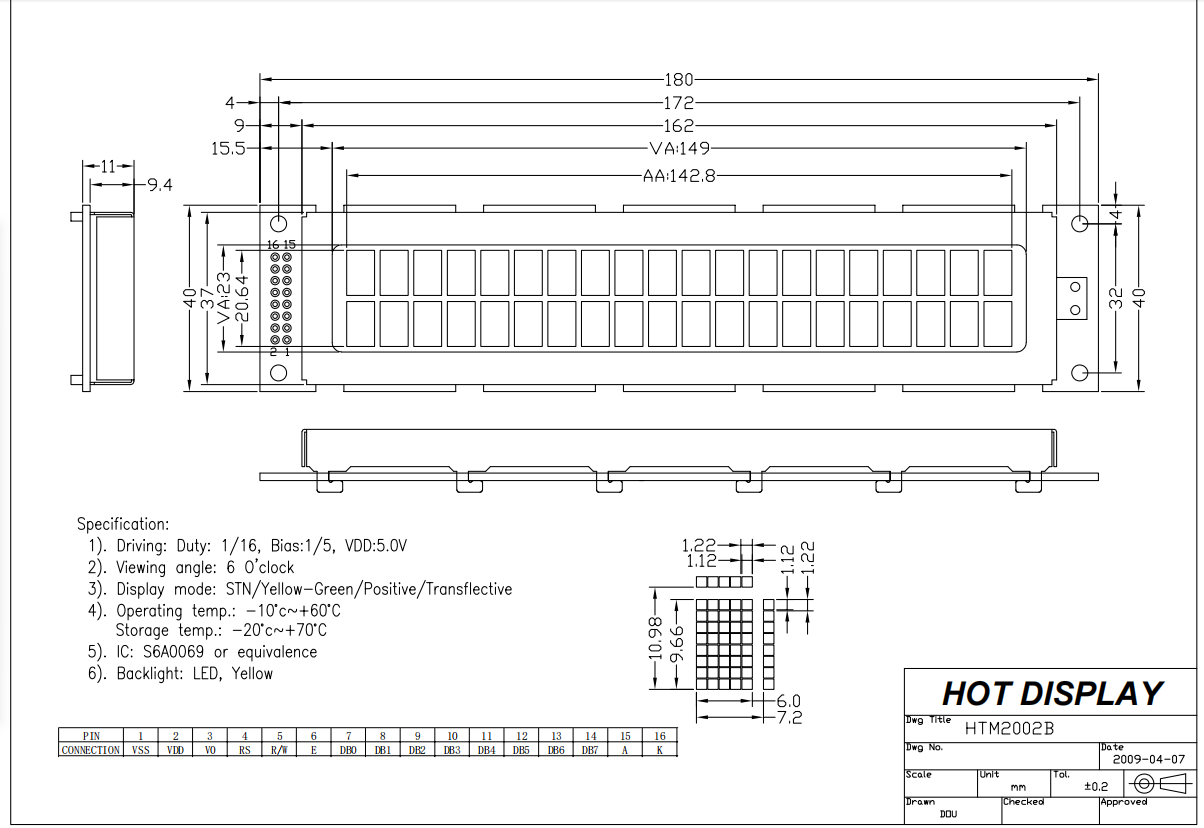

item	Specification content	unit
name	HTM2002B-01Y-A5P
Number of dots	20 x 2	dots
Module size	180.0（W） × 40.0（H） × 11.0 （T）	mm
Visual (VA) area	149.0x23.0	mm
AA size	142.8（W） × 20.64（H）	mm
Point (pixel) spacing	1.22（W） × 1.22（H）mm	mm
IC	ST7066U driver
Application voltage	5.00V	V
back light	Yellow green
model	STN+
Drive mode (Duty)	1/16 duty cycle
type	Character LCD
Polarizer type	Transflective polarizer
