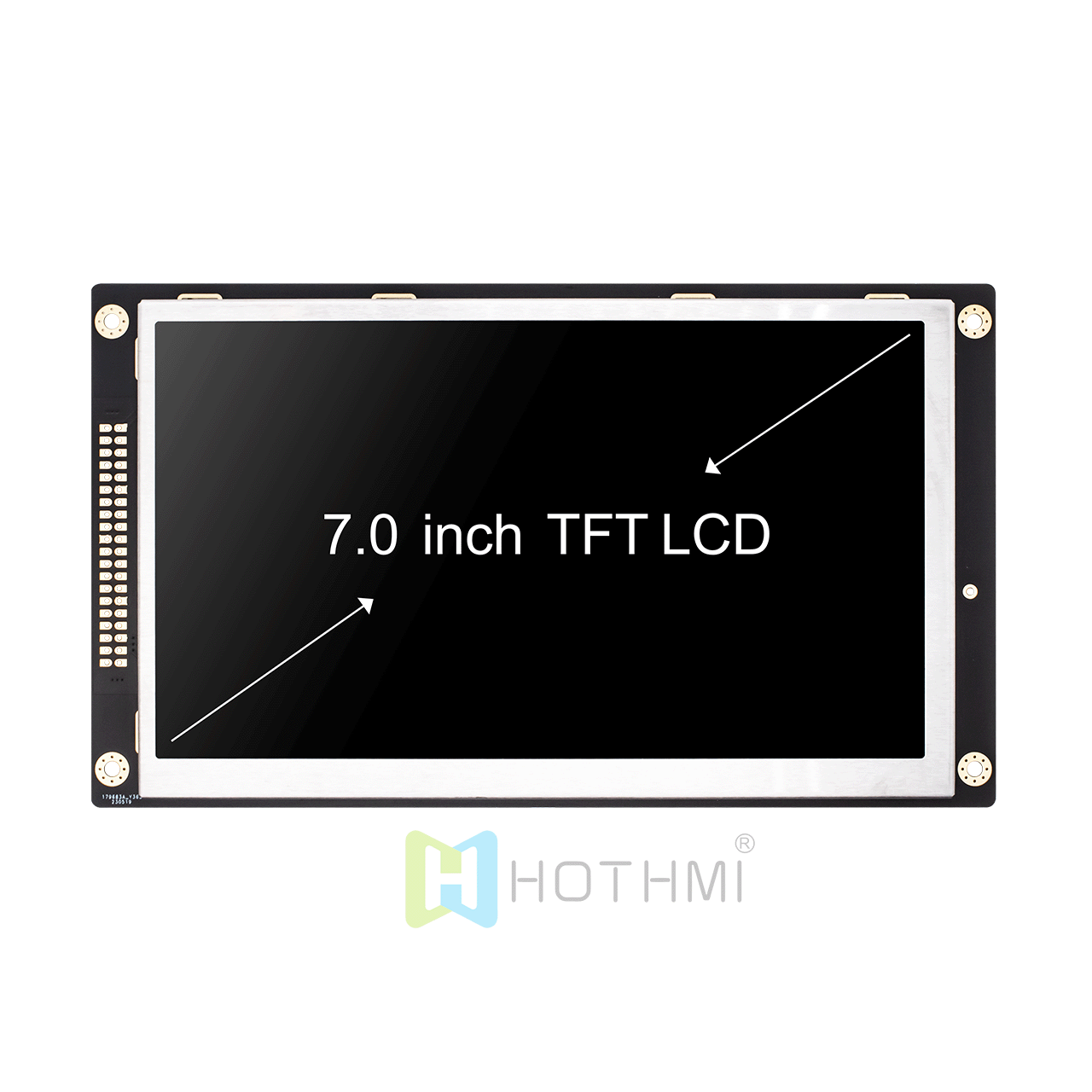

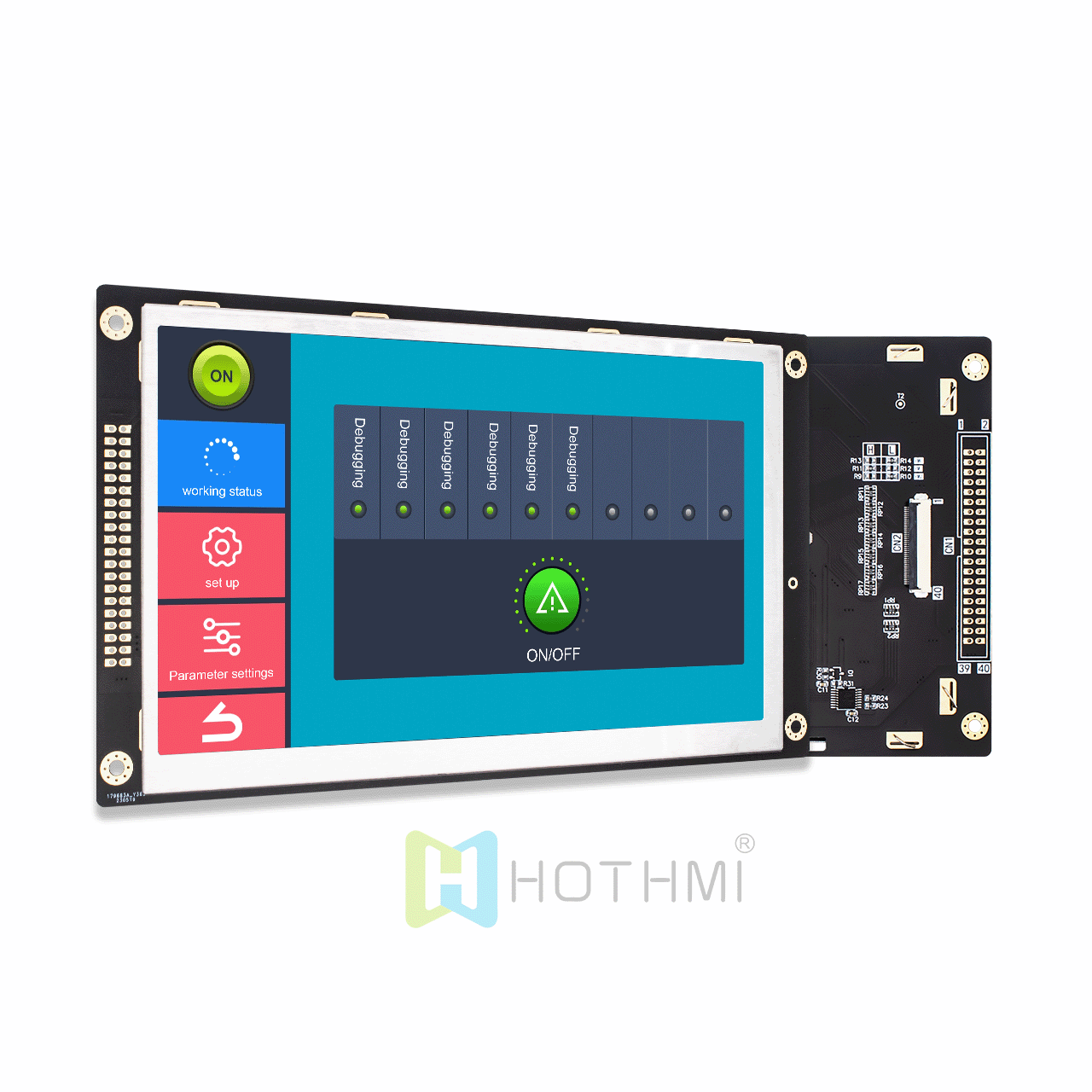

  • 7-inch TFT LCD display module//1024x600 resolution/wide temperature/IPS full viewing angle/sunlight viewable/optional capacitive touch/STM32/RK

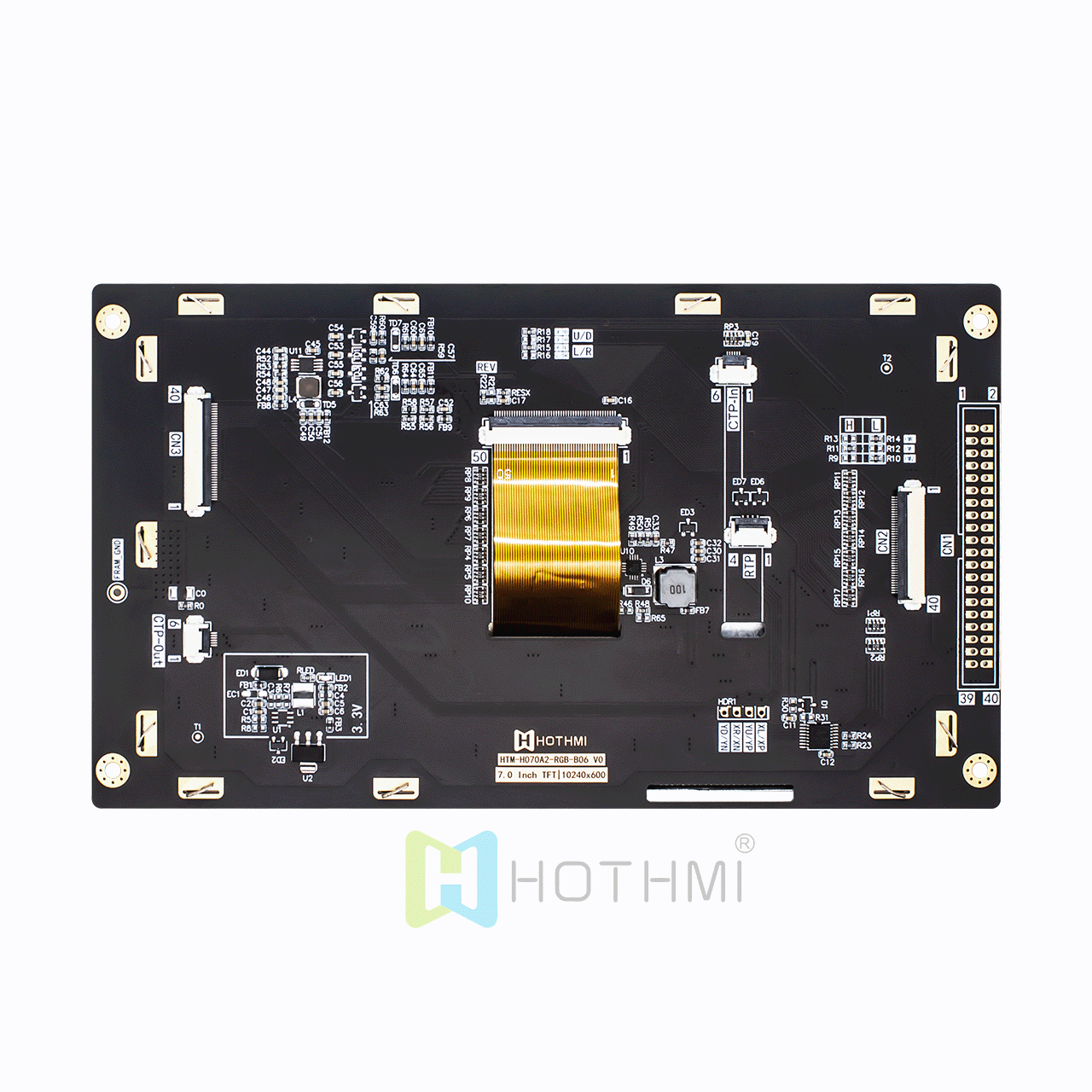

    This module supports up to 24-bit true color display. This module does not have a controller and can be used with MCUs or CPUs that have their own display controllers, so when used, RAM chips can be used to drive the motherboard, such as ST's STM32F4x9, STM32F7x6 and STM32H7x4. The module interface is compatible with the Zhengdian atomic debugging motherboard. The module comes with a T-CON circuit and a backlight boost circuit. It can be driven by a single power supply of 5V. It can be equipped with a resistive or capacitive touch screen. All materials comply with environmental requirements and RoHS standards. This module It is widely used in various instruments, smart devices, etc., and is suitable for a variety of microcontroller development platforms such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi.

    Customized Ribbon Cables/Flexible Printed Circuits (FPC):

    Tailor Your Cables To Perfection By Adjusting Their Length, Position, And Pin Arrangements, Or Adding Other Connectors. Obtain A Precisely Designed Cable Solution To Streamline And Enhance The Safety Of Your Connections

    Touchscreen Add-On Components:

    Enhance Your User Experience With Capacitive Or Resistive Touchscreen Technology. We Can Adjust The Glass Thickness Or Shape Of The Touchscreen To Ensure A Perfect Fit For Your Design.

    Interface Customization:

    Choose From Various Interface Options Or Consult With Our Experts To Select The Options That Best Suit Your Project. We Can Integrate HI,USB, SPI, VGA, And Other Interfaces Into Your Display To Achieve Your Design Goals.

    Cover Glass:

    Equip Your Display With Custom-Cut Cover Glass To Improve Durability. Choose From Various Thicknesses Of Cover Glass And Undergo Optical Bonding To Prevent Moisture And Debris.

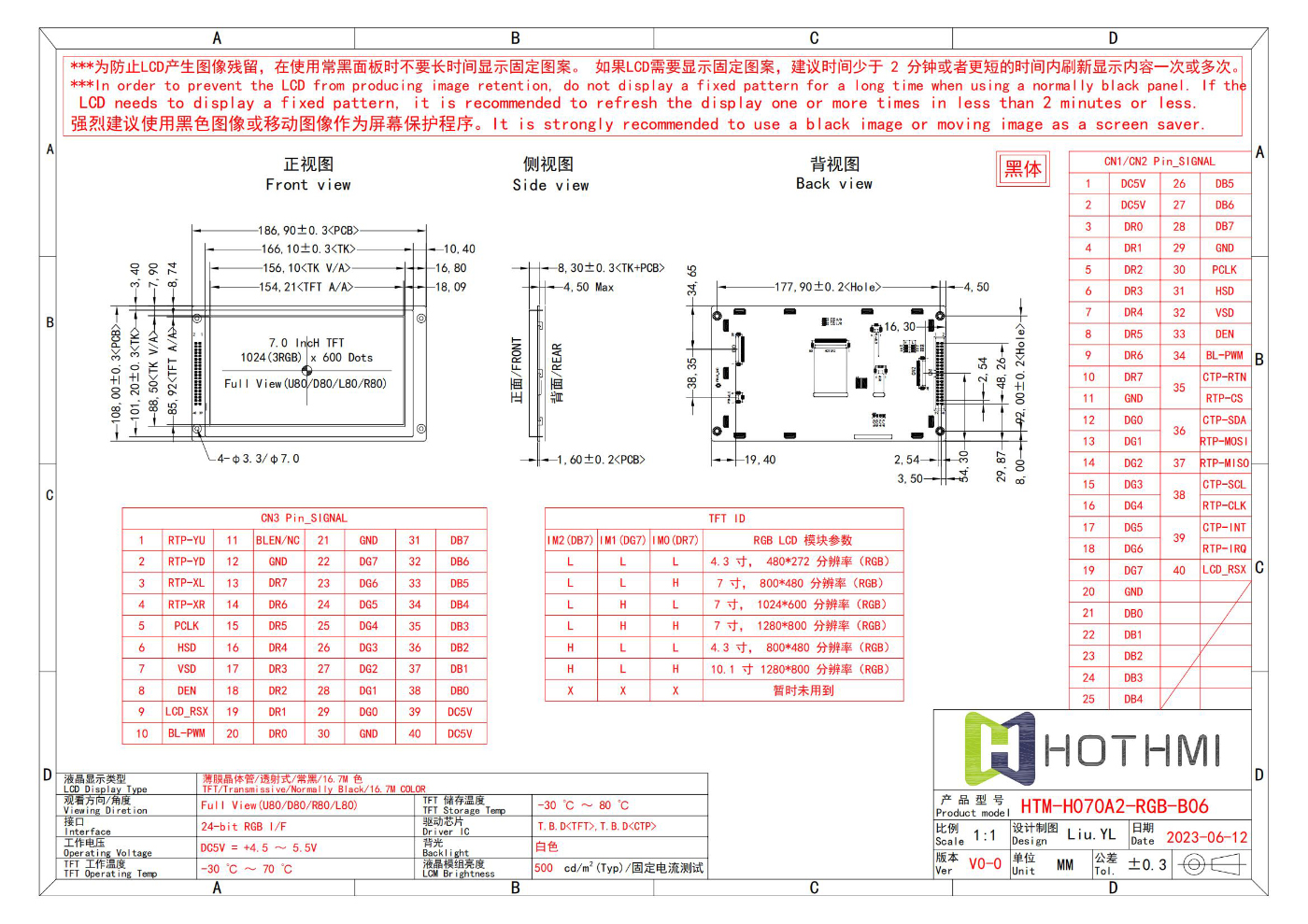

  • HTM-H070A2-RGB-B06_00.jpg

  • project

    Parameter Description

    unit

    TFT series

    TFT strip module


    Diagonal size

    7.0

    Inch

    Resolution

    1024 × RGB × 600 (TFT)

    dots

    Dimensions

    186.90x108x8.3

    mm

    Effective area (AA)

    154.21x85.92

    mm

    LCD type

    TFT horizontal screen


    Display perspective

    80/80/80/80 (IPS)


    Aspect ratio

    1.1:2


    Backlight type

    LED, white


    TFT driver IC

    T.B.D.


    Touch panel

    none


    Surface

    Glare


    Brightness

    700

    cd/

    Operating temperature

    -30~+70

    °C

    Storage temperature

    -30~+80

    °C
