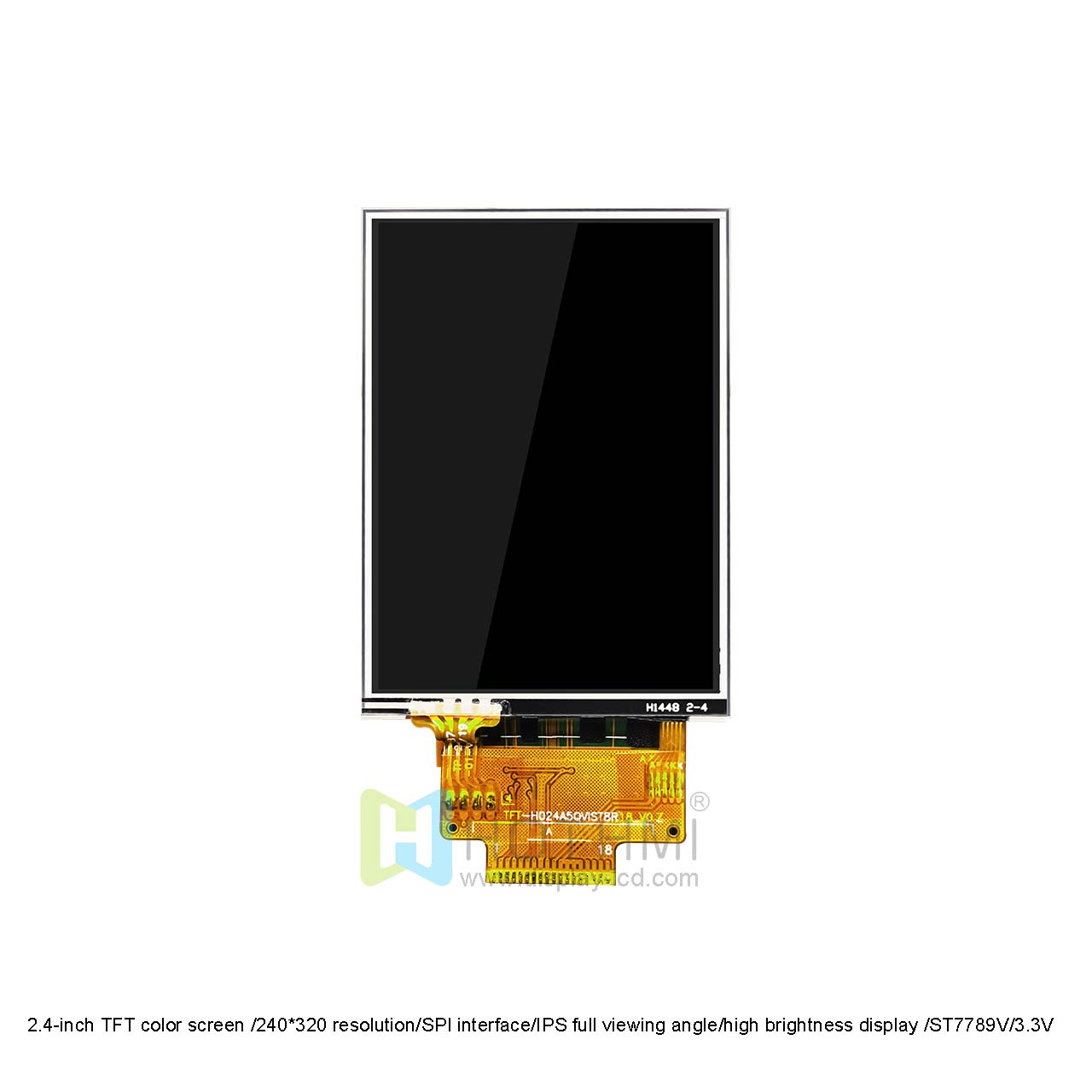

2.4-inch TFT color screen /240*320 resolution/SPI interface/IPS full viewing angle/high brightness display /ST7789V/3.3V /2.4-inch TFT resistive touch Display/Arduino/STM32/C8051

2.4-inch TFT color screen /240*320 resolution/SPI interface/IPS full viewing angle/high brightness display /ST7789V/3.3V /2.4-inch TFT resistive touch Display/Arduino/STM32/C8051

▶ Model: TFT-H024A5QVIST8R18

▶ Type: TFT wide temperature display

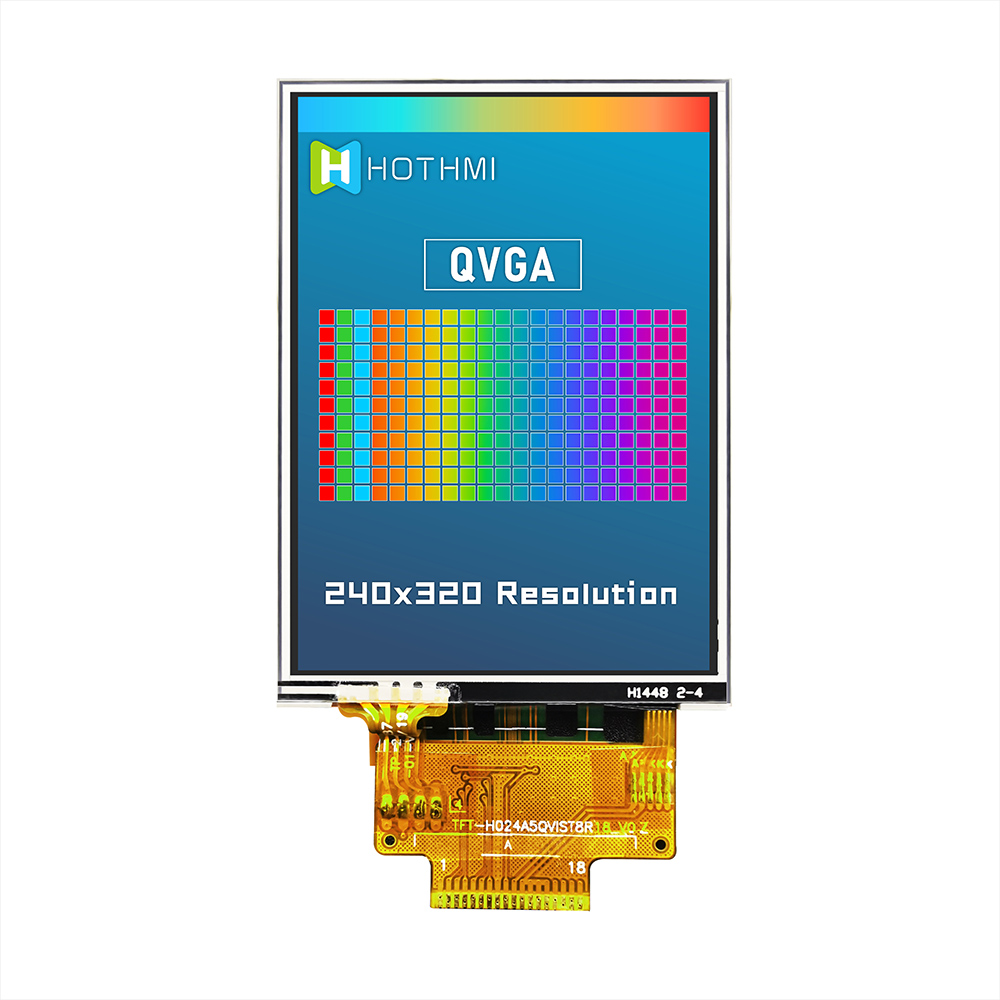

▶ Display pixels: 240x320 dot matrix

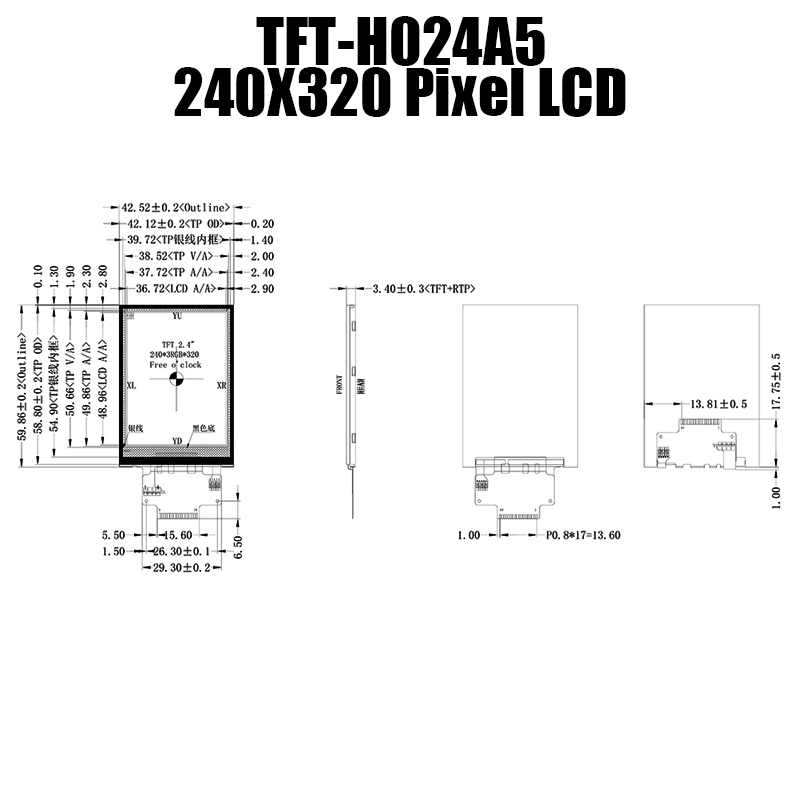

▶ Dimensions (mm): 42.52x59.86x3.4

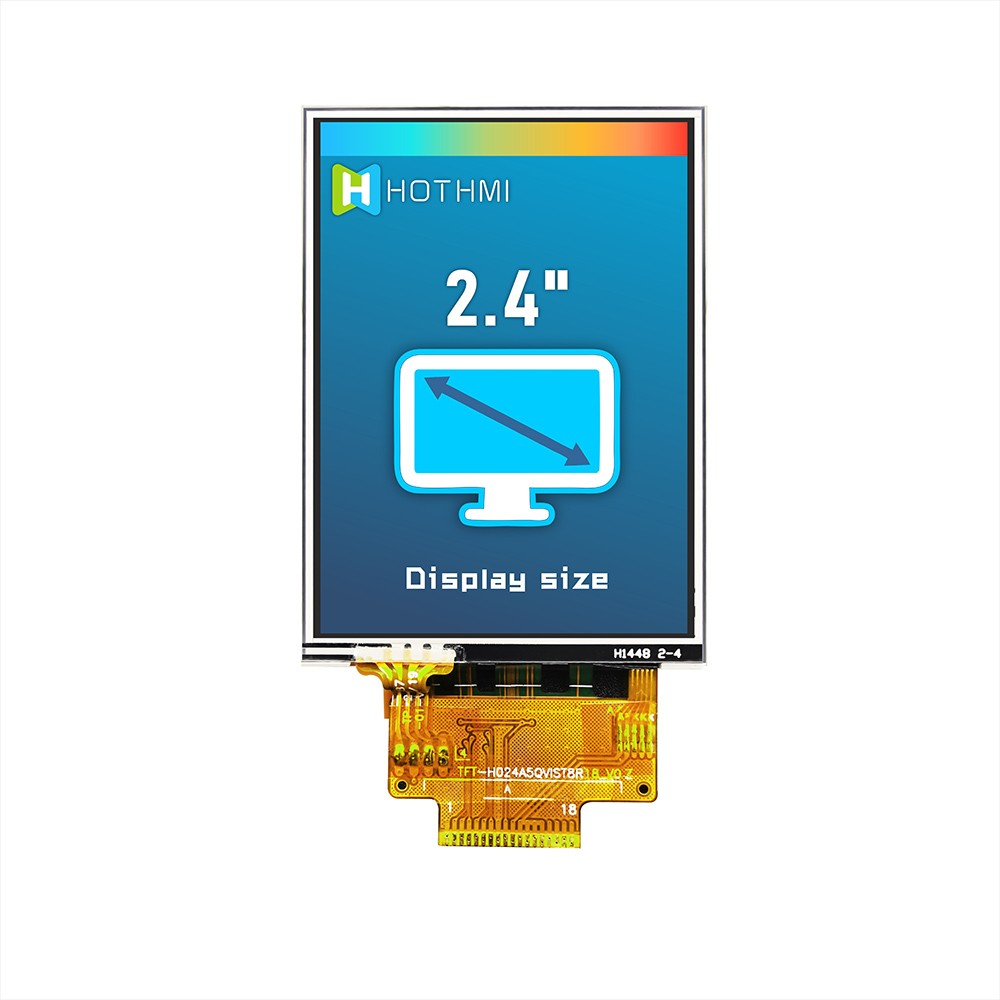

▶ Display inches: 2.4"
▶ Effective size (mm): 36.72x48.96
▶ Application: handheld devices, vehicle-mounted equipment

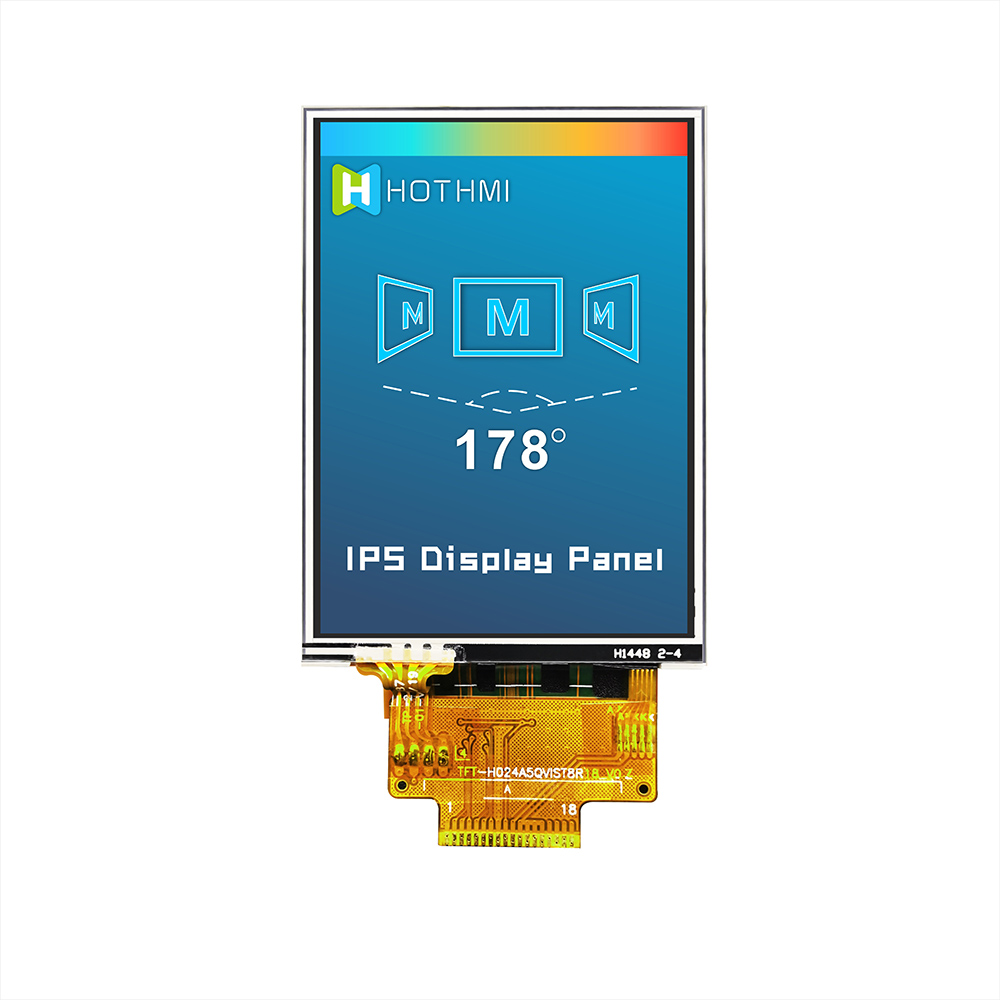

▶ Viewing angle: IPS (U80/D80/L80/R80)
▶ Brightness: 800cd/m2
▶ Pin: FPC-18PIN

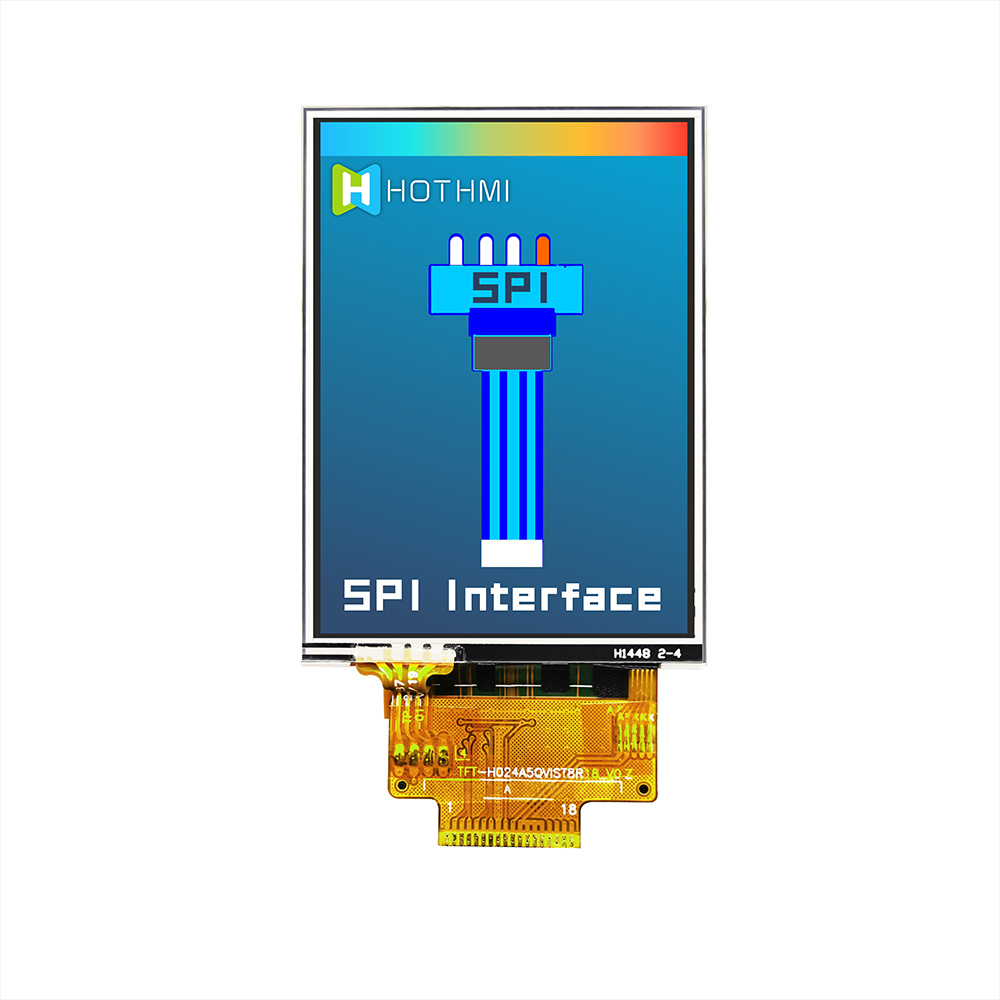

▶ Interface: SPI-4L
▶ Special reminder: Anti-static ESD 8KV

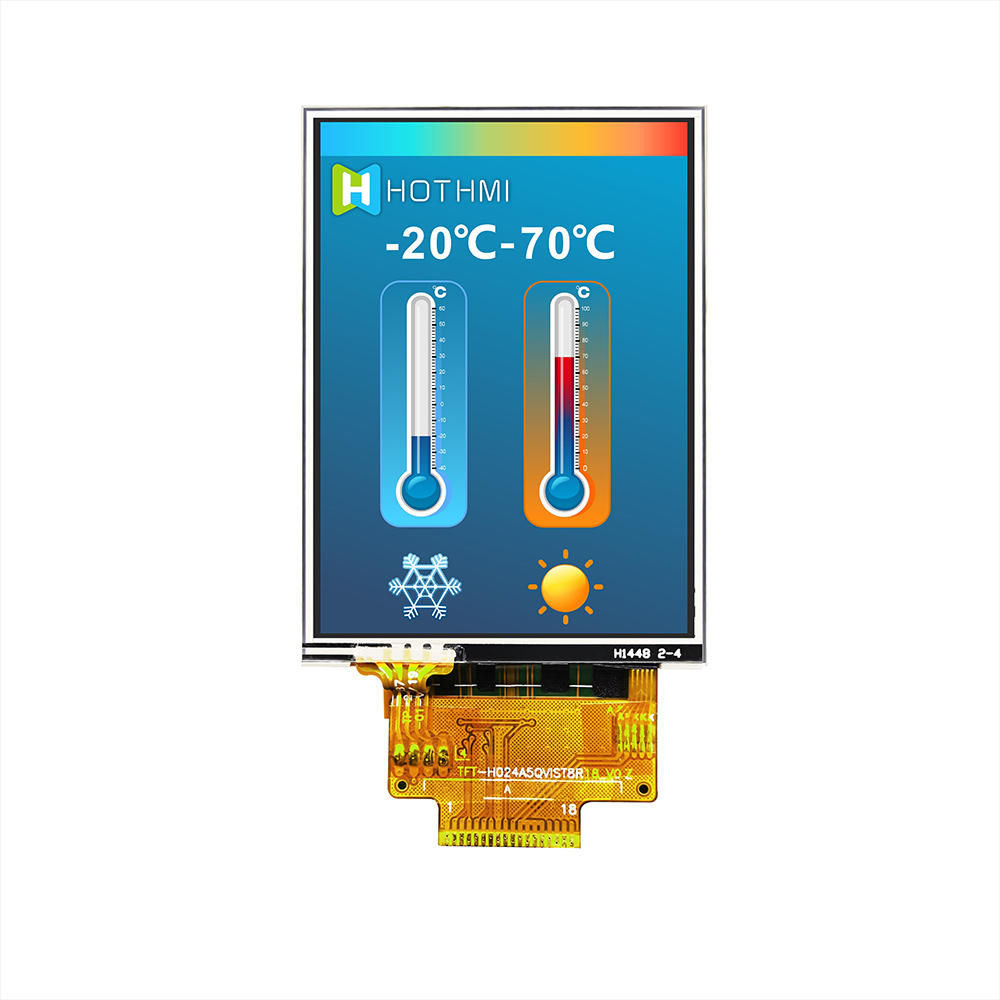

▶ Working temperature: -30~80℃
▶ Power supply voltage: 3.3V

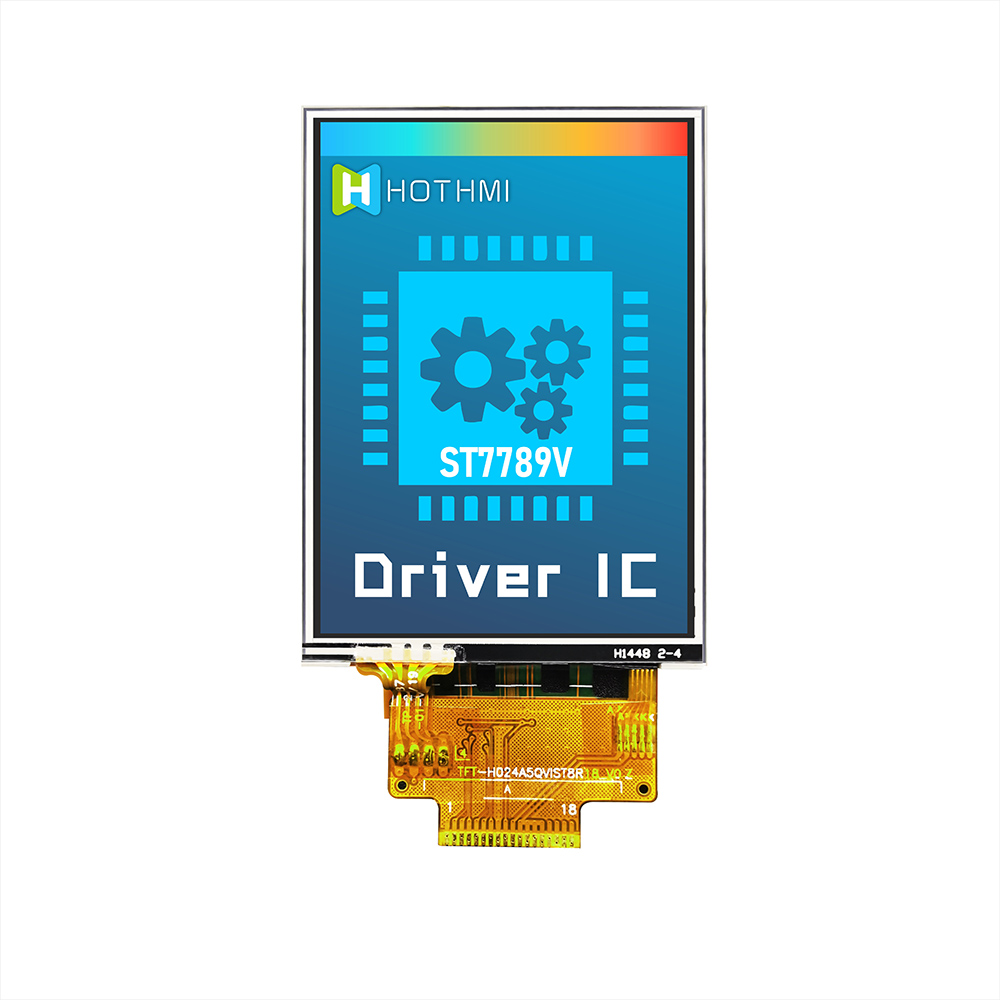

▶ Driver chip: ST7789V

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes

2.4-inch TFT color screen /240*320 resolution/SPI interface/IPS full viewing angle/high brightness display /ST7789V/3.3V /2.4-inch TFT resistive touch Display/Arduino/STM32/C8051

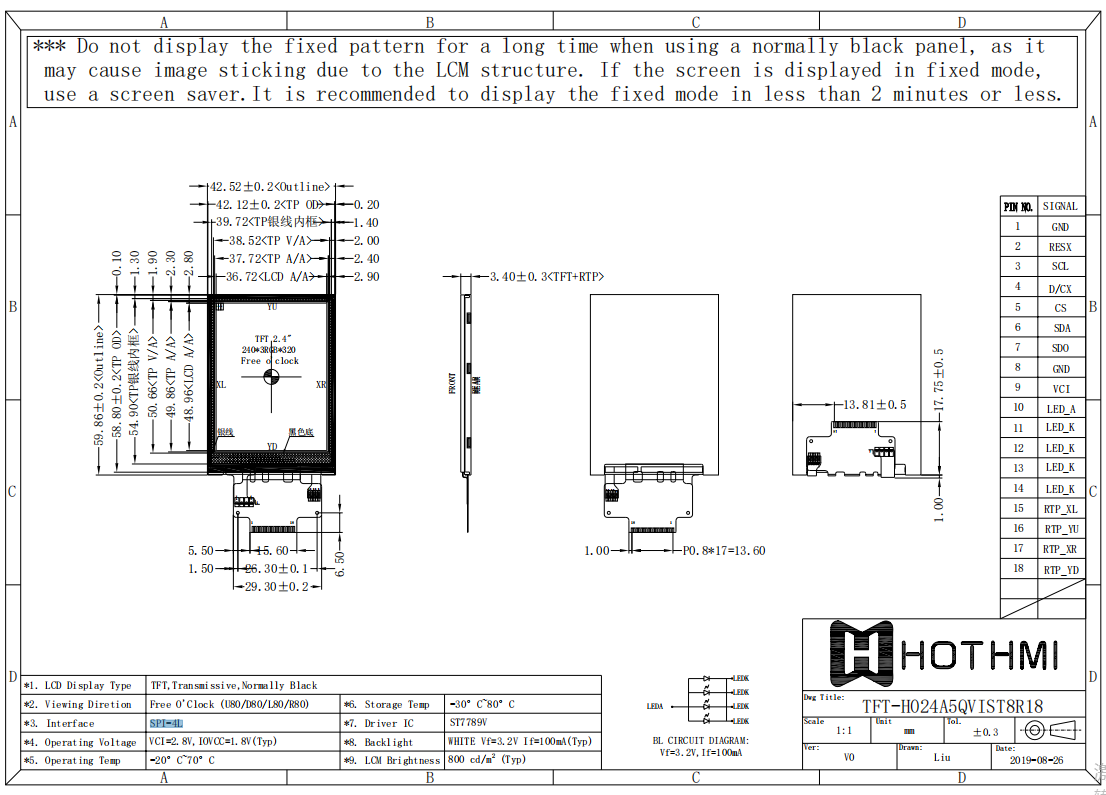

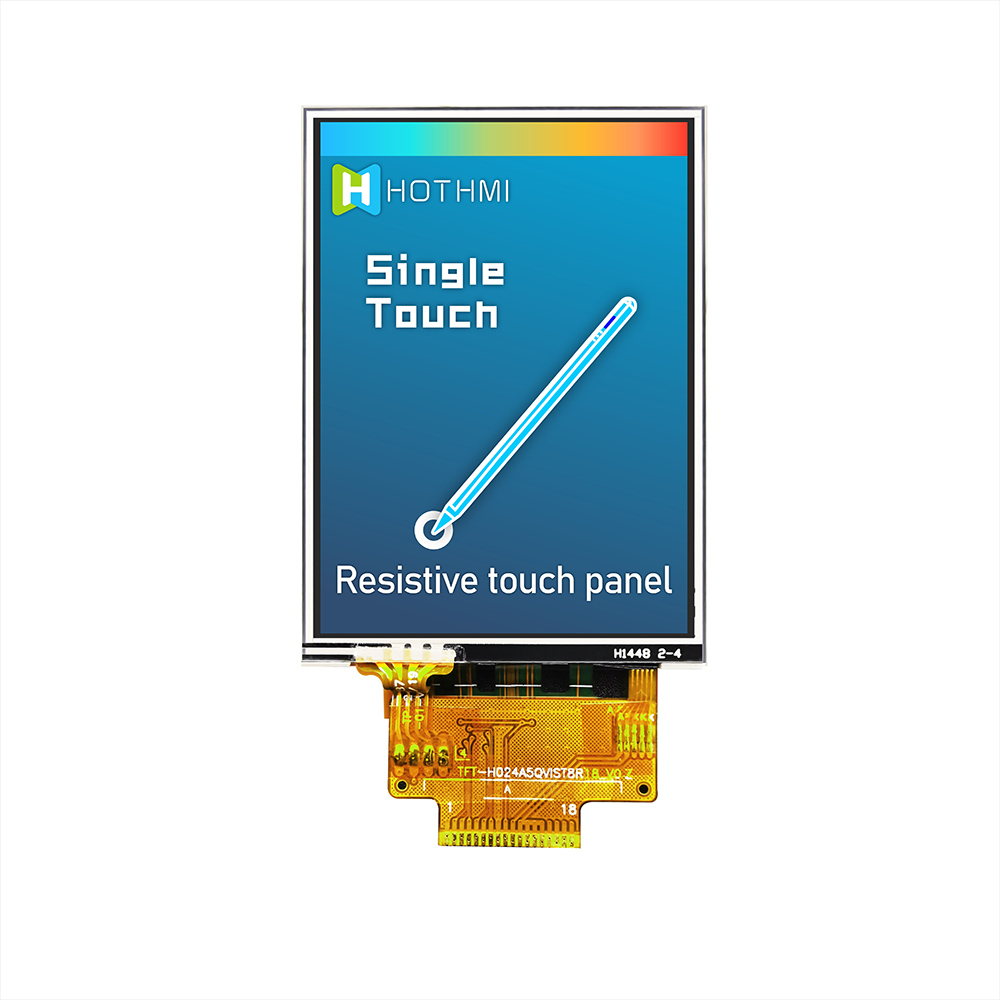

TFT-H024A5QVIST8R18 is a 2.4-inch wide temperature IPS TFT-LCD display with a projected resistive touch screen and a resolution of 240x320 pixels. The module has a built-in ST7789V driver IC and supports the SPI interface. TFT-H024A5QVIST8R18 uses an IPS panel, which has the advantage of a wider viewing angle, left: 80/right: 80/up: 80/down: 80 degrees (typical), contrast ratio 800:1 (typical), brightness 800 nits (typical) value), glare panel, 16:9 aspect ratio. The H024A5 model has a projected resistive touch panel (PCAP), and the supply voltage (VCC) of the TFT-H024A5QVTST8R18 is 3.0V to 3.6V, with a typical value of 3.3V. It can operate at temperatures from -30°C to +80°C and storage temperatures from -30°C to +80°C.

PARAMETER	Specifications	UNIT
TFT series	TFT-H024A5QVIST8R18
Diagonal size	2.4”	Inch
Resolution	240X320	Dot
Dimensions	42.52x59.86x3.4	mm
Active area (AA)	36.72x48.96	mm
LCD type	TFT wide temperature and full viewing angle display	mm
Display viewing angle	IPS
Aspect ratio	3:4
Backlight type	LED white
TFT driver IC	ST7789V
Brightness	800	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
