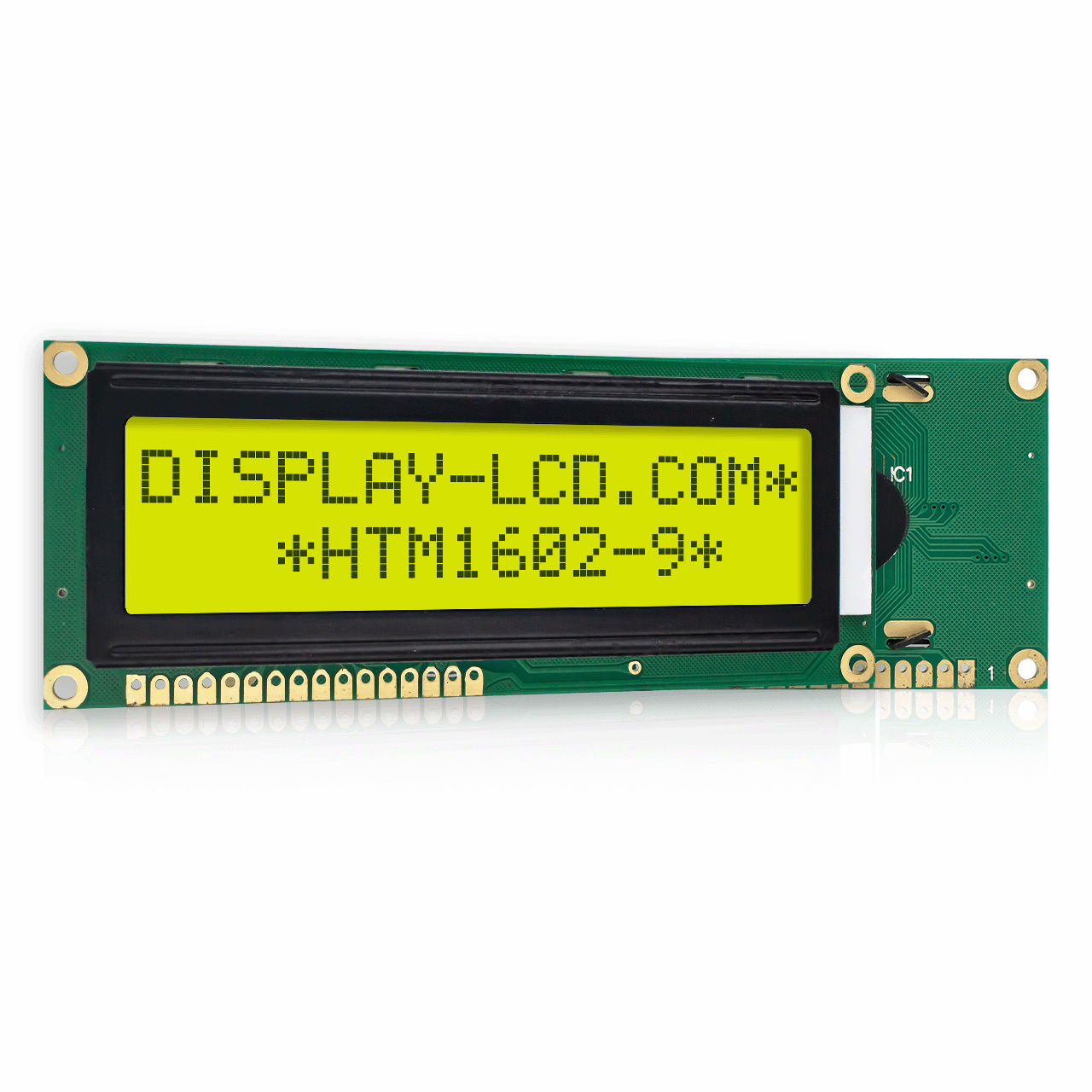

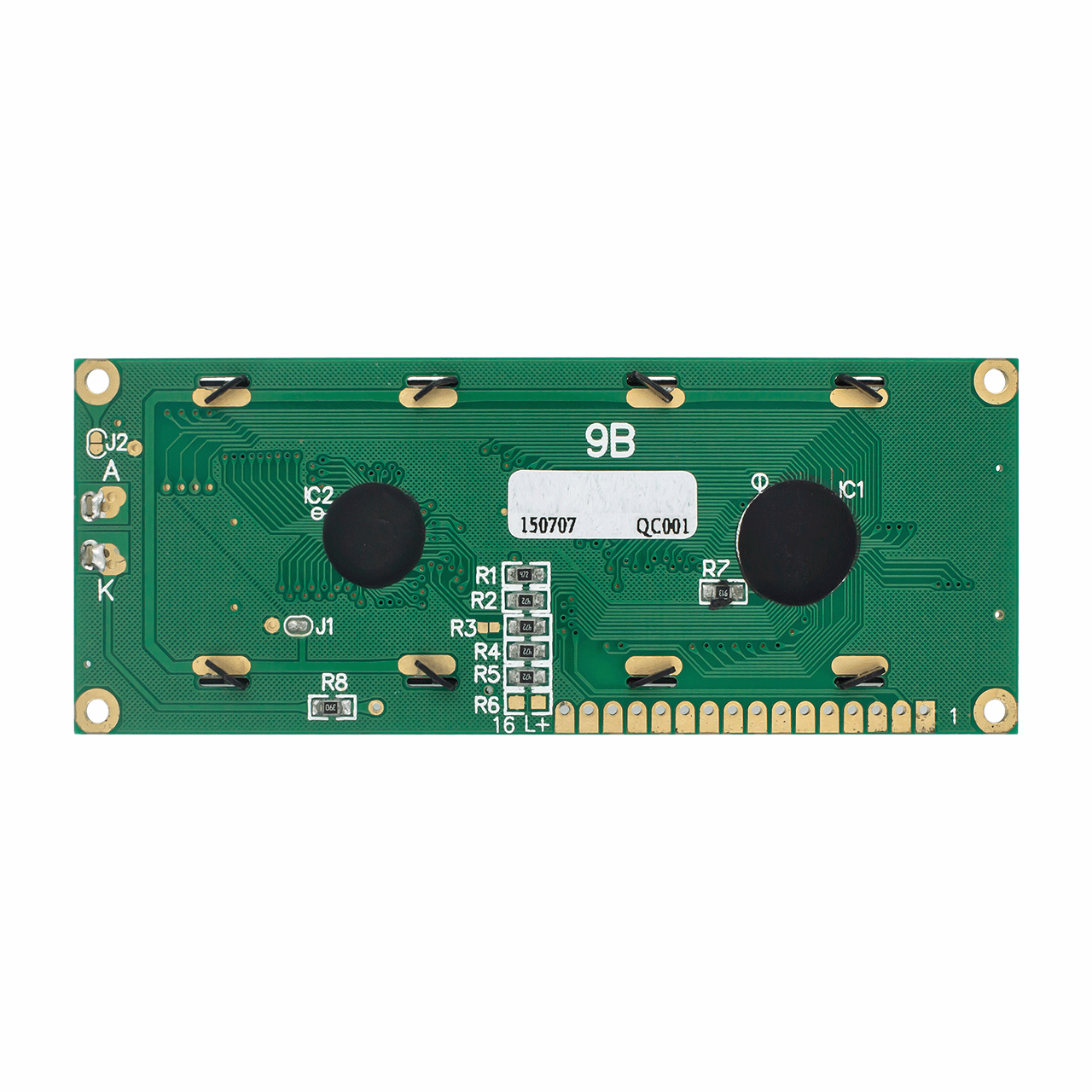

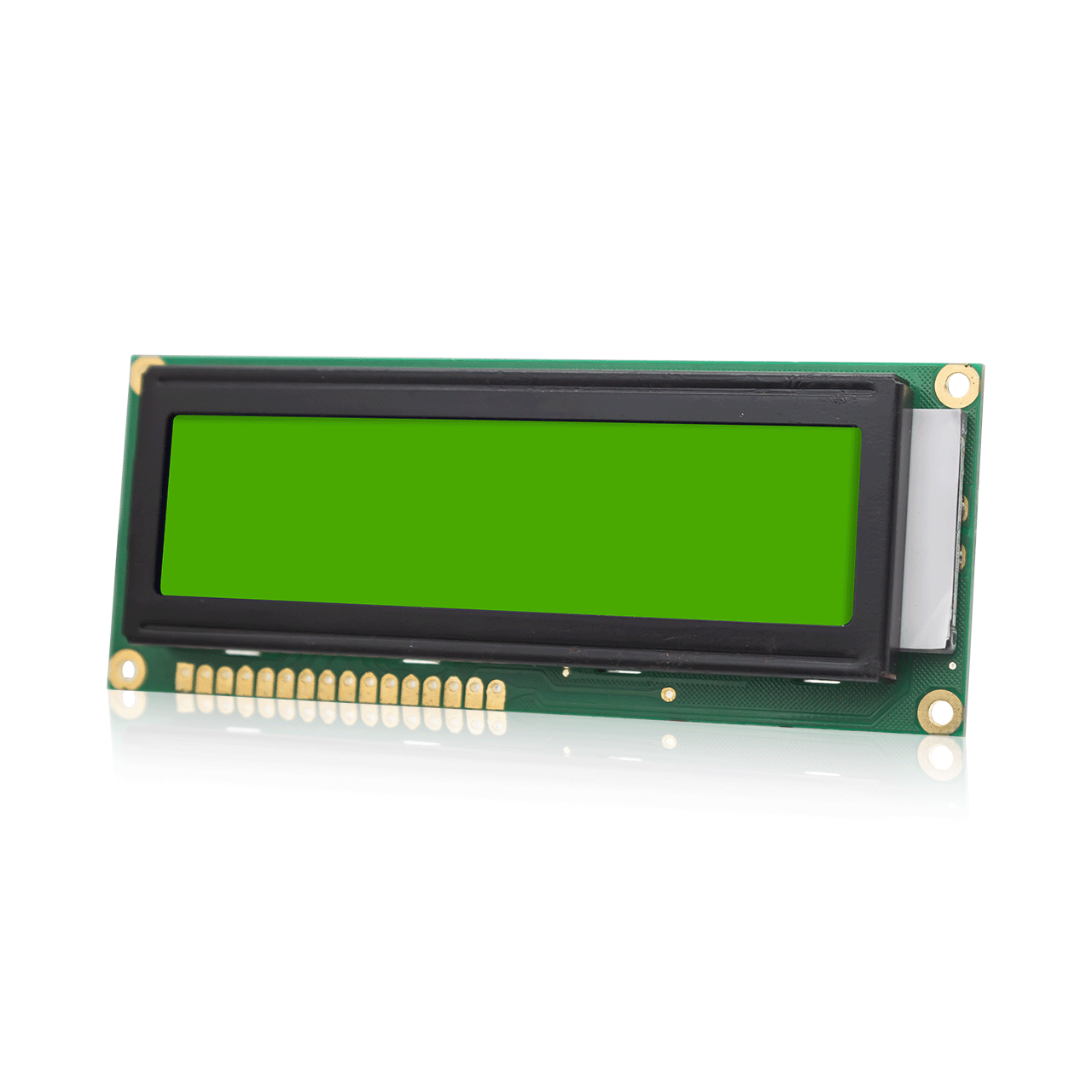

2X16 Character LCD Module Display | STN+ Yellow/Green with Side Yellow/Green Backlight-Arduino

2X16 Character LCD Module Display | STN+ Yellow/Green with Side Yellow/Green Backlight-Arduino

▶ Model: HTM1602-9-01Y-A5P

▶ Type: Standard COB character LCD module
▶ Display content: 16x2 characters
▶ Overall dimensions (mm): 100.0x38.0x13.0
▶ VA size (mm): 80.0x20.5
▶ AA size (mm): 76.37x16.02
▶ Point spacing mm: 0.83x0.98
▶ Product application: industrial equipment
▶ Viewing angle: 6H
▶ Backlight type: yellow/green light
▶ Number of connection PINs: 16PIN
▶ Interface mode: MCU/8bit
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0v
▶ Driver chip: ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

HTM1602-9-01Y-A5P | 2x16 Character Display | Transflective LCD | Side Yellow/Green LED Backlight | STN (+) Positive Yellow/Green Display | LCD with Flex Cable

HTM1602-9-01Y-A5P is a 16x2 character display with transflective LCD technology that shows dark pixels on a yellow/green background, offering excellent visibility in both ambient light conditions and with the assistance of the side green LED backlight. With a wide operating temperature range of -20 to 70 degrees Celsius, this display is suitable for indoor and outdoor environments. It comes with a built-in ST7066U controller and flex cable, providing a 6:00 optimal view. The display supports both 4-bit and 8-bit parallel MPU interfaces and operates at a 5.0V supply voltage. Additionally, it is RoHS compliant, adhering to environmentally friendly standards.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

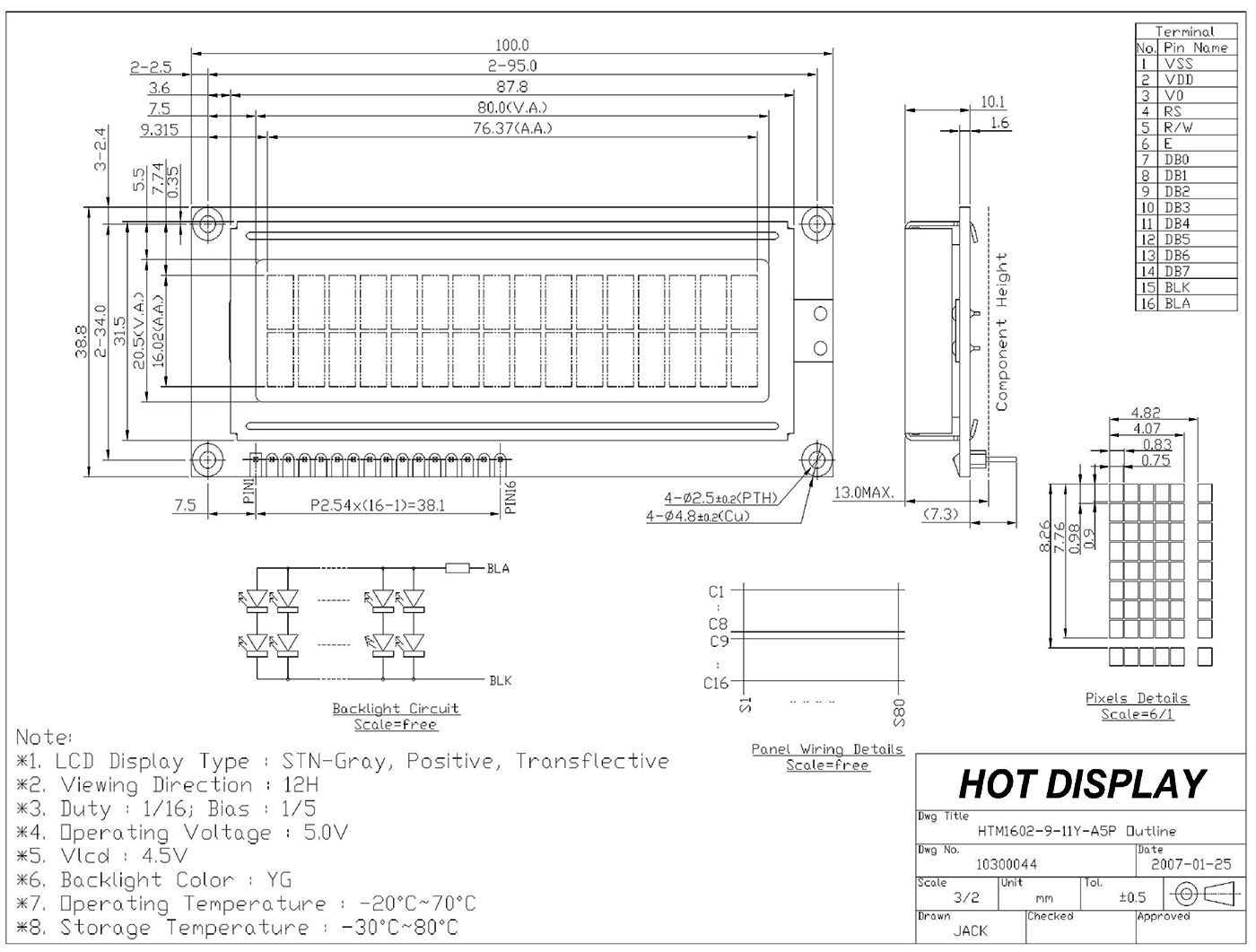

project	Specification content	unit
name	HTM1602-9-01Y-A5P
Number of lattice points	16 x 2	dots
Module Size	100.0 (W) x 42.0 (H) x 13.0 (T)	mm
Visible (VA) area	80.0X20.5	mm
(AA) Size	76.37 (W) x 16.02 (H)	mm
Pixel size	0.75 x 0.9mm	mm
Pixel spacing	0.83 x 0.98mm	mm
IC	ST7066U drive
Application voltage	5.0V	V
Back lighting	Yellow green
display mode	STN+yellow green
Drive mode	Duty cycle 1/16
product type	Character LCD
Polarizer Type	Semitransparent reflection
