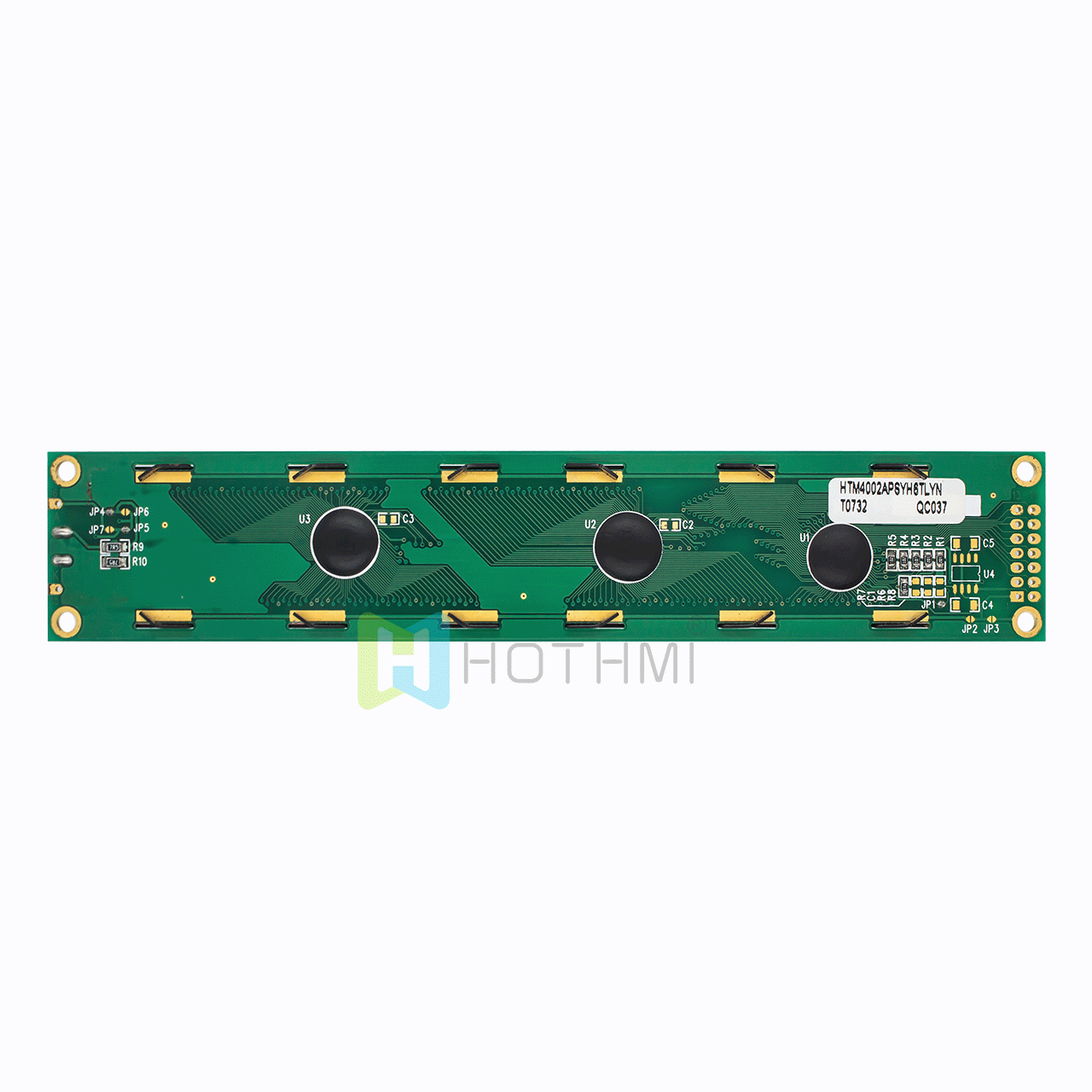

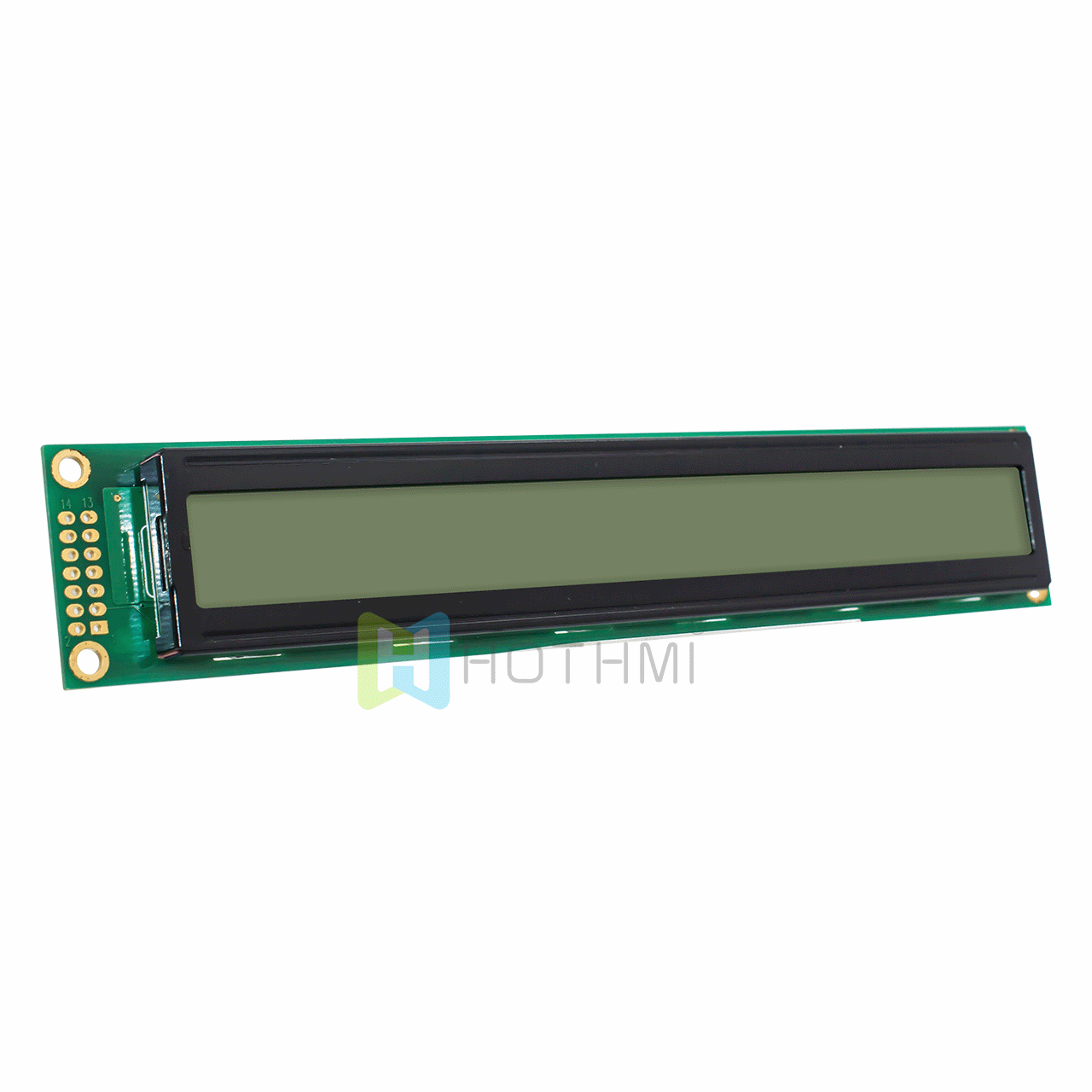

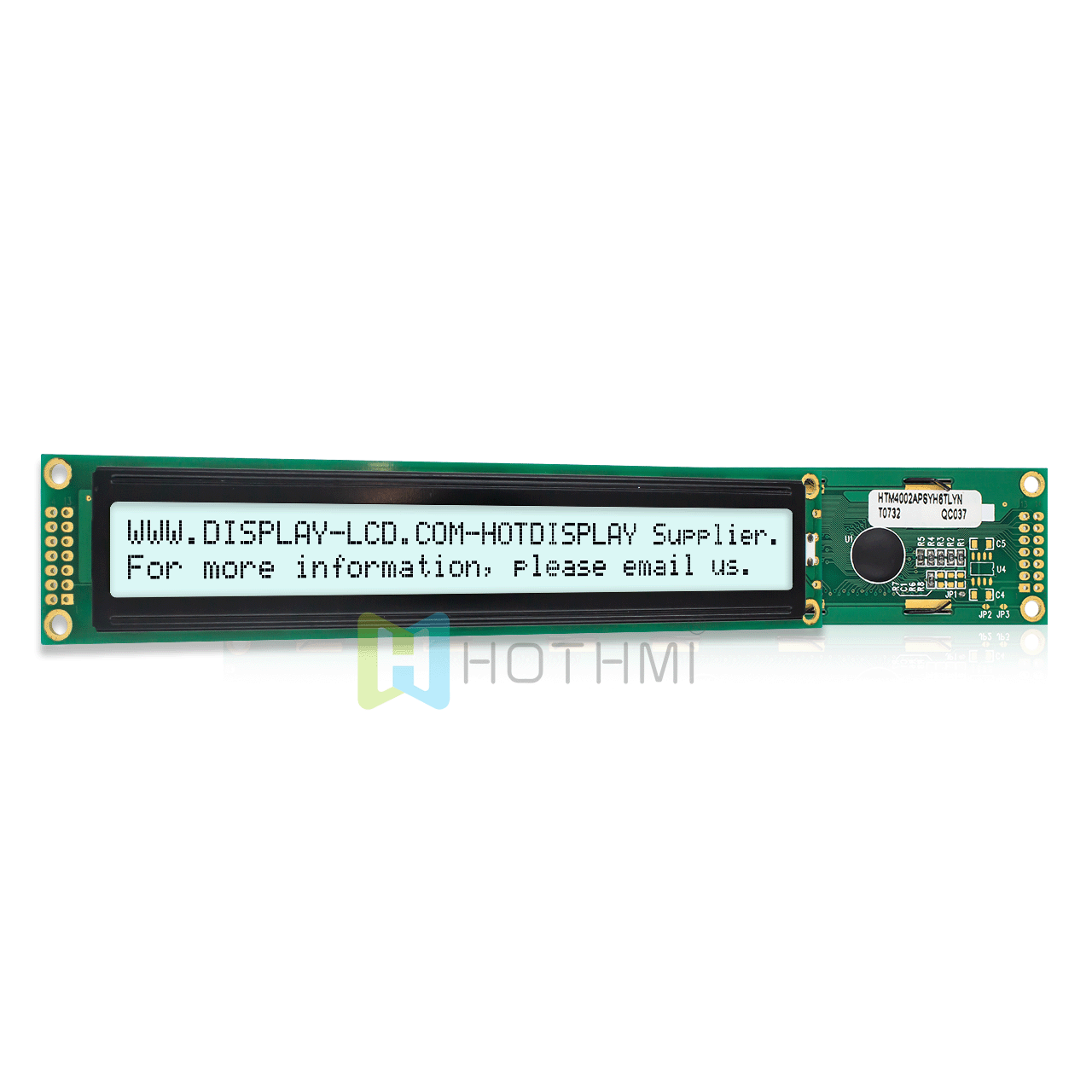

  • HTM-4002A-31W-A5P | 5.0v | 2X40 Characters Monochrome LCD Display Module | FSTN Positive Display | With White Backlight | Arduino Display | White Background with Gray Characters

    The HTM-4002A-31W-A5P is an excellent choice because it has an 80-character, reliable, and easy-to-use LCD screen. This is a high-precision screen for applications where you don't have to worry about the backlight. It is powered by a 5V power supply and is compatible with Arduino and other similar platforms and microcontrollers. It is an antonym-full-writing language that runs well with C, C+, and Python, and can be used for parallel communication. This LCD standard 16-pin has an ample operating temperature range, and all of Hot Display's products are RoHS compliant.


    Connector Customization:

    Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

    PCB Modifications:

    Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

    Backlight color customization:

    The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

    Font library customization:

    Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

    Cable Customization:

    Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.


  • 4002A.png

  • parameter

    Parameter Description

    Unit

    name

    HTM-4002A-31W-A5P


    Character display line

    40 words × 4 rows

    dots

    External dimensions

    182.0 x 33.5 x 14.0  (MAX)

    mm

    VA size

    155.1 x 16.0

    mm

    AA size

    147.5 x 11.5

    mm

    Pixel spacing

    0.65 x 0.7

    mm

    Driver chip

    ST7066U


    Application voltage

    5V

    V

    Back lighting

    White


    display mode

    FSTN(+)


    Drive mode

    1/16 duty cycle


    product type

    Character lcd module


    Polarizer Type

    transparent reflection polarizer



    Search keywords: 40X2 LCD display, 2 X 40 LCD display, Mono  display, Adruino, FSTN(+),  transflective polarizer
