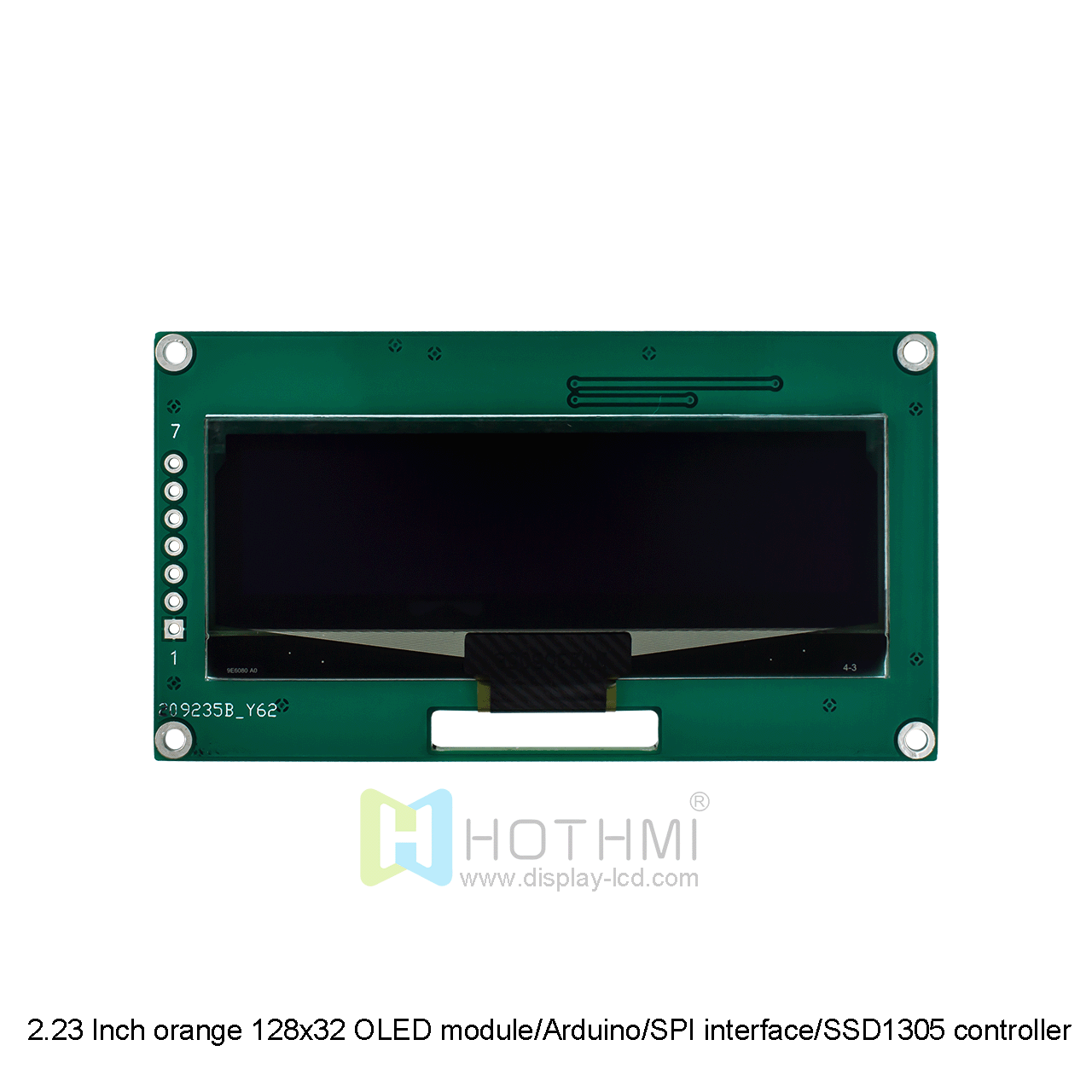

2.23 Inch orange 128x32 OLED module/Arduino/SPI interface/7-pin connector/SSD1305 controller

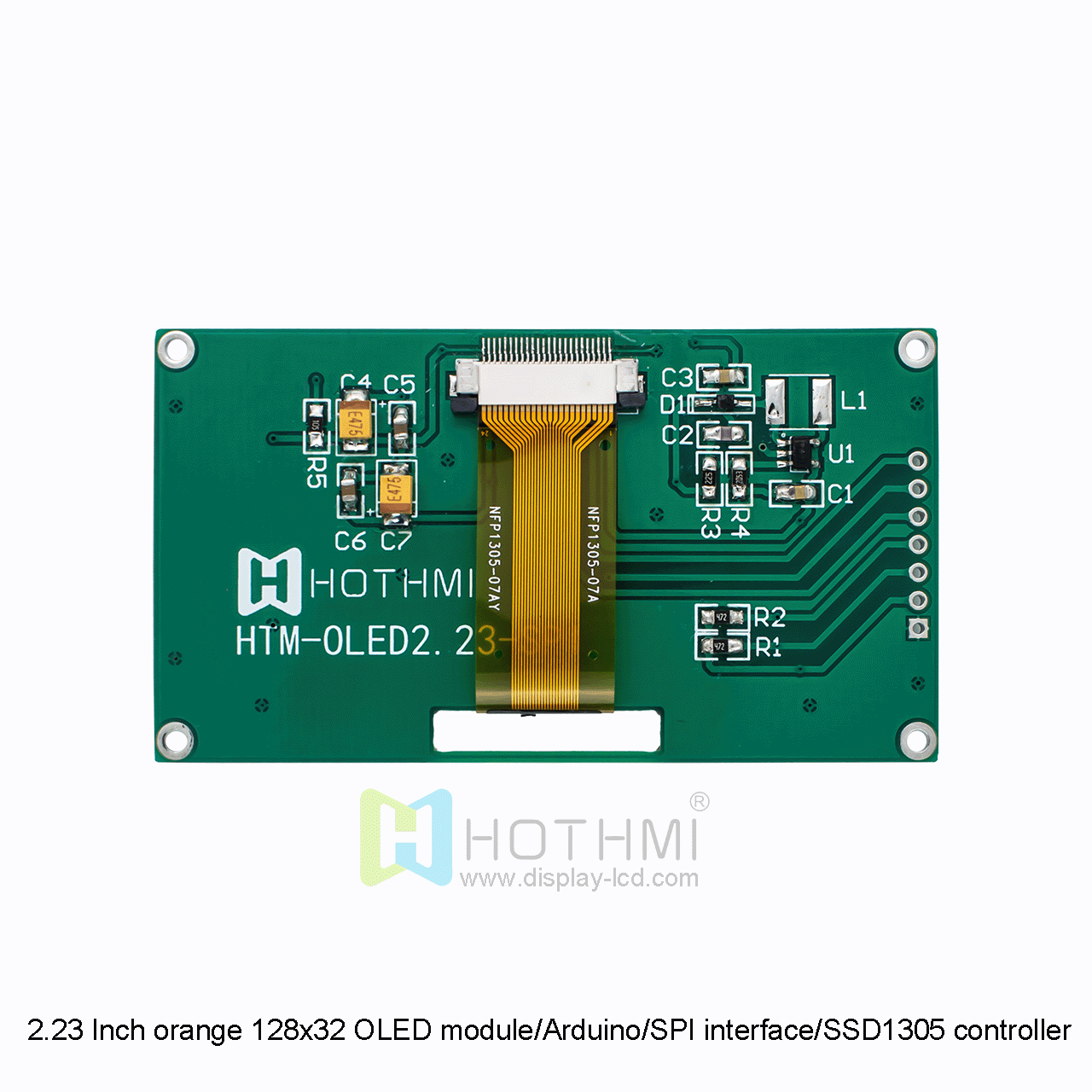

2.23 Inch orange 128x32 OLED module/Arduino/SPI interface/7-pin connector/SSD1305 controller

▶ Model: HTM-OLED2.23-SPI-O

▶ Display type: Graphic OLED module
▶ Size: 2.23 inches diagonal
▶ Display format: 128x32 pixels
▶ Display color: monochrome Orang
▶ Appearance (mm): 72.0x39.7x6.0
▶ VA (mm): 57.01x15.1
▶ AA (mm): 55.02x13.1
▶ Dot pitch (mm): 0.41X0.43
▶ Supply voltage: 3.3V
▶ Interface: SPI
▶ Backlight brightness: 90cd/m2
▶ Compatibility: Arduino
▶ Controller model: SSD1305
▶ Operating temperature: -40°C~85°C
▶ Storage temperature: -40°C~90°C
