Arduino | 2X20 character monochrome LCD Module | STN yellow/green display with yellow/green backlight

Arduino | 2X20 character monochrome LCD Module| STN yellow/green display with yellow/green backlight | 5.0V

▶ Model: HTM-2002A-01Y-A5P

▶ Type: Standard COB character module
▶ Display content: 20x2 characters
▶ Overall dimensions (mm): 116.0x37.0x14.6
▶ VA size (mm): 83.0x18.6
▶ AA size (mm): 75.4x11.5
▶ Point spacing mm: 0.65x0.7
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight type:yellow/green
▶ Number of PINs: 16PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0v
▶ Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

Arduino | 2X20 character monochrome LCD screen | STN yellow/green display with yellow/green backlight | 5.0V

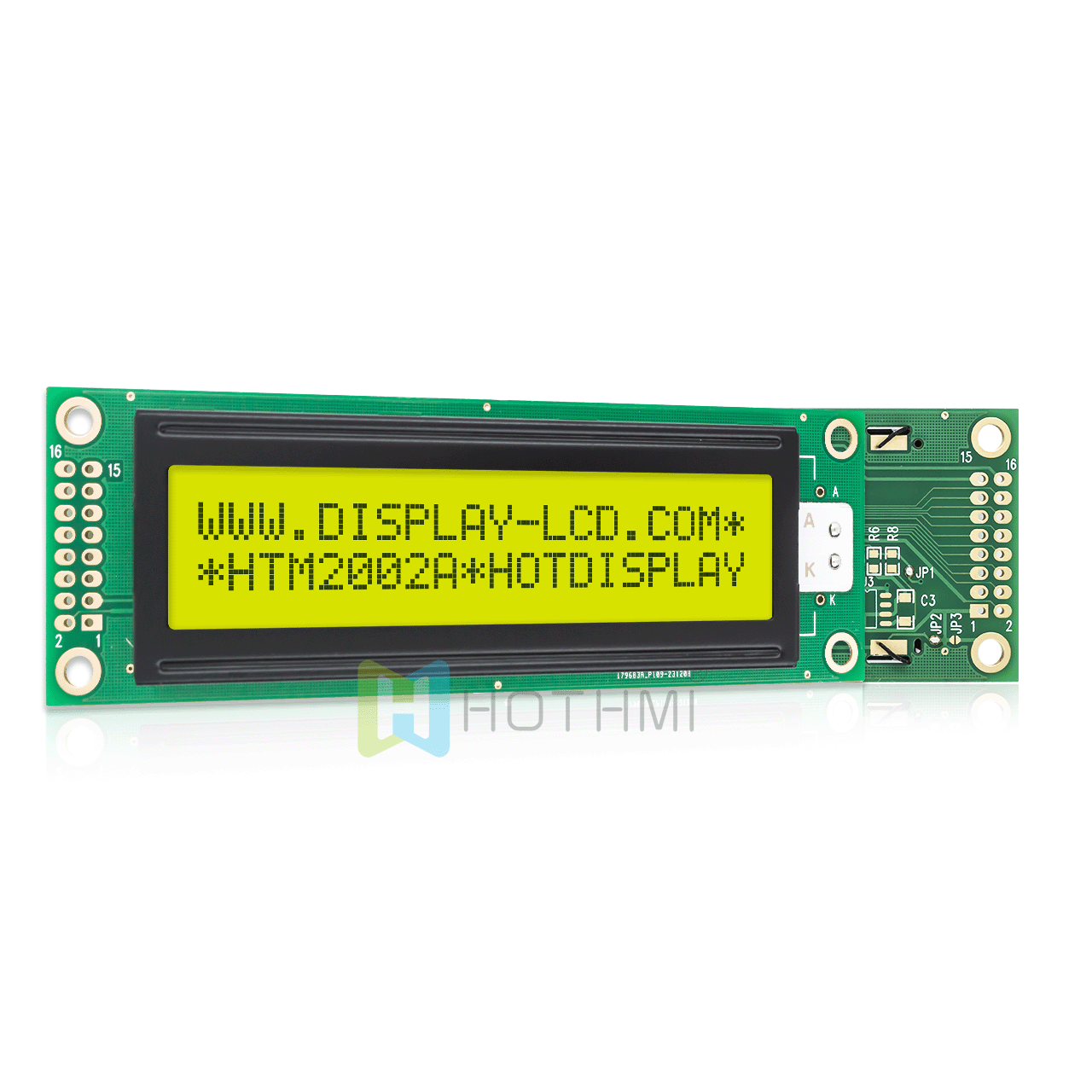

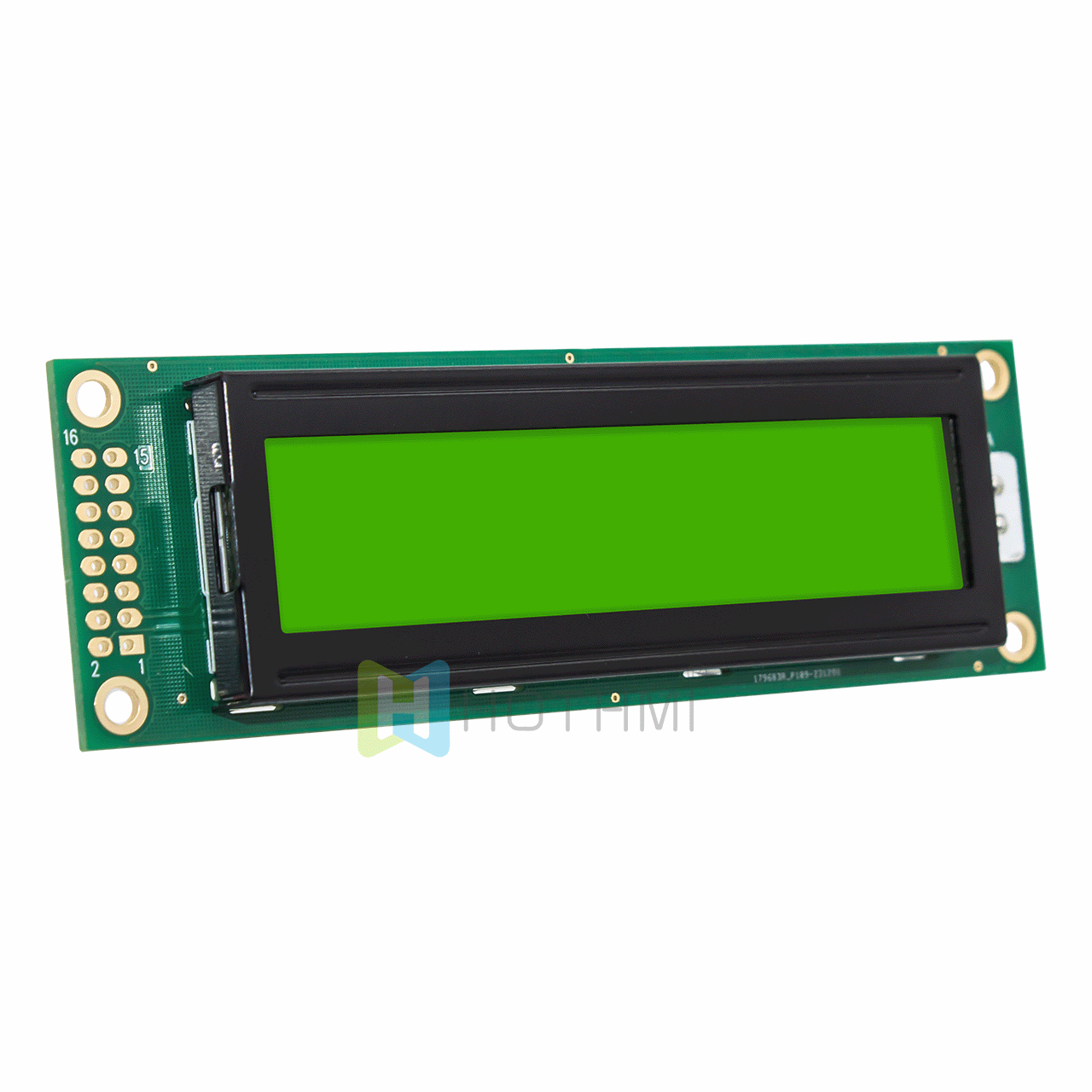

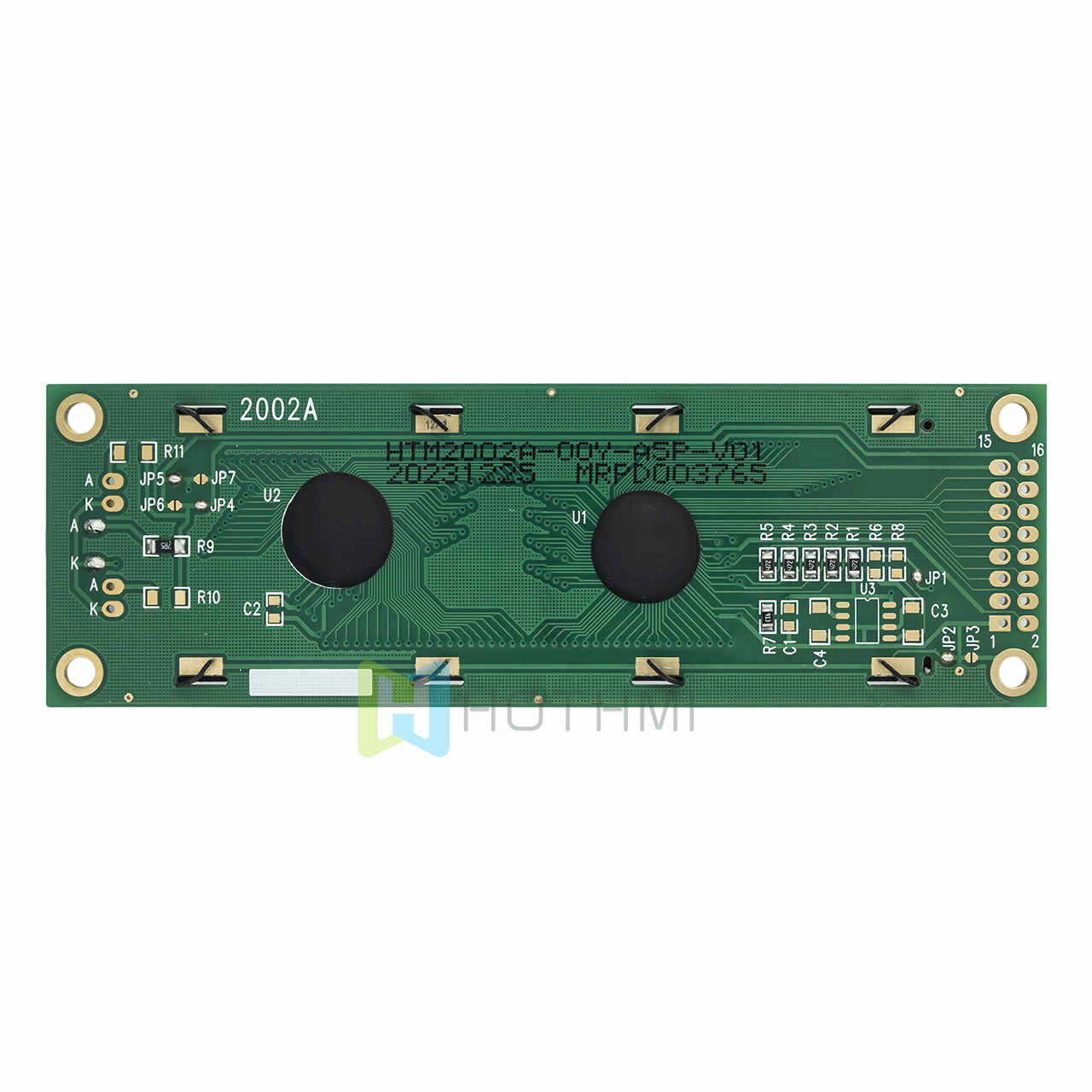

This HOT Display model is: HTM2002A-01Y-A5P. The display is a monochrome display with 20 characters and 2 lines. The display effect is a yellow-green background and black characters. This transflective LCD display is visible in natural light, ambient light, or low-light environments using a backlight. It operates over a temperature range of -20 to 70 degrees Celsius and operates on a 5V power supply. The display has an optimal field of view of 6:00 and comes with a built-in ST7066U controller. Simple in construction and wide in application, this display has a bright and clear backlight that can be used in a variety of different environments and is compatible with Arduino and other popular development boards.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

Project	Specification conntent	Unit
name	HTM2002A-01Y-A5P
Number of dots	20words × 2 rows	dots
Module size	116.0x37.0x14.6(MAX)	mm
Visual (VA) area	83.0（W） × 18.6（H）	mm
Valid (AA) area	75.4（W） × 11.5（H）	mm
Point (pixel) spacing	0.65 × 0.70mm	mm
IC	ST7066U
voltage	5.0V	V
back light	Yellow/green
display mode	STN（+）
Drive mode (Duty)	1/16 duty cycle
type	Character LCD
characteristic	Transflective polarizer
