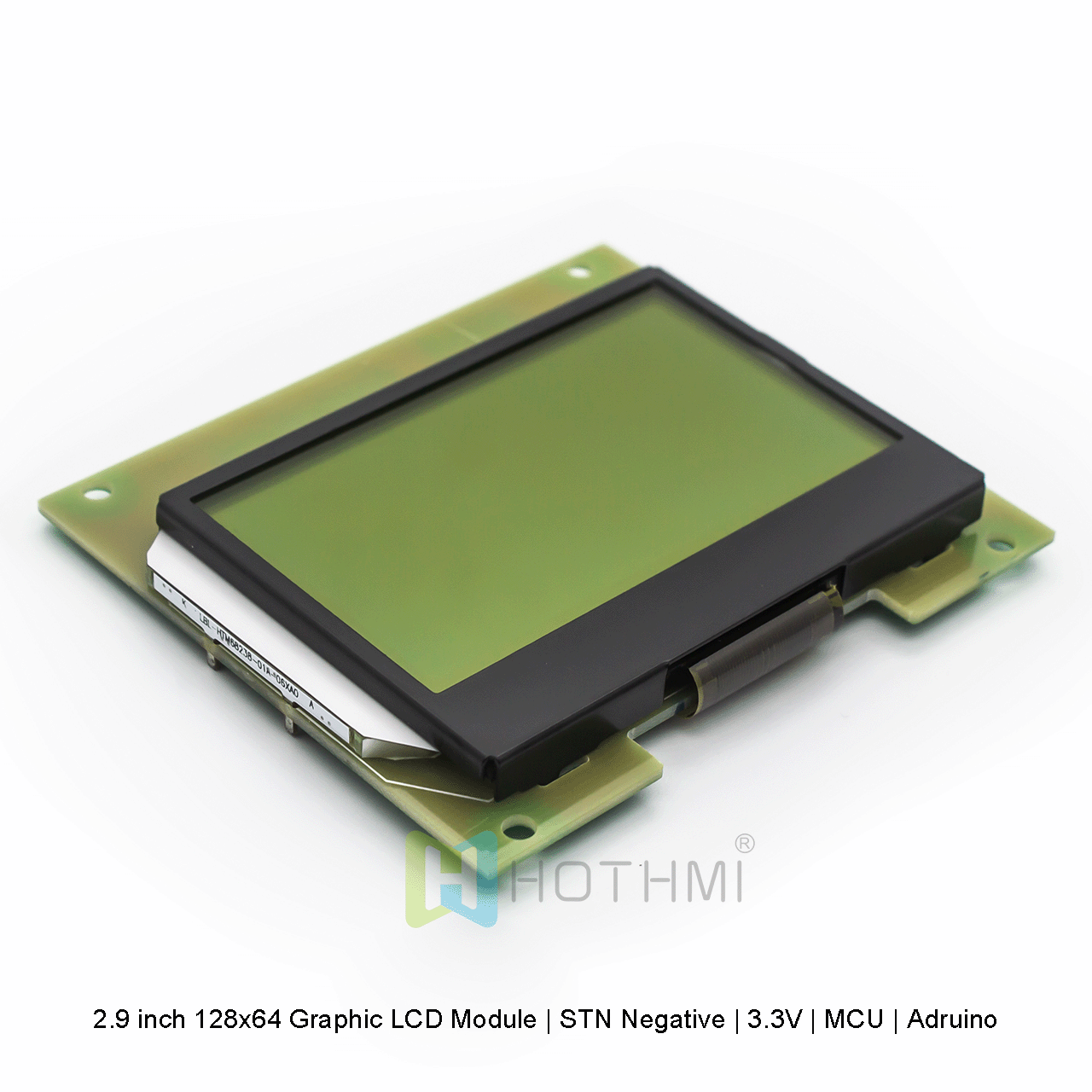

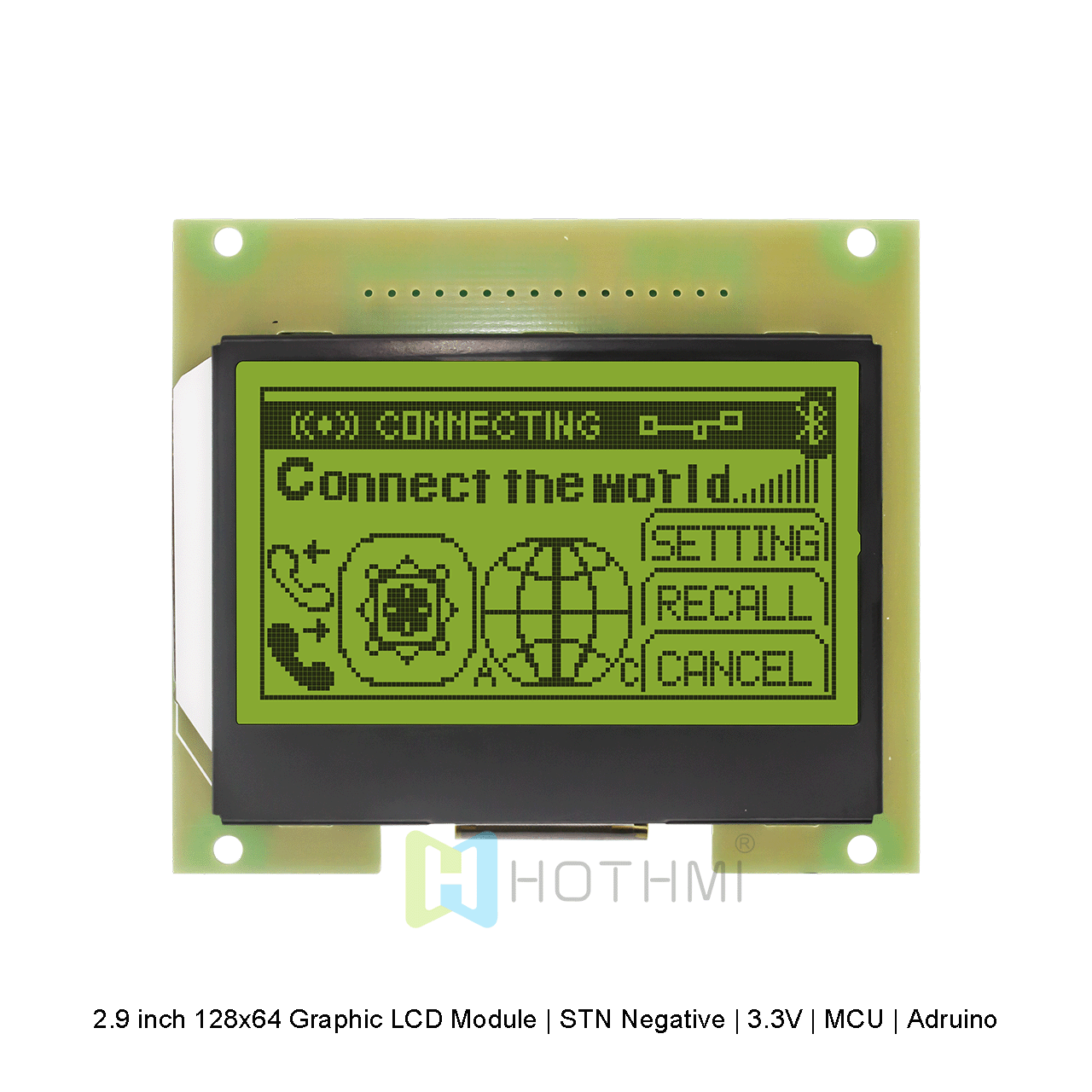

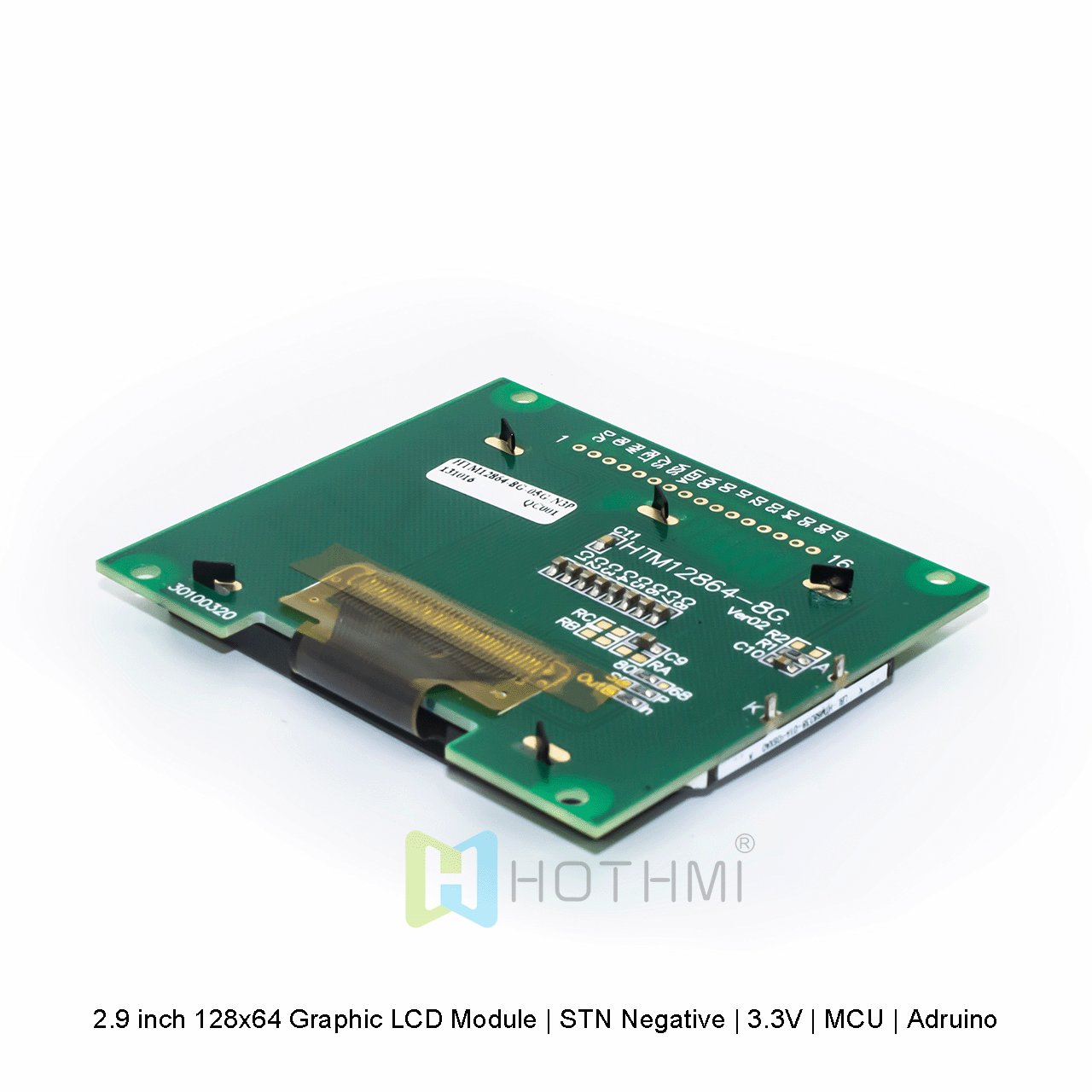

2.9 inch 128x64 Graphic LCD Module | STN Negative | 3.3V | MCU | Adruino

2.9 inch 128x64 Graphic LCD Module | STN Negative | 3.3V | MCU | Adruino

▶ Model: HTM12864-8G-01Y-A5P

▶ Type: COG LCD module with plate
▶ Display pixels: 128x64

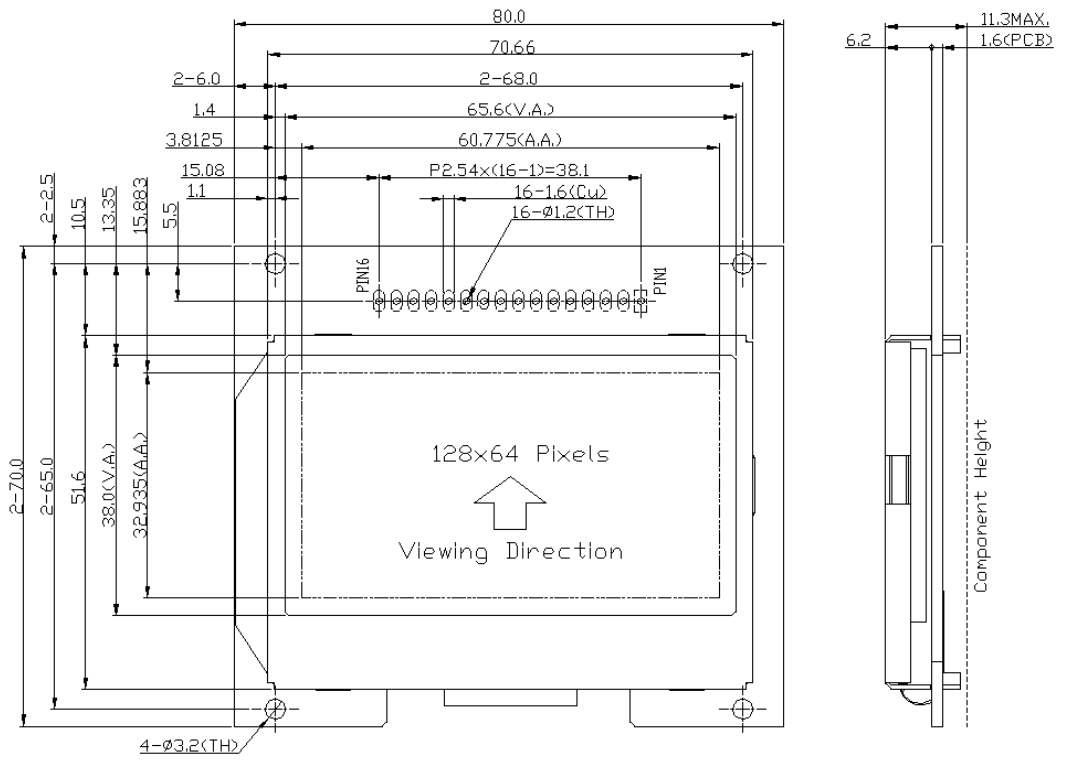

▶ Overall dimensions (mm): 80x70x11.3
▶ VA size (mm): 65.6x38
▶ AA size (mm): 60.775x32.935
▶ Point spacing (mm): 0.475x0.515
▶ Application: Industrial Control
▶ Viewing angle: 6H
▶ Backlight: white light

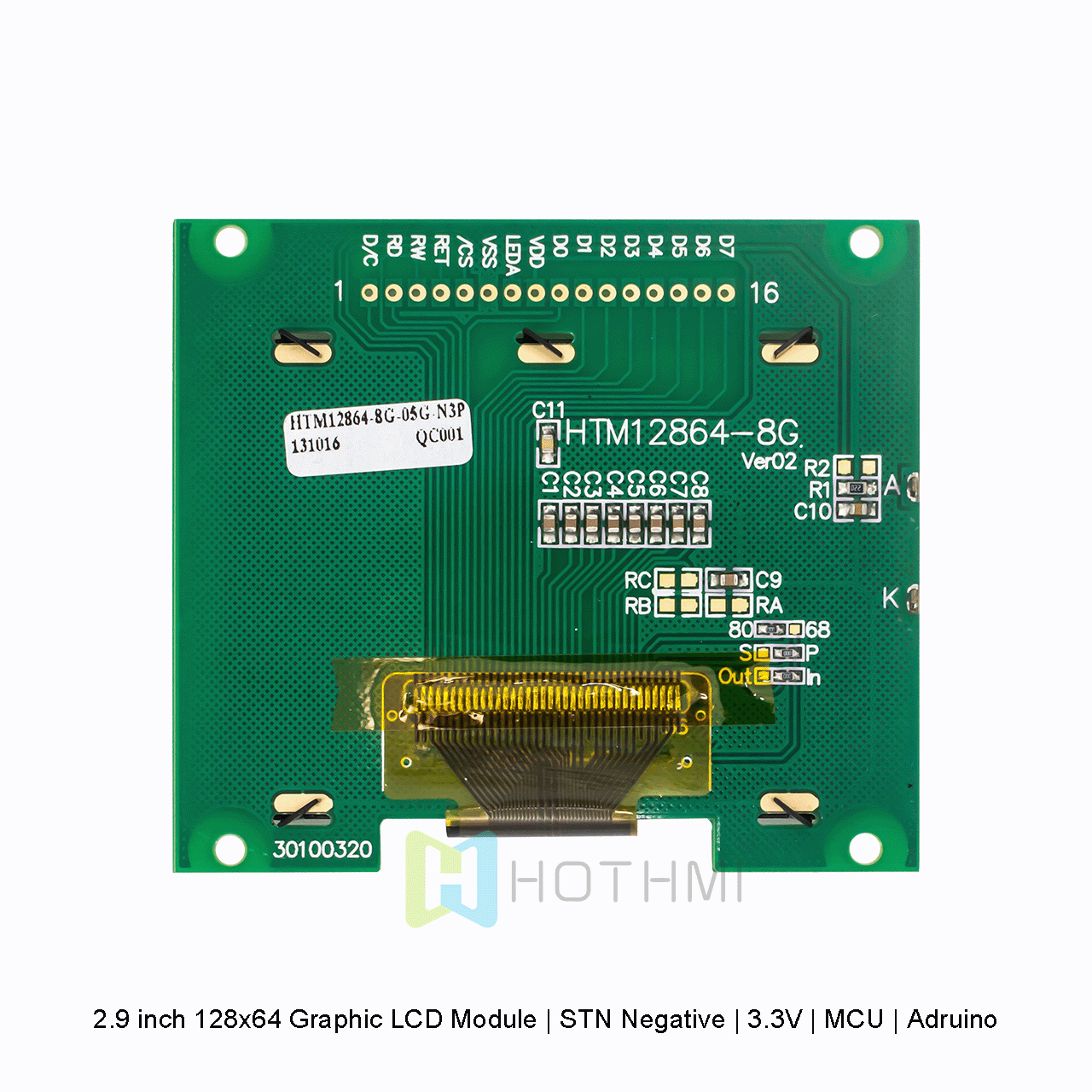

▶ Pin: 16PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20℃~70℃
▶ Power supply voltage: 3.3V
▶ Driver chip: ST7565R
