6.8-inch high brightness color display 480x1280 TFT LCD/IPS full viewing angle LCD display/LVDS interface/NV3051F1 controller/Linux/industrial control/RK/sunlight visible

6.8-inch high brightness color display 480x1280 TFT LCD/IPS full viewing angle LCD display/LVDS interface/NV3051F1 controller/Linux/industrial control/RK/sunlight visible

▶ Model: TFT-H068A1ZAINVKN40

▶ Type: TFT standard display
▶ Display pixels: 720x1280
▶ Display inches: 67.0x181.3x4.7
▶ AA size (mm): 60.22.8x160.5888
▶ Application: Instrumentation, portable electronic devices
▶ Viewing angle: IPS full viewing angle
▶ Backlight/brightness: 1000cd/m2
▶ Pin: FPC-40 pin
▶ Interface mode: LVDS
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 3.3V
▶ Driver chip: NV3051F1

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes

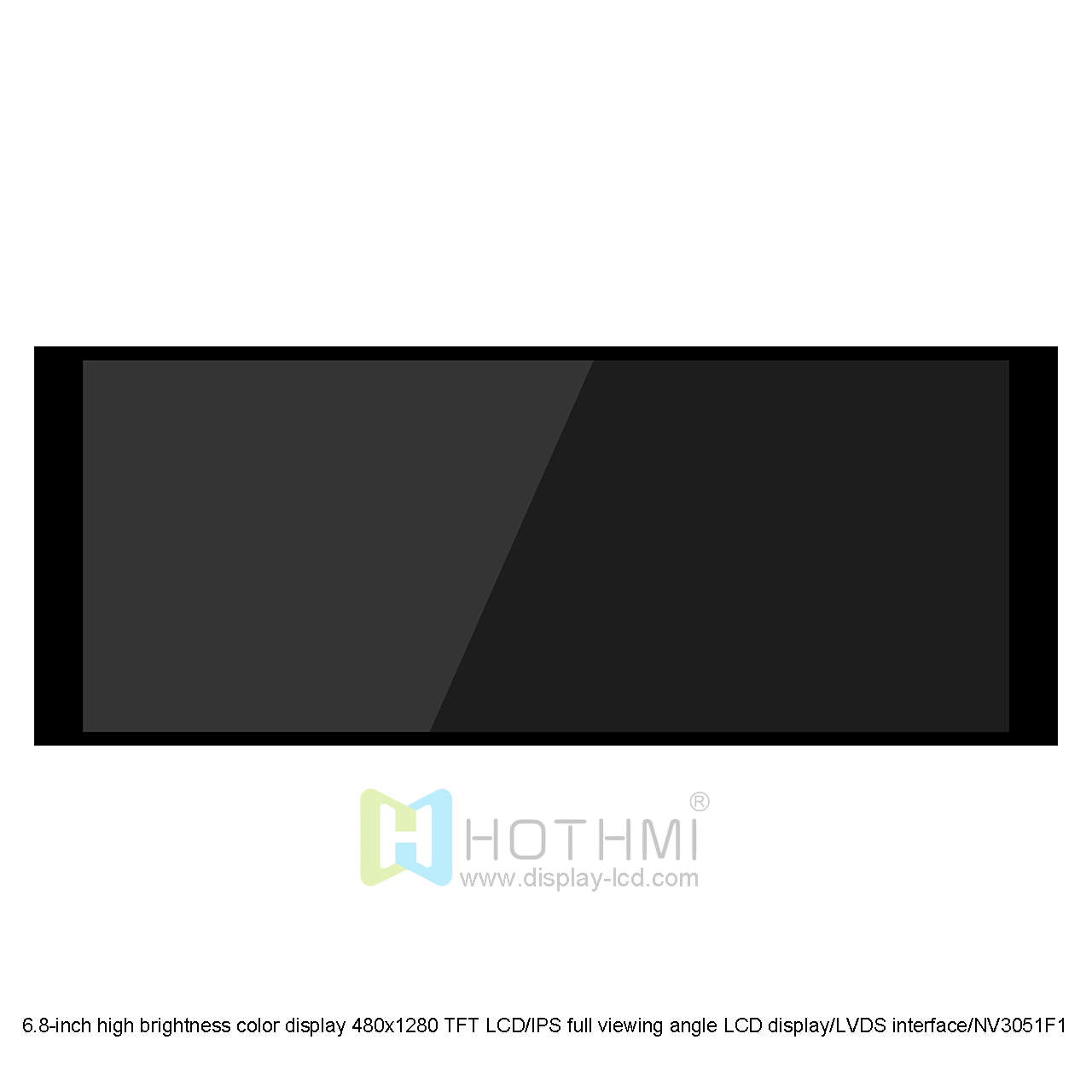

6.8-inch high brightness color display 480x1280 TFT LCD/IPS full viewing angle LCD display/LVDS interface/NV3051F1 controller/Linux/industrial control/RK/sunlight visible
This standard 6.8 display TFT-H068A1ZAINVKN40 has a resolution of 480x1280 pixels, IPS full viewing angle, and excellent effect no matter which direction you watch from, with a brightness of 1000cd/m2 and sunlight visible. The compact size, 3.3V low voltage power supply and impressive display quality make this display an excellent choice for projects without touch function.

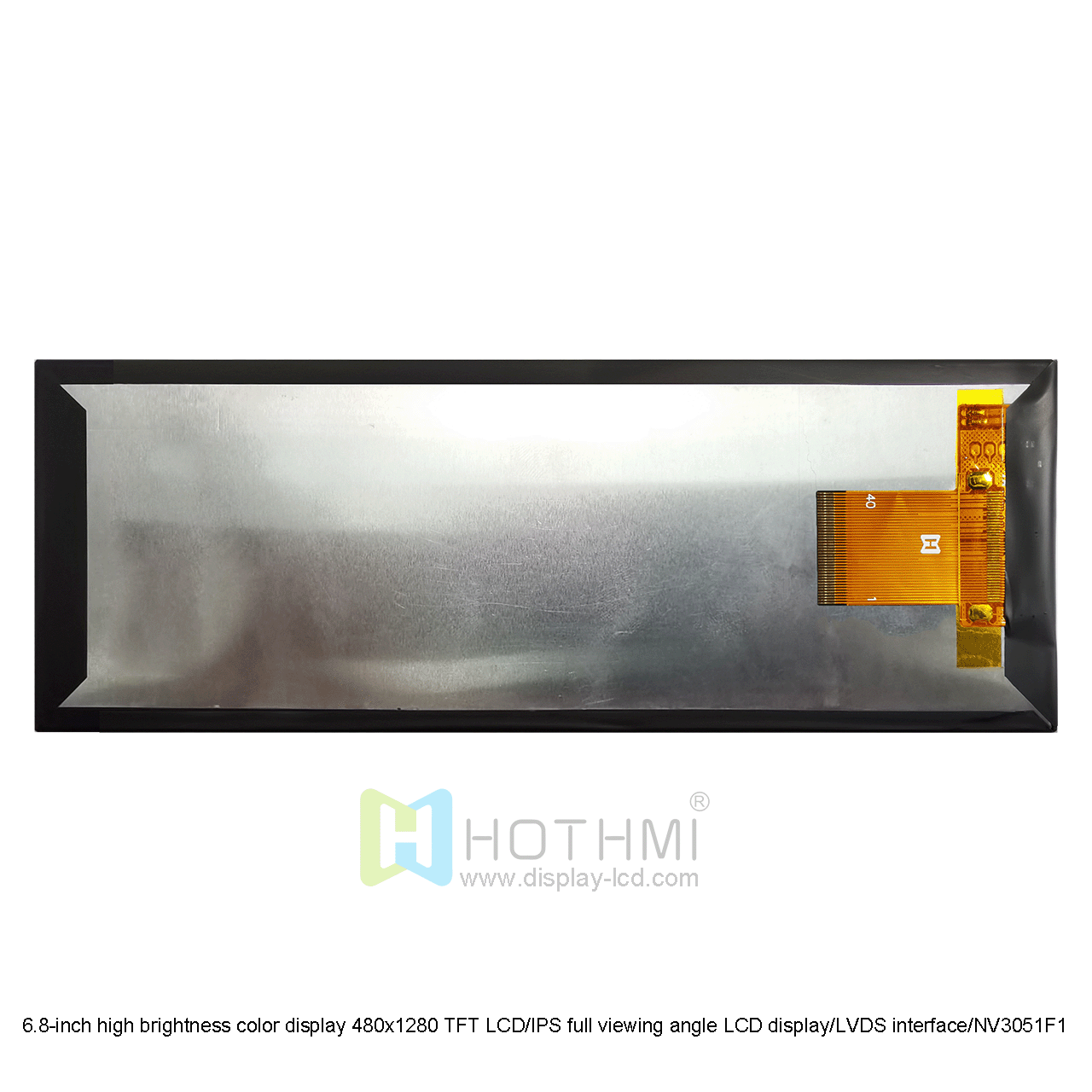

This 6.8-inch LCD display uses 40PIN FPC soft cable connection to provide safe and reliable electrical connection. The connection method of FPC soft cable makes disassembly easier and easier to operate. This TFT LCD display is powered by NV3051F1 controller. The controller optimizes the function of the display to ensure smooth operation and accurate presentation of images and graphics. Popular industries for this TFT size include IoT, industrial automation, consumer electronics, test and measurement, and handheld devices. They are also great for DIY or prototype projects due to their compatibility with Linux/industrial control/RK/ motherboards. The LVDS interface enables fast and efficient communication between Linux/industrial control/RK/, ensuring smooth data transmission and real-time updates. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.

Datasheet for Touch Panel,Controller

Name	Date	Size
TFT-H068A1ZAINVKN40	January 01, 1970	684.61KB

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H068A1ZAINVKN40
Diagonal size	6.8”	Inch
Resolution	720x1280	Dot

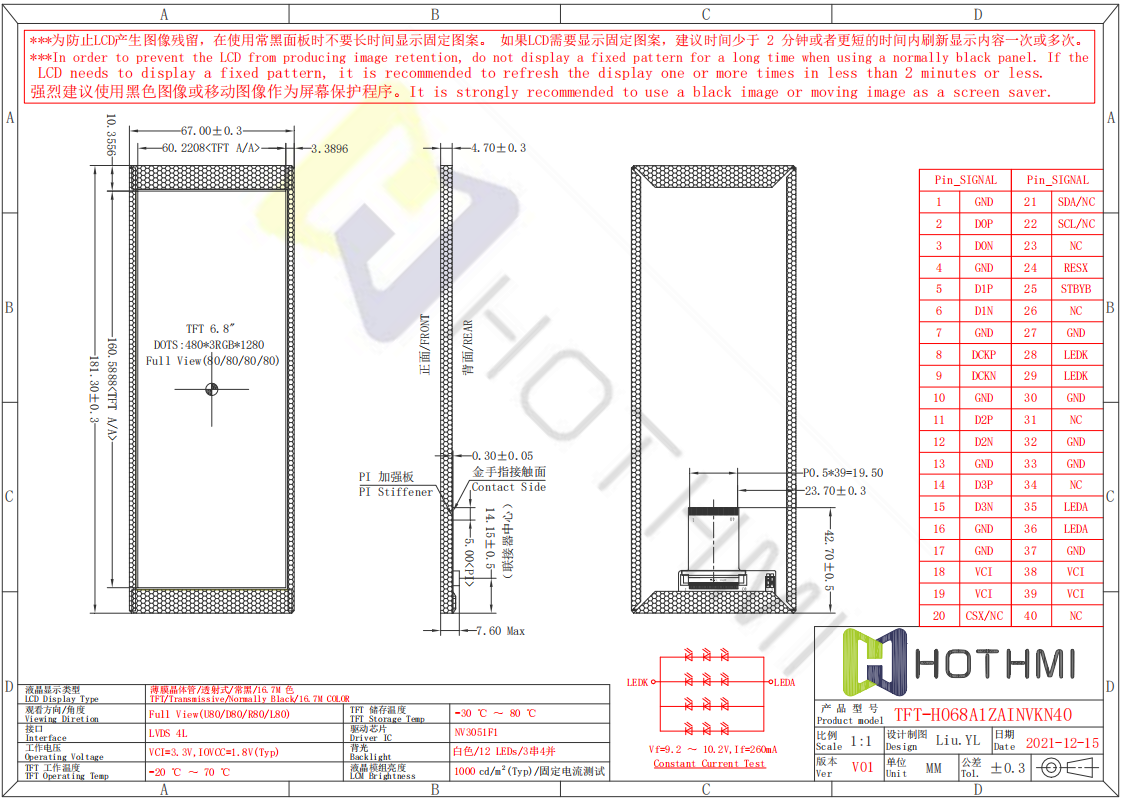

Dimensions	67.0x181.3x4.7	mm
Active area (AA)	60.22.8x160.5888	mm
LCD type	TFT LCD Display	mm
Display viewing angle	Full View(U80/D80/R80/L80)
Aspect ratio	1:3
Backlight type	LED white
TFT driver IC	NV3051F1
Brightness	1000	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
