TFT-H024A16QVIST6N10|2.4" IPS SPI TFT LCD display|240x320 resolution|SPI 4L interface|optional resistive/capacitive screen|Arduino display

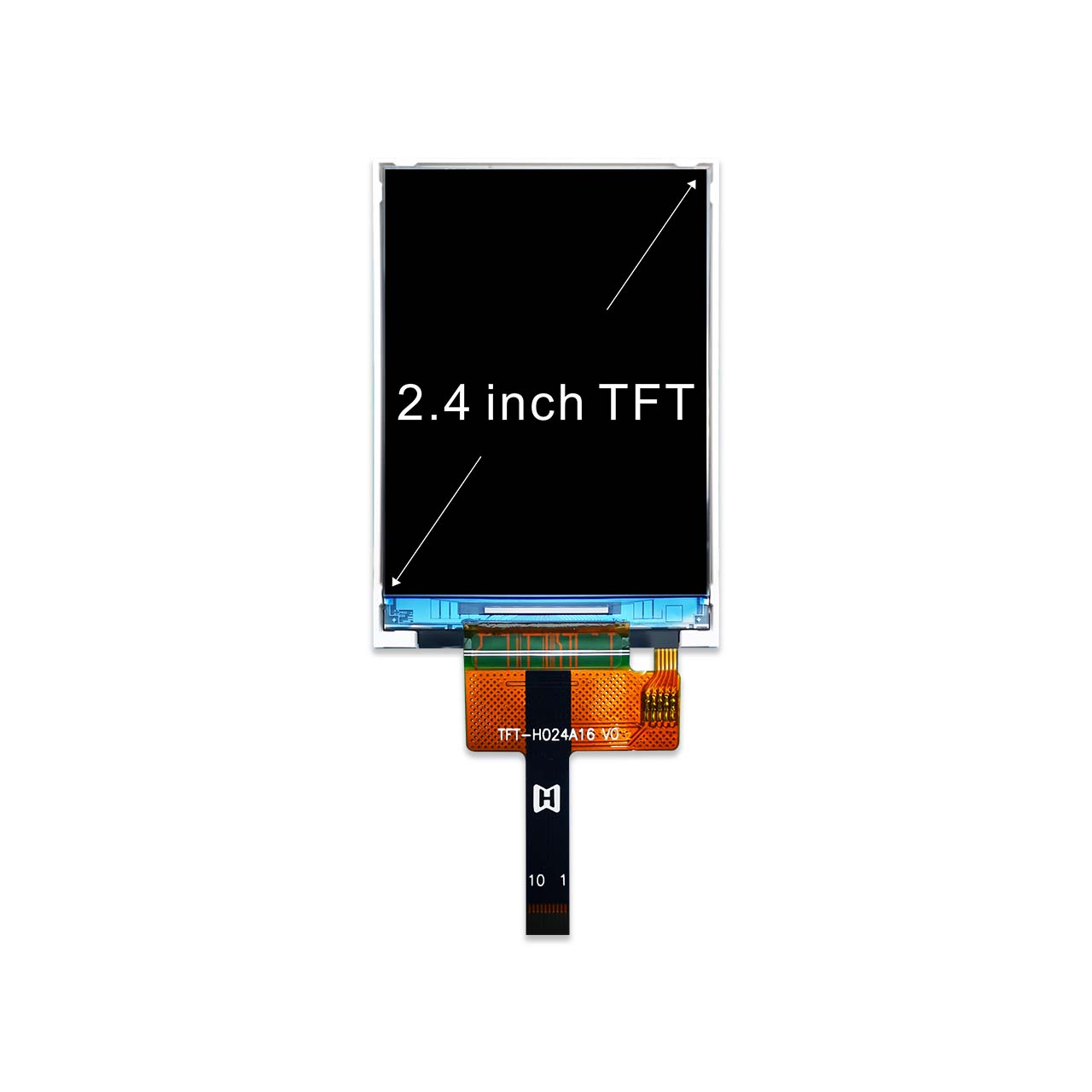

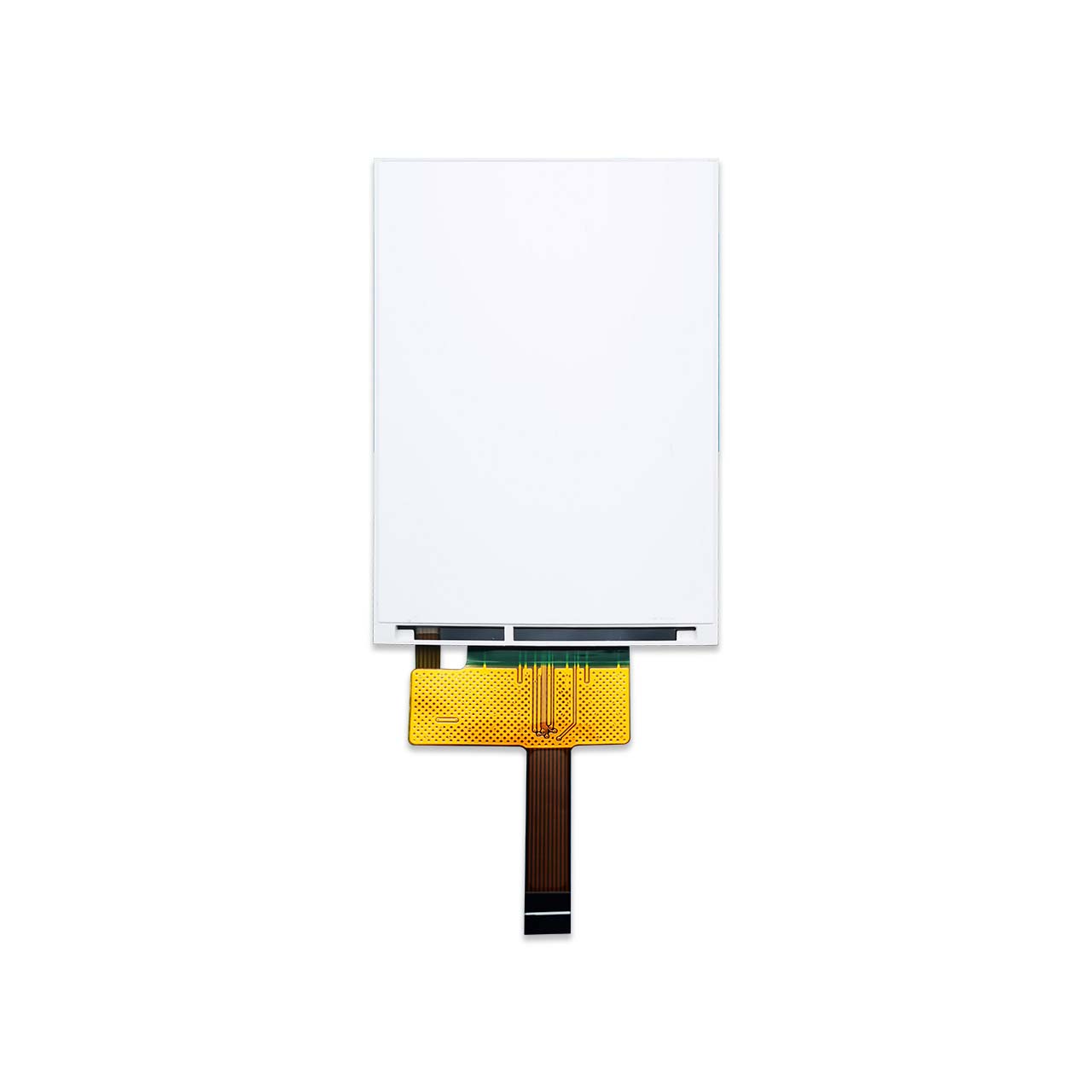

TFT-H024A16QVIST6N10 is an IPS 2.4-inch color LCD module with 240x320 resolution, supports parallel and serial ports, optional resistive and capacitive touch screens, contains ST7789V controller, 2.8V voltage, FPC connection. All materials comply with environmental protection requirements and RoHS standards. This module is widely used in various instruments, smart devices, etc., and is suitable for a variety of microcontroller development platforms such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. High image quality, wide viewing angle, supports RGB interface, 8080 8-bit, 9-bit, 16-bit, 18-bit parallel interface and 3-wire, 4-wire serial interface, 65K/262K true color, FPC connection (optional) With connector), 2.8V voltage, supports horizontal or vertical screen display.
Customized Ribbon Cables/Flexible Printed Circuits (FPC): Tailor your cables to perfection by adjusting their length, position, and pin arrangements, or adding other connectors. Obtain a precisely designed cable solution to streamline and enhance the safety of your connections |
Touchscreen Add-On Components: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design. |
Interface Customization: Choose from various interface options or consult with our experts to select the options that best suit your project. We can integrate HDMI,USB, SPI, VGA, and other interfaces into your display to achieve your design goals. |
Cover Glass: Equip your display with custom-cut cover glass to improve durability. Choose from various thicknesses of cover glass and undergo optical bonding to prevent moisture and debris. |
