5.1 inch 240x128 Graphic LCD Module | 240 x 128 inch Graphic LCD | MCU

5.1 inch 240x128 Graphic LCD Module | 240 x 128 inch Graphic LCD | MCU | RA8803 |5.0v|Arduino

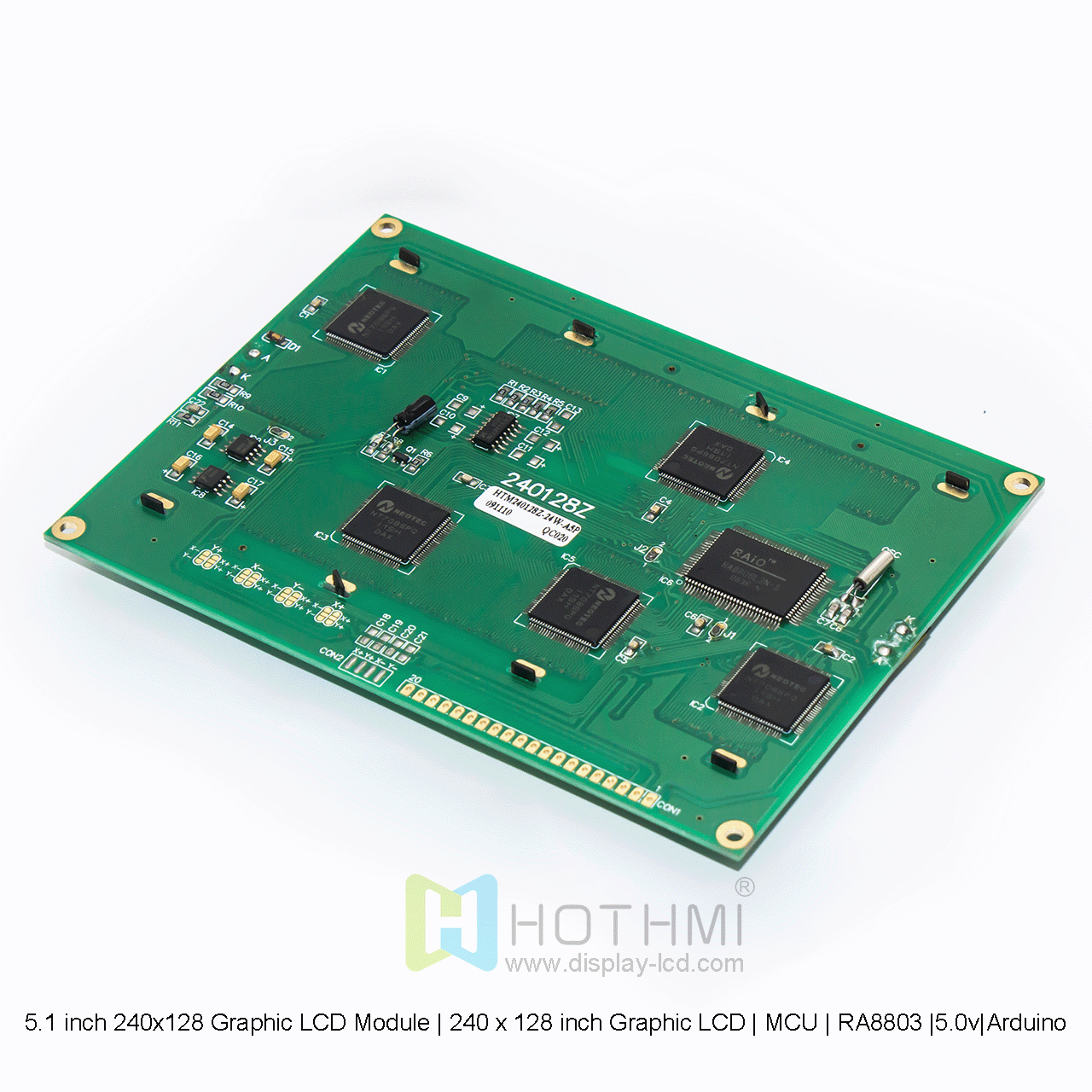

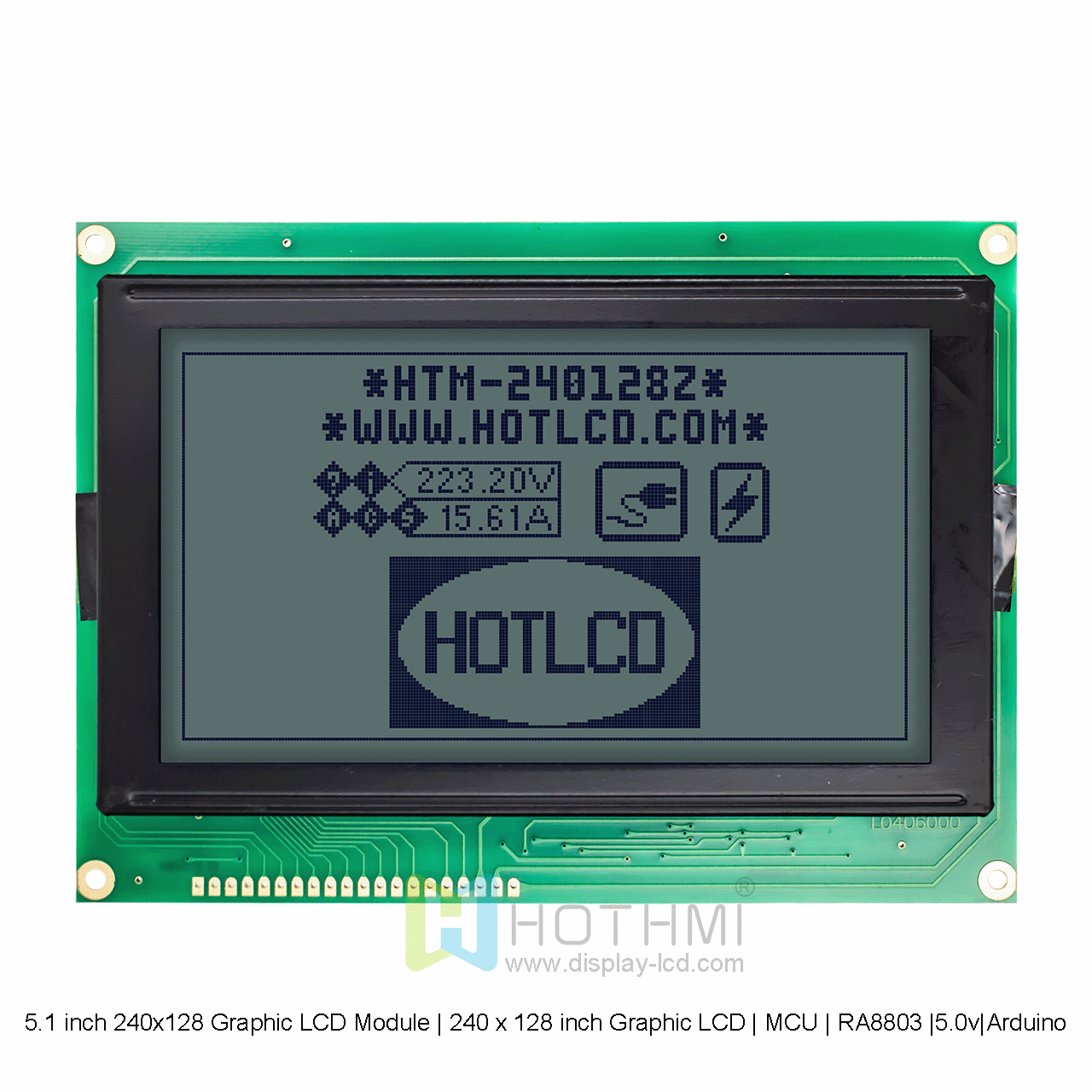

▶ Model: HTM240128Z-11Y-A5P

▶ Type: Standard COB dot matrix module
▶ Display pixels: 240x128
▶ Dimensions (mm): 144..0x104.0x14.6
▶ VA size (mm): 114.0x64.0
▶ AA size (mm): 107.95x57.55
▶ Dot spacing (mm): 0.45x0.41
▶ Application: Industrial computer
▶ Viewing angle: 6H
▶ Backlight/brightness: yellow-green light
▶ Pin: 20PIN
▶ Interface mode: MCU
▶ Operating temperature: -20~70℃
▶ Supply voltage: 5.0V
▶ Driver chip: RA8803

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

5.1 inch 240x128 Graphic LCD Module | 240 x 128 inch Graphic LCD | MCU | RA8803 |5.0v|Arduino

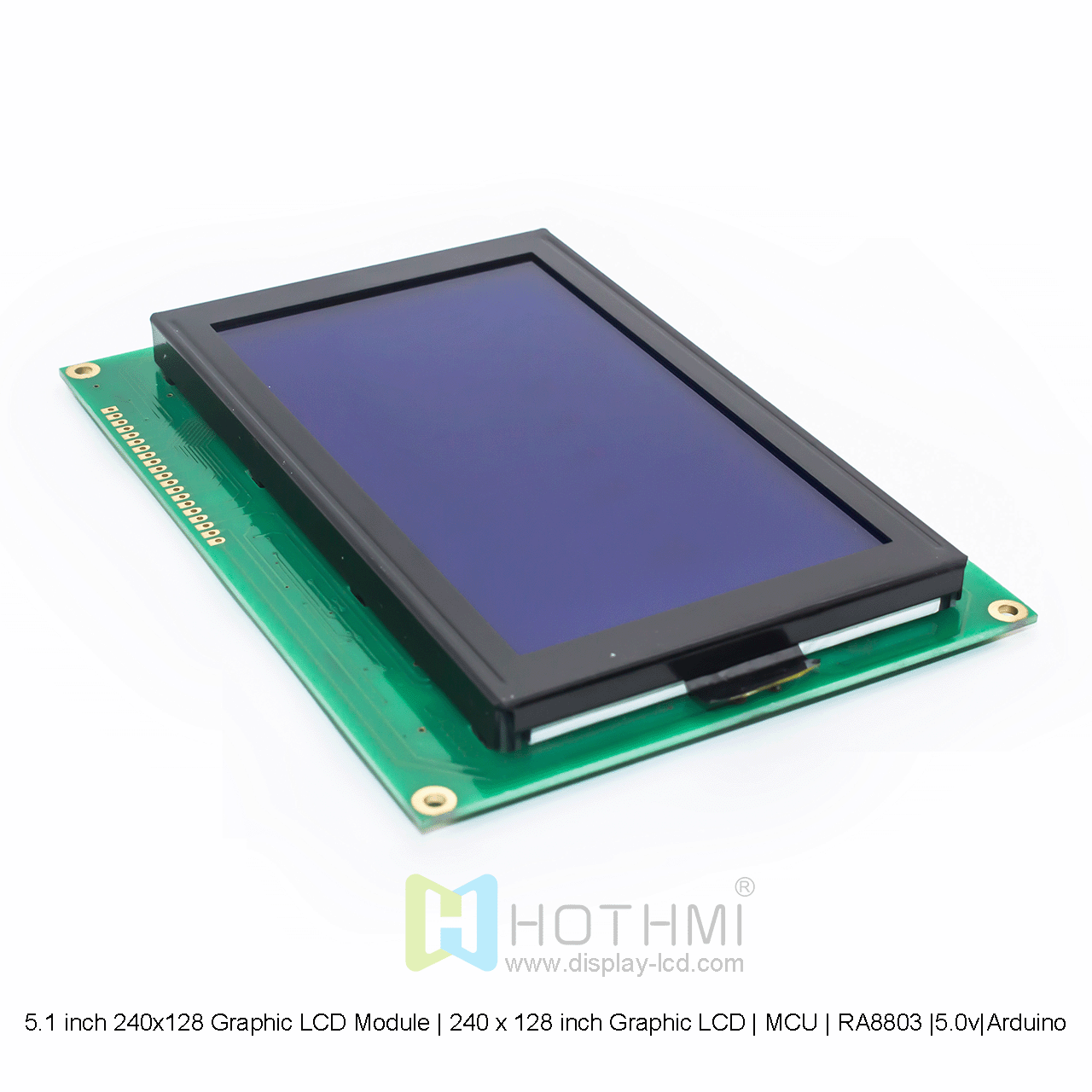

The 5.1 inch 240x128 Graphic LCD Module is a 5.1 inch monochrome, 240×128 dot matrix, COB (chip on board) graphic LCD module. In STN LCD mode wide temperature range (operating temperature: -20°C to 70°C, storage temperature: -30°C to 80°C), with yellow-green LED backlight, the overall display effect is gray background blue text. It has a six o'clock viewing direction and a semi-transparent reverse polarizer, recommended for indoor and outdoor applications. This product has negative voltage and is assembled on board chip with 1/128 Duty and controller IC RA8803 or equivalent. The interface type is parallel. This is a ROHS compliant product manufactured in accordance with ISO standards and procedures.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

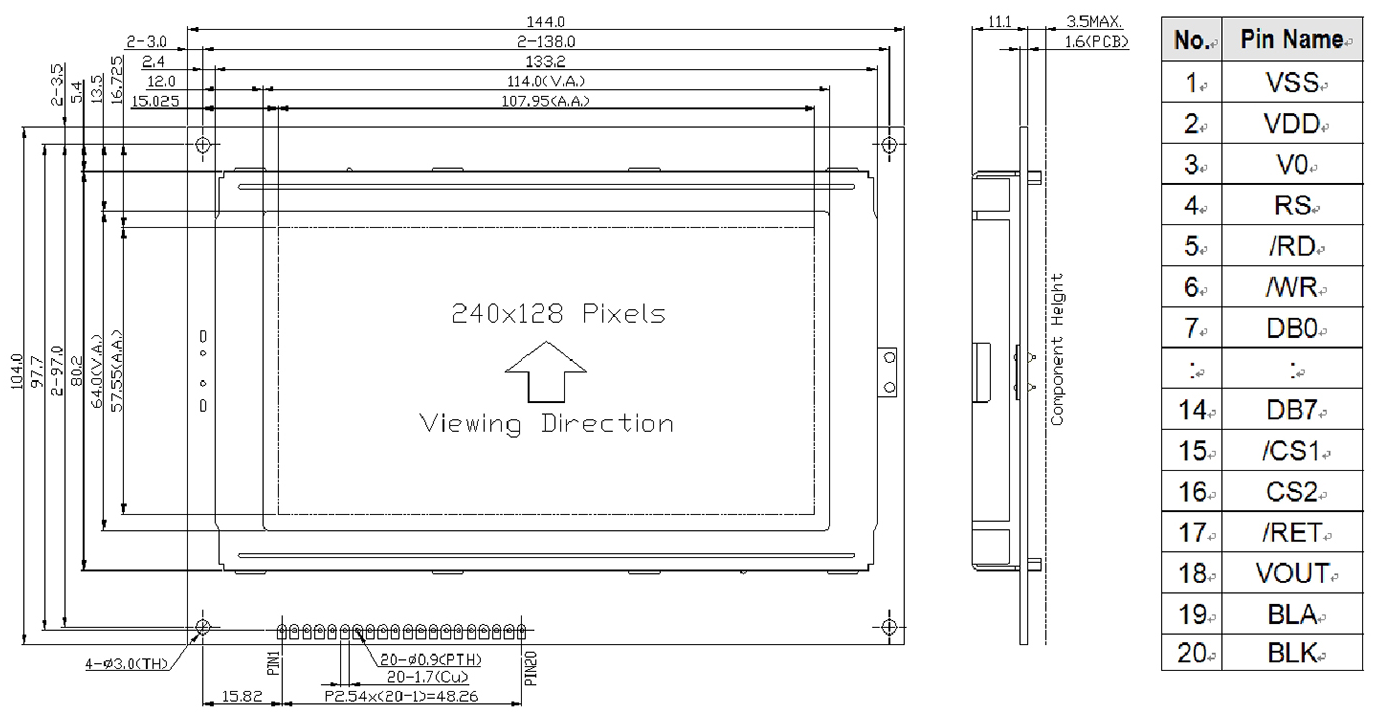

ITEM	PARAMETER	UNIT
Model	HTM240128Z-11Y-A5P
Resolution	240 × 128	dots
Module size	144.0 x 104.0 x 14.6 (MAX)	mm
Viewable (VA) area	114.0 x 64.0	mm
Active (AA) area	107.95 x 57.55	mm
Pixel pitch	0.45 x 0.41	mm
IC	RA8803
Applied voltage	5V	V
Backlight	Yellow-green
Display mode	STN(+)
Drive mode	1/128 duty cycle
Product type	Graphic LCD
Features	TRANSFLECTIVE
